How to Wire a Single Pickup Guitar Step-by-Step Guide
For a noise-free signal with minimal resistance, wire a lone magnetic coil directly to the output jack using braided shield ground wire. Use 22 AWG stranded tinned copper for hot and ground leads–this gauge balances flexibility and signal integrity. Solder connections at 60/40 rosin-core solder (0.71 mm diameter) to avoid cold joints. Heat each joint for no more than 3 seconds to prevent overheating the coil’s enamel insulation.
Ground the shielded wire’s drain at both the pot casing and bridge. If hum persists, add a 100nF polyester film capacitor between hot and ground near the jack–this filters residual 50/60Hz noise without affecting tone. Avoid daisy-chaining grounds; route each separately to the bridge for consistent shielding.
Test continuity with a multimeter (20kΩ range)–expect 5–15kΩ DC resistance for standard alnico sensors. If readings fluctuate, inspect solder joints for hairline cracks or enamel residue. For active configurations, power with 9V alkaline only; lithium cells introduce microphonic noise.
Mount the coil parallel to the strings, centered under the G or D string for balanced output. Misalignment causes uneven response–verify by plucking each string at fret 12 and comparing voltage (peak-to-peak) on an oscilloscope. Adjust height via wooden shims, not springs, to maintain stability.
One-Magnet Guitar Circuit Layout
Start by connecting the volume potentiometer’s center lug directly to the output jack’s hot terminal. This removes unnecessary components from the signal path, preserving high-frequency clarity. Use a 250K audio-taper pot for humbuckers or a 500K linear-taper for brighter tones–lower values muddy the signal, while higher ones exaggerate scratch. Ground the pot’s outer lug to the bridge or tailpiece via a short, shielded wire (18 AWG or thicker) to minimize interference.
For hum rejection, solder the magnet’s ground wire to the back of the volume pot’s casing before routing it to the jack’s sleeve. Avoid daisy-chaining grounds; instead, run a dedicated path from each grounded component to a single common point near the jack. This eliminates ground loops, which manifest as a dull hum at high gain settings. If noise persists, replace standard wires with braided shield cables, ensuring the shield connects only at one end to prevent loops.
When installing a coil-split switch (for dual-magnet instruments), wire the switch between the start and finish connections of one coil and the output lug. Use a DPST mini-toggle or push-pull pot for silent operation–momentary switches introduce pops. Keep the split wire under 3 inches to avoid capacitive tone loss. Test continuity with a multimeter: infinite resistance in split mode confirms the coil is disengaged.
For active circuits, place a 9V battery snap between the volume pot’s output lug and the jack’s hot terminal, with the negative lead soldered to the grounding point. Add a 0.01µF ceramic capacitor between the battery’s positive terminal and ground to filter power-supply noise. Use a low-current LED indicator (2V forward voltage) in series with a 470Ω resistor to monitor battery life–dimmable brightness signals weakening voltage.
To fine-tune resonance, experiment with parallel capacitors across the output. A 0.022µF film cap retains warmth without treble loss; a 0.047µF emphasizes midrange. For bass-heavy instruments, add a 10pF-47pF trimmer in series with the capacitor to adjust roll-off frequency. Secure all connections with heat-shrink tubing to prevent shorts–bare wires touching metal cavities cause dead spots at specific frets.
Essential Gear and Supplies for Installing a Solo Magnetic Sensor
Start with a soldering iron rated between 30 and 60 watts–any lower risks cold joints, while higher wattage can damage delicate components. Pair it with rosin-core solder (0.032″ diameter) for clean, conductive joins without corrosive residues. A multimeter set to continuity mode or 20kΩ resistance verifies connections before powering up; clamp-style probes save time during checks. Heat-shrink tubing (3/16″ diameter) in assorted lengths insulates joints better than electrical tape, while a heat gun ensures a tight seal without melting adjacent wires.
Component-Specific Requirements
Use 500kΩ potentiometers for hum-canceling magnetics to preserve high-end clarity, or 250kΩ for brighter tonal outputs. Oil-filled capacitors (.047µF for tone circuits) reduce microphonic noise compared to ceramic types. Pre-tinned copper wire (22 AWG) connects the sensor to the output jack with minimal signal loss; stranded variants resist breakage from vibration. For grounding, a star washer between the control plate and guitar body prevents buzz, while a shielded cable with foil wrap between sensor and electronics blocks RF interference.
Keep wire strippers with 12–20 AWG notches–improper stripping crushes thin strands. A desoldering pump or braided wick (2mm width) removes mistakes cleanly. Include a small Phillips screwdriver for control cavity plates and a precision flathead to adjust spring tension in tremolo-equipped instruments. For shielding cavities, conductive paint (nickel or copper-based) requires two coats, sanding lightly between applications; graphite paint is less durable. Store all components in anti-static bags until installation to prevent ESD damage.
How to Connect a Solitary Magnetic Sensor: A Concise Installation Walkthrough
Begin by stripping 5 mm of insulation from the ends of two 22-gauge stranded wires–one will carry the signal, the other serves as the ground. Crimp a 0.25″ female disconnect terminal onto each exposed conductor, ensuring no bare strands protrude past the metal sleeve. Verify the connections with a multimeter set to continuity mode; the reading should drop below 0.5 ohms when touching the terminals to exclude faulty crimps or broken conductors.
| Component | Required Specification | Tolerance |
|---|---|---|
| Potentiometer | 250 kΩ log taper | ±5% |
| Capacitor | 0.022 µF polyester film | ±10% |
| Output jack | Mono 1/4″ phone TS | Nickel-plated |
Solder the hot wire from the sensor directly to the center lug of the volume potentiometer–avoid excessive heat to prevent lifting the track. Attach the ground wire to the potentiometer’s case lug, then daisy-chain the same ground to the tone capacitor’s outer lug and finally to the sleeve contact of the output jack. Secure all connections with shrink tubing before seating components in the control cavity, clamping the wires with a thin layer of adhesive-backed copper foil to eliminate microphonic feedback under stage vibrations.

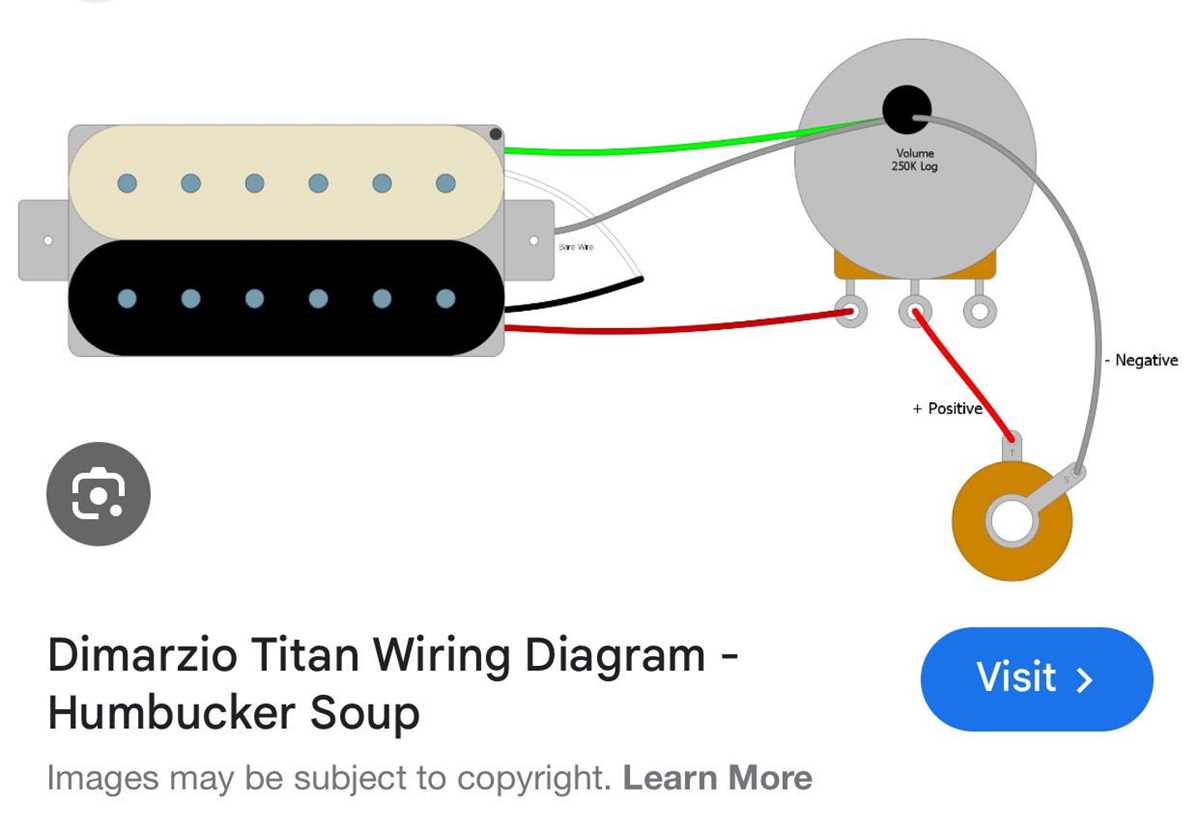

Wiring a Solo Humbucker to a Volume Control
Connect the humbucker’s hot lead to the pot’s input lug (typically the middle terminal). Solder the ground wire to the back of the pot’s casing or the unused lug if required. For standard 500K pots, use shielded coaxial cable between the component and output jack to minimize interference–avoid longer than 12 inches. If using a push-pull pot for series/parallel switching, wire the humbucker’s coil-split tabs to the DPDT switch’s additional contacts before attaching to the volume control.
Test connections with a multimeter: resistance between the output jack’s tip and sleeve should match the pot’s taper (log for smoother response, linear for consistency). Common faults include cold solder joints–reheat until the joint forms a shiny, concave surface. For noise reduction, ground the pot’s casing to the guitar’s bridge or shielding paint. If using a treble bleed circuit, add a 200pF capacitor and 150K resistor in parallel across the volume lugs to preserve high frequencies at lower settings.
Resolving Frequent Problems in Guitar Circuit Configurations
Check the grounding path first if hum persists at higher volumes. A broken or loose connection between the pot casing and bridge ground wire often creates a 60-cycle noise. Use a multimeter to verify continuity–resistance should read under 1 ohm. If values exceed this, sand the metal surfaces where the ground wire attaches to remove oxidation or paint.
Low output volume typically stems from a misadjusted height or a faulty capacitor. Confirm the volume knob turns smoothly; a scratchy response during adjustment indicates dirty contacts. Clean potentiometers with contact cleaner, then reassemble. If volume remains weak, swap the capacitor–values between 0.022µF and 0.047µF are standard for passive tone shaping.
Intermittent Signal Dropout
Loose solder joints on the output jack are a frequent culprit. Heat each joint with a soldering iron and apply fresh solder, ensuring no cold joints remain. If dropout persists, inspect the jack’s internal spring contact–bend it slightly inward to improve tension against the plug tip. Replace the jack if corrosion is visible on the contacts.
Phase cancellation creates thin, weak sound when neck and bridge coils interact, but this issue simplifies to a single-humbucker setup. Still, verify the coil magnet polarity by holding a screwdriver near the pole pieces–opposing poles will repel. If reversed, flip the magnet or rewire the connections to match standard north-up orientation.
Unexpected Noise After Modification
After altering controls, static or crackling may indicate poor shielding. Cover the inner cavity with adhesive copper foil, ensuring full coverage without gaps. Ground the foil to the back of a potentiometer. For hum that disappears when touching metal parts, reconnect any disconnected shielding wires–commonly overlooked during reassembly.
Tone control failure often traces to incorrect capacitor placement or wrong value. A 0.047µF capacitor rolled off too aggressively results in muddy sound; try 0.022µF for brighter response. If tone knobs have no effect, confirm the capacitor is soldered between the tone pot lug and the central wiper–crossed wires here disable the circuit entirely.
