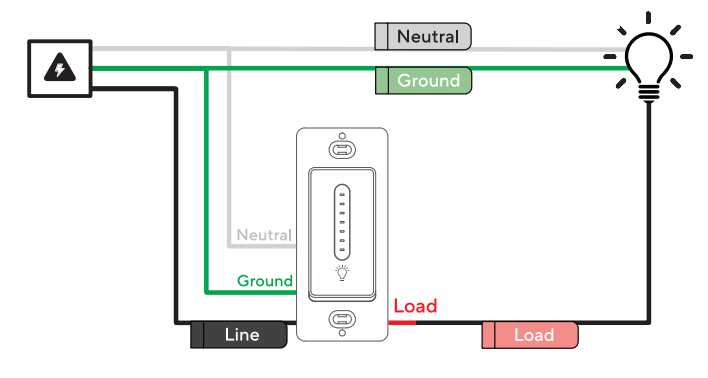

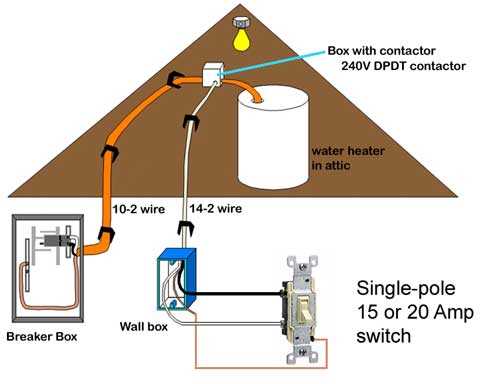

How to Wire a Single Pole Switch Step-by-Step Guide with Diagram
Begin by disconnecting the circuit breaker supplying power to the circuit you’ll modify. Confirm the absence of voltage using a non-contact voltage tester at both terminals of the existing control before proceeding. If the device is mounted in a metal junction box, ensure the box is securely grounded–this step prevents potential shorts or electrical hazards during installation.
For standard configurations, attach the live conductor (typically black or red) to the brass-colored screw of the mechanism. The neutral conductor (white) is not required for this setup but must be capped with a wire nut if present. Secure the ground wire (bare or green) to the green screw or directly to the box if metal. Tighten all connections with a screwdriver, ensuring no exposed wire extends beyond the screw terminal–loose strands can cause arcing or device failure.
When routing wires into the box, leave at least 6 inches of slack for future adjustments. Trim excess sheathing carefully to avoid nicking conductors. Fold wires neatly into the box to avoid pinching when securing the device–improper placement can damage insulation or disrupt contact. Test the installation by restoring power and verifying operation with the control in both positions. If the device fails to respond, recheck connections for correct polarity or signs of damage.
For dimming or smart variants, consult manufacturer specifications for additional wiring requirements. Some models demand a neutral connection or dedicated ground path. Always reference the included schematic for load limits–exceeding rated wattage risks overheating or voiding warranties. Store the manual near the installation for quick troubleshooting reference.
How to Install a Basic On/Off Control: Visual Guide
Start by identifying the live conductor in the circuit–typically a black or red insulated wire–and confirm it’s disconnected from the power source. Use a voltage tester to verify the absence of current before touching any wires. The neutral (white) wire should remain untouched, while the ground (green or bare) must be securely fastened to the device’s metal frame.
Connect the incoming live wire to the bottom screw terminal of the toggle mechanism, ensuring it’s tightly wrapped in a clockwise direction to prevent loosening. Route the outgoing conductor from the top terminal to the load–such as a light fixture–maintaining consistent color coding to avoid confusion. Secure all connections with wire nuts, then tuck excess wiring neatly into the electrical box to prevent short circuits.
Common Mistakes to Avoid
Never splice the live wire directly to the load without the control device in between; this creates a permanent on-state and violates safety codes. Ensure the bare grounding wire isn’t looped around other conductors, as this can cause interference or corrosion over time. If the device doesn’t function after installation, check for loose screws–just one turn too loose can break the circuit.
For dimmable fixtures, substitute the standard toggle with a compatible dimmer unit, but verify its wattage rating matches the bulb’s requirements. Modern LED bulbs often need low-load dimmers; exceeding the limit risks overheating or flickering. Always follow the manufacturer’s specific terminal layout–some devices have marked “line” and “load” sides, while others are reversible.
Essential Equipment for Basic Toggle Device Setup
Start with a non-contact voltage tester (sensitivity 50V–1000V AC). Cheaper models under $20 may fail near dim circuits–opt for brands like Klein Tools NCVT-3 or Fluke VoltAlert 1AC-II with self-test buttons. A multimeter (cat III 600V minimum) validates wire integrity post-installation; fluke 17B or Brymen BM257S cover most residential needs without unnecessary features. Avoid “auto-ranging” models for this task–they slow troubleshooting.
Critical Hand Tools and Consumables
Lineman’s pliers (8–9-inch) with insulated grips (Klein Journeyman or Knipex 09 02 240) cut 12-gauge copper cleanly–jagged ends risk nicking conductor insulation during bending. Use wire strippers with marked notch sizing (Klein Tools 11055 or IDEAL T-Stripper) for 14-12 AWG instead of generic knives–manual precision prevents core damage leading to hotspots. Secure connections with UL-rated wire nuts (Ideal 72B for two #12 or three #14); avoid “push-in” connectors in high-amperage circuits–they fail under 75% load tests. For grounding, pre-cut green grounding pigtails (6-inch, stranded #12 THHN) save time over manual cuts. Include electrical tape (3M Super 33+, 66-ft roll) exclusively for mechanical strain relief, never as primary insulation.
Box selection dictates installation ease: shallow remodeling boxes (Hubbell Raco 667, 3.5-inch depth) fit between 16-inch stud centers without drywall notching; deeper models require additional bracing. Verify knockout sizes match clamp connectors–Romex NM cables need ½-inch, armored cables use ¾-inch (Arlington NM840 or Bridgeport MMC-1). Pre-drill holes with a 1/8-inch carbide bit to prevent wall cracking if using toggle anchors. Keep fiberglass fish tape (Gardner Bender GFI-66) nearby for pulling circuits through hollow walls; avoid steel variants–they kink under tension and risk conductor scoring.
How to Install a One-Way Control Device: A Practical Walkthrough
Turn off the power at the circuit breaker before touching any cables. Verify the absence of current using a non-contact voltage tester on both terminals. Failure to do this risks severe injury.
Strip 6-8 mm of insulation from the ends of the incoming and outgoing wires. Use wire strippers for precision; cutting too deeply damages the copper, while leaving excess sheathing weakens the connection. Twist stranded wires clockwise to prevent fraying when tightening screws.
Connect the black (live) conductor from the power source to the brass-colored screw on the control device. Loop the wire clockwise around the screw post to ensure the screw tightens the loop rather than loosens it. Snug the screw securely–over-tightening can break the terminal.
Attach the black lead going to the fixture to the second brass screw in the same manner. Secure the white (neutral) conductors together in the electrical box using a wire nut, ensuring all strands are fully inserted and none protrude. Fold the bundled wires neatly into the box.
Ground the device by connecting the bare or green grounding wire to the green screw. If the box is metal, add a grounding pigtail from the box to the same screw. Tug gently on each connection to confirm they hold.
Mount the control device into the box with the provided screws, aligning it straight. Restore power at the breaker and test with the voltage tester before flipping the actuator. If the fixture responds correctly, install the faceplate; if not, recheck every connection starting with the power off.
How to Identify Live, Return, and Earth Conductors in an Electrical Setup
Use a non-contact voltage tester to locate the live conductor first–it will trigger an audible or visual alert when near an energized wire. Most residential circuits in North America follow the NEC color code: black or red for live, white for return, and bare copper or green for earth. However, in older installations, colors may deviate–verify using a multimeter set to AC voltage. Measure between the suspected live wire and a known earth point (e.g., a grounded outlet box); a reading of 120V (or 240V in split-phase systems) confirms the live conductor.
For the return wire, check continuity with the neutral bus bar in the service panel–it should register near-zero resistance. If the circuit is energized, measure between the live and suspected return: the voltage should match the system’s nominal value (e.g., 120V). Avoid assuming a white wire is always neutral–knob-and-tube or two-wire circuits often repurpose it as a live conductor. In such cases, trace the wire back to its origin or use a circuit tracer to confirm its path. Ground wires can be identified by their bare or green insulation, but in metal conduit systems, the conduit itself may serve as the grounding path–use a continuity test between the conduit and a known ground to verify.
| Conductor Type | Standard Color (NEC) | Alternative Colors (Common Outside US) | Verification Method |
|---|---|---|---|
| Live | Black, Red | Brown (IEC), Blue (with red stripe) | Voltage tester (120V/240V to ground) |
| Return | White | Blue (IEC), Black (UK) | Continuity to neutral bus; voltage match to live |
| Earth | Bare, Green | Green/Yellow (IEC) | Continuity to ground rod or conduit; no voltage to live |
In mixed wiring systems (e.g., conduit with Romex), prioritize testing over color assumptions. For multi-phase setups, live conductors phase at 120° intervals–label them by phase (L1, L2, L3) using a phase rotation meter. If retrofitting, document findings with a label maker or colored tape to prevent future misidentification. Always de-energize the circuit before handling wires, and recheck connections before restoring power.
Common Errors When Installing a Basic Light Control
Reversing the hot and neutral conductors during installation creates a safety hazard. The brass-colored screw must connect to the live wire, typically black or red, while the silver screw secures the return path. Swapping these leads to a circuit that appears functional but retains voltage in the fixture even when turned off, increasing shock risk.
Skipping stripping insulation properly causes unreliable contact. Expose exactly 5/8 inch of copper; less prevents a solid grip, while excess strands can short against adjacent terminals. Use wire strippers calibrated for 14 or 12 AWG–never scissors–to preserve wire integrity.
Incorrect Ground Handling
Leaving the ground screw unconnected violates electrical codes. Attach the bare or green ground wire to the green screw; this redirects fault current safely to earth instead of energizing metal parts. In metal boxes, also bond the box itself to ground using a pigtail.
- Twisting wires too loosely before securing them under terminal screws results in intermittent operation.
- Over-tightening terminals can strip the screw threads or break the wire strands.
- Covering bare ground wires with electrical tape hides potential short circuits.
Ignoring local code requirements for box fill leads to overheating. Each 14 AWG conductor counts as two cubic inches; adding two devices plus grounds in a standard 4-inch square box exceeds capacity. Calculate volume using the markings on the box itself or refer to NEC Table 314.16(A).
Tool and Material Missteps
- Using non-rated push-in connectors instead of terminal screws in older installations increases failure rates.
- Substituting 18 AWG lamp cord for circuit wiring melts insulation under load.
- Applying power before confirming continuity with a multimeter risks damaging dimmers or smart modules.
Failing to label wires before disconnecting the old mechanism complicates troubleshooting. Photograph the existing connections, note wire colors, and use masking tape to mark each terminal before removal. Rechecking polarity with a non-contact voltage tester ensures correct reconnection.
