How to Connect Skar Audio RP 12001D Amplifier Step by Step Guide
For optimal performance, link the amplifier’s RCA inputs directly to the head unit’s subwoofer preouts–avoid splitting signals or using adapters unless impedance-matched. The 0.2V–8V sensitivity range demands exact voltage calibration: set gain via a multimeter, targeting 12V RMS at 4Ω for maximum output without clipping. Failure to verify this risks thermal shutdown within 90 seconds under sustained bass loads.
Grounding is non-negotiable. Secure the negative terminal to bare metal chassis points, sanded free of paint or corrosion, within 18 inches of the amplifier. Use 4-gauge OFC copper cable (or thicker) for both power and ground–aluminum or undersized wiring introduces resistance, throttling current delivery and causing audible voltage drops. Route power cables away from RCA/control wires to block engine noise; maintain 6+ inches of separation or shield with split loom tubing.
Load wiring differs by configuration. For dual 2Ω subwoofers, bridge coils in parallel to present 1Ω to each channel, but confirm the amplifier’s stability at this impedance–continuous operation at
Remote turn-on requires a dedicated 12V signal, typically sourced from the head unit’s accessory wire. If the head unit lacks this, splice into the ignition-switched circuit using a 1A fuse to prevent parasitic drain. Add a relay if the wiring run exceeds 12 feet to avoid voltage sag. For troubleshooting, probe connections with a test light: power and ground should illuminate brightly, while turn-on wires show dimmer activation.
Subsonic filters should match enclosure tuning. Ported designs need a 25–35Hz high-pass to prevent over-excursion, while sealed boxes benefit from a sharper 35–45Hz cut. Adjust crossover slopes to 12dB/octave for clarity; slopes steeper than 24dB introduce phase shifts, muddying mid-bass response. Verify final settings with a sine wave test at 50% gain–clean output confirms proper alignment of components.
Connecting Your RP-1200.1D Monoblock Amplifier: Key Configurations
Begin by identifying the amplifier’s terminal layout. The RP-1200.1D features a single-channel 1-ohm stable design, so ensure your subwoofer’s impedance matches this specification. If wiring dual voice coil (DVC) subs, parallel connections will achieve the required 1-ohm load. Validate subwoofer impedance before proceeding–mismatches risk overheating or reduced output.
Use 4 AWG power wire for the main power and ground connections. Thinner gauges introduce resistance, diminishing performance. Connect the positive terminal directly to the car battery’s positive post, avoiding fuse taps or intermediate circuits. For grounding, select a bare metal chassis point near the amplifier, sanding paint or corrosion to ensure a solid connection. Secure both connections with a 150-amp fuse within 18 inches of the battery.
Recommended wiring steps:
- Strip ½ inch of insulation from power and ground cables.
- Crimp terminal connectors securely–loose fits cause voltage drops.
- Apply dielectric grease to terminals to prevent oxidation in humid conditions.
- Tighten connections with a torque wrench (12-14 in-lbs for copper terminals).
For RCA inputs, use shielded twisted-pair cables to minimize noise. Avoid running signal wires parallel to power cables–cross them at 90-degree angles if they must intersect. If the system exhibits alternator whine, relocate RCA cables away from power lines or install a ground-loop isolator between the head unit and amplifier.
The RP-1200.1D includes high-level inputs for factory radios. Connect these to the speaker outputs of the radio using 18-gauge wire. The amplifier auto-senses the input signal, eliminating the need for RCA converters in basic setups. Verify input sensitivity settings–default is 200mV, but adjust to 4V if using aftermarket head units with higher output.
Remote turn-on requires a 12V trigger from the radio’s antenna output or a dedicated wire. If the head unit lacks this feature, splice into the ignition wire or add a switch. For multiple amplifiers, use a relay to distribute the turn-on signal without overloading the radio circuit. Ensure the remote wire connects to the labeled “REM” terminal–reversing polarity will prevent the amplifier from powering on.
Prevent signal distortion by confirming all connections are tight before powering the system. Use a multimeter to test:
- Battery voltage (12.6V+ when engine off, 13.8-14.4V when running).
- Ground-to-chassis resistance (<0.5 ohms).
- RCA continuity (no shorts between signal and ground).
If voltage sags under 11.5V during bass hits, upgrade the alternator or add a secondary battery.
Finalize setup by tuning the amplifier’s built-in crossover. Set the subsonic filter to match the subwoofer’s resonant frequency (typically 20-30Hz). Adjust the low-pass filter to 80-100Hz for seamless integration with midrange speakers. Test with sine-wave tones at half volume before full-power playback to avoid damaging subs during calibration.
Connecting the RP Series Monoblock Amplifier: A Detailed Guide
Before handling any components, ensure the power source is disconnected. Locate the amplifier’s terminal block–identified by +12V, GND, and REM labels. Use 4 AWG copper cable for the main power feed, securing it with a ring terminal crimped and soldered for optimal conductivity. The ground cable must be attached to the chassis of the vehicle, ideally within 18 inches of the amplifier, using the same gauge wire to prevent voltage drop.
Signal input requires RCA interconnects with shielded insulation. Connect the subwoofer-level outputs from the head unit to the amplifier’s “Input RCA” jacks. For models equipped with high-level inputs, splice the speaker wires from the factory radio into the “High-Level Input” terminals, observing polarity (positive to positive, negative to negative). Use a multimeter to verify voltage–approximately 0.5V to 2V on the input side–before proceeding.
Speaker Output Configuration
| Wire Gauge | Impedance (Ohms) | Recommended Connection |
|---|---|---|
| 12 AWG | 1 Ω | Dual voice coil subwoofers (parallel) |
| 10 AWG | 2 Ω | Single voice coil (4 Ω) or dual (series) |
| 8 AWG | 4 Ω | Multi-subwoofer setups (series-parallel) |
Attach the subwoofer’s positive lead to the “+” output terminal and the negative to “–”. For bridged operation, combine the positive of one channel with the negative of another, reducing impedance–only attempt this if the amplifier’s manual explicitly permits bridged mode at the target ohm load. Secure all connections with a torque screwdriver set to 8 in-lbs to avoid loose terminals.
Finally, reconnect the power source and test with a 50Hz sinewave signal at low volume. Observe the amplifier’s clipping indicator–solid or blinking lights signal distortion. Adjust gain incrementally until the output remains clean at 75% of the head unit’s maximum volume. If thermal protection engages, verify airflow around the amplifier and ensure the vehicle’s electrical system supports the RMS draw (approximately 50A at full load).
Essential Equipment for Setting Up Your High-Power Monoblock
Begin with a 4-gauge oxygen-free copper cable kit, including power and ground wires, RCA interconnects, and a remote turn-on lead. Avoid thinner gauges–they overheat under sustained loads above 800W RMS. Pre-terminated kits save time but verify crimp quality; loose connections cause voltage drops.
Use a 100-amp ANL fuse within 18 inches of the battery’s positive terminal. Slow-blow fuses won’t protect transient spikes; ANL types handle momentary surges better. For lithium battery systems, match fuse amperage to the battery’s continuous discharge rating.
Select speaker wire rated for 300W+ RMS, preferably 10-12 AWG twisted pair with silicone jacketing. Avoid CCA (copper-clad aluminum)–its resistance rises under load, wasting energy as heat. Pre-tinned wire resists corrosion in humid environments.
An insulated crimp tool with dies for 4-8 AWG is mandatory. Cheap pliers crush terminals, creating high-resistance joints. For soldered connections, use rosin flux and 60/40 lead-tin solder; acid flux corrodes copper over time.
Ground the amplifier to a bare metal chassis point within 3 feet, sanded to bare steel. Paint or powder coating acts as an insulator. Star washers between the ground wire and chassis prevent loosening from vibration.
Install a capacitor if voltage dips below 11.8V under full load. Match its farad rating to 1x the amplifier’s RMS output (e.g., 1-farad for 1000W). Skip caps for stable charging systems–excess capacitance stresses alternators.
Additional Hardware for Stability

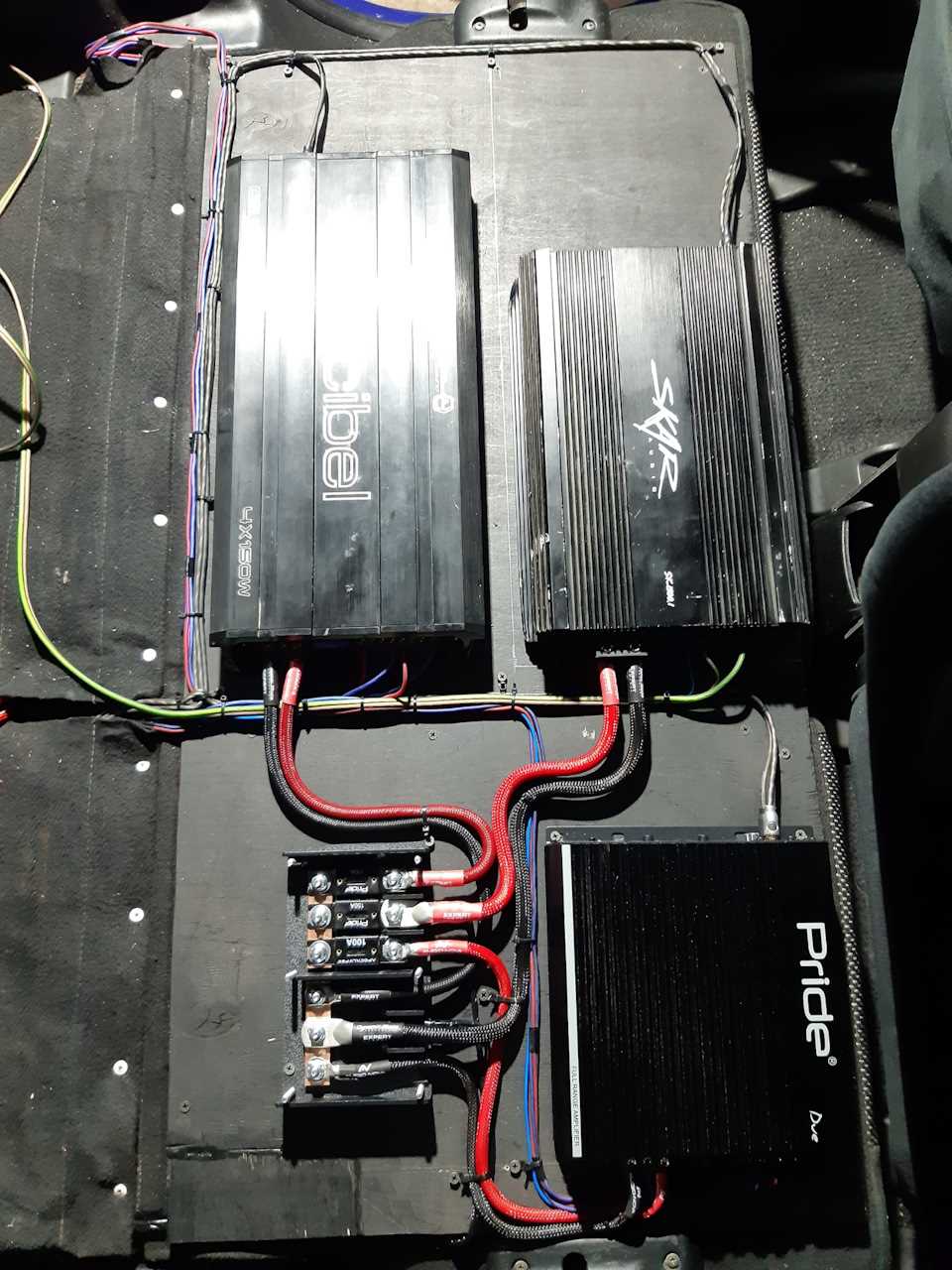

Mount the amplifier on a non-conductive board (plywood or composite) to prevent short circuits. Use rubber grommets where wires pass through metal panels to prevent chafing. Heat-shrink tubing seals connections; electrical tape fails under UV exposure.
Test connections with a multimeter before powering on. Measure voltage drop across power and ground wires–values above 0.5V indicate poor joints. Frequency response tests at 50Hz and 2kHz ensure crossover adjustments are accurate.
How to Properly Ground the RP-1200 Monoblock for Peak Efficiency
Use a minimum 4 AWG copper wire for grounding, connecting directly to the vehicle’s chassis within 18 inches of the amplifier’s mount point. Avoid factory ground points or bolt-sharing locations; instead, drill a dedicated hole in unpainted metal, removing rust, paint, or corrosion with a wire brush before securing the ring terminal with a stainless steel bolt and star washer. A loose or corroded connection increases resistance, causing voltage drops, overheating, or distortion at high output levels.
Test ground integrity with a multimeter: probe between the amp’s negative terminal and the chassis–readings should stay below 0.5 ohms. If values fluctuate or exceed this threshold, re-clean the contact surface or relocate the ground point farther from electrical interference sources like fuel pumps, ECUs, or relay clusters. For vehicles with composite body panels, route the ground wire to the nearest structural frame rail or subframe, verifying conductivity with a continuity test before finalizing the connection.
Advanced Grounding Techniques for Demanding Setups
In high-current systems (>80A draw), bond the amplifier’s ground to multiple chassis points using parallel 4 AWG wires to reduce inductance. Space connections at least 6 inches apart to prevent current loops, and apply dielectric grease to the terminals to inhibit oxidation. For competition builds, isolate the ground from signal grounds (RCA shields) by using a separate path to the battery’s negative terminal, minimizing ground loop hum. Verify stability under load with an oscilloscope: ripple voltage should remain under 50mV peak-to-peak across the amplifier’s entire operating range.
