How to Build a Smart Energy Meter Step-by-Step Circuit Guide

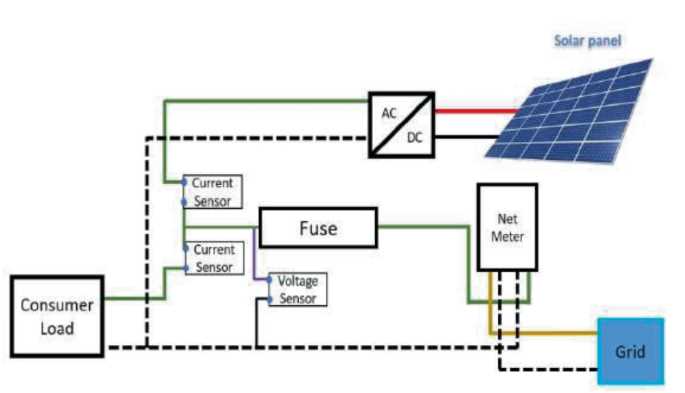

Start with a microcontroller–an STM32F103 or ATmega328P provides sufficient processing power for real-time consumption tracking while balancing cost and efficiency. Pair it with an ACS712 Hall-effect sensor (20A variant) to measure current draw without direct circuit intrusion. Ensure the sensor’s output feeds into an ADC pin with a 10-bit resolution or higher for detectable readings down to 10mA.
For voltage sensing, use a step-down transformer (230V to 6V) followed by a precision rectifier circuit. A voltage divider with 0.1% tolerance resistors (e.g., 10kΩ and 1kΩ) scales the 6V AC down to a safe DC range for the microcontroller’s ADC. Add a 100nF decoupling capacitor near the microcontroller’s power pin to suppress noise from fluctuating loads.
Integrate a DS1307 RTC module to timestamp consumption data, storing readings in an I2C-connected EEPROM (24LC256) if local logging is needed. Alternatively, transmit data wirelessly via an ESP8266 module (Wi-Fi) or HC-05 (Bluetooth), ensuring the transceiver operates on a separate 3.3V rail to avoid interference. Pull-up resistors (4.7kΩ) on I2C lines prevent signal degradation over longer traces.
Avoid common pitfalls: Use isolation techniques (e.g., optocouplers) between high-voltage and logic sections to prevent ground loops. Calibrate the system with a known load–e.g., a 100W incandescent bulb–to verify sensor accuracy. For inductive loads, add a flyback diode across relay coils to protect against voltage spikes.
Post-processing requires minimal code: sample the ADC at 10Hz, apply a moving average filter (window size 5–10) to smooth readings, and format data into CSV or JSON for cloud uploads. Power the entire setup via a 5V/1A linear regulator (LM7805) to ensure stable operation, decoupling the input and output with 10µF electrolytic capacitors.

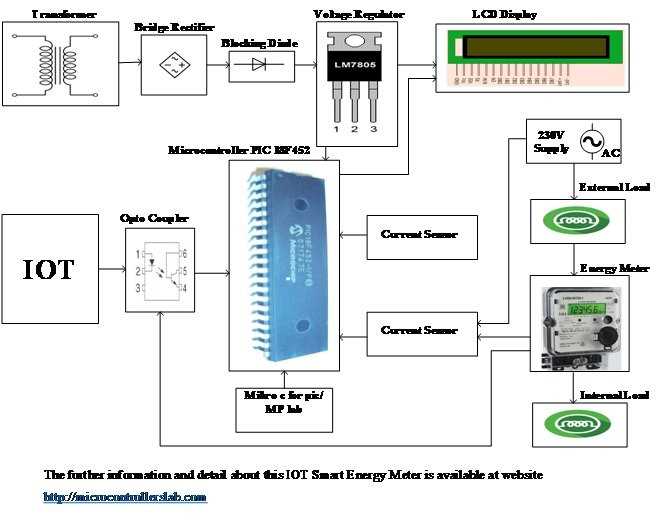

Intelligent Power Monitoring System Blueprint
Integrate an ESP32 microcontroller with a PZEM-004T sensor for precise real-time consumption tracking. Connect the sensor’s voltage and current pins to the ESP32’s GPIO 34 and 35, respectively, ensuring stable 3.3V power from the board. Use a 1000µF capacitor across the sensor’s power inputs to filter noise–critical for accurate readings in high-load environments. Flash the ESP32 with Tasmota firmware to enable MQTT communication, allowing seamless data transmission to a local broker like Mosquitto. Configure the broker’s retention settings to store only the last 24 hours of data, reducing storage overhead while maintaining historical trends.
Component Assembly and Calibration
Solder the PZEM-004T’s shunt resistor to 5A for residential use or 50A for industrial applications–replace with a 75mV shunt for custom ranges. Attach a 1N4007 diode between the sensor’s TX/RX lines and the ESP32 to prevent reverse voltage spikes. During calibration, apply a known load (e.g., 100W incandescent bulb) and adjust the firmware’s scaling factors until readings match ±0.5% of a reference multimeter. For deployment, enclose the setup in a DIN-rail mountable case with a 2.4GHz antenna extended externally to avoid signal attenuation from metal housings.
Essential Parts for Crafting an Advanced Measurement System
Start with a microcontroller unit (MCU) like the STM32F4 or ESP32. These process real-time readings, handle communication protocols (Wi-Fi, LoRa, or cellular), and run algorithms for load balancing. Ensure the MCU has sufficient ADC resolution–12-bit minimum–for accurate signal capture. Pair it with EEPROM or Flash memory (≥8KB) to store consumption logs without constant power.
A current transformer (CT) with a split-core design simplifies installation on existing wiring. Opt for models with 5A/333mV output for compatibility with low-power MCUs. For voltage sensing, use a voltage divider (resistors rated ≥2W) coupled with an isolation amplifier to protect the MCU from line transients. Include a TVS diode (e.g., SMAJ18A) across the divider to clamp surges.
Power supply stability dictates reliability. Use a flyback converter (e.g., LT8302) for isolated 5V/3.3V rails from mains, or a supercapacitor-backed LiPo battery for blackout resilience. Add a watchdog timer to reset the system if firmware hangs, alongside optocouplers (like PC817) for galvanic isolation between high-voltage sections and logic.
For data transmission, integrate sub-1GHz RF modules (e.g., CC1101) for long-range, low-power links or LoRa modules (RAK811) for urban deployments. Secure communication with AES-128 encryption on the MCU. Include a real-time clock (RTC) (DS3231) for timestamped readings and interrupt-driven sampling to reduce MCU load during idle periods.
Step-by-Step Wiring Guide for Microcontroller Integration
Begin by identifying the power supply requirements of your control unit. Most AVR and ARM-based processors operate at 3.3V or 5V. Use a regulated DC source with a tolerance of ±5% to prevent voltage fluctuations. Connect the VCC pin directly to the power rail and the GND pin to the common ground plane. Avoid sharing ground paths with high-current loads like relays or motors to minimize noise interference.
For input signal conditioning, isolate analog sensors with operational amplifiers configured as voltage followers or non-inverting amplifiers. A typical setup includes a 10kΩ resistor in series with the sensor output and a 100nF ceramic capacitor to ground for filtering. Reference the table below for common sensor interface configurations:
| Sensor Type | Recommended Op-Amp | Gain Setting | Filter Capacitor |
|---|---|---|---|
| Voltage divider (AC) | LM358 | 1x (Buffer) | 100nF |
| Shunt resistor (DC) | MCP6002 | 10x (Non-inverting) | 47nF |
| Hall-effect (Pulse) | TL072 | 1x (Buffer) | None |
When routing data lines to the microcontroller, prioritize short traces and perpendicular crossings over parallel runs longer than 25mm. For SPI or I2C buses, terminate clock (SCL) and data (SDA/MOSI) lines with 4.7kΩ pull-up resistors to VCC. If using UART, connect the TX pin of one device to the RX pin of the other with a 220Ω series resistor to limit current during transient states.
For output control, use optocouplers like PC817 or solid-state relays (SSR) for loads exceeding 10mA. Connect the microcontroller’s GPIO pin to the optocoupler’s LED anode via a 330Ω resistor, and the cathode to ground. The optocoupler’s transistor output should drive the load with a separate power source to maintain isolation. Ensure the load’s flyback diode is rated for 1.5x the peak voltage.
Implement a watchdog timer to reset the microcontroller during firmware hangs. Use an external IC like MAX6373 or configure the internal watchdog if available. Connect the reset pin (RST) through a 10kΩ pull-up resistor to VCC, with a 1µF capacitor to ground for debounce. Program the timeout period to 500ms for most applications, doubling the interval if the processor handles critical tasks.
Test all connections with a multimeter in continuity mode before powering on. Verify signal integrity with an oscilloscope for pulsed outputs, ensuring rise times below 1µs and no overshoot beyond 10% of VCC. Power the system in stages, starting with the control unit, then sensors, and finally outputs, to isolate faults efficiently.
Voltage and Current Sensing Techniques for Precision Measurement Systems
Select shunt resistors with low TCR (temperature coefficient of resistance) values below 50 ppm/°C to minimize thermal drift in high-precision applications. Copper-manganese alloys like Manganin or Zeranin offer stable performance across 0–120°C ranges, critical for industrial environments where ambient conditions fluctuate. For currents exceeding 50A, consider surface-mounted metal strip shunts with four-terminal Kelvin connections to eliminate lead resistance errors–typical error margins drop to ±0.1% compared to ±0.5% with two-terminal designs.
Hall-effect sensors provide galvanic isolation but introduce nonlinearity at low currents due to magnetic hysteresis. Compensate with a lookup table or polynomial calibration for ranges below 10% of full scale. Closed-loop Hall sensors with integrated flux concentrators reduce this effect but increase cost by 3–5×. For AC-only applications, Rogowski coils offer linear response without saturation, but require an integrator circuit–ideal for transient capture in frequencies up to 1 MHz, though prone to EMI if shielded improperly.
Voltage division must pair high-impedance inputs with precision resistors. Use 0.1% tolerance, 15 ppm/°C film resistors in a 10:1 ratio for 230V systems, ensuring the measurement path draws less than 100 μA to avoid loading effects. For floating measurements, differential amplifiers with CMRR > 90 dB reject common-mode noise up to 1 kV RMS. Isolate signals via capacitive coupling if transients exceed 2 kV, but note the bandwidth limitation to ~10 kHz.
- Avoid solder joints in high-current paths–use press-fit or welded connections to prevent resistance drift over time.
- For digital signal processing, sample at 10× the Nyquist rate (e.g., 1 kHz for 50 Hz grids) to capture harmonics up to the 20th order.
- Thermal EMF in dissimilar metal junctions (e.g., copper-tin) can introduce 1–5 μV/°C errors–use homogeneous materials or thermocouple-grade connectors.
- Ferrite beads or common-mode chokes suppress switching noise from nearby converters but may attenuate signals above 100 kHz.
Optical isolation via voltage-to-frequency converters or electro-optical relays eliminates ground loops but adds latency (5–20 μs) and requires regulated power for LED light sources. For DC, resistive dividers suffice, but for AC, transformers with toroidal cores reduce leakage inductance–select cores with saturation above 1.5× peak voltage to avoid waveform distortion. In three-phase systems, delta-wye transformations during signal conditioning simplify calculations, but neutral current sensing demands a fourth channel if unbalanced loads exceed 5%.
Calibration must account for component aging; drift rates for resistors and capacitors average 50–200 ppm/year. Store correction factors in EEPROM and apply updates during zero-crossing intervals to avoid transient errors. For revenue-grade accuracy (±0.2%), implement automatic compensation using a reference voltage source, such as a 2.5V LDO with 5 ppm/°C drift, compared against the sensed signal at startup. Periodic self-tests should include both DC and AC stimuli to verify full-scale response and phase alignment within ±0.1°.
