Soft Starter Circuit Design Guide with Wiring and Component Details

For three-phase induction motors up to 75 kW, a thyristor-based current limiter reduces inrush spikes by 70–90%. Use two back-to-back SCR pairs per phase in a delta or star configuration, firing at 30°–150° conduction angles. Gate pulses should lag 120° apart with a ramp-up time of 5–10 seconds. Place RC snubbers–100 nF and 100 Ω–across each SCR to clamp transients below 200 V/µs.

Control logic requires a microcontroller or dedicated ramp generator IC (e.g., UCC21520) feeding isolated gate drivers like TLP250H. Optocouplers ensure 5 kV isolation; opt for 10 kΩ pull-up resistors on MCU outputs to prevent false triggering. Monitor current via 30 A Hall-effect sensors (ACS712) for closed-loop feedback–adjust firing angles if motor current exceeds 120% of full load for more than 2 seconds.

Thermal protection mandates an NTC thermistor (10 kΩ at 25 °C) mounted on the heatsink or motor housing. Trigger a shutdown at 80 °C. Overvoltage suppression relies on a bidirectional TVS diode (P6KE36CA) across DC bus lines–select breakdown voltages 10–15% above nominal line voltage. Keep trace inductance below 5 nH/cm; route high-current paths with 3 oz copper on a two-layer PCB (4 mm width for 20 A).

Test the setup with a resistive load bank (e.g., 5 Ω, 100 W) before motor connection. Verify SCR commutation at 50 Hz and 60 Hz; anti-parallel diodes (1N4007) prevent false conduction during zero-cross gaps. For motors above 30 kW, add a pre-charge relay bypass after ramp completion to eliminate thyristor losses–aim for less than 2% voltage drop across the device while operating.

Designing an Efficient Motor Ramp-Up Solution

Integrate a three-phase thyristor bridge with antiparallel SCRs per phase for precise voltage regulation during acceleration. Use a microcontroller (e.g., STM32F4) to generate synchronized gate pulses via isolation transformers or optocouplers (MOC3041) to prevent back-EMF damage. Ensure the initial firing angle is set to 150–160° (relative to zero-crossing) to limit inrush currents to 300–400% of full-load amperage, gradually reducing to 0° over 2–10 seconds based on motor inertia. Include a bypass contactor (AC-3 rated) to shunt the SCRs after ramp completion, reducing thermal losses by 25–35%.

Add a dedicated snubber network (0.1µF/1200V polyester capacitor + 100Ω/5W resistor) across each SCR to suppress voltage transients exceeding 1.5× line voltage. Incorporate current feedback via hall-effect sensors (ACS712) or shunt resistors (50mV/100A) feeding the microcontroller’s ADC–trigger an instant trip if current exceeds 120% FLA for >200ms. For diagnostics, log firing angles, ramp duration, and thermal data via UART to a supervisory system, with alarms for phase imbalance (>5%) or SCR conduction failures. Avoid PWM-based designs; thyristor phase-angle control outperforms them in >10kW applications by eliminating harmonic distortion and reducing dv/dt stress.

Critical Elements of a Gradual Power Initiation System

Prioritize thyristor-based modules as the core switching mechanism. These semiconductor devices regulate voltage by phase-angle control, reducing inrush currents by 70-90% compared to direct-on-line methods. Select models with built-in thermal protection and snubber circuits to prevent voltage spikes exceeding 1.5× nominal during commutation. Ensure compatibility with motor ratings–oversized components waste energy; undersized risk premature failure.

Integrate bypass contactors rated for at least 125% of full-load current. Position them downstream of the semiconductor array to engage once acceleration completes–typically within 2–10 seconds, depending on inertia. Use silver-alloy contacts to minimize arcing and specify coils with DC or AC control matching system voltage (24V–690V) to avoid coil burnout. Avoid mechanical linkages; opt for solid-state relays for faster response.

Include overload relays with adjustable trip classes (Class 10–30). Set pickup time to 3× current for 10–30 seconds to protect against thermal damage without nuisance tripping. For motors >50HP, add current transformers with 5A secondary output to interface with relays, ensuring accurate scaling. Never omit differential protection for delta-wound motors–phase imbalance exceeding 5% mandates immediate shutdown.

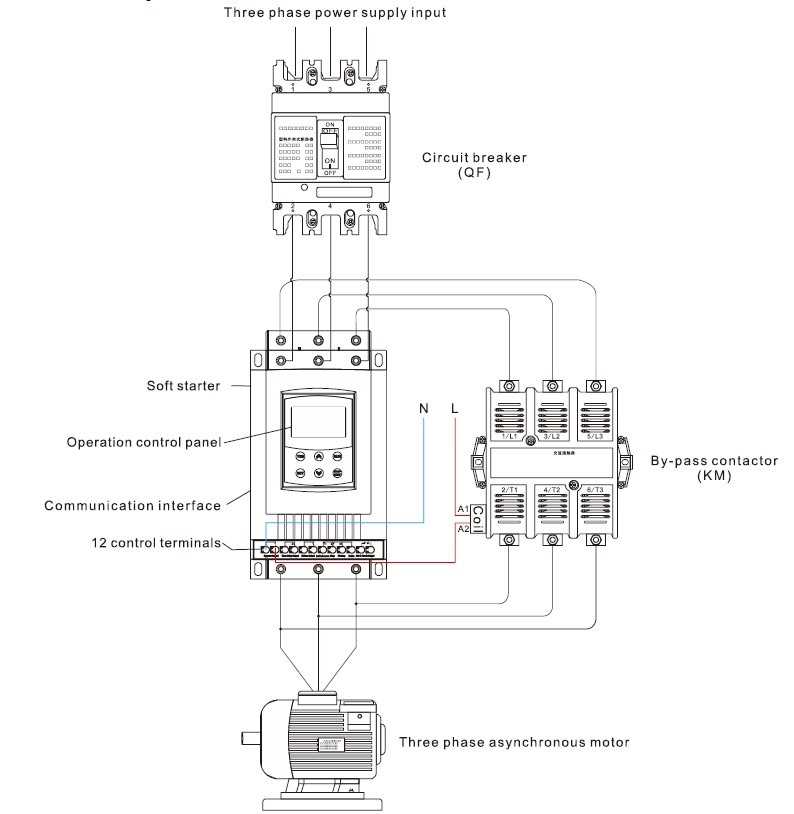

Step-by-Step Wiring for 3-Phase Motor Ramp-Up Module

Begin by connecting the main power supply terminals (L1, L2, L3) to the input side of the ramp-up device using 6 AWG copper wiring for motors up to 10 HP. Ensure the phase sequence matches the motor’s rotation direction–swap any two leads if reverse rotation is detected. For motors above 10 HP, upgrade to 4 AWG or thicker based on the manufacturer’s derating curve. Label each conductor with heat-shrink sleeves to prevent misconnection during maintenance.

1. Wire the output terminals (T1, T2, T3) of the ramp module directly to the motor’s stator windings. Use crimp connectors with insulation rated for 90°C minimum to handle inrush currents.
2. Install a bypass contactor in parallel to the ramp unit, sized for 125% of the motor’s full-load current. The bypass should engage after the motor reaches 90% of synchronous speed, reducing thermal stress on the ramp components.
3. Ground the motor frame and ramp enclosure using a 10 AWG green/yellow conductor, bonded to the system ground busbar at a single point to avoid circulating currents.

For adjustable acceleration, wire a 10kΩ potentiometer between the ramp module’s reference pins. Set the initial ramp time to 5 seconds for standard loads; increase to 10–15 seconds for high-inertia applications like fans or compressors. Avoid exceeding 20 seconds, as prolonged startup may overheat the semiconductors. Use a true RMS clamp meter to verify line currents during operation–they should not exceed 300% of the motor’s nameplate amperage at any point.

• Critical Checks: After wiring, disconnect power and perform a Megger test at 1000V between phases and ground (minimum 2 MΩ).
• Protection: Install a thermal overload relay set to 115% of the motor’s rated current, integrated into the bypass circuit.
• Remote Control: If using a PLC or pushbuttons, wire the ramp module’s enable input to a dry-contact relay to allow safe emergency stops.

Test under no-load conditions first, then gradually apply mechanical load to confirm stable operation. Monitor voltage drop across the ramp module–it should not exceed 5% of line voltage at full current.

Optimizing Ramp-Up Duration and Start Voltage Settings

Set the acceleration phase to 3–5 seconds per 1 kW of motor rating for direct-drive pumps, but reduce this to 1–2 seconds per kW for centrifugal fans with variable load inertia. For example, a 15 kW pump should complete voltage rise in 45–75 seconds, while a 7.5 kW fan requires 7.5–15 seconds. Exceeding these ranges risks overheating in starting resistors or nuisance tripping due to excessive inrush. Always reference the nameplate LRA (locked rotor amps)–if it exceeds 600% of FLA, halve the ramp duration to prevent torque sag.

Voltage Step Adjustment Guidelines

Load Type	Initial Voltage (% of rated)	Critical Consideration
Conveyor belts with full bins	40–50%	Avoid belt slip–ensure static friction is overcome before torque builds
Screw compressors	25–35%	Prevent liquid slugging by verifying oil separator pressure stabilizes
Rock crushers	55–65%	Check jaw clearance–mechanical binding mimics thermal overload

Verify parameter selection by monitoring current dip amplitude during ramp-up. If the dip exceeds 15% of the target operational current, increase the initial voltage in 5% increments until transient oscillations stabilize within ±5% of nominal amps post-ramp. For multi-stage loads (e.g., escalators), program separate ramps: 2 seconds at 30% for pre-tension, followed by 8 seconds at 70% for torque peak. Document each adjustment–record peak transient current, ramp time, and acceleration torque to baseline future troubleshooting.

Troubleshooting Common Smooth Ramp Device Faults

Check input voltage fluctuations first–measure across L1, L2, and L3 with a true RMS multimeter. Readings deviating ±10% from nominal trigger undervoltage or overvoltage errors, often logged as E05 or E12 in most drive firmware. Replace damaged contactors if phase imbalance exceeds 1.5V; corroded contacts on the main power bus degrade signal integrity, causing erratic ramp behavior.

Inspect thermal trip conditions by examining cooling fan rotation and heatsink temperature with an infrared thermometer. Overheat thresholds typically activate at 85°C–clear air vents of dust accumulation, recalibrate thermal sensors via parameter P3.08, and ensure PWM switching transistors are secured with thermal paste. For persistent fault codes like F07, validate current transformer wiring; cross-checked polarity reverses feedback signals, inducing false overload alerts. Log serial numbers of suspected components for warranty claims before disassembly.

Signal Chain Verification Steps

• Verify control logic supply voltage at terminals A1/A2–accept 24VDC ±5%. Bulged capacitors here skew reference waveforms.
• Test bypass relay coils with a 500V megger; readings below 1MΩ indicate coil burnout requiring full relay replacement.
• Trace analog input scaling errors: disconnect potentiometers, then short IN+ to IN-–a 0V output confirms failed trimpot alignment.
• Scan digital I/O ports for stuck bits using a PLC simulator; corrupted memory often corrupts ramp profiles after power cycles.

Power Stage Isolation Methods

1. Disconnect motor leads, then energize the drive–listen for arcing at switching modules with a stethoscope. Replace IGBTs if switching noise exceeds 75dB.

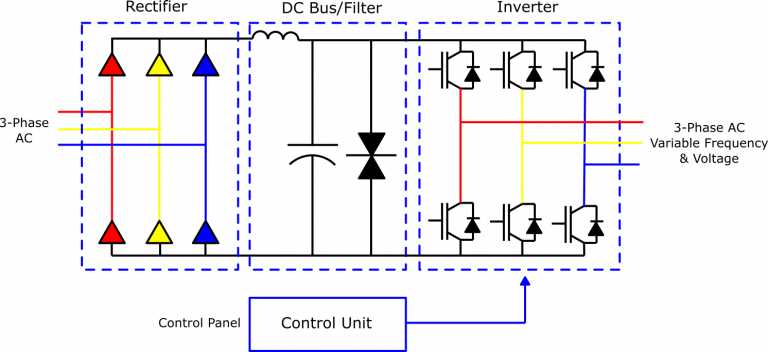

2. Measure DC bus voltage using a differential probe; ripple above 2V peak-to-peak suggests failed smoothing capacitors or rectifier bridge degradation.
3. Isolate gate drivers by removing control wires; probe gate-to-emitter voltages–values below 12V indicate faulty optocouplers.
4. Recheck fault history logs for transient events: rapid voltage spikes exceeding 2kV trigger MOV failures–replace with higher joule-rated varistors.
