DIY Solar Inverter Battery Charger Schematic and Wiring Guide
For reliable off-grid power management, start with a 500W pure sine wave converter paired to a 12V deep-cycle unit. Use a PWM-based regulation stage with a IRF540N MOSFET–its low RDS(on) (44 mΩ) minimizes heat loss at 20A continuous draw. Pair the FET with a TL494 PWM controller; its 1% voltage reference ensures tight output stability (±0.2V). Connect a fast recovery diode (UF4007) at the input to clamp back EMF from inductive loads, protecting upstream components from transient spikes up to 1kV.
When integrating a photovoltaic array, opt for a two-stage charging approach: bulk phase at 14.4V (constant current) followed by float at 13.6V. A LM358 operational amplifier monitors terminal voltage with a voltage divider (10kΩ + 1kΩ), triggering charge termination at 98% SoC to prevent gassing. Include a 20A circuit breaker–thermal trips occur at 125°C, safeguarding against overcurrent scenarios during cloud-edge transients. Avoid generic MCUs; ATtiny85 provides sufficient precision (8-bit ADC) for state transitions, consuming
For efficiency benchmarks, match copper traces to current densities: 1 oz/ft² handles 15A comfortably; double thickness for 30A+ systems. Ground planes beneath switching elements (via stitching at 0.1-inch intervals) reduce EMI by 18dB. Test layouts without electrolytic capacitors–ceramic types (X7R) tolerate -55°C to 125°C, eliminating leakage risks. If ambient temperature exceeds 40°C, derate component specs by 30%; failure rates follow Arrhenius’s equation (doubles every 10°C rise).
Designing a Reliable Photovoltaic Energy Storage Control Schematic
Start with a pulse-width modulation controller like the SG3525 or TL494, configured for 20–100 kHz switching to minimize heat loss and maximize conversion efficiency. Use a low-RDS(on) MOSFET (e.g., IRF3205) rated at 55V/110A to handle peak currents, paired with a Schottky diode (MBR2045CT) for synchronous rectification–reducing voltage drop to ~0.4V at 20A. For buck-boost regulation, employ a toroidal inductor (10–30 μH, 10A saturation) wound with 1.5 mm enameled copper wire to prevent core saturation at high loads. Add a 10 μF X7R ceramic capacitor in parallel with a 470 μF electrolytic (25V) at the input to suppress switching noise and stabilize voltage. Include a precision shunt resistor (0.01 Ω, 1%) for current sensing, feeding into an LM358 comparator to trigger overcurrent protection at 1.2× nominal charge current.
| Component | Specification | Purpose |
|---|---|---|
| IRF3205 MOSFET | 55V/110A, RDS(on) = 8 mΩ | Primary switching element |
| MBR2045CT Diode | 45V/20A, Vf = 0.4V | Synchronous rectification |
| Toroidal Inductor | 22 μH, 12A saturation | Energy storage/smoothing |
| 10 μF + 470 μF Caps | X7R ceramic + electrolytic (25V) | Input filtering |
| LM358 Op-Amp | Dual-channel, 3 MHz bandwidth | Current limiter/protection |
Isolate feedback paths with optocouplers (e.g., PC817) to separate high-voltage panels (up to 60V open-circuit) from the 12V/24V storage unit, preventing ground loops. Integrate a temperature-compensated charging curve using an NTC thermistor (10 kΩ at 25°C) placed near the storage cell–adjust PWM duty cycle to reduce charging current by 30% when temperatures exceed 45°C. For lead-acid units, implement a three-stage profile: bulk (constant 14.4V), absorption (tapering current), and float (13.4V). Lithium-ion storage cells require balancing circuits (e.g., BQ76920) and a cv/cc profile (4.2V/cell, 0.5C charge rate). Log charge cycles via an I²C EEPROM (24LC256) for maintenance tracking, sampling every 30 seconds and storing data in 16-byte blocks.
Core Elements for an Energy Harvesting Power Assembly
Select a high-efficiency photovoltaic panel rated between 10W and 100W based on load demands. Monocrystalline panels yield 15-22% conversion efficiency, outperforming polycrystalline variants by 3-5%. Verify open-circuit voltage (Voc) exceeds the storage system’s nominal voltage by 20% to accommodate temperature-induced voltage drops.
- MPPT (Maximum Power Point Tracking) controller: Boosts energy capture by 10-30% over PWM alternatives. Models like Victron SmartSolar or EPEVER XTRA series integrate temperature compensation and low-voltage disconnect.
- Dedicated charge regulator: Buck-boost converters (e.g., TI’s TPS54332) handle fluctuating input while maintaining stable output. Aim for 90%+ conversion efficiency.
- Deep-cycle lead-acid or LiFePO4 cells: Lead-acid offers 500-1200 cycles; LiFePO4 extends to 2000-5000 cycles with 95% depth-of-discharge capability. Match cell configuration to controller’s voltage range (e.g., 12V/24V/48V).
Low-resistance cabling minimises line losses. For a 20A current, use 10AWG copper wire (≤0.005Ω/m resistance). Fuse protection is non-negotiable: install ANL or MIDI fuses within 7 inches of the storage bank, sized at 125% of max continuous current.
Surge protection devices (MOVs or TVS diodes) clamp voltage spikes induced by lightning or load switching. MOVs degrade after 3-5 transient events–replace regularly. For off-grid setups, incorporate a DC-DC converter with galvanic isolation (e.g., Mean Well SD-100) to prevent ground loops.
- Dissipation: Mount components on aluminium heatsinks with thermal adhesive. MOSFETs in the regulator should operate below 80°C.
- Monitoring: Shunt-based ammeters (e.g., Victron BMV-712) track state-of-charge with ±0.5% accuracy. Data logging via RS-485 enables performance trend analysis.
- Mechanical: Enclosures must comply with IP65 ingress protection for outdoor use. Ventilation is critical–25% free airspace prevents overheating.
Balance-of-system parts dictate reliability: Anderson Powerpole connectors handle 45A continuously, while crimp lugs maintain 10MΩ) biannually to detect moisture ingress or dielectric breakdown.

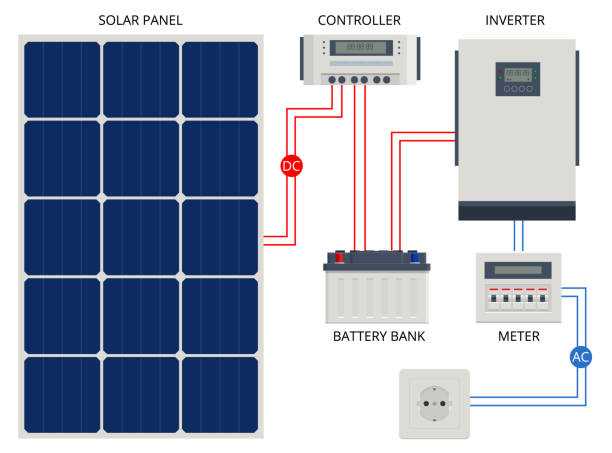

Step-by-Step Wiring Guide for Photovoltaic Energy Storage Linkup
Begin by isolating the power sources: disconnect the photovoltaic panels from the regulator and the storage unit from the DC-AC converter. Use a multimeter to verify zero voltage across all terminals before proceeding. Active circuitry during wiring risks short circuits or component failure.
Identify the positive and negative leads from the PV array. Label them clearly with heat-resistant tape–red for positive, black for negative. Mislabeling causes reverse polarity, damaging the charge controller or storage unit irreversibly. For 12V/24V/48V systems, confirm the array’s open-circuit voltage matches the controller’s input specifications within a 10% tolerance.
Connecting the Charge Controller
Attach the PV array’s positive lead to the controller’s input terminal marked “PV+” or “Solar In+.” Secure with a torque wrench set to 2.5 Nm for MC4 connectors or 1.5 Nm for screw terminals–loose connections create resistive losses up to 15%. Repeat for the negative lead to “PV-.” Avoid mixing cables from different strings; cross-connections cause uneven charging and potential overheating.
Link the controller’s storage output terminals to the energy reservoir. For flooded lead-acid units, use 4 AWG copper wire; lithium-ion types require 6 AWG. Strip 12mm of insulation, crimp with a tin-plated lug, and apply antioxidant compound. Terminate positive to “Batt+” and negative to “Batt-” on both the controller and reservoir. Omitting compound accelerates corrosion, increasing resistance by 0.3Ω/year in humid climates.
Ground the system before energizing. Run a 6 AWG bare copper wire from the controller’s grounding terminal to a dedicated earth rod, buried 2.4m deep. For rooftop installations, bond to the building’s grounding electrode system. Inadequate grounding risks voltage spikes exceeding 500V during lightning strikes, degrading semiconductors in the converter.
Finalizing the DC-AC Converter Link
Wire the reservoir to the DC-AC converter’s DC side. Check the unit’s low-voltage disconnect (LVD) setting–adjust to 11.5V for lead-acid or 3.0V/cell for LiFePO4 if necessary. Use fuses rated at 125% of the reservoir’s C/10 discharge rate; undersized fuses melt during startup surges (e.g., 200A for a 160A surge). Insert fuses in both positive leads between the reservoir and converter.
Verify all connections with a thermal imaging camera. Temperature variances above 4°C between terminals indicate loose wiring. Re-torque if needed, then recheck. Energize the PV array first; monitor the controller’s display for nominal input (e.g., 20-40V) and flashing status LEDs. Finally, connect the converter to the grid or loads–reverse order risks backfeeding 60Hz AC into the DC side, destroying MOSFETs within 30ms.
Calculating Voltage and Current Ratings for Optimal Energy Storage Replenishment
Select a charging source with an open-circuit potential 20–30% higher than the nominal terminal voltage of the storage unit. For a typical 12.8V lithium-ion pack, this translates to 15.6–16.5V at no load. Lead-acid variants require 14.4–15.0V for bulk replenishment, while sealed variants need slightly lower values to prevent electrolyte loss. Over-voltage protection must engage within ±0.2V of these thresholds to avoid accelerated degradation.
Current Calculation Parameters
- Peak replenishment rate: Set to 0.2–0.3C for daily cycles, where C equals the ampere-hour capacity of the cell bank (e.g., 50Ah × 0.3 = 15A). Extended deep discharges warrant transient spikes up to 0.5C.
- Continuous replenishment cap: Do not exceed 0.15C for ambient temperatures above 35°C to prevent thermal runaway.
- Trickle replenishment: 0.02–0.05C maintains float conditions without sulfuric stratification or lithium plating.
Trace conductor cross-sections must support 125% of the calculated peak amperage; for 30A service, 10 AWG copper (5.26 mm²) suffices at ≤3 m run length, scaling to 8 AWG for longer paths. Voltage drop must stay under 2% of the nominal system potential–calculate using Vdrop = (2 × L × I × R) / 1000, where L is one-way distance in meters, I is current in amperes, and R is conductor resistance per kilometer (e.g., 1.7 Ω/km for copper).
Thermal derating dictates a 15% current reduction per 10°C rise above 25°C ambient. For example, a 20A charge controller rated at 40°C must operate at ≤17A. Temperature-compensated potentiometers adjust the end-of-replenishment threshold by -3 mV/°C for lead chemistries and -1.2 mV/°C for lithium, referenced to 25°C.
- Measure actual cell potential under full load; compare to manufacturer’s internal resistance spec (typically 0.5–3 mΩ per cell).
- Aggregate individual cell values to determine bank impedance; high delta (> ±10%) indicates imbalanced state-of-replenishment.
- Size semiconductor switches (MOSFET/IGBT) for 2× peak amperage with junction temperature ≤125°C; junction-to-case thermal resistance must be ≤1.5 K/W.
- Verify reversal protection diodes block at 1.2× nominal system potential; Schottky types reduce forward drop to 0.3–0.5V but tolerate lower reverse voltages than silicon PN diodes.
