Understanding Solar Panel Wiring Layouts and Circuit Designs

Begin by sourcing a 6-inch monocrystalline wafer rated at 3.5 amps and 0.5 volts. Connect the positive terminal to a blocking diode–use a 1N4007 for systems under 1 kW–to prevent reverse current during low-light conditions. Wire the diode in series with a 6-amp charge controller, selecting PWM for setups below 200W or MPPT for larger arrays to optimize voltage matching.

For grid-tied configurations, integrate a microinverter like the Enphase IQ8+ per module. Each inverter outputs 240V AC, syncing automatically with utility phase angles (±5° tolerance). Off-grid systems require a 48V battery bank: series-connect four 12V deep-cycle units, each with a 200Ah capacity, and pair with a 3 kW pure sine wave inverter to avoid waveform distortion in sensitive electronics.

Mounting structures demand anodized aluminum rails angled at 30° for latitudes between 25° and 45°. Use stainless steel lag bolts (¼-inch, grade 316) spaced every 18 inches to secure rails to rafters. Grounding follows NEC Article 250: drive a copper-clad rod 8 feet into damp soil and bond all racking components with 6 AWG bare copper wire.

String design varies by climate: desert installations use 22-module strings (Voc: 50V) to mitigate high-temperature voltage drop, while northern regions deploy 16-module strings (Voc: 60V) to exploit colder ambient conditions. Always derate Voc by 1.25× for temperature extremes–consult module datasheets for specific coefficients. Terminate strings with MC4 connectors crimped at 20 lb-ft torque; apply sealant to outdoor junctions to prevent moisture ingress.

Safety disconnects must flank both DC (600V, 30A) and AC (240V, 50A) sides. Install a fused combiner box within 6 feet of the array, using Class T fuses sized at 1.56× Isc. For rapid shutdown compliance, add a module-level power electronics device like Tigo TS4-F per panel, cutting voltage within 30 seconds of actuation.

Understanding Photovoltaic Array Wiring Layouts

Begin by segmenting your installation into distinct strings based on voltage requirements–typically 12V, 24V, or 48V systems. Use a combiner box rated for 15% above the short-circuit current (Isc) of your modules; for a 10A Isc setup, select a 12A or higher box. Ensure each string includes an individual fuse or breaker to prevent reverse current during low-light conditions or shading. For off-grid setups, integrate a charge controller between the array and battery bank, matching the controller’s input voltage to the system’s nominal voltage.

Grounding is non-negotiable: bond all metal frames, mounting structures, and electrical enclosures to a single grounding rod using 6 AWG copper wire (minimum). For grid-tied inverters, adhere to local utility interconnect requirements–most mandate anti-islanding protections compliant with IEEE 1547. When connecting multiple inverters in parallel, use dedicated disconnect switches for each unit to simplify maintenance and isolation. Verify the maximum power point tracking (MPPT) range of your charge controller or inverter; mismatch here reduces efficiency by 10–30%.

Label every conductor with its function (e.g., “String 1 Positive,” “Battery Negative”) and voltage rating. For underground conduits, use THWN-2 wire and bury at 18 inches (45 cm) minimum depth–check NEC Article 300.5 for regional adjustments. If incorporating microinverters, attach one per module and wire them in series to the AC trunk cable; this eliminates string sizing calculations but requires GFCI protection for each unit.

Test continuity and insulation resistance with a megohmmeter before energizing the system: insulation resistance should exceed 1 MΩ. For rapid shutdown compliance (NEC 690.12), install listed module-level power electronics (MLPEs) or use string inverters with built-in rapid shutdown transmitters. Document the layout with a single-line drawing showing component locations, wire gauges, and fuse ratings–update this record after any modifications.

Core Elements of a Photovoltaic Array Circuit

Select cells with a minimum efficiency of 20% for small-scale residential setups. Monocrystalline variants outperform polycrystalline in limited spaces due to higher power density per square meter. Verify voltage output matches system requirements–typically 0.5V to 0.6V per cell under standard test conditions.

Incorporate bypass diodes across strings of 12-24 cells to prevent reverse current during partial shading. Without these, a single obscured cell can reduce string output by up to 75%. Install blocking diodes on the positive lead of each array to inhibit nighttime battery discharge.

Power Regulation and Storage

Use an MPPT charge controller for systems exceeding 500W. PWM controllers suffice for smaller installations but waste 15-30% of potential energy through voltage mismatch. Configure the controller’s voltage settings to 14.4V for a 12V battery bank, with a float charge at 13.6V.

Lead-acid batteries demand equalization charges every 30-45 days at 15V for 2-4 hours. Lithium iron phosphate alternatives eliminate this step but require a battery management system with overvoltage protection. Calculate storage capacity at 1.5-2x daily consumption to account for inefficiencies and weather variability.

Inverters must tolerate 20% higher input voltage than the nominal battery voltage. Modified sine wave units introduce harmonic distortion, reducing motor lifespan; pure sine wave models cost 30% more but ensure compatibility with sensitive electronics. Size inverters at 120-150% of peak load to handle startup surges.

Safety and Optimization

Ground all exposed conductive surfaces with a 6mm copper rod driven 2.4m into the soil. Omit grounding only in portable setups under 100W. Fuses should be placed within 15cm of the battery on both positive and negative leads–use slow-blow fuses rated at 125% of the circuit’s maximum continuous current.

Conductors between array and charge controller must handle 125% of short-circuit current. For a 10A circuit, use 10AWG wire with a temperature rating exceeding 90°C. Overlook this, and voltage drops of 3%+ over 10m of wire become inevitable.

Thermal paste applied between cells and mounting surface reduces temperature derating by 5-10%. Secure cells with clamps or adhesive rated for outdoor UV exposure–mechanical fasteners risk microfractures. Leave 5-8cm of airflow gap behind installations in hot climates to limit efficiency losses to under 1% per additional 1°C above 25°C.

Step-by-Step Assembly of Series vs. Parallel Photovoltaic Configurations

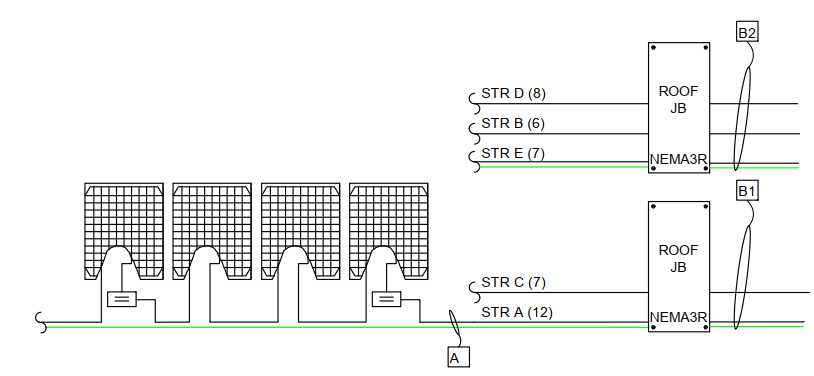

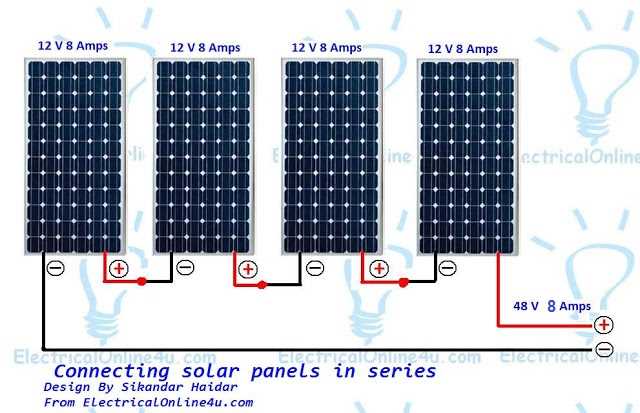

Begin with voltage requirements: for series wiring, align modules by connecting the positive terminal of one to the negative of the next. This stacks output voltages–two 18V units yield 36V. Use 10AWG wiring or thicker to handle current without losses. Parallel setups require matching currents: link all positives together and all negatives, preserving individual module voltage while summing amperage. Two 5A arrays in parallel deliver 10A at 18V. Check manufacturer specs–some thin-film units tolerate parallel connections better than crystalline types.

Measure twice before securing connections. For series strings, bypass diodes prevent shadow-induced failures–verify their presence in junction boxes. Parallel arrays demand identical lengths of wire from each branch to the combiner box to avoid uneven current flow. Use MC4 connectors rated for 20A or higher, crimping with a dedicated tool–no solder substitutes. Label each wire run: series circuits need “String X (+/-)”, parallel branches require “Branch X (+) to Bus,” “Branch X (-) to Bus” for clarity during troubleshooting.

Test with a multimeter before finalizing. Series strings should show summed voltage, zero current until load applied. Parallel networks display summed amperage, original module voltage. Record readings: deviations over 5% indicate faulty connections or mismatched components. Mount fuses within 18 inches of parallel branches–1.25x the expected current for each string. Secure combiner boxes outdoors only if IP65-rated; indoor installations use din-rail mount breakers instead. Never mix series and parallel without a charge controller handling the voltage steps.

Connecting Photovoltaic Arrays to Charge Regulators and Storage Units

Use 10 AWG wiring for systems under 30 amps to minimize voltage drop. For longer cable runs–exceeding 10 meters–reduce resistance by upsizing to 8 AWG or applying a copper lug terminal coating. Match wire gauge to the module’s short-circuit current (I_sc), multiplied by 1.25 for NEC safety margins, especially in high-temperature environments where derating applies.

Series wiring raises voltage while maintaining current; parallel maintains voltage while increasing current. A 100W 12V module with 5.75A I_sc wired four in series yields ~48V/5.75A, cutting resistive losses compared to 12V/23A parallel. Verify maximum power point tracking (MPPT) regulator input limits–typically 100–150V–before series string length exceeds eight modules. For lithium iron phosphate storage, ensure the regulator supports 14.6V bulk charge and 13.6V float.

Safety and Termination Practices

Terminate MC4 connectors with crimping, not solder, as solder wicks can fracture under thermal cycling. Use tin-plated copper busbars for parallel strings to prevent galvanic corrosion when aluminum wiring is mixed. Ground module frames individually with 6 AWG bare copper, driven 30 cm into soil with ≤25 ohms resistance, meeting UL 1703 grounding requirements.

Wiring Path	Recommended Wire Gauge	Max One-Way Distance (meters)	Voltage Drop (%)
Array → Regulator	10 AWG	10	3
Regulator → Storage	8 AWG	15	2
Storage → Inverter	4 AWG	5	1

Bypass diodes prevent hot-spot damage during partial shading; place one per sub-string of 18–22 cells. For 60-cell modules, install three bypass diodes inside the junction box. If the module’s bypass diode rating exceeds 15A, add a heatsink to the junction box cover to dissipate reverse leakage current during shading.

Configuration-Specific Wiring Adjustments

Off-grid systems with flooded lead-acid storage benefit from temperature-compensated regulators adjusting charge setpoints: -5 mV/°C per cell above 25°C. Lithium storage requires regulators with adjustable absorption voltages; program 14.6V for bulk and 13.3V for float. For 48V nominal systems, parallel two 12V regulators if the controller lacks high-voltage input capability–use blocking diodes to prevent backfeed into idle controllers.
