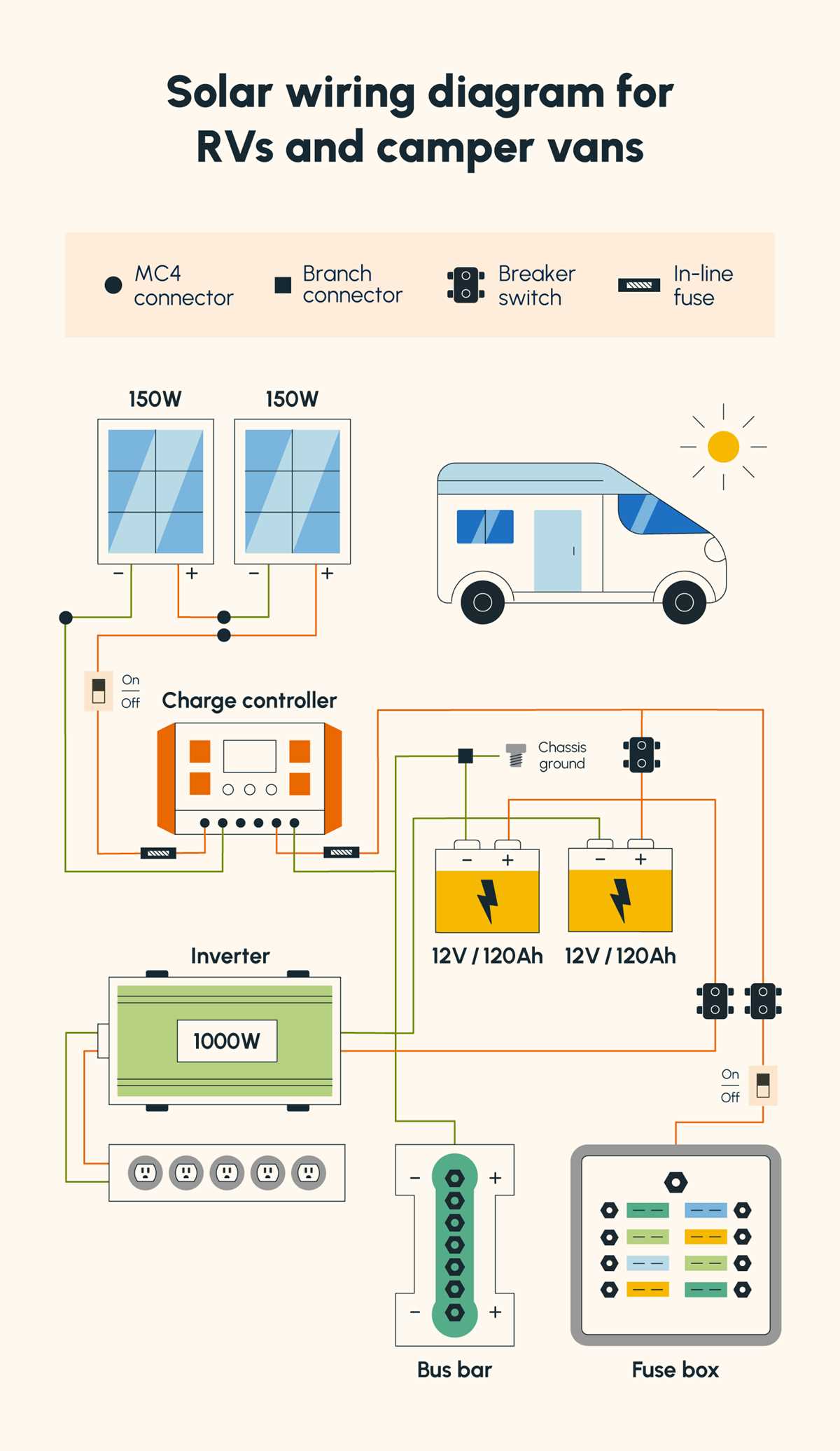

Complete Solar Power Wiring Guide for RVs with Detailed Circuit Diagrams

Begin by placing fuses at both ends of every circuit–especially between the charge controller and battery bank. A 10A fuse suits most 12V systems handling up to 120W; scale linearly for 24V or 48V configurations. Skipping this step risks overheating cables or damaging equipment during voltage spikes.

Use 4 AWG copper wire for connections longer than 10 feet between panels and charge controllers. For shorter runs, 6 AWG suffices but expect a 3% voltage drop over 15 feet. Aluminum wire reduces cost by 40% but requires larger gauges to match conductivity–opt for 2 AWG aluminum as an equivalent to 4 AWG copper.

Ground all negative terminals to a single point near the battery bank. A #4 bare copper wire bonded to the chassis prevents corrosion; coat connections with dielectric grease if operating in coastal or humid climates. Float-mounted setups need a separate 6 AWG ground from the system to a dedicated rod driven 8 feet into the soil.

Label every wire termination with heat-shrink tubing marked in permanent ink: “PV+”, “CC+”, “BATT–”. Use color coding only as a secondary reference–relying solely on colors leads to miswiring when replacing components or troubleshooting under low light.

Mount charge controllers within 18 inches of the battery bank to minimize resistance losses. MPPT units demand thicker wire than PWM models–plan 12 AWG for 15A PWM vs 8 AWG for 30A MPPT. Secure all terminals with crimp connectors; solder joints fail under vibration common in mobile environments.

Install a shunt-based battery monitor directly onto the negative busbar. Models like the Victron BMV-712 provide real-time state-of-charge readings accurate within 1%; cheaper alternatives using voltage-only methods misread charge levels by 20-30%.

Route high-current cables (4 AWG or thicker) through liquid-tight conduit where they pass through walls or floors. For rooftop arrays, bundle wires in split-loom tubing rated for UV resistance–PVC degrades within 2 years under direct sunlight.

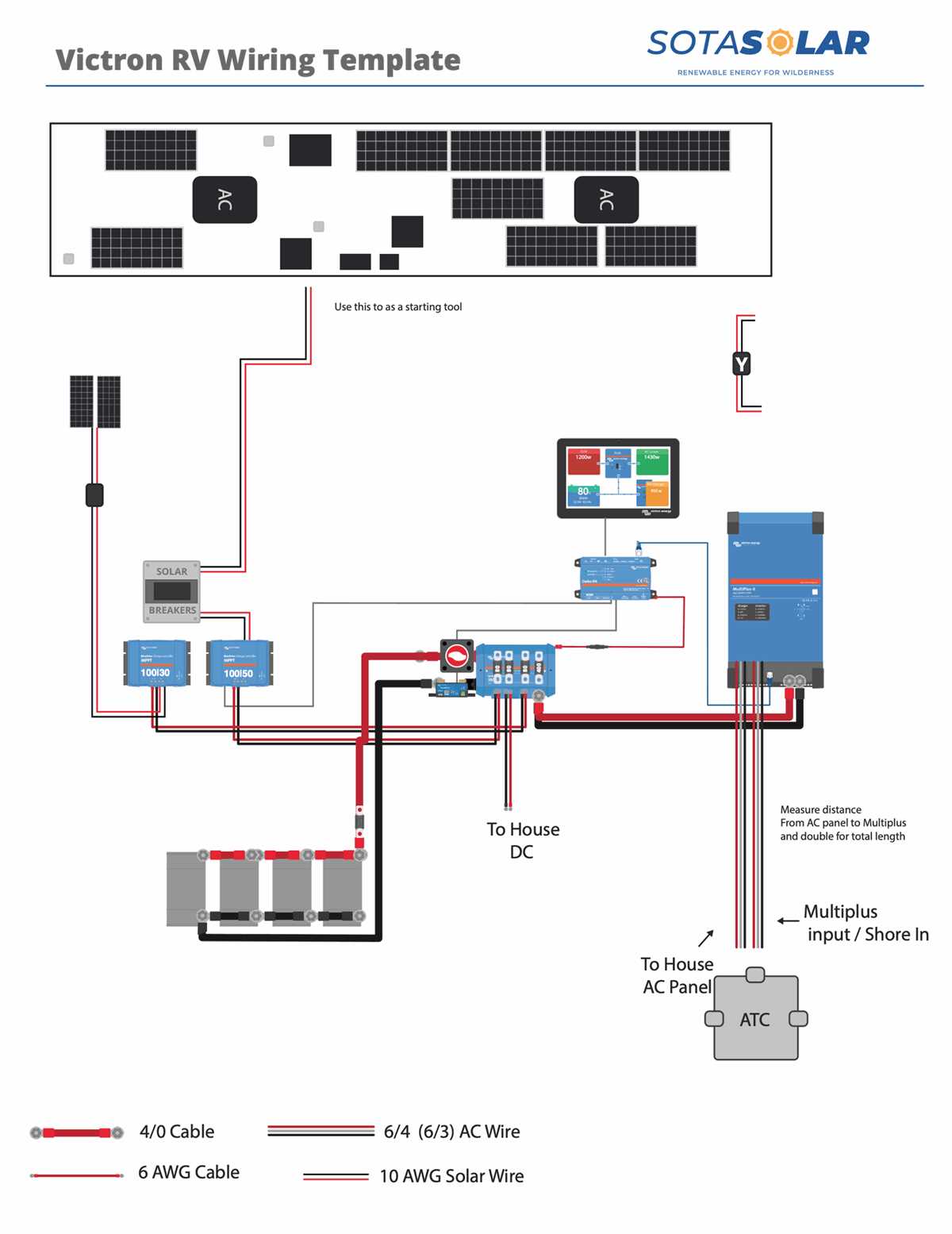

Electrical Layout for Mobile Energy Systems

Start by mapping charge controllers to battery storage with 6 AWG cables for standard 12V setups under 30A. Connect the charge regulator’s positive terminal to the battery’s positive post, securing with crimp connectors and heat shrink tubing–never twist wires bare. Ground both the controller and battery to a single chassis point using 4 AWG, reducing resistance to 0.1 ohms or less. Test continuity with a multimeter before energizing the system.

Fuse every positive lead within 7 inches of the battery terminal. Use ANL fuses for currents above 50A and blade-style for lower amperage; match ratings to 125% of maximum circuit draw. Solar panels should link to the charge regulator via MC4 connectors rated for 90°C+ temperatures–avoid loose connections as they generate heat spikes up to 200°F under load. For parallel panel arrays, balance current with branch connectors to prevent reverse flow at dawn/dusk.

Voltage Drop Prevention

Keep cable runs under 10 feet from panels to batteries to limit voltage drops below 3%. For 12V systems, 1% drop equals 0.12V loss per 3 feet of 8 AWG wire. Use aluminum busbars for high-current junctions–copper alternatives weigh 30% more. Install a shunt immediately after the battery’s negative post for accurate amp-hour monitoring; deviation above 5% signals faulty meter calibration or ground leaks.

Separate lighting and appliance circuits with dedicated breakers. LED fixtures draw 0.8A each–run them through a 15A breaker with 14 AWG wiring. For inverters above 1000W, hardwire directly to the battery with 4/0 AWG cables, bypassing the distribution panel to avoid voltage sag. Add a 200A class T fuse between the inverter and battery to halt short-circuit currents exceeding 10,000A, which can melt standard fuse elements in under 0.1 seconds.

Diagnostic Checks

Label every wire with heat-resistant sleeves–color-code positives red/orange, negatives black/brown, grounds green. Audible continuity testers detect corrosion faster than multimeters. Replace any wire showing more than 2% diameter reduction from nicks or kinks; these create hot spots. For lithium batteries, install a battery management system (BMS) rated for 3x the charge current–undercharging below 10.5V permanently reduces capacity by 20-40%. Record baseline voltages at dawn and dusk–normal fluctuation should stay within 0.5V for healthy setups.

Choosing the Right Conductor Thickness for Photovoltaic Arrays and Storage Units

Select 6 AWG copper cables for systems under 30A to minimize voltage drop–never exceed 3% over 20 feet. For 48V battery banks, 2 AWG handles 100A safely, while 1/0 AWG suits 120A continuous loads. Aluminum conductors require one size larger than copper for equivalent ampacity. Always confirm local electrical codes, as NEC Article 690 mandates temperature derating for conductors in conduit exposed to sunlight.

• 12V systems: 4 AWG for 20A, 2 AWG for 50A, 1/0 AWG for 100A
• 24V configurations: 6 AWG for 30A, 4 AWG for 60A, 2/0 AWG for 120A
• 48V setups: 8 AWG for 20A, 4 AWG for 50A, 3/0 AWG for 150A

Use tinned copper for marine or high-moisture environments to prevent corrosion. Stranded wire outperforms solid core in vibration-prone mobile installations. Always match overcurrent protection (fuses or breakers) to 125% of the conductor’s ampacity rating for sustained loads.

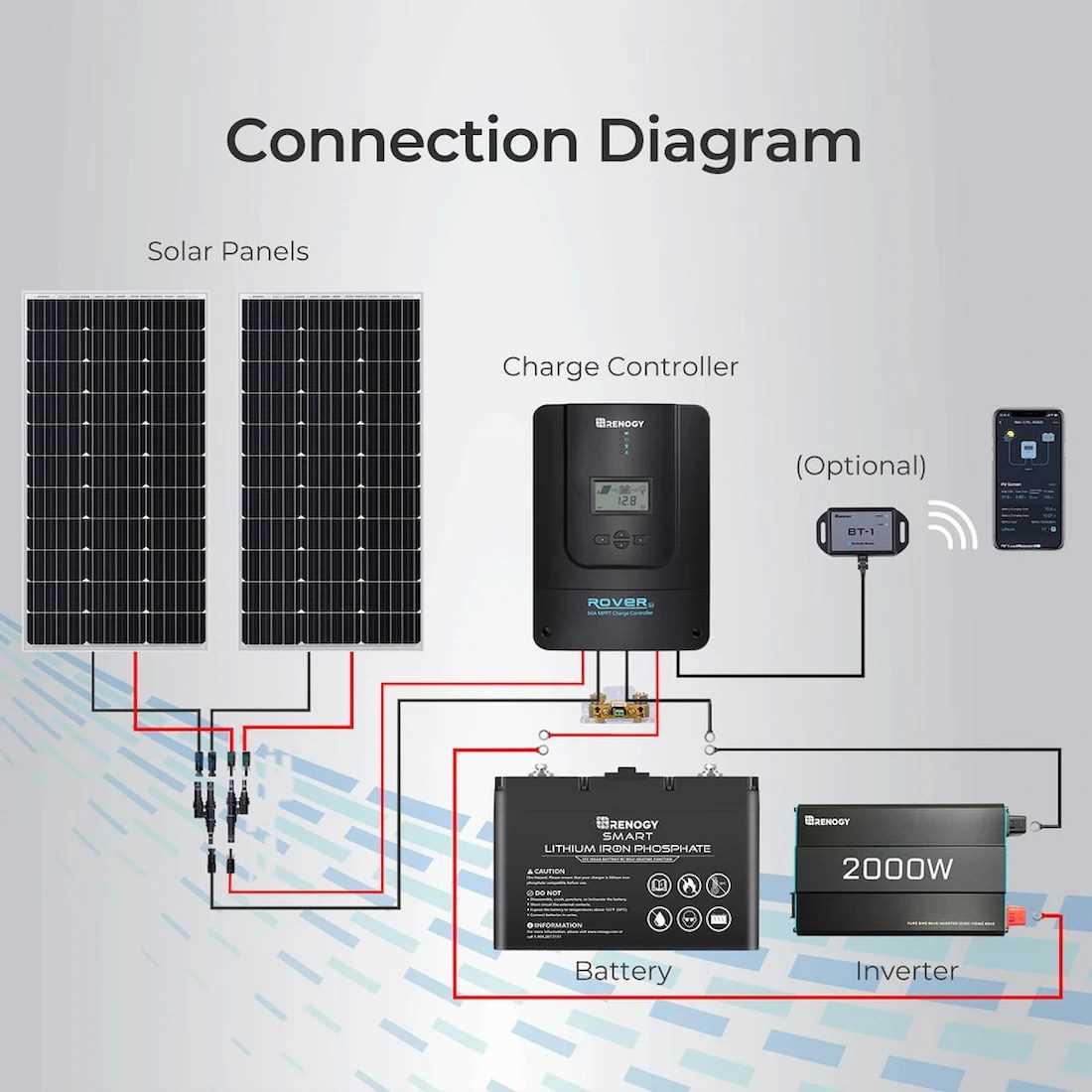

Step-by-Step Guide to Connecting a Charge Controller to Your Recreational Vehicle Electrical Setup

Select a charge regulator rated for at least 125% of the maximum current your photovoltaic panels can generate under ideal conditions. For a 200W array on a 12V system, this means a 20A controller–never operate near its limit to prevent overheating and premature failure.

Mount the regulator within 12 inches of the battery bank to minimize voltage drop, using insulated mounting hardware to prevent short circuits. Secure it vertically on a non-conductive surface, away from direct sunlight, engine heat, or moisture–ideal temperature range is 32°F to 113°F (0°C to 45°C).

Connect the battery first, using 4 AWG or thicker copper cables to handle peak currents. Attach the positive lead to the controller’s battery terminal (usually labeled “BAT” or “B+”), then the negative to the battery’s ground post. Tighten connections to 8-10 lb-ft with a torque wrench to avoid resistance buildup.

Attach the panel leads next, polarity-critical: positive (often marked with a red or white stripe) to the “PV+” or “SOLAR+” terminal, negative to “PV-“. Use MC4 connectors for plug-and-play reliability; if hardwiring, seal splices with adhesive-lined heat shrink to block moisture ingress. Verify open-circuit voltage doesn’t exceed the controller’s max input rating.

Integrate a 30A fuse or circuit breaker between the regulator and battery, no more than 7 inches from the battery terminal. This protects against dead shorts, which can melt cables or damage components before the controller’s internal safeguards activate. For lithium batteries, ensure the regulator supports their charge profile to avoid overvoltage.

Test the setup with a multimeter: measure battery voltage at the controller terminals–it should match the battery’s resting voltage (e.g., 12.6V for AGM). Then check panel voltage under load; expect 17–22V for a 12V system. If readings deviate by more than 0.3V, recheck connections for corrosion or loose terminals.

Configure the regulator’s settings if applicable: set battery type, absorption voltage (typically 14.4V for lead-acid), and float voltage (13.8V). For MPPT controllers, adjust parameters like temperature compensation if ambient conditions exceed 86°F (30°C). Monitor for the first 24 hours–heat on the regulator’s casing above 122°F (50°C) indicates inadequate ventilation or overloading.

How to Properly Fuse and Breaker Your Photovoltaic Camper System

Install DC-rated fuses within 7 inches of the battery terminal–this prevents catastrophic short-circuits from damaging charge controllers or inverters. Use ANL or Class T fuses matched to 125% of the system’s continuous current, not its surge capacity. For a 100Ah lithium bank with a 30A controller, a 40A fuse suffices; anything larger negates protection.

Breakers must handle both load and charging currents independently. A 15A breaker protects a 12V refrigerator circuit, while a 50A breaker isolates rooftop panels from the controller. Ensure breakers are manually resettable and rated for outdoor use–thermal or auto-reset types fail under sustained overloads. Below are critical ratings for common circuits:

Circuit	Wire Gauge (AWG)	Fuse Rating (Amps)	Breaker Rating (Amps)
Rooftop array to controller	10	30	40
Battery to inverter	2/0	200	250
Controller to 12V loads	12	15	20
LED lighting	16	5	7.5

Never daisy-chain breakers; each circuit requires its own overcurrent device. For parallel battery banks, fuse each positive terminal to the busbar with identical ratings as the main feed. Copper busbars must exceed the combined input/output capacity by 20%–a 100A system needs a 120A busbar. Tin-plate all connections to prevent corrosion.

Test continuity after installation by simulating a short with a multimeter. A properly fused system will trip the breaker within 10 seconds at 135% overload. Replace fuses after a single instance of tripping–failure to do so risks conductor insulation meltdown at 250°F. Avoid “slow-blow” fuses for DC circuits; they allow excessive heat buildup before interrupting.

Label every fuse and breaker with its circuit name and amperage. Store spare fuses in a waterproof container mounted near the battery bank. Periodically inspect terminals for oxidation–annual tightening prevents resistive heating that can exceed fuse ratings over time. Use bolted connections for high-current paths; soldering alone cannot withstand vibration.
