Understanding Solenoid Circuit Design with Key Components and Wiring

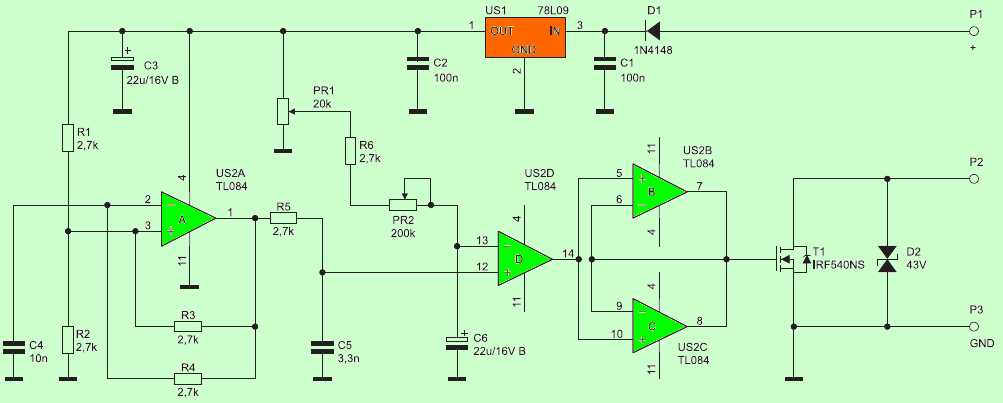

Start with a 24V DC coil if the application involves industrial automation or automotive systems. Lower voltages risk insufficient magnetic force, while higher ones may cause overheating. Use a freewheeling diode (1N4007) across the coil terminals to clamp inductive spikes–failure to include it will destroy switching transistors or relays within hours. Position the diode cathode at the positive terminal to ensure correct polarity absorption.

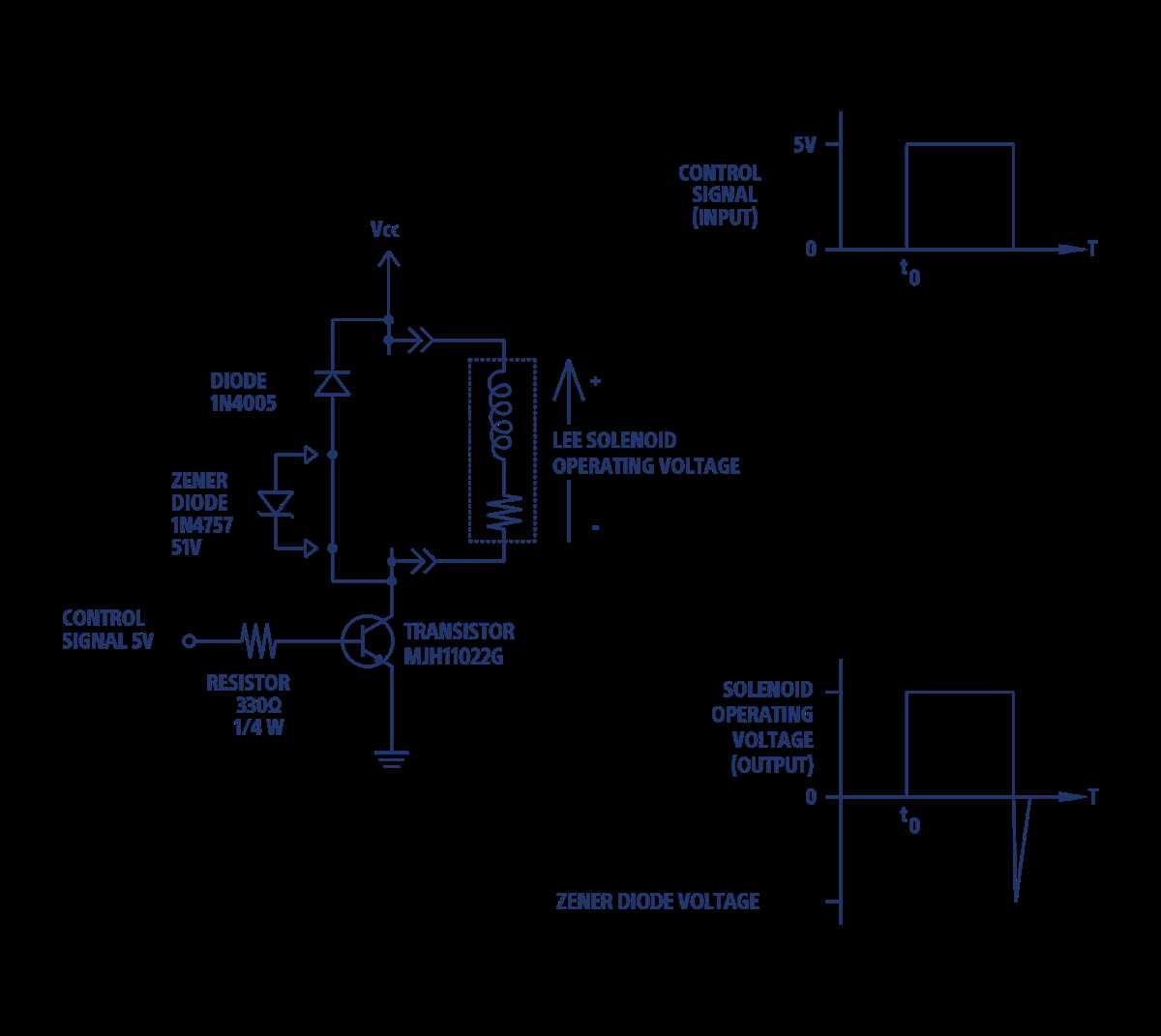

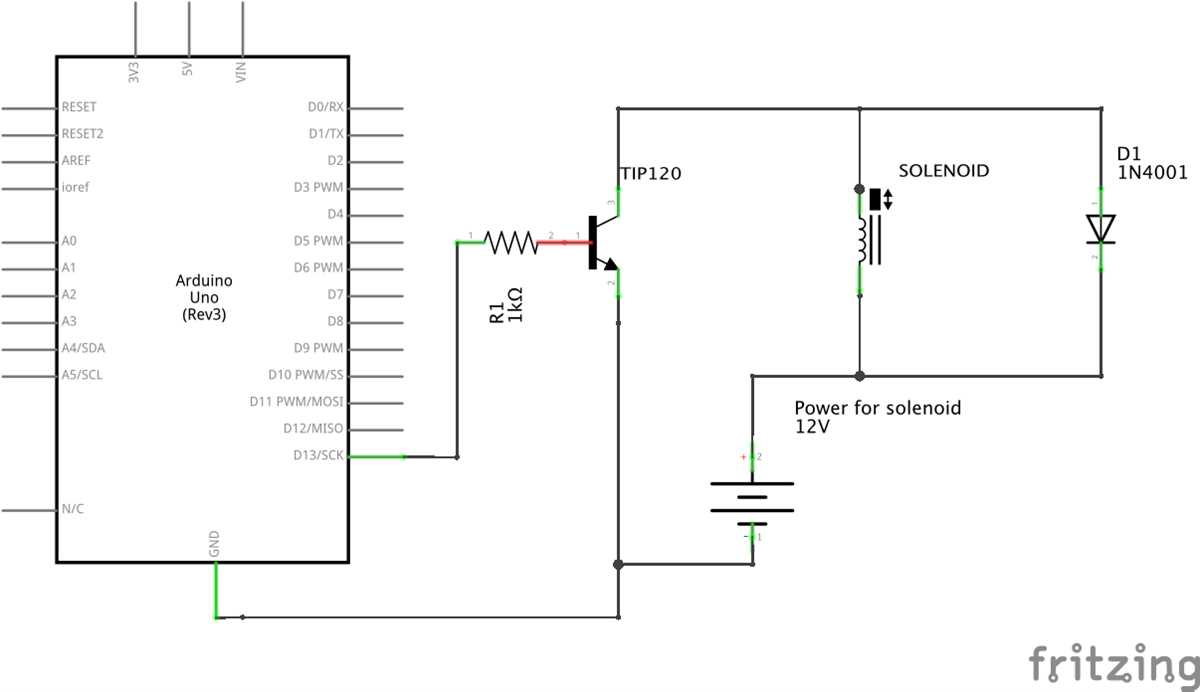

Select a transistor rated for at least 1.5 times the coil current. For a typical 1.2A actuator, a TIP120 Darlington pair provides adequate headroom; SMD variants like IRLML6401 work for compact designs. Base resistor values should target 1/10th the coil current–calculate using Ohm’s law: R = (Vcontrol – 0.7V) / (Icoil / 10). Bypass noise with a 0.1µF ceramic capacitor near the coil supply pins.
Wire a flyback resistor (100-500Ω) in parallel with the diode if shutdown response time must improve beyond 50ms. This sacrifices some spike protection but speeds decay by an order of magnitude. MOSFETs require special attention–gate drivers like TC4427 handle 3A peaks, preventing partial switching states that lead to thermal runaway. Always simulate transient response in LTspice before prototyping; unexpected resonance can turn a 12kHz PWM into a 200kHz oscillator.
Use stranded wire for coil connections–solid core fractures under vibration, especially in valve actuators or pneumatics. Route control traces away from analog signals; induced currents as low as 1mA can corrupt sensor readings. PCB layouts should prioritize a dedicated ground plane under the coil driver section to minimize loop area and radiated EMI. Test continuity with a 10kΩ pulldown resistor on unused control lines to prevent floating inputs.
Check saturation current limits: copper-clad coils often list 2A maximum, yet sustained operation should stay below 1.5A to meet MTBF estimates. Derate component specs by 30% if ambient temperatures exceed 50°C–electrolytic capacitors lose capacitance exponentially above this threshold. Replace obsolete 555 timers with modern microcontrollers for pulse-width control; STM32G0 series offer 12-bit resolution and consume under 20µA in standby.
Electromagnetic Coil Wiring Blueprint
Start with a 24V DC power source for industrial coils–lower voltages risk weak pull force while higher ones increase heat. Use copper wire AWG 22–26 for most actuators; finer gauges suit compact units but reduce current capacity. Connect a flyback diode (1N4007) antiparallel to the coil to prevent voltage spikes when de-energizing, which can destroy switching transistors. For AC applications, replace the diode with a snubber circuit (RC pair: 100Ω resistor + 0.1µF capacitor).
Label all connections in your layout: “V+” for supply, “GND” for return, and “Trigger” for the control signal. Use color-coded wires–red for power, black for ground, and yellow for the control line–to avoid miswiring. For multi-coil systems, add a terminal block to simplify troubleshooting. Ground the metal housing if the actuator is near sensitive electronics to reduce electromagnetic interference.
Adjust stroke length by modifying the plunger’s travel gap: a 2mm gap yields ~5N force at 12V, while a 5mm gap drops to ~2N. Test pull force with a spring scale before finalizing the design. For precision control, integrate a current-limiting resistor–27Ω for 12V coils–to prevent overheating during prolonged activation. Monitor temperature; coils exceeding 80°C risk insulating varnish degradation.
Common Configuration Failures
| Symptom | Root Cause | Fix |
|---|---|---|
| Intermittent activation | Loose control wire | Crimp connectors with ratchet tool |
| Excessive humming | AC coil on DC supply | Swap for DC-rated unit |
| Rapid overheating | Incorrect current path | Add inline fuse (150% of nominal current) |
| Slow response | High inductance | Switch to litz wire (AWG 24) |
Isolate the coil’s winding from the actuator body using fiber washers–even minor shorts drain power and reduce efficiency. For high-speed applications, replace mechanical switches with MOSFETs (IRF540N) or solid-state relays; mechanical contacts arch and fail after ~100k cycles. Log actuation cycles; standard coils last 5M cycles at 50% duty, halving lifespan at 80% duty.
Calibrate stroke timing by measuring voltage across the coil during activation–rise time should peak in
Quick Reference Wiring Checklist
Polarity marked on all terminals
Flyback diode installed (1N4007)
Wire gauge ≥ AWG 22 for 1A current
Ground strap to metal housing
Heat-shrink over bare leads
Stroke gap verified with calipers
Key Components to Include in an Electromagnetic Coil Wiring Plan
Start with a dedicated power source rated for the coil’s voltage and current demands. For 12V DC actuators, use a stable supply with a minimum 2A capacity; inductive loads may require up to 5A transient handling. Include a fuse or resettable PTC thermistor in line with the positive lead–0.75A for small coils, 3A for industrial variants–to prevent overheating during stalled actuation.
Integrate a flyback diode across the coil terminals–1N4007 for standard applications, Schottky (e.g., 1N5822) for faster switching. Position the diode cathode on the power input side to block forward current while allowing reverse EMF to dissipate safely. For bidirectional control, replace the diode with a dual zener configuration rated 20% above the supply voltage.
Add a switching mechanism: mechanical relays for simple on/off control, or solid-state options (MOSFET, IGBT) for PWM-driven modulation. For MOSFETs, select a logic-level gate model (e.g., IRLZ44N) if driving directly from a microcontroller; include a 100Ω gate resistor to limit inrush current. For AC coils, use a triac (e.g., BTA06) with an optocoupler (MOC3021) to isolate the control signal.

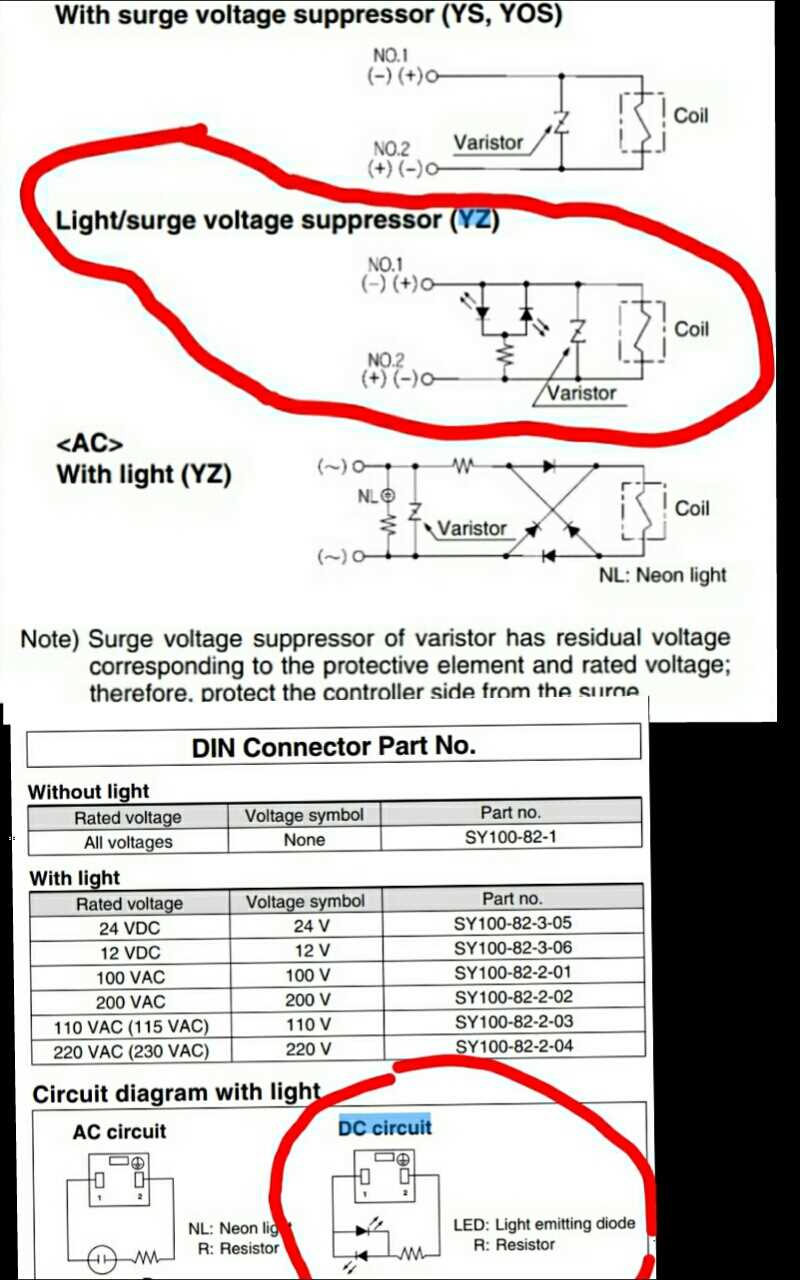

Include transient suppression components: a 0.1µF ceramic capacitor across the coil near the terminals to filter high-frequency noise, and a varistor (MOV) rated 25% above peak voltage (e.g., 18V for 12V systems) to clamp voltage spikes. For EMI-sensitive applications, twist power leads and use shielded cable for lengths exceeding 50cm.
Label every component with voltage/current ratings, polarity markers, and wire gauges–18AWG for currents up to 10A, 14AWG for higher loads. Color-code leads: red for power (+), black for ground (-), blue/yellow for control signals. Terminate connections with spade lugs for relays or soldered joints for PCB-mounted coils, ensuring strain relief at cable entry points.
Step-by-Step Guide to Sketching an Electromagnetic Coil Layout
Begin by marking a vertical axis for the coil’s core–use a 2mm-wide line for clarity. Position the power input terminals at the top: the positive lead connects to a switch symbol (a break in the line with a diagonal slash), while the negative lead attaches to ground (three horizontal lines decreasing in length). Space winding turns evenly: 5mm apart for large cores, 3mm for compact designs. Label each turn sequentially (e.g., “T1,” “T2”) to track progression and avoid errors in multi-layered setups. Use a dashed line to indicate a return path for the wire if it wraps behind the core.
Draw the load–an LED or relay–directly below the coil, linking the switch to the load’s anode and the cathode to ground. Add a flyback diode (standard diode symbol) in reverse bias parallel to the coil to suppress voltage spikes. Verify polarities: the diode’s cathode must align with the positive terminal. For AC applications, replace the diode with a varistor (a zigzag line between terminals) and ensure the coil’s impedance matches the circuit’s voltage rating (e.g., 12V DC = 500–800 turns of 30 AWG wire). Trace paths twice with a red pen to confirm no overlaps disrupt current flow.
Common Mistakes When Designing Electromagnetic Coil Layouts
Incorrect wire gauge selection leads to overheating or insufficient force. Use the AWG chart for current load: 22 AWG handles 7A briefly, 18 AWG sustains 16A continuously. Calculate resistance per meter (22 AWG = 0.0529 Ω/m) before finalizing turns. Misjudging voltage-to-current ratios causes coil burnout–verify power source limits and apply Ohm’s Law (V = IR) for precise winding parameters. Bypassing flyback diodes in DC circuits guarantees spike-induced failures; always pair with a 1N4007 diode rated for 1kV.
Avoiding Critical Dimensional Errors
Core length and diameter mismatches reduce efficiency by up to 40%. A 10mm diameter coil needs at least 20mm core length for linear pull force; deviations introduce non-linear flux paths. Plunger clearance errors under 0.2mm cause sticking–use CNC-machined tolerances for air gaps. Neglecting bobbin thickness adds parasitic resistance; 1mm plastic walls require 3% more turns to compensate. Overlapping windings create short circuits–keep layers parallel with 0.1mm insulation tape between tiers.
Ground loops form when chassis and coil grounds connect at multiple points. Dedicate a single 14 AWG return path directly to the battery negative terminal. AC layouts require phase synchronization; a 5° lag in 60Hz systems drops torque by 8%. For multi-coil systems, isolate each unit with optocouplers (e.g., PC817) to prevent cross-talk. Never assume heat sinks are optional–coils exceeding 80°C need aluminum cladding with thermal paste (0.5W/m·K).
How to Select the Right Switches and Relays for Electromagnetic Actuator Control
Begin by matching the switching component’s current rating to the actuator’s inrush and holding values. A coil drawing 5A at activation but dropping to 0.8A during sustained operation requires a relay rated for at least 10A peak and 2A continuous. Always verify contact material–silver-nickel works for currents under 25A, while silver-tin oxide handles 25A–100A without premature erosion. Check the datasheet for minimum switching voltage; 3V relays frequently fail with 1.8V actuator coils, even if the coil’s nominal voltage is 12V.
- For PWM-controlled actuators, use relays with arc-resistant contacts–1,350VDC dielectric strength prevents high-frequency spike damage.
- Choose solid-state switches only if ambient temperature stays below 85°C; MOSFETs derate 30% at 100°C, risking thermal runaway.
- Tactile switches must survive 50,000 cycles minimum; membrane types degrade after 10,000 actuations under 500g load.
- ULE-rated relays provide 10ms release time, critical for actuators needing sub-20ms response.
For field applications where vibration exceeds 10G, opt for relays with either hermetically sealed cases or EP contacts coated in 0.2mm silicone to prevent micro-arcing. If space allows, position the switch no closer than 30mm from the actuator coil; EMI from closing contacts can falsely trigger adjacent logic circuits. Always include a flyback diode–TW06 reverses 1A transients without avalanche breakdown, but a 1N5822 handles 3A peaks and reduces recovery time to 120ns.
