How to Connect Sony Stereo Wiring Harness Step by Step Guide

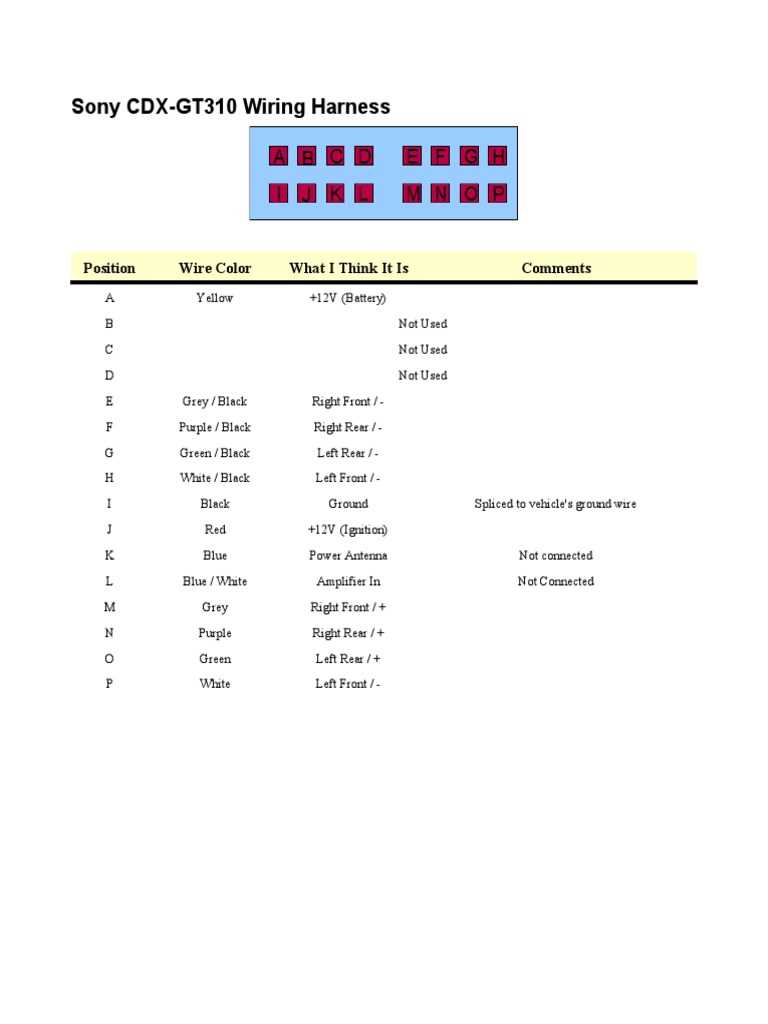

Start by locating the head unit’s harness connector–typically a 12-pin or 16-pin plug with color-coded leads. Identify the power wires: the constant 12V (yellow), switched ignition (red), and ground (black) form the core electrical circuit. Mismatching these risks fuse blowouts or battery drain. Verify with a multimeter–yellow must hold voltage when the engine is off, red only when powered on.
Speaker lines follow a standardized pairing pattern: front left (+/-), front right (+/-), rear left (+/-), and rear right (+/-). Use solid colors for positive (white, gray, green, purple) and striped for negative (white/black, gray/black, green/black, purple/black). Cross-connecting phases causes cancellation, weakening bass output. Solder joints prevent corrosion; alternatively, use crimp connectors with adhesive-lined heat shrink for longevity.
Antenna triggers (blue/white) and amplifier remotes (blue) require separate handling. The former connects to motorized antennas, while the latter activates external power amplifiers–confusing them damages components. If integrating factory steering controls, the orange illumination wire must sync with vehicle dash lighting to avoid dimming issues. Always reference the specific model’s pinout–later revisions changed layouts, particularly in luxury trims.
For aftermarket adapters, verify wire gauge compatibility. OEM harnesses often use 0.5mm² for signals, while high-power amplifiers need 2.0mm² or thicker. Skipping this step overheats wires under load. Test each connection before securing the head unit–miswired channels can blow tweeters. Use a 1A fuse on constant power feeds as a failsafe during installation.
Understanding Audio System Connection Schematics
Locate the color-coded cables in the vehicle’s harness–typically including solid green (front right positive), gray (front right negative), white (front left positive), violet (front left negative), yellow (constant 12V), black (ground), blue (remote turn-on), and orange/white (illumination). Verify compatibility by cross-referencing the harness pinout with the amplifier’s input labels; mismatches in impedance or signal type (balanced vs. unbalanced) risk distortion or equipment damage. Use a multimeter to confirm voltage on the yellow and blue wires before connecting, ensuring the head unit powers auxiliary devices without draining the battery.
Step-by-Step Harness Integration
- Strip 5mm of insulation from each wire end, twist strands tightly, and crimp with a 16-14 AWG butt connector or solder for permanent joints.
- Match ground (black) to chassis metal using a star washer and 10mm bolt; avoid paint or corrosion to prevent noise interference.
- Route RCA cables away from power wires and engine components to minimize electromagnetic interference; bundle with zip ties every 15cm.
- For aftermarket amplifiers, connect the blue remote wire to the head unit’s trigger output or a switched 12V source; omit this step if using passive speakers only.
Test the system in stages: first play a 1kHz sine wave at low volume to verify speaker polarity (positive terminals must produce outward cone movement), then gradually increase volume while monitoring for clipping on an oscilloscope or via audible distortion. If noise persists, reroute cables perpendicular to power lines, install a ground loop isolator between RCA connections, or relocate the amplifier’s ground point closer to the battery. For OEM integration, bypass factory crossovers by tapping directly into the speaker wires using T-harness adapters sized for 0.5-2.5mm² gauge differences.
Decoding Audio System Color Standards for Speaker Connections
Locate the ground reference first–it’s consistently marked by a solid black or striped black-and-white conductor. Left front channels use white (positive) and white-black striped (negative) pairs, while right front channels follow gray (positive) and gray-black striped (negative) patterns. For rear channels, manufacturers standardize purple (positive) with purple-black stripe (negative) on the left and green (positive) paired with green-black stripe (negative) on the right. Subwoofer outputs typically use a single orange or orange-striped lead, though higher-output systems may split this into orange (positive) and orange-black (negative) for balanced low-frequency transmission.
Verification Techniques for Unlabeled Leads

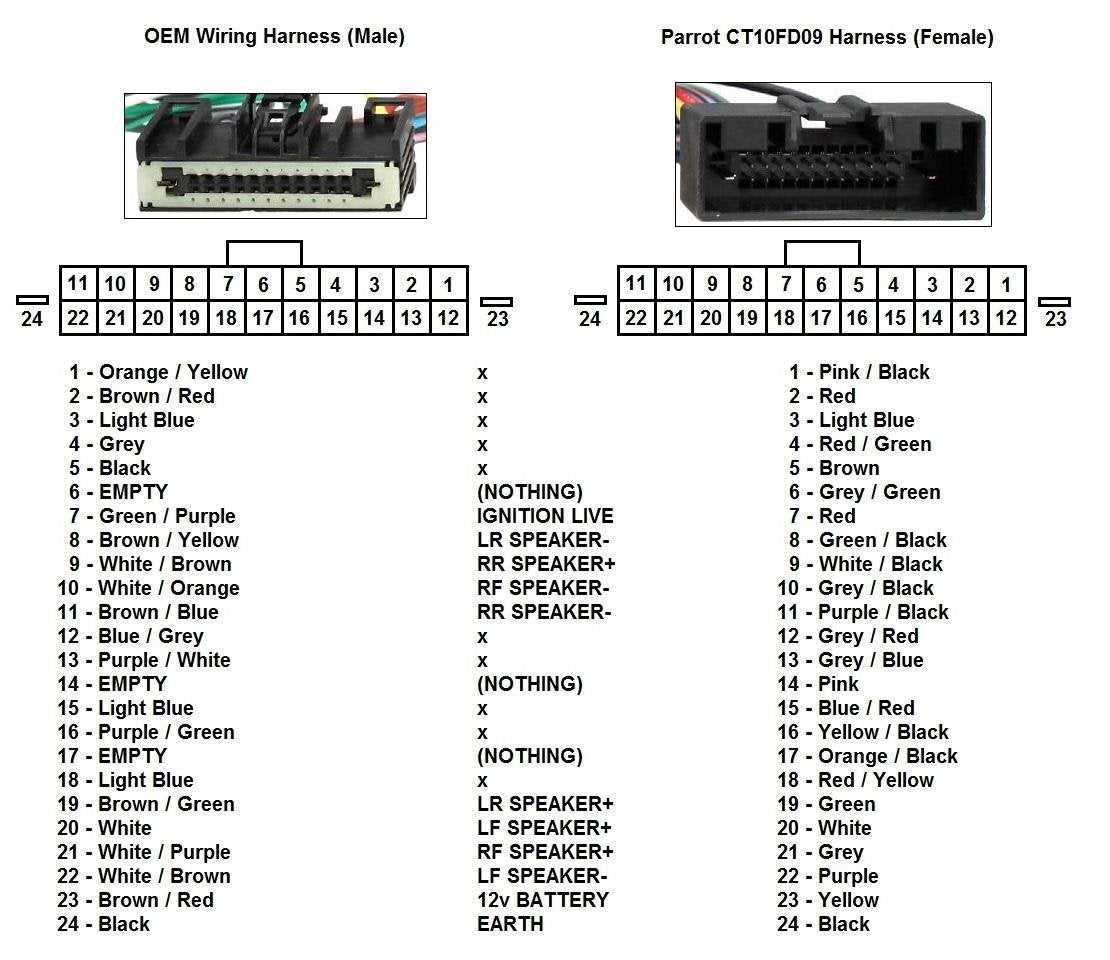

Use a 9V battery to momentarily test connections–connecting the battery’s terminals to each wire pair will produce a faint click in the corresponding speaker, confirming polarity. Reverse polarity causes the cone to retract instead of extend. For systems with harness adapters, reference the pinout of the aftermarket connector against the original equipment standards–PIN 12 (LT GRN/BLK) and PIN 16 (RT BLU/RED) often correspond to rear speaker outputs, while PIN 1 (LT GRY) and PIN 3 (DK GRN) handle front channels. Always cross-reference manufacturer-specific labeling, as European and Japanese models occasionally invert certain color pairs (e.g., blue replacing green for right rear outputs).
Step-by-Step Guide to Integrating a Factory Receiver with an External Power Booster
Disconnect the vehicle’s battery negative terminal to prevent short circuits before handling any cables. Locate the factory receiver’s line-level outputs–typically RCA jacks labeled “Front,” “Rear,” and “Sub”–or use high-level speaker wires if RCA outputs are absent. For aftermarket amplifiers, refer to the gain structure: trim RCA levels to 2V (or adapter voltage if using speaker wires) to match the amp’s input sensitivity, usually specified in the amplifier’s manual as 0.2V–4V. Connect RCA interconnects from the receiver’s outputs to the amplifier’s inputs, ensuring color-coded matching (red to red, white to white) to maintain channel separation. For high-level inputs, splice the factory speaker wires–positive (solid/wide stripe) and negative (striped/dotted)–into the amplifier’s harness, isolating them from the head unit’s internal amp to avoid feedback loops. Secure all connections with crimp connectors or solder for durability, then insulate with heat-shrink tubing.
| Connection Type | Required Tools | Key Steps | Voltage/Tolerance |
|---|---|---|---|
| RCA Line-Level | RCA cables, wire strippers, multimeter | Match channels, trim gain to 2V, verify with multimeter | 0.5V–4V input (check amp specs) |
| High-Level (Speaker Wire) | Crimp connectors, 16-14 AWG wire, soldering iron | Splice positive/negative, bypass factory amp, test continuity | 8–12V max (load-dependent) |
Ground the amplifier’s power wire directly to the chassis near the receiver’s grounding point, avoiding daisy-chaining to prevent noise. Route the remote turn-on wire (12V blue/white) from the receiver’s harness to the amplifier’s trigger input, ensuring it shares the same ground as the power wire to eliminate voltage drops. Reconnect the battery, then power on the system: verify all channels produce clear audio without distortion at 75% volume. Adjust the amplifier’s crossover filters–set low-pass for subwoofers (50–80Hz) and high-pass for speakers (80–120Hz)–to prevent frequency overlap. Use an oscilloscope or distortion meter if available to confirm signal integrity below 0.1% THD.
Diagnosing Faulty Connections in Vehicle Entertainment Setups
Check power feed continuity first by probing the constant 12V line with a multimeter–readings below 11.5V indicate corroded terminals or a blown fuse (common fuse ratings: 10-20A). Swap the fuse with an identical rated spare before testing again. If voltage stabilizes, inspect wire gauge compliance: aftermarket harnesses often use 18-20 AWG where 14-16 AWG is required for stable current, causing intermittent shutdowns when bass-heavy tracks play.
Ground Loop Isolation and Speaker Phase Conflicts
Interference patterns resembling a faint 60Hz hum signal improper grounding. Scrape paint from chassis mounting points until bare metal appears, then secure ground leads with star washers. For phase mismatches, reverse polarity on one channel–audible cancellation at moderate volumes confirms this. Use impedance-matched replacement speakers (4Ω or 2Ω as per OEM specs) to prevent amplifier overload, identifiable by a high-pitched whine during power-up.
Pinout Layout for Xplod Audio System: Connector Breakdown
Begin by identifying the 16-pin harness adapter on the back of the Xplod amplifier–this is the core connection point for all input and output signals. Pin assignments follow a strict color-coded scheme, but always cross-reference with a multimeter to confirm voltage and signal integrity before finalizing connections.
- Pins 1-4 (Power Delivery): Red (B+) supplies 12V DC directly from the vehicle’s battery; black (GND) must attach to a chassis ground with low resistance. Yellow (Remote) activates the unit when receiving 12V from the head unit’s antenna trigger. Orange (Illumination) adjusts display brightness–use a 100Ω resistor if dimming is inconsistent.
- Pins 5-8 (Front/Rear Audio): White and white/black carry left-front audio signals; gray and gray/black handle right-front. For rear channels, green and green/black (left), violet and violet/black (right). Verify channel phase by playing a mono test tone–reversed polarity produces hollow sound.
- Pins 9-12 (Subwoofer Output): Blue/white (subwoofer) requires an RCA conversion if interfacing with non-factory amplifiers. Pins 11-12 (data bus) enable steering wheel control integration–consult the manufacturer’s protocol guide for compatibility.
- Pins 13-16 (Auxiliary Functions): Brown (mute) grounds to silence audio; pink (power antenna) triggers motorized antennas–insert a 1A fuse inline. Purple (speed sensor) adjusts equalizer settings based on vehicle speed–disable if cruise control interference occurs.
Solder joints must withstand 10+ G vibrations–use silicone-filled heat shrink and strain relief at cable exits. Avoid wrapping wires around sharp edges; secure bundles with nylon ties spaced every 15 cm. For aftermarket integration, bypass factory noise filters by injecting a 1kHz test signal and measuring distortion at ≤0.1% THD.
Test each channel individually with a sine wave generator before final installation. Left/right imbalance exceeding 0.5 dB indicates incorrect pin assignment or damaged cables. Subwoofer thump signals improper ground–relocate the ground point to a bare metal section within 45 cm of the amplifier.
For OEM harness adapters, confirm pin voltages match Xplod specifications (±0.2V tolerance). Non-compliant signals risk permanent damage to the internal DAC. Always disconnect the battery negative terminal before handling power leads to prevent short circuits or surge events.
