How to Build a Simple Sound Activated LED Circuit Guide

For a reliable audio-responsive illumination setup, begin with an electret microphone feeding into a low-noise amplifier stage. A single-supply op-amp (LM358 or NE5532) with a 10kΩ input resistor and 1µF coupling capacitor will isolate AC components while rejecting DC bias. Gain should be set between 50–200 to avoid clipping, using a 10kΩ feedback resistor in series with a 1kΩ trimpot for fine adjustment.

After amplification, route the signal into a comparator (LM393) configured with a reference voltage of 1.5V–2V, derived from a simple voltage divider. This threshold prevents false triggering from ambient noise. Connect the comparator output to a power MOSFET (IRFZ44N) or transistor array (ULN2003) to drive high-current LEDs–1W RGB modules work well without additional heat sinks if pulsed at 50% duty cycle.

For color mixing, split the amplified signal into three channels using bandpass filters: 200–600Hz for red, 1k–3kHz for green, and 6k–15kHz for blue. Each filter requires a 10kΩ resistor and 100nF capacitor per stage, cascaded for sharper roll-off. Power the LEDs through current-limiting resistors (22Ω for 12V supply) and add flyback diodes (1N4007) across inductive loads like relays or solenoids if expanding beyond static visuals.

Breadboard the design first, using a 9V battery or 12V wall adapter. Verify signal integrity with an oscilloscope–clipping appears as flat-topped waveforms. If phase shifts distort synchronization, reduce filter capacitor values by 30–50%. For battery-powered units, swap the op-amp to a rail-to-rail model (MCP6002) and lower the supply to 5V to extend runtime without sacrificing responsiveness.

Building an Audio-Activated Visualizer: Key Components and Wiring

Start with an electret microphone (e.g., CMA-4544PF-W or similar) paired with a preamplifier stage using a TL072 op-amp to boost weak audio signals. Configure the first stage as an inverting amplifier with a gain of 100 (Rf=100kΩ, Rin=1kΩ) to ensure adequate sensitivity for ambient noise levels as low as 40dB. Add a coupling capacitor (10µF) between the mic and op-amp to block DC offset, followed by a 1kΩ pull-down resistor to ground to stabilize the input. For signal conditioning, use an active bandpass filter (second TL072 stage) with cutoff frequencies at 80Hz and 5kHz (R1=20kΩ, R2=100kΩ, C1=100nF, C2=2.2nF) to isolate mid-range frequencies–critical for responsive LED flicker without lag.

Power and Output Stage Configurations

• Use a voltage divider (two 10kΩ resistors) to split a 9V supply, creating a 4.5V virtual ground–this prevents distortion in single-supply setups.
• Feed the filtered signal into a comparator (LM393) or Schmitt trigger (74HC14) to generate clean on/off pulses for the visual output. Threshold adjustment via a 100kΩ potentiometer ensures adaptability to varying volumes.
• For RGB outputs, route the comparator output to a transistor array (ULN2003A) or MOSFETs (IRFZ44N) capable of handling 1A+ per channel. Use PWM-capable drivers (e.g., WS2812B LEDs) for smooth intensity transitions.
• Decouple power rails with 100nF capacitors near every IC to suppress noise, and add a 10µF bulk capacitor at the input jack to filter supply fluctuations.

1. Test microphone sensitivity by measuring voltage swing at the op-amp output–target 1-3V peak-to-peak for moderate room noise.
2. Verify comparator behavior by sweeping input volume; LEDs should toggle sharply without flickering at the threshold point.
3. Calibrate the bandpass filter using a frequency generator: set the input to 1kHz at 1Vpp and confirm >80% of the signal passes through.

For compact builds, replace discrete transistors with an 8-channel driver IC (e.g., TPCA8208) to reduce board space. Always opt for low-ESR capacitors in high-current paths to prevent thermal issues.

Core Elements for Building an Audio-Responsive Illumination Setup

Begin with a microphone module–preferably an electret condenser type with a sensitivity range of -42 ± 3 dB at 1 kHz. Models like the CMA-4544PF-W or INMP441 offer built-in amplification, reducing noise interference from analog wiring. Avoid raw microphones without preamps; they require additional op-amp stages, complicating signal clarity.

A bandpass filter is non-negotiable. Use a dual op-amp configuration (e.g., LM358 or MCP6002) to isolate frequencies between 80 Hz and 15 kHz–the sweet spot for human auditory perception. Adjustable resistors (10kΩ) let you fine-tune the cutoff points. Without filtering, ambient noise (like 50/60 Hz hum) will trigger false activity, skewing performance.

The amplifier stage must boost weak electrical impulses to usable levels. A single-transistor design (e.g., 2N3904) works for basic setups, but a dedicated audio amp IC like the LM386 (gain of 20–200) ensures stability. Connect the input via a 10 µF coupling capacitor to block DC offset while allowing AC signals–omitting this risks damaging downstream components.

For illumination control, solid-state relays (SSRs) or power transistors handle higher loads without mechanical wear. A MOSFET like the IRF540N (100V, 36A) drives LEDs, incandescent bulbs, or even 12V RGB strips directly. Pair with a flyback diode (1N4007) if switching inductive loads to prevent voltage spikes from destroying the switch.

Component	Key Specifications	Typical Load Capacity
IRFZ44N MOSFET	VDS: 55V, RDS(on): 0.024Ω	Up to 49A (pulsed)
TLP3502 SSR	5V input, 350V/3A output	Household lighting
MOC3041 Triac Driver	Optically isolated, zero-crossing	Up to 1A (non-inductive)

A rectifier (e.g., 1N4148) converts AC signals to DC pulses for reliable triggering. Combine with a smoothing capacitor (10–100 µF) to prevent flickering at lower frequencies. For multi-channel setups (e.g., RGB color mixing), add comparator ICs (LM339) to split signals into discrete frequency bands.

Power supply demands dictates component choice. A 12V/2A wall adapter suffices for small LED arrays, but high-power installs (e.g., stage lighting) need a regulated switching supply (LM7805 for 5V logic). Fuse the input (1A for 12V) to isolate shorts–underrated fuses risk melting traces in DIY layouts.

Grounding strategies separate analog and digital noise. Use a star grounding scheme, connecting all grounds at a single point near the power supply. Twist signal wires and shield audio lines with braided copper to cut electromagnetic interference from motors or dimmers. Skip this, and hum will dominate even at moderate volumes.

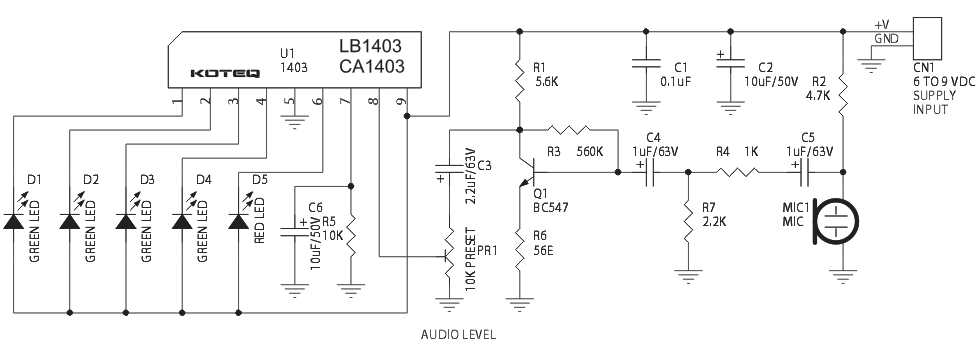

Step-by-Step Wiring Guide for a Microphone-Based LED Controller

Begin by soldering the condenser mic’s output pin to a 10kΩ resistor, connecting its other end to the base of an NPN transistor (e.g., 2N3904). Ensure the mic’s ground wire links directly to the power supply’s negative terminal. This setup amplifies audio signals into usable voltage swings. For stability, place a 0.1µF capacitor between the mic’s positive lead and ground to filter high-frequency noise.

Power and Transistor Configuration

Connect the collector of the transistor to a 5V DC source through a 220Ω current-limiting resistor in series with your LED cluster. The emitter should ground back to the power supply. Verify polarities: the LED’s anode (longer leg) faces the resistor, cathode to ground. This arrangement ensures the transistor switches the LEDs proportionally to input peaks. Test with a multimeter–transistor voltage at the collector should drop sharply during loud noises.

• Use a half-wave rectifier (1N4001 diode + 470µF smoothing capacitor) if driving high-power LEDs to prevent flicker.
• Avoid exceeding 20mA per LED–calculate resistance using R = (Vsource - VLED) / ILED.
• For multi-color effects, wire RGB LEDs in parallel with separate transistors for each channel.

Fine-Tuning Sensitivity

Adjust responsiveness by swapping the 10kΩ resistor at the transistor base: lower values (4.7kΩ) increase gain for quiet environments; higher values (47kΩ) reduce sensitivity. Add a potentiometer (10kΩ) in series for real-time control. Isolate sensitive components with a solder mask to prevent shorts–flux residue can cause intermittent failures. Final inspection: tap the mic–LEDs should pulse without delay or distortion.

Fine-Tuning Input Thresholds and Reaction Speed in Your Setup

Begin by selecting a potentiometer with a resistance range matching your input signal amplitude–typically 10kΩ for line-level signals or 1kΩ for microphonic sources. Adjust the wiper until the baseline voltage at the comparator’s non-inverting pin sits 50–100mV below the reference set by a voltage divider. This offset prevents false triggers from ambient noise while ensuring prompt detection. For subwoofer-emphasized signals, increase the reference to 1.2V to filter higher-frequency内容.

Replace the standard 10μF coupling capacitor with a 1μF polyester film type if reaction latency exceeds 15ms. Film capacitors offer lower dielectric absorption, reducing charge retention that delays response. For bass-heavy environments, a 47μF electrolytic may be necessary, but bypass it with a 0.1μF ceramic to maintain high-frequency sensitivity. Measure the time constant (τ = R × C) across the input stage; values above 30ms introduce noticeable lag in pulse-to-visual translation.

Swap the fixed resistor feeding the transistor’s base for a trimpot calibrated to 470Ω. Rotate the dial clockwise to decrease gain until the visual output flickers only at intended peak levels, then back off by 10%. This adjustment prevents saturation, which distorts pulse width and timing. For MOSFET-based setups, use a 10kΩ trimpot to fine-tune gate voltage–start at 2V and adjust upward until the device fully switches without thermal runaway.

Dynamic Range Optimization

Insert a 4.7kΩ resistor in series with the positive rail of the signal amplifier to create a soft clipping effect, capping transient spikes that otherwise overwhelm the output stage. Pair this with a 1N4148 diode reversed across the amplifier’s feedback loop–this clamps negative-going excursions to –0.7V, preserving consistent brightness scaling. For laser or high-power LED arrays, add a 100Ω series resistor to each channel to prevent current hogging during simultaneous activation.

Use an LM393 comparator in place of passive dividers if the setup exhibits inconsistent triggering. Configure hysteresis by tying the comparator’s output to its non-inverting pin via a 1MΩ resistor–this creates a 50–100mV deadband, eliminating erratic switching. For ultra-low-latency applications (sub-10ms), replace the hysteresis resistor with a 220kΩ trimpot, allowing precise tuning of the deadband width without altering the main reference.

Calibrate the envelope detector’s decay time by selecting the timing capacitor based on BPM range: 220nF for 60–120BPM, 470nF for 120–180BPM. Avoid electrolytics here–film or ceramic types maintain linearity across temperature swings. If the visual output sustains too long, parallel a 10kΩ resistor with the capacitor to bleed charge; if too abrupt, series a 1μH inductor to smooth the decay curve.

Component-Specific Adjustments

For electret microphones, replace the default 4.7kΩ bias resistor with a 2.2kΩ trimpot–adjust for the highest signal swing without DC offset. Monitor the bias voltage; values below 1.8V inhibit sensitivity, while above 2.5V risks saturating the preamp. Pair the microphone with a JFET input op-amp (TL072) to minimize loading effects that distort low-amplitude details.

When driving high-current loads (e.g., 1W LEDs), use an IRLZ44N MOSFET rated for 55V/47A–gate threshold of 2V ensures full switching with minimal input power. Add a 15V Zener diode between gate and source to clamp electrostatic spikes, and series a 10Ω resistor to dampen oscillations. Log sensitivity adjustment by placing a 100kΩ logarithmic taper potentiometer in the gain stage–this maps human-perceived volume changes to linear brightness shifts, avoiding abrupt jumps at low intensities.
