How to Build a DIY Automatic Stair Lighting Circuit Step by Step

For a 12-step installation, use a dual-toggle system with two 555 timer ICs in cascade mode. Configure the first timer as a monostable multivibrator (trigger pulse: 10ms) to activate the second, which operates in astable mode (frequency: 0.5Hz) for gradual brightness transitions. Power the setup with a 12V SMPS (minimum 2A rating) to handle inrush currents from the 5W LED strips per segment.

Route 18AWG stranded copper wire for power distribution, ensuring separate return paths for each control signal to prevent ground loops. Install a 1N4007 diode across each relay coil to suppress voltage spikes, protecting the ULN2003 driver IC. For motion detection, pair a HC-SR501 PIR sensor with a 10kΩ pull-down resistor on its output, set to 5m sensitivity and 30s timeout.

Solder 100μF electrolytic capacitors at the power input of each segment to stabilize voltage during state changes. Use IRFZ44N MOSFETs for dimming control, driven by PWM signals from the microcontroller (recommended: Arduino Pro Mini). Test continuity with a multimeter in diode mode before powering the system, verifying less than 0.5Ω resistance across all connections.

Encase the control unit in a IP67-rated junction box, mounting it within 1.5m of the steps to minimize voltage drop. For outdoor installations, apply silicone conformal coating to all PCB traces and use heat-shrink tubing (minimum 3:1 ratio) on spliced connections. Calibrate the system at dusk using an LDR sensor (resistance range: 10kΩ–1MΩ) tuned to trigger at 10 lux ambient illumination.

Implement redundant fuses (3A) on both the main power line and each branch circuit. For emergency cutoff, integrate a normally-open push button in series with the power feed. Log power consumption with an INA219 current sensor to monitor efficiency–typical loads should not exceed 1.2A during full activation cycles.

Automated Step Illumination Blueprint

Select a 12V power supply for safety and efficiency–higher voltages risk overheating in compact spaces. Pair it with a PIR motion sensor rated for at least 5 meters to ensure reliable activation before the user ascends. Position sensors at both ends of the flight to cover upward and downward movement without dead zones.

Use low-wattage LEDs (1W–3W per segment) to balance brightness and energy consumption. Opt for warm white (2700K–3000K) to reduce glare, which can disorient users in low visibility. Connect each LED cluster in parallel to prevent total failure if one segment burns out–series connections create single-point vulnerabilities.

Component Placement Guidelines

Mount LED strips beneath the leading edge of each tread, angled 15–20° downward to illuminate the path without casting shadows. Secure them with aluminum channels to dissipate heat–adhesive alone fails under prolonged use. Route wiring through the stringer or behind risers to conceal it and protect from physical damage.

Incorporate a time-delay relay set to 30–60 seconds to conserve power while allowing enough illumination for safe passage. Test the relay under load before final installation–cheaper models often misfire, leaving sections permanently on or off. For outdoor use, seal all connections with heat-shrink tubing filled with silicone grease to prevent moisture ingress.

Add a manual override switch near the base and top for maintenance or emergency use. Use a double-pole design to break both live and neutral lines, eliminating phantom power consumption. Label the switch clearly to avoid confusion during power outages or system checks.

Calculate the total wattage of all LEDs and size the transformer accordingly–undersized units overheat and degrade prematurely. For a 15-step setup with 2W LEDs, a 50W transformer provides a 20% safety margin. Include a fuse (1A–2A) in the transformer output to protect against short circuits, which can arc in confined spaces.

Key Elements for an Automated Multi-Level Illumination System

Begin with motion detectors–PIR sensors rated for 12V or 24V DC with a detection range of 5-7 meters and a 110-degree angle. Models like HC-SR501 or AM312 offer adjustable delay settings (5 seconds to 3 minutes) and sensitivity control. Mount them at the midpoint of each riser, angled downward to cover both ascending and descending movement without blind spots.

Power Supply and Control Modules

• Use a 12V 2A switched-mode power supply (SMPS) for consistent voltage output under variable loads.
• Install a relay module (5V or 12V coil) with optocoupler isolation to handle LED strip currents up to 10A per channel.

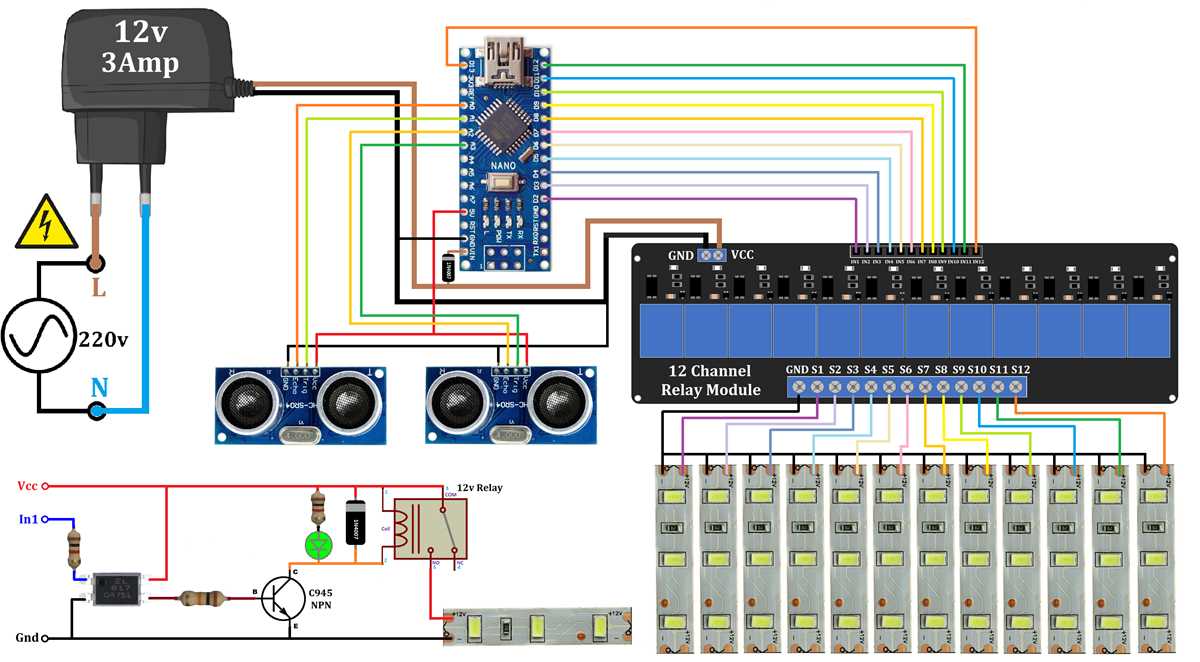

• For multi-zone setups, add a microcontroller (Arduino Nano or ESP8266) to program sequential activation with 1-second intervals between levels.

Opt for waterproof enclosures (IP65 or higher) for outdoor installations, ensuring terminal blocks are rated for at least 15A to prevent overheating.

Choose flexible silicone-encased LED strips with a lumen output of 400-600lm/m. SMD 5050 chips offer better heat dissipation than 3528, lasting up to 50,000 hours at 80% brightness. Cut strips only at marked intervals (typically every 3 LEDs) and use solderless connectors for curves or corners. For color consistency, select strips with a color rendering index (CRI) above 80.

Wiring and Safety Considerations

1. Run 18 AWG stranded copper wire for sensor connections and 16 AWG for power feeds to minimize voltage drop over distances exceeding 5 meters.
2. Fuse each power line at 125% of the maximum current draw (e.g., 2A fuse for a 1.6A load).
3. Ground all metallic components directly to the power supply’s earth terminal.
4. Use thermal adhesive to secure LED strips, improving heat transfer to the mounting surface and reducing fire risk.

Test each segment with a multimeter before final installation, verifying voltage levels at the farthest endpoints remain above 11.5V for optimal performance.

Building an Automatic Sensor-Based Illumination System for Elevated Pathways

Select a 12V power supply with at least 2A output to ensure stable operation for multiple fixtures without voltage drop. Measure the total length of the pathway and calculate the required gauge for wiring–use 1.5mm² for runs under 10 meters and 2.5mm² for distances up to 20 meters to prevent overheating.

Mount passive infrared (PIR) detectors at both ends of the structure, positioning them 1.8–2.2 meters above the surface. Angle the sensors downward at 15–20 degrees to cover the full span while avoiding false triggers from adjacent areas. Secure connections with waterproof wire nuts and seal junctions with heat-shrink tubing rated for outdoor use.

Install LED modules with a lumen output of 200–300 per unit, spacing them 30–40 cm apart for uniform brightness. Choose modules with a beam angle of 120 degrees to minimize shadows. Solder wires directly to the modules or use pre-terminated connectors, ensuring polarity matches the power supply. Test each segment before final installation to identify defective units.

Run a common positive bus along one side of the elevated walkway and a negative return on the opposite side to simplify wiring. Use a relay module rated for 10A if controlling more than 10 LEDs–connect the PIR output to the relay coil and the LED positive bus to the relay switch. For configurations with multiple sensors, wire them in parallel to trigger simultaneously.

Configure the PIR sensitivity and timeout settings using onboard potentiometers. Set a 10–15 second delay to prevent flickering and adjust the detection range to 4–6 meters for optimal coverage. If ambient temperature exceeds 35°C, reduce the sensor’s sensitivity by 10–15% to avoid erratic behavior. Enclose the entire setup in a weatherproof junction box with IP65 or higher rating.

Verify the system by simulating movement at the edges of the detection zone. Check for voltage consistency across all modules with a multimeter–readings should remain within ±0.5V of the supply voltage. If dimming occurs, inspect connections for corrosion or loose contacts. For extended runs, add a second power supply at the midpoint to maintain stable current.

Selecting an Optimal Energy Source for Multi-Level Illumination Systems

Use a 12V or 24V DC power adapter with a wattage rating at least 20% higher than the combined load of all fixtures. For a 10-step installation consuming 3W per segment, a 50W unit ensures stable voltage delivery under transient spikes. Avoid switching supplies with poorly filtered outputs–electrolytic capacitors rated below 470μF per 10W can introduce flicker above 2kHz, detectable by peripheral vision. Verify the adapter’s inrush current rating–models exceeding 30A may trip automotive-grade fuses if paired with thin-gauge wiring.

• Wall-mounted adapters: choose enclosed, IP44-rated units for outdoor-adjacent installations within 3m of foot traffic.
• Battery-backed units: lithium iron phosphate (LiFePO4) cells with built-in BMS avoid voltage sag below 11.8V under 1C discharge rates.
• POE injectors: 802.3at-compliant sources maintain constant wattage even when cable runs exceed 60m; verify twist-pair gauge matches IEEE 802.3bt Class 1 thresholds.

Measure ambient operating temperature–any source exceeding 60°C derating curve (typically 3.5% per °C above 25°C) risks output collapse during prolonged activation sequences. Test under actual load with a 4-channel oscilloscope–ripple exceeding 200mVpp at 90% duty cycle shortens LED lifespan by 40%. For modular setups, interleave power rails: alternate segments derive energy from separate adapters to isolate fault domains and halve recovery time after grid transient events.
