How to Design and Wire a Functional Staircase Lighting Circuit

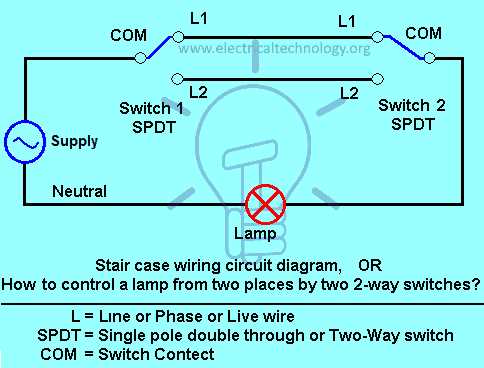

Start with a double-pole configuration to control lighting from two separate points. Use two SPDT (single pole, double throw) switches–connect their common terminals to the power source and load. Cross-wire the remaining terminals between switches to enable toggling from either location. Apply 14-gauge copper wire for 15-amp circuits or 12-gauge for 20-amp setups to meet safety standards.

Expand to three or more control points by integrating DPDT (double pole, double throw) switches as intermediaries. Place these between the original SPDT switches. Each DPDT switch requires four terminals: connect the first pair to the SPDT on one end and the second pair to the SPDT on the opposite end. Maintain consistent wire routing–avoid sharp bends to prevent conductor damage and ensure reliable current flow.

Test continuity at each stage using a multimeter before energizing the system. Probe the switches in all possible positions to confirm circuit completeness. Label each wire with color-coded tags (e.g., black for live, red for travelers, white for neutral) to prevent miswiring. For installations exceeding 10 meters, consider voltage drop calculations–use thicker wiring if losses exceed 3%.

Add a bypass relay for centralized control. Insert a 12V DC relay parallel to one switch, triggered by a low-voltage signal. This allows remote activation via timers, sensors, or smart controls without disrupting manual operation. Keep relay coils and contacts within specified current ratings–typically 10A for residential systems–to avoid overheating.

Document the layout with a scaled schematic before installation. Mark switch positions, wire routes, and junction boxes. Include voltage ratings, wire gauges, and component specifications. Store this reference for future troubleshooting–failed switches often exhibit identical symptoms (flickering lights or partial control), requiring step-by-step isolation of each segment.

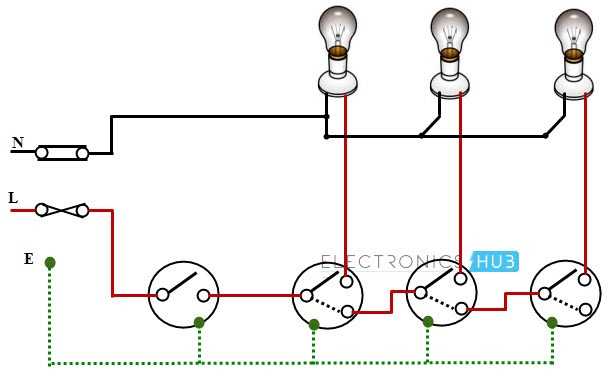

Multi-Level Switching Schematic: Practical Implementation Guide

Use a dual-switch configuration with intermediate relays to control lighting from multiple points–ideal for hallways or multi-floor setups. Connect the first switch (SPDT) to a relay coil, then wire the relay contacts to the second switch (also SPDT). This forms a loop where toggling either switch changes the state. For 3+ control points, add parallel relays between existing switches, ensuring each new relay mirrors the previous connections. Verify voltage ratings: 12V DC for low-power LEDs or 230V AC for mains lighting.

Component selection depends on load type. For resistive loads (incandescent bulbs), relays rated at 10A suffice. Inductive loads (fluorescent tubes, motors) require 16A relays with arc suppression–snubber circuits (100Ω resistor + 0.1µF capacitor) prevent premature contact erosion. Below are tested relay models for common scenarios:

Load Type	Relay Model	Coil Voltage	Max Current
LED Strips (12V)	Omron G5LE	12VDC	10A
Incandescent Lamps	Finder 40.31	230VAC	16A
Fluorescent Fixtures	Schneider RXM4AB1BD	24VAC	20A

Minimize wire runs by placing relays near light sources–use 1.5mm² copper wire for 10A loads, 2.5mm² for 16A+ over distances exceeding 10 meters. Daisy-chaining relays requires precise polarity matching: label wires during installation to avoid misfires. Test each control point sequentially–miswired configurations cause flickering or stuck relays. For safety, fuse each relay coil (2A slow-blow for 12V, 3A for 230V) and include a master disconnect switch.

Optimize the layout by centralizing relays in a junction box. Use terminal blocks for secure connections; twist-and-solder splices fail under vibration. For automated setups, replace manual switches with momentary push-buttons and latching relays (e.g., Panasonic TQ2-L-1). Add a time-delay relay (0.5s) to prevent rapid toggling. Debugging: measure continuity at each relay coil–open circuits indicate faulty switches or broken wires. Voltage drop across relay contacts shouldn’t exceed 0.3V at rated load.

Core Elements and Their Functions in Multi-Level Illumination Wiring

Select a dual-coil relay (DPST or DPDT) rated for 10A at 250VAC minimum–this handles current surges when both lamps activate simultaneously. Position it near the power source to minimize voltage drop across interconnecting wires. Use 1.5mm² solid copper conductors for main lines; stranded 0.75mm² suffices for switch legs where flexibility prevents wire fatigue during frequent toggling.

• Switches: Install momentary push-buttons (NO configuration) with a 5A resistive load rating at entry/exit points. Avoid latching types–they complicate automatic reset sequences.
• Timer module: Deploy a programmable delay relay (e.g., Omron H3CR-A8) set for 30-second hold-off after activation. This prevents accidental retriggering during user transit.
• Lamp load: Choose LED bulbs with built-in drivers–12W 1100lm units spaced every 1.2 meters ensure uniform luminance without thermal stress on wiring.
• Neutral bus: Dedicate a single 4mm² return path for all neutral currents; branch connections here risk ground loops if daisy-chained.
• Fuse protection: Place a 6A slow-blow fuse upstream of the relay to isolate faults without nuisance trips during startup inrush.

Route control cables perpendicular to power lines in separate conduits to prevent capacitive coupling–shielded twisted pair (STP) with 85% coverage foil suppresses EMI from dimmer modules. Terminate all grounds to a single 10mm² bonding lug at the service panel; floating grounds create potential differences between fixtures. Test continuity with a 1kΩ resistor across relay contacts before energizing–verify less than 1Ω resistance.

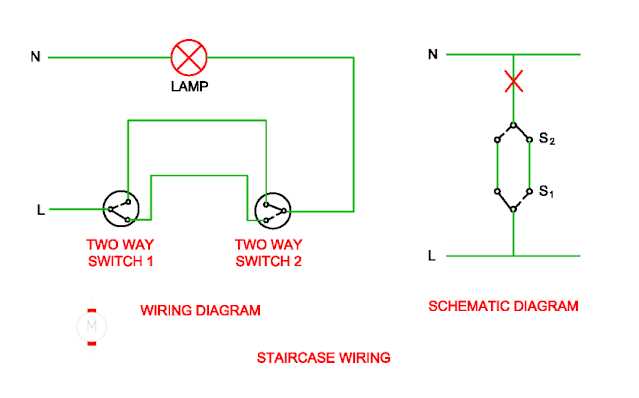

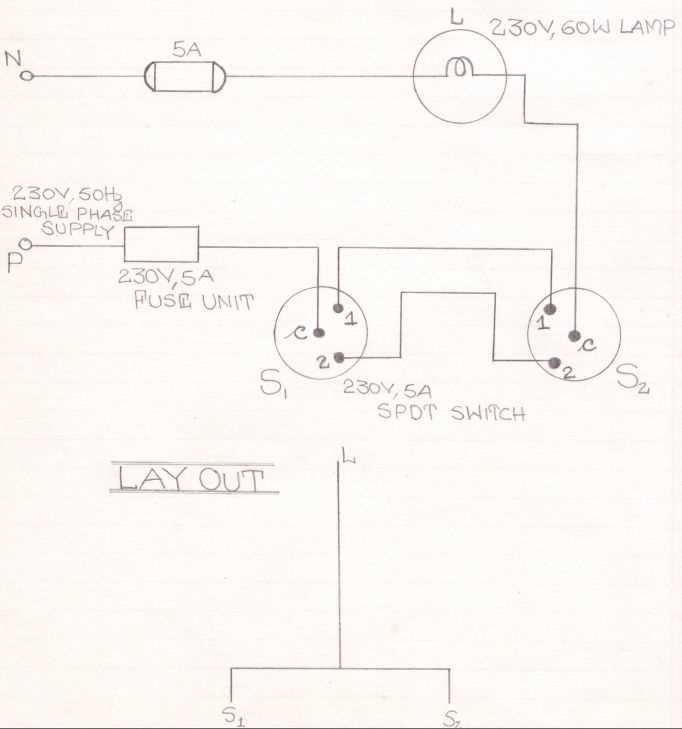

Step-by-Step Wiring Guide for a 2-Way Switch Configuration

Select 14 AWG solid copper wire for standard lighting loads under 15 amps. Use 12 AWG for heavier loads or runs exceeding 50 feet to prevent voltage drop. Confirm local electrical codes–some regions mandate arc-fault circuit interrupters (AFCIs) for all lighting branches.

Turn off power at the breaker panel and verify absence of voltage with a non-contact tester before touching any wires. Label each conductor at both switch locations: “common” (black screw), “traveler 1” (brass screw), and “traveler 2” (second brass screw). Mistaking travelers for neutral wires risks short circuits.

Connect the common terminal on the first switch to the live wire (black or red) from the power source. Attach the two traveler wires (typically blue or yellow, sometimes red) to the brass terminals. Route these travelers through the connecting cable to the second switch’s brass terminals–match colors precisely.

Link the common terminal on the second switch to the load wire (black or red) leading to the fixture. Ensure the bare ground wire bonds both switches and the light fitting. Twist grounds together with a green wire nut, then attach to the green grounding screw on each device.

Critical Junction Checks

Inspect all connections for exposed copper; trim sheathing only enough to insert wires under terminal screws–no more than 1/4 inch. Tug gently on each wire to confirm secure attachment. Loose connections generate heat and may fail within months.

Use switch-rated wire nuts for all splices. Ordinary nuts can vibrate loose under cycling loads. Wrap splices clockwise with electrical tape for extra security, especially in older installations where wire insulation may be brittle.

Mount switches into their boxes with screws, not drywall anchors. Misaligned boxes cause strain on wires, leading to intermittent failures. Test operation before closing the wall–toggles should snap crisply with no flickering lights.

If the light fails to respond, recheck traveler wiring first–crossed travelers create a dead path. Measure voltage at the fixture: 120V confirms power is reaching the load, while 0V suggests an open connection upstream. Probe both switches’ common terminals to isolate the break.

Common Pitfalls in Schematic Layout and Build Errors

Avoid misaligning component footprints with their actual pins. Many datasheets show pin layouts in a mirrored view for clarity, leading to reversed connections if not verified. Always cross-check with the physical part before soldering–especially for ICs and transistors where orientation errors can destroy the device instantly.

Skipping current-limiting resistors for LEDs is a frequent oversight. Assuming a 5V logic output can safely drive an LED without calculation risks burning it out or overloading the microcontroller. Use Ohm’s law: a 20mA LED with 3.2V drop on a 5V rail requires (5-3.2)/0.02 = 90Ω, rounded up to the nearest standard value (e.g., 100Ω).

Overlooking decoupling capacitors near power pins causes erratic behavior. Digital ICs switch rapidly, demanding short bursts of current. Without a 0.1μF ceramic capacitor within 2mm of every VCC/GND pair, noise can corrupt signals or reset the chip. Bulk capacitance (e.g., 10μF electrolytic) should also be present on the power rail.

Using wire gauges too thin for the expected load creates voltage drops and overheating. For example, a 10A current through 22 AWG (0.3mm²) wire–rated for ~2A–results in a 3V drop over 1 meter. Consult an ampacity chart: 14 AWG (2.1mm²) handles 15A safely.

Neglecting thermal management for high-power components like MOSFETs or voltage regulators leads to failure. A TO-220 package without a heatsink can dissipate ~1W; exceeding this requires calculating thermal resistance (θ_j-a) and adding insulation or forced air. For instance, a 5V-to-3.3V LDO dissipating 0.5W with θ_j-a=80°C/W reaches 40°C above ambient–a heatsink reduces this by 50%.

Mismatching logic levels between devices (e.g., 5V TTL and 3.3V CMOS) can damage inputs. A 5V signal on a 3.3V-tolerant pin may still exceed specs. Use level shifters or check datasheet thresholds: some 3.3V MCUs tolerate 5V on certain pins, but not all.

Assuming all grounds are equal causes ground loops. Analog and digital grounds should meet at a single point near the power supply to avoid noise coupling. For example, a 12-bit ADC with a digital PWM sharing a ground path can introduce ±50mV of error–enough to obscure a 1V signal range.

Forgetting to include test points complicates debugging. Assign a pad or header for critical nodes (e.g., clock signals, power rails, reset lines) to avoid probing with needles–a practice that risks shorting adjacent pins. Use 2.54mm pitch headers for oscilloscope access, and label them clearly.
