Complete Guide to Stratocaster 5-Way Switch Wiring for Guitar Setup
For a noise-free, reliable setup, use a 250k audio taper potentiometer for volume control and 250k linear pots for tone knobs. This ensures smooth frequency roll-off without abrupt changes at lower settings. Ground the back of each pot to a single central grounding point on the guitar’s bridge or claw plate to minimize interference.
Connect the bridge pickup hot wire to the middle lug of the volume pot, while the neck and middle pickups join the switch. Use shielded coaxial cable for all signal-carrying wires–especially between the pickup selector and volume pot–to reduce hum. Keep wire lengths tight; excess slack introduces capacitance, dulling high frequencies.
A 0.047µF capacitor works best for tone controls, preserving clarity without muddiness. For single-coil pickups, omit resistors in tone circuits–unlike humbuckers, they don’t need attenuation. Ensure the pickup selector’s common lug routes to the volume pot’s input lug, while the other three connect to respective pickups.
Test continuity with a multimeter before final assembly. Check that the ground wire from the output jack connects directly to the central grounding point without daisy-chaining. If interference persists, verify the shielding on control cavities; a conductive paint or copper foil lining eliminates external noise.
Avoid soldering directly to switch contacts–use tinned copper wire for joints to prevent cold solder connections. For push-pull pots, route the extra wire away from signal paths to prevent cross-talk. Five-way switches should click firmly; loose detents cause false readings.

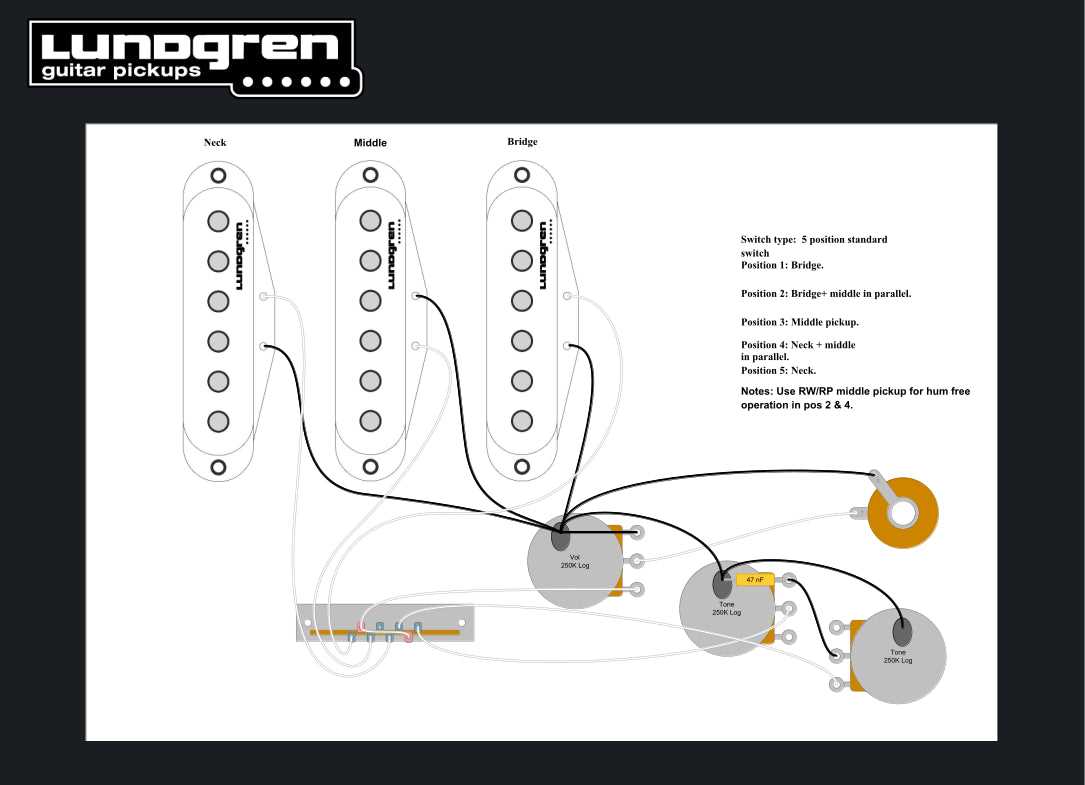

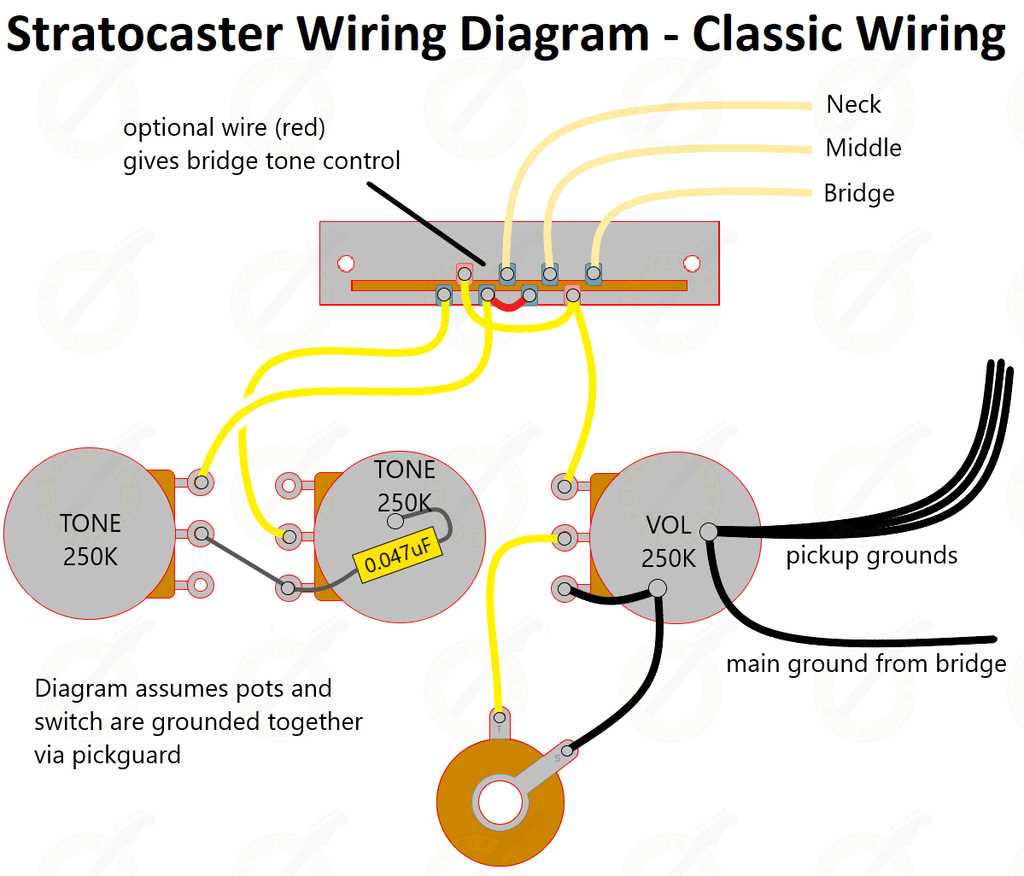

Classic Fender Electric Guitar Circuit Layout
For optimal tonal flexibility, connect the middle pickup’s hot wire to the 5-way switch’s second lug rather than the first–this preserves clarity when blending neck and bridge positions while reducing phase cancellation. Use 250K potentiometers for volume and 25K for tone controls to maintain high-frequency response without harshness. Solder the ground wire from the pickups directly to the back of the volume pot casing, ensuring a solid connection before attaching any other components.
Route the capacitor leads beneath the potentiometer shafts to prevent shorts; a 0.047µF ceramic disc works best for vintage treble roll-off, while a 0.022µF polyester film type sharpens modern highs. Keep the bridge pickup’s ground wire at least 3mm away from the output jack sleeve to avoid grounding hum–use heat-shrink tubing on all exposed connections. Test continuity between the pickup selector’s fourth lug and the output jack’s tip before final assembly to confirm signal path integrity.

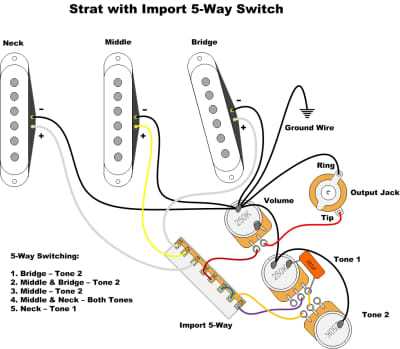

When wiring the 5-way blade switch, ensure the common lug faces the potentiometers; reversing this causes intermittent signal dropouts in positions 2 and 4. For noise reduction, twist the hot and ground wires of each pickup together for 5cm before joining them to the switch–this cancels electromagnetic interference from fluorescent lighting. Use silver-bearing solder (60/40 alloy) for joints involving the potentiometer lugs to prevent cold solder cracks over time.
Position the tone capacitor between the tone pot’s wiper and outer lug–never between lugs 1 and 2–as this Linear taper potentiometers retain consistent frequency shaping across their rotation. For push-pull pots, connect the double-pole switch’s upper contacts to the tone circuit’s hot side and the lower contacts to ground, enabling coil-splitting without altering the existing wiring. Insulate all soldered connections with electrical tape before closing the control cavity to prevent vibration-induced shorts.
Verify the entire assembly with a multimeter: measure 6.8-7.2 ohms across each pickup’s terminals, 250K between volume pot’s outer lugs, and 0 ohms from the bridge ground to the output jack sleeve. If hum persists, check for reversed phase between pickups–flip the neck pickup’s hot and ground wires at the selector switch. Replace the output jack’s plastic washer with a metal one to ensure consistent shielding; this step alone reduces 60-cycle noise in high-impedance setups.
Key Parts for Your Electric Guitar Circuit Setup
Begin with a 250K audio taper potentiometer for volume control–this value preserves high-frequency response better than 500K variants. For tone controls, pair each pickup with a 0.022µF capacitor; polyester film types resist microphonics better than ceramic. Include a push-pull potentiometer (500K linear taper) to enable coil-splitting for single-coil tones when using humbuckers, soldered with 22-gauge tinned copper wire for durability.
Select a 5-way blade switch; the Oak Grigsby or import equivalent must have precise notches to avoid false engagements. Shielded cable (braided or foil) between the switch and output jack prevents 60-cycle hum; ground the shield at both ends but isolate it from the circuit path. Consider a treble-bleed network (220pF capacitor + 130K resistor in parallel) on the volume pot to retain clarity when rolling back.
| Component | Recommended Value | Alternative |
|---|---|---|
| Volume Potentiometer | 250K audio taper | 500K linear for brighter output |
| Tone Capacitor | 0.022µF polyester | 0.047µF for darker roll-off |
| Switch | 5-way blade, 20A contacts | Mini-toggle for vintage mods |
For grounding, use a star configuration: solder all grounds to a single central lug on the bridge or control cavity backplate, then connect this lug to the output jack ground via 18-gauge wire. Avoid daisy-chaining, which can introduce noise. Install a 1MΩ resistor across the pickup’s coil terminals if using vintage-spec single-coils to reduce popping during switching. Test continuity with a multimeter before final assembly; resistance between any pickup terminal and ground should not exceed 2Ω.
Choose an output jack with insulated contacts–Switchcraft 11 or similar prevents shorting when unplugged. For active electronics, include a 9V battery snap with on/off detection: wire the jack’s tip contact through a 2.2KΩ resistor to ground, triggering the battery only when a cable is inserted. Shield the control cavity with copper tape; overlap seams by 5mm and solder joints to ensure full Faraday cage coverage.
If modifying for coil-tapping, use a DPDT on-on mini-switch instead of a push-pull pot to avoid signal degradation. Solder the switch’s common lug to the pickup’s hot wire, then route one throw to the full coil output and the other to the tapped output via a 1N4148 diode (anode to tap) to prevent phase cancellation. Verify tone changes with an amp, adjusting capacitor values in 0.01µF increments if needed.
For parallel/series switching, a 3PDT switch offers cleaner wiring than push-pull pots. Connect the coil ends to the switch’s outer lugs, bridge the center lugs with the output wire, and route the middle lugs through the switch’s throws. Use heat-shrink tubing over all solder joints; avoid electrical tape, which degrades over time. Label all wires with heat-resistant tags to simplify future repairs.
Finish with a noise test: plug into an amplifier, engage each pickup position, and listen for crackling or excessive hum with fingers touching the strings and knobs. If noise persists, recheck grounding connections–ensure no paint separates the bridge/backplate contact points. Replace components incrementally to isolate the fault, prioritizing switches and potentiometers as common failure points.
Precision Soldering for Electric Guitar Pickup Installation
Heat your soldering iron to 350–375°C (660–710°F) for lead-based solder; use 400–425°C (750–800°F) for lead-free alloys. Apply flux to the connection point before introducing solder–this prevents oxidation and ensures a clean bond. Work in 2–3 second bursts to avoid overheating the coil wire, which can degrade insulation and alter tonal properties.
Secure the pickup lead wires with heat-resistant tape before soldering to prevent unintended movement that can break fragile connections. Use a third-hand tool or weighted blocks to hold components in place. For potentiometer lugs, pre-tin both surfaces: apply a small amount of solder to the lug and wire separately before joining them. Excess solder creates cold joints; aim for a concave, shiny fillet between surfaces.
Ground connections demand special attention. Attach the bridge and control cavity shielding to a single grounding point–typically the back of the volume pot–to eliminate hum. Twist the braided shielding wire tightly and solder it directly to the pot casing, avoiding solder bridges between adjacent lugs. Test continuity with a multimeter after each joint; resistance should read below 0.5 ohms.
Position pickups with the pole pieces centered under the strings before finalizing connections. Misalignment alters output balance across strings. For hum-canceling configurations, ensure phasing consistency: solder the start lead of one pickup to the same colored wire of the next (e.g., black to black). Reverse winding requires connecting start to finish leads (black to white) to maintain correct polarity.
Finish by trimming excess wire flush with insulated side cutters, leaving no sharp protrusions that could puncture insulation later. Wrap connections in closed-cell foam or electrical tape to dampen microphonics. Let the assembly cool for 10 minutes before handling, then secure the pickguard to the body to test signal flow before final assembly. Use a low-wattage setting on your amplifier to verify absence of crackling or intermittent dropouts.
