Complete Guide to Designing a Motor Start Stop Control Circuit
Use a three-wire control setup with momentary pushbuttons for safety and precision. A latching relay or contactor ensures the motor remains energized after the initial trigger, while a normally open start button and normally closed stop button create failsafe redundancy. Include a thermal overload protector rated for 120% of the motor’s full-load current to prevent burnout.
For 24V DC or 120V AC systems, connect the control signals through a double-pole contactor with auxiliary contacts. This isolates high-voltage power from low-voltage controls, reducing interference and improving response time. Use 14 AWG copper wire for control circuits and 10 AWG for power lines to handle inrush currents up to 6x the running load.
Avoid common mistakes like omitting a flyback diode in DC circuits or neglecting arc suppression in AC setups. Place a snubber circuit (0.1 µF capacitor in series with a 100 Ω resistor) across contactor coils to dampen voltage spikes. Test the layout with a multimeter before powering on–verify coil resistance matches the relay datasheet and check for short circuits between phases.
For programmable logic, replace mechanical relays with a solid-state version if switching exceeds 10,000 cycles. Ensure the enclosure meets IP65 standards if installed in dusty or wet environments. Label every component with voltage ratings and wire colors (e.g., red for live, black for neutral, green/yellow for ground) to simplify troubleshooting.
Wiring a Control Sequence for Motor Operation
Use a push-button pair with momentary contact: one normally open (NO) for initiation, one normally closed (NC) for halting. Connect the NO button to the auxiliary relay coil, ensuring the NC button interrupts the coil supply in series. This prevents latching if both buttons are pressed simultaneously, avoiding conflicting signals.

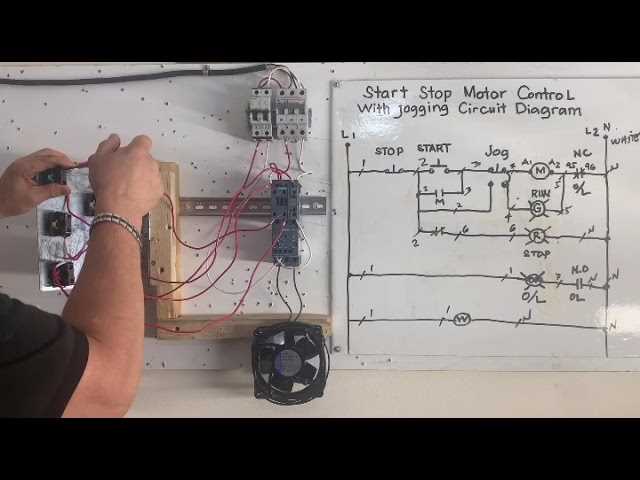

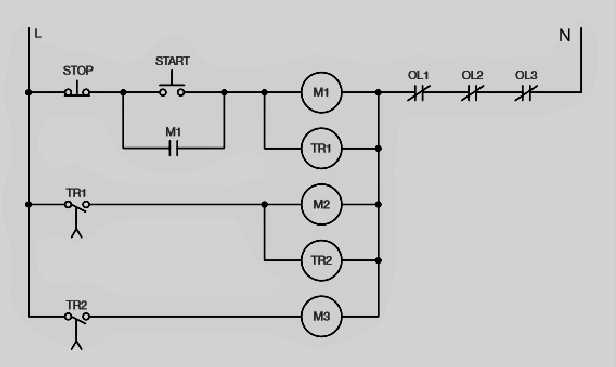

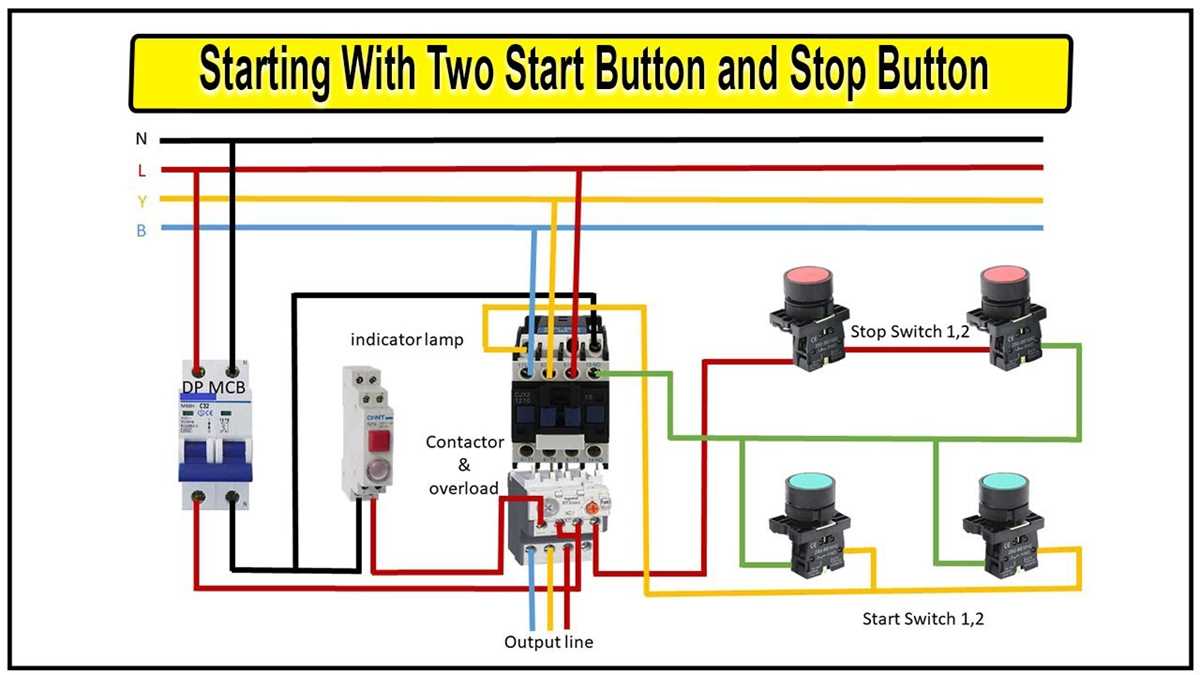

A three-wire scheme suits most industrial setups. Route the NO button through a holding contact from the auxiliary relay, creating a self-sustaining loop once energized. The NC button should cut power directly to the relay coil, bypassing the holding contact, for immediate disengagement regardless of relay state.
Select relay contacts rated for 10A at 240VAC minimum if driving small motors; for larger loads, bridge a contactor’s coil through the relay. Coordinate wire gauges–18 AWG for control lines, but step up to 14 AWG or thicker if runs exceed 50 feet to minimize voltage drop.
Common Pitfalls in Wiring
Omitting transient suppression invites relay chatter. Mount a flyback diode across DC relay coils or a varistor across AC coils to clamp inductive spikes. Without suppression, contact life shortens due to arcing, and erratic operation can occur under light load conditions.
Misaligned button placement causes operational confusion. Position the NO and NC buttons at least 30 mm apart on operator panels, with the NO above or to the left of the NC. Label both clearly–green for activation, red for cessation–using 14-point sans-serif text for visibility from 1 meter.
Ignore thermal overloads at your peril. Insert a bimetallic relay in series with the main power lines; adjust trip curves to match motor nameplate FLA. Set the reset mode to manual if automatic cycling risks nuisance trips during frequent starts.
Verify operation under load before commissioning. Simulate motor engagement by replacing the load with a 60W incandescent lamp; if the relay drops out prematurely, recheck coil voltage and holding contact integrity. For variable-speed drives, add a safety PLC output to the loop, commanding shutdown if speed feedback deviates ±10% from setpoint.
Critical Elements for Assembling an Automatic Activation-Deactivation System
Select a pushbutton switch with a momentary contact rating matching the load’s voltage and current requirements. For industrial motors up to 5HP at 440V AC, opt for devices like the Schneider Electric XB4BA31 or Siemens 3SU1 series, which withstand 10A resistive loads and include silver alloy contacts to prevent arcing. Avoid cheaper alternatives with copper contacts–oxidation will degrade performance within months, especially in humid environments where contact resistance can increase by 30-50%. Wire the NO (normally open) contacts to the control relay coil and the NC (normally closed) contacts to the holding path.
Incorporate a 24V DC or 120V AC control relay with a coil voltage compatible with your power source. The Omron MY4 or Phoenix Contact PTR series offer reliable options with mechanical lifespans exceeding 10 million operations. Ensure the relay’s contact rating exceeds the motor’s full-load current by at least 20%–undersized relays will fail prematurely due to overheating. Use a flyback diode (1N4007) across DC relay coils to suppress voltage spikes, which can reach 1,000V and damage sensitive components like PLCs or timers within microseconds.
Add a latching mechanism using a holding contact–either a dedicated auxiliary contact on the relay or a separate NO pushbutton connected in parallel. For fail-safe operation, include a thermal overload protector (e.g., ABB T overload relay) set to 110-120% of the motor’s rated current. This prevents damage during stalled conditions, where currents can surge to 600% of nominal values. In three-phase systems, use a delta-connected thermal element to monitor all phases evenly; single-phase monitoring risks undetected faults on unprotected lines.
Integrate a fuse or circuit breaker sized at 150-200% of the control circuit’s continuous current. Schneider Electric C60 series breakers or Littelfuse 467 fuses provide precise short-circuit protection without nuisance tripping. For 24V DC systems, use a slow-blow fuse (e.g., 0.5A) to accommodate inrush currents from relay coils. Avoid relying solely on motor overload protectors–they respond too slowly (1-3 seconds) to save control electronics from transient spikes, which can exceed 2kA in industrial settings.
Step-by-Step Wiring Guide for a 3-Wire Pushbutton Control Assembly

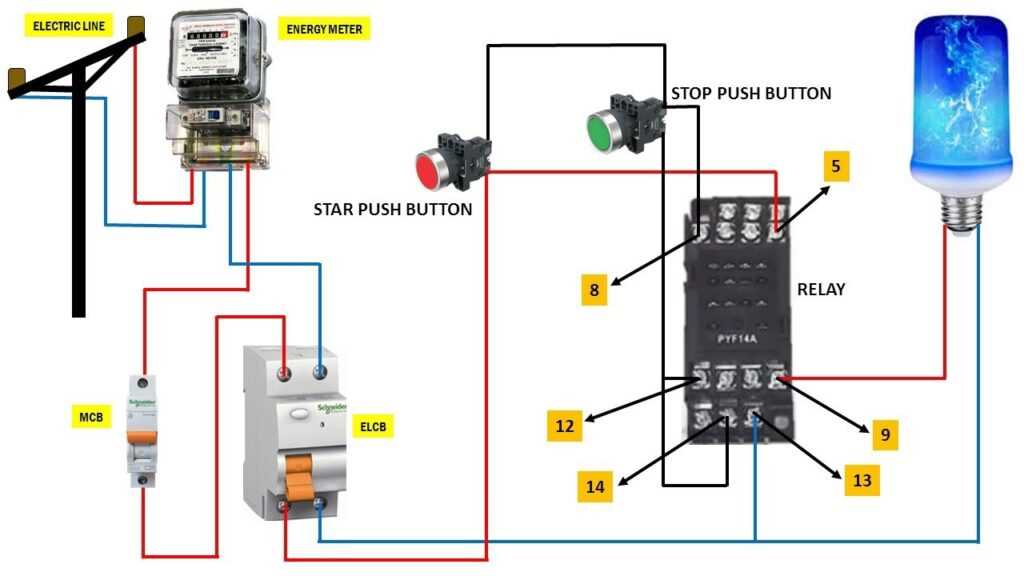

Connect the power source’s live terminal directly to the first pushbutton’s common contact. Secure the connection with a crimp or solder joint rated for at least 10A to prevent voltage drop under load. Wire gauge should match the motor’s current draw–for 120VAC applications, use 18 AWG for loads under 5A and 16 AWG for 5–10A.
Bridge the normally open (NO) contact of the first pushbutton to the common terminal of the second. Ensure continuity with a multimeter before proceeding; resistance should read near zero ohms. Label each wire segment with heat-shrink tubing or numbered tags to avoid miswiring during troubleshooting.
| Component | Terminal Type | Wire Color (Standard) | Minimum Gauge (AWG) |
|---|---|---|---|
| Pushbutton 1 (NO) | Common | Red or Black | 18 |
| Pushbutton 1 (NO) | NO Contact | Blue | 18 |
| Pushbutton 2 (NC) | Common | Red or Black | 18 |
| Motor Relay Coil | Coil Terminals | Yellow/Green | 20 |
Attach the normally closed (NC) contact of the second pushbutton to the relay coil’s first terminal. Polarize low-voltage DC coils (e.g., 24VDC) with a flyback diode across the coil terminals, cathode to positive. For AC coils (e.g., 120VAC), add a snubber circuit–0.1µF capacitor in series with a 100Ω resistor–to suppress voltage spikes.
Run the relay coil’s second terminal to the neutral bus or ground reference, depending on the control scheme. For 3-phase setups, connect the relay’s common contact to the motor’s line terminal, ensuring the auxiliary contact interrupts the control path completely. Test the hold-in function by engaging the first pushbutton; release should maintain operation until the second pushbutton breaks the loop.
Integrate a pilot light between the first pushbutton’s NO contact and neutral if visual feedback is required. Use an LED pilot with built-in resistor for 120VAC or a neon indicator for higher voltages. Verify all connections with a megohmmeter at 500V insulation test voltage–readings below 1MΩ indicate compromised wiring that must be reterminated.
Enclose the assembly in a NEMA 4X-rated enclosure if exposed to moisture or dust. Route wires through strain-relief bushings and avoid routing control wires parallel to high-current leads (>25A) to minimize inductive coupling. Tag the enclosure with the motor’s full-load amperage, voltage rating, and the date of installation for future maintenance.
Common Mistakes When Connecting Push Button Switches
Incorrect wire gauge selection leads to overheating or unreliable contact. Use 22–18 AWG for low-current applications under 10A, and 16–14 AWG for higher loads. Stranded copper wire flexes better than solid core, reducing breakage at connection points. Avoid aluminum wire–it corrodes faster and requires specialized terminals. Check terminal ratings: a switch rated for 10A may fail prematurely if connected with undersized wire handling 12A.
Failing to secure the switch properly causes intermittent failures. Self-tapping screws strip threads; use pre-threaded panels or nuts. Mounting holes misaligned by 0.5mm prevent flush installation, stressing contacts. Vibration loosens poorly secured switches–use lock washers or thread-locking adhesive on fasteners. Plastic enclosures warp under heat; leave 2–3mm clearance around the switch body to prevent binding.
Ignoring Voltage Rating Mismatches
Applying 240V to a 120V-rated switch destroys the internals. AC/DC ratings differ: a 12V DC switch handles 0.5A, while the same model on AC may support 3A due to arc suppression. Check for “TV-x” ratings where *x* indicates arcing resistance (higher is better). Momentary switches labeled “SPST” often fail under sustained current–use maintained types for latching operations.
Mixing normally open (NO) and normally closed (NC) contacts disrupts logic. A NO switch wired as NC keeps the relay energized, draining power. Label wires before disconnecting: red for power, black for ground, blue for signal. Verify continuity with a multimeter–some switches have hidden dual circuits. Polarized connectors inserted backward swap functions; test before final assembly.
Overlooking environmental factors corrodes connections. Outdoor installations need IP65-rated switches–dust and moisture cause shorts. Salt spray accelerates oxidation; apply dielectric grease to terminals. Hot environments degrade plastic actuators; use metal or ceramic alternatives above 80°C. High-altitude setups reduce cooling–derate switch capacity by 10% per 1000m above sea level.
Skipping flyback diodes in inductive loads generates voltage spikes up to 10x the supply. A 12V coil can produce 120V transients, damaging contacts. Install a diode (1N4007) reverse-biased across coils, or use a varistor for higher energy. Relays with built-in suppression extend switch life by 5x. Test with an oscilloscope–ringing waveforms indicate insufficient protection.
