Step-by-Step Guide to Wiring a Subwoofer Amplifier Circuit
Start with a 4-ohm dual voice coil driver for optimal power distribution–this allows series-parallel configurations to match amplifier output impedance. For a single-channel bridgeable mono block, connect the coils in parallel (1+ to red terminal, 2+ to red; 1– to black, 2– to black) to achieve a 2-ohm stable load. Double-check manufacturer specifications, as exceeding the 75-watt RMS rating per coil risks thermal damage.
Use 12-gauge oxygen-free copper wiring for runs under 12 feet; upgrade to 8-gauge for distances exceeding that or amplifiers delivering over 800 watts RMS. Strip insulation back no more than 3/8 inch to prevent stray wire strands from causing short circuits. Secure connections with solder and heat-shrink tubing before crimping to eliminate oxidation.

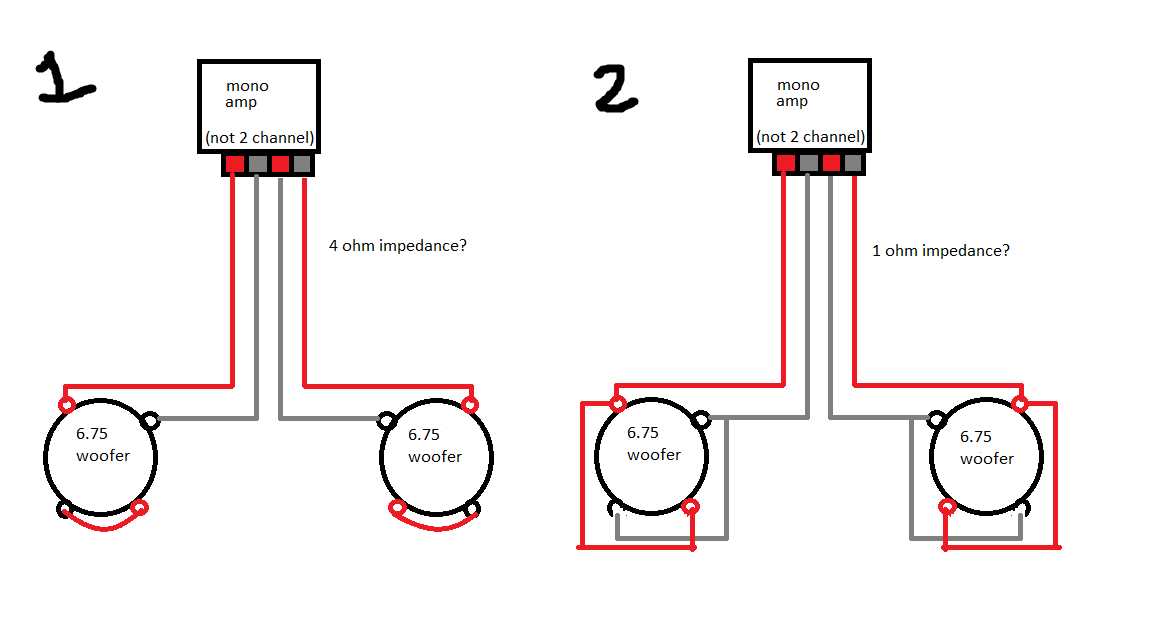

If combining multiple drivers, maintain symmetrical impedance: two 4-ohm dual coils wired in series-parallel (each pair in parallel, then both pairs in series) yields a 4-ohm load. For a 1-ohm setup, wire all coils in parallel–but only proceed if the amplifier explicitly supports such low impedances. Always use a digital multimeter to verify impedance before powering on.
Ground the chassis to a clean, unpainted metal point on the vehicle’s frame using the thickest gauge possible. Avoid shared ground paths with other electronics, as induced noise (50–300 Hz range) will distort output. Install a 60-amp ANL fuse within 18 inches of the battery to prevent fire hazards during a short.
Polarity must be consistent across all connections: reverse phase in one driver will cancel frequencies below 80 Hz, reducing perceived volume by up to 6 dB. Label each wire with heat-shrink tags or colored electrical tape to simplify troubleshooting–red for positive, black for negative, and blue for remote turn-on leads.

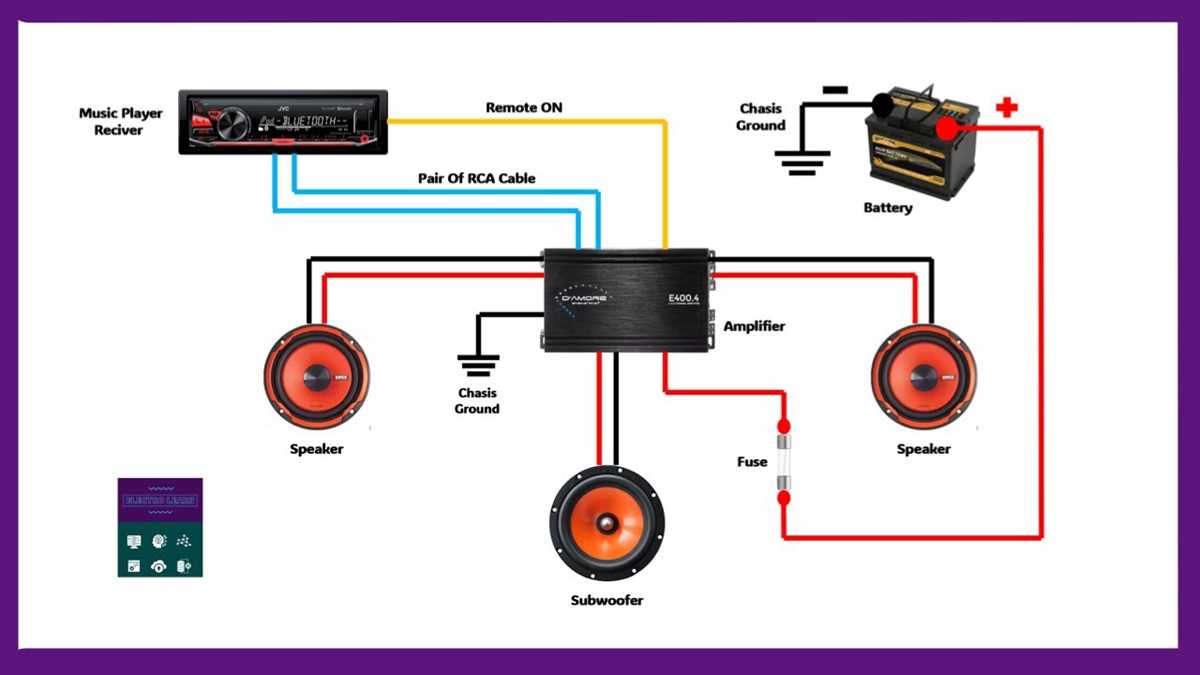

Connecting a Low-Frequency Amplifier: Schematic Guide
Use a 4-gauge oxygen-free power cable for installations exceeding 300 watts RMS to prevent voltage drop and ensure stable current delivery. Route the positive lead directly from the battery, avoiding generic fuse holders–opt for a 100-amp ANL fuse within 18 inches of the battery terminal. Ground the chassis to a bare metal surface on the vehicle’s frame, sanding away paint or undercoating to create a direct path; bolt sizes should not exceed M8 for secure, vibration-resistant contact.
Key Configuration Steps
- Bridge dual voice coil drivers by connecting the positive terminal of one coil to the negative of the other, then link the remaining terminals to the corresponding amplifier outputs. This doubles impedance handling but requires precise matching of coil resistance (e.g., 2Ω + 2Ω = 1Ω load).
- For single-channel setups, pair the speaker’s impedance to the amplifier’s minimum rated load–never below 2Ω on class D units to avoid thermal shutdown or permanent damage.
- Twist remote turn-on and RCA signal cables together but keep them at least 12 inches away from power cables to eliminate engine noise induction. Use shielded RCA cables for runs longer than 15 feet.
Verify system stability by measuring voltage across the amplifier’s power terminals under full load: a drop below 12.6V at idle indicates insufficient alternator output. Upgrade to a 200-amp alternator if the vehicle’s electrical system struggles with additional demand. Always disconnect the negative battery terminal before working near airbag modules or electronic control units to prevent accidental deployment or corruption of stored data.
Selecting the Optimal Cable Thickness for Your Low-Frequency Speaker Installation
For a 500-watt power module driving an 8-ohm bass transducer, use 8 AWG (American Wire Gauge) copper conductor cable. This specification balances resistance losses under 0.5 ohms per 10 feet while handling 62.5 amperes RMS without exceeding a 3% voltage drop. Shorter runs (under 6 feet) may permit 10 AWG, but verify calculations using Ohm’s law: V=IR (voltage = current × resistance).
Oxygen-free copper (OFC) outperforms standard copper by reducing signal degradation at frequencies below 80 Hz. Avoid aluminum or copper-clad aluminum cables–resistance increases 60% per equal gauge, leading to clipped bass output and potential overheating. For installations exceeding 20 feet, upsize to 6 AWG or implement a voltage correction circuit to maintain dynamic response.
Dual-channel setups require individual cables from the signal processor to each transducer. Parallel connections halve impedance but demand thicker cables–4 AWG for 4-ohm loads at 1000 watts. Measure cable length from the battery terminal to the terminal block, not the power module’s chassis, to account for hidden resistance. Tinning strands reduces oxidation but increases diameter; factor this into conduit planning.
High-strand-count cables (500+ strands) flex better in vehicle installations but cost 28% more than solid-core alternatives. For marine or outdoor use, marine-grade tinned copper resists corrosion in humid environments. Test continuity with a multimeter (set to ohms) before finalizing connections–ideal resistance should mirror the cable’s length/gauge rating (e.g., 8 AWG: ~0.628 ohms per 100 feet).
Fusing is non-negotiable. Install a 100-amp ANL fuse within 7 inches of the power source to prevent fires from short circuits. Distributed fusing (e.g., 40-amp at the module) protects downstream components but reduces surge capacity. For lithium battery systems, use fuse ratings matching the battery’s BMS (Battery Management System) specs–typically 20% above continuous draw.
Grounding requires the same gauge as power cables, routed directly to the chassis’ least painted surface. Paint acts as an insulator; scrape to bare metal and apply dielectric grease post-installation to prevent corrosion. Avoid grounding to the engine block or exhaust–vibration causes impedance fluctuations. For competition-level systems, independently ground each component to a dedicated star point.
Step-by-Step Guide to Connecting Power Cables to Your Audio Signal Processor
Begin by identifying the power input terminals on your amplifier unit–typically marked with +B (battery) and GND (ground). Use an 8-gauge or thicker power cable for systems under 500W RMS, or upgrade to 4-gauge for higher outputs to prevent voltage drop. Measure the cable run from the vehicle’s battery to the processor location, then add 10% extra length to account for routing obstructions.
Strip ½ inch of insulation from each cable end using wire strippers, then crimp a copper lug onto the positive terminal end. Secure the lug to the +B post with a brass or stainless-steel bolt, applying anti-seize compound to prevent corrosion. For the ground cable, attach it to a bare metal chassis point within 18 inches of the processor–sand the contact area to bare metal and use star washers to ensure low-resistance connection.
Critical Safety Checks Before Powering On
- Route power cables away from moving components, signal wires, and high-heat sources like exhaust manifolds.
- Install an in-line fuse (matching the cable gauge) no more than 18 inches from the battery terminal–this prevents fire hazards if the cable shorts.
- Double-check polarity: reversing connections can destroy the unit’s internal circuitry within milliseconds.
- Reconnect the battery’s negative terminal only after verifying all connections–this avoids accidental sparks.
Test the setup with a multimeter: probe between the +B terminal and chassis ground–readings should match the battery voltage (12.6V–14.4V). If voltage drops below 11.5V under load, recheck connections or upgrade cable gauge. For troubleshooting, consult the processor’s manual–some models require a remote turn-on wire (typically blue) to activate, which should be connected to the head unit’s REM or ANT output.
How to Properly Ground Your Bass Speaker Power Unit for Noise Reduction
Connect the negative terminal of the energy source directly to the chassis of the vehicle using an 8-gauge or thicker copper cable. Avoid daisy-chaining grounds through multiple connection points–this introduces resistance and creates potential loops. Measure the resistance between the ground point and the battery’s negative post: it should not exceed 0.1 ohms. If readings are higher, clean the contact surface with a wire brush and apply dielectric grease to prevent oxidation.
Locate the grounding spot within 18 inches of the amplifier’s mounting position. Factory wiring harnesses, bolt holes under seats, or dedicated grounding blocks are ideal. Avoid areas near moving parts, fuel lines, or exhaust components–vibrations or heat can degrade conductivity over time. Secure the connection with a stainless-steel bolt, star washer, and locking nut to ensure constant pressure; torque to 12-15 ft-lbs to prevent loosening.
Testing for Interference Before Finalizing
Power on the system without audio input and listen for a consistent hiss or hum through the speakers. If detected, relocate the grounding point away from engine control modules, alternators, or ECU wiring. Use a multimeter set to AC voltage to probe between the amplifier’s chassis and the vehicle’s ground–readings above 50mV indicate induced noise. Shield sensitive signal cables with foil or braided mesh, ensuring they run perpendicular to power wires and maintain a minimum 12-inch separation.

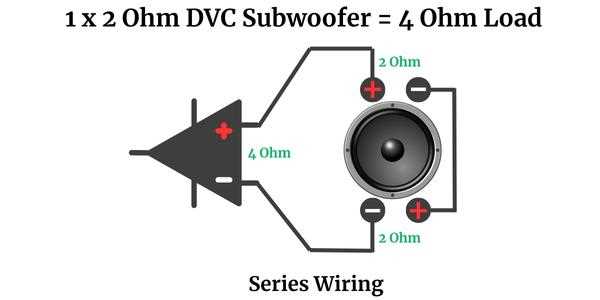

Dual Voice Coil Bass Speaker Connection Schemes: Series vs. Parallel
Connect dual voice coil drivers in parallel when targeting lower impedance for higher current delivery from modern switching amplifiers. This setup halves the nominal impedance per coil–two 4-ohm coils yield 2 ohms, matching most Class D plate amplifiers optimized for 2-ohm loads. Ensure amplifier stability ratings explicitly support 2-ohm operation to prevent thermal shutdown during sustained output.
Opt for series connection when pairing dual 8-ohm coils to achieve 16 ohms, ideal for tube amplifiers with limited current capacity. This preserves amplifier damping factor and reduces reactive load effects common in long cable runs. Verify coil polarity–reverse connection cancels acoustic output, resulting in near-zero SPL despite active amplifier indications.
Bridge-mono configurations demand strict adherence to amplifier bridging guidelines. Parallel connection remains the sole viable method–series bridging introduces potential phase cancellation due to differential coil inductance. Confirm amplifier bridging headroom; peak power delivery often derates substantially beyond 1 kHz with reactive loads.
Impedance and Power Handling Comparisons
| Coil Configuration | Nominal Impedance (Ω) | Amplifier Power (W RMS) | Thermal Derating Factor |
|---|---|---|---|
| 2×4Ω Parallel | 2 | +50-75% vs single coil | 1.3× |
| 2×8Ω Parallel | 4 | +30-40% | 1.1× |
| 2×4Ω Series | 8 | −10-15% | 0.9× |
| 2×8Ω Series | 16 | −25-30% | 0.75× |
Current density becomes critical below 2 ohms. Copper wire gauge limitations manifest as thermal roll-off above 200W continuous–solder connections must utilize high-temperature silver-based alloys to prevent creep under prolonged excursion.
Phase and Inductance Considerations
Inductance divergence between coils reaches ±5% in mass-produced drivers. Parallel configurations exacerbate nulls at crossover frequencies, necessitating passive correction networks. Series connections inherently balance inductance variations due to current-sharing behavior, reducing the need for additional compensation components.
Differential coil inductance introduces phase shift in parallel mode–measure impedance sweeps between 20Hz and 500Hz to identify null frequencies before final enclosure tuning. Adjust port tuning or vent length to avoid coinciding resonant frequencies with identified nulls.
Active equalization (DSP) compensates for parallel connection nonlinearities better than series. Implement low-frequency boost targeting coil inductance crossover nulls–typical parameters: +3dB @ 80Hz, Q=1.2, with temperature-compensated compressor sidechain to protect voice coils from saturation.
For dual amplifier channel setups, distribute coil connections across separate channels–each channel drives one voice coil. This prevents intermodulation distortion from current sharing dynamics, preserving dynamic headroom in multi-driver systems. Confirm channel-to-channel delay matching within ±20μs to prevent comb filtering artifacts.
