Complete Guide to Electrical Subpanel Wiring Layouts and Safety Tips
Mount the secondary service distribution unit at least 36 inches from the main breaker box to comply with NEC 240.24(A). Use a dedicated grounding rod connected via #6 AWG copper wire for detached installations to prevent ground loops. For underground feeds, bury conduit 18 inches deep, increasing to 24 inches under driveways.
Connect the feeder conductors directly to the Lugs of the main panel–avoid backfeeding through a double-pole breaker. A 100-amp auxiliary unit requires #3 AWG copper wires (75°C rating) for 60 feet or less. Over longer distances, upsize to #1 AWG to compensate for voltage drop. Label every conductor at both ends with heat-shrink tubing marked “FEEDER,” “NEUTRAL,” and “GROUND.”
Route neutral and grounding buses separately inside the auxiliary unit. Bond them only at the main service panel to isolate fault currents. Use a torque screwdriver set to 20 in-lbs for all terminal connections per NEC 110.14(D). Install a Surge Protective Device (SPD) Type 2 rated for 100 kA between the feeder and first branch circuit breaker to clamp transient spikes.
For a 240V sub-feed, use a four-conductor cable–two hot legs, one neutral, and one ground. Avoid shared neutrals between circuits unless using a handle-tied double-pole breaker. Test continuity with a multimeter after installation: zero ohms between neutral and ground at the main panel only. Anything above 0.5 ohms indicates a loose connection or improper bonding.
Add arc-fault circuit interrupters (AFCIs) to bedroom and living area circuits fed from the auxiliary unit. Combine with ground-fault circuit interrupters (GFCIs) for bathrooms and kitchens. Use 20-amp breakers for #12 AWG circuits and 15-amp for #14 AWG, never exceeding 80% continuous load rating. Document the setup with a hand-drawn schematic noting wire gauges, breaker sizes, and conductor lengths–store it inside the main panel door with the date and installer’s initials.
Practical Steps for Auxiliary Circuit Installation
Ensure the main service disconnect is off before handling any connections. Use a 100-amp breaker for the feeder lines if the secondary unit draws up to 80 amps continuous. Route 2-2-2-4 aluminum SER cable for a 100-foot run; voltage drop remains under 3% at full load. Label every conductor at both ends with heat-shrink tubing–black for hot, red for hot (second leg), white for neutral, green for earth–to prevent misidentification during troubleshooting.
Mount the auxiliary box within 6 feet of the primary panel. Space must accommodate a 30-inch wide, 36-inch deep clear working area per NEC 110.26. Install a 4-slot grounding bar; bond it to the box with a 10-32 green grounding screw only–field-drilled holes void UL listing. Torque all terminals to manufacturer specs: 20 in-lbs for 14 AWG, 25 in-lbs for 12 AWG, 30 in-lbs for 10 AWG. Over-tightening distorts bus contacts, under-tightening causes arcing.
Fit a dedicated 50-amp breaker for the well pump circuit within the auxiliary unit. Connect #8 THHN copper wires inside liquidtight flexible conduit for outdoor runs; secure every 4.5 feet with 3/8″ stainless steel straps to comply with NEC 352.44. Test each circuit with a megohmmeter set to 500V DC; insulation resistance must exceed 1 megohm before energizing.
Essential Gear and Supplies for Auxiliary Circuit Installation
Begin with a dual-range voltage tester (cat III 600V minimum) to verify de-energized circuits before handling conductors. Models with non-contact detection simplify initial checks but confirm with direct contact probes for absolute certainty–false negatives occur near shielded or armored cables. Replace batteries monthly; dead cells create hazardous assumptions.
A torque screwdriver calibrated to NEC-specified pound-inches (typically 10–20 lb-in for lugs) prevents loose connections. Over-tightened lugs shear conductors; under-torqued lugs overheat. Store the screwdriver in a climate-controlled environment–humidity alters calibration over time. Pair it with insulated Allen keys (ASTM F1505) for securing breakers and busbar screws where standard bits strip easily.
Stock stranded THHN copper wire in gauges 6–2/0 AWG, color-coded per NEC Table 310.15(B)(16): red for hot, white or gray for neutral, green or bare for ground. Verify temperature ratings–90°C insulation handles 75°C ampacity derations. Purchase 25% more length than calculated to accommodate bends around conduits and panels; quantifying cuts costs less than splicing mid-run.
Conduit bodies (Type LB, LL, or LR) simplify pulling 90° turns. Use steel for EMT, PVC schedule 80 for underground runs. Pre-cut lengths on-site with a hacksaw or ratcheting cutter–tubing cutters deform thin-wall conduits. Deburr edges with a reamer; sharp edges nick insulation during pulls. Lubricate conductors with wire-pulling soap (non-conductive, water-soluble) for runs exceeding 20 feet or two 90° bends.
Mounting hardware dictates durability: zinc-plated steel straps for EMT, PVC straps for plastic conduit. Secure auxiliary panels with toggle bolts or snap-toggle anchors in drywall; studs require 3-inch #12 wood screws. Include a fiber washer kit to isolate metal panels from dissimilar grounding surfaces, preventing galvanic corrosion.
A crimping tool with hex dies (UL 486A) joins ground conductors without solder. Use insulated ring terminals for lugs; spade terminals vibrate loose in seismic zones. Verify crimp integrity with a pull tester–minimum 20 lbs force for 6 AWG and larger. Store connectors in sealed containers; oxidation ruins conductivity within months.

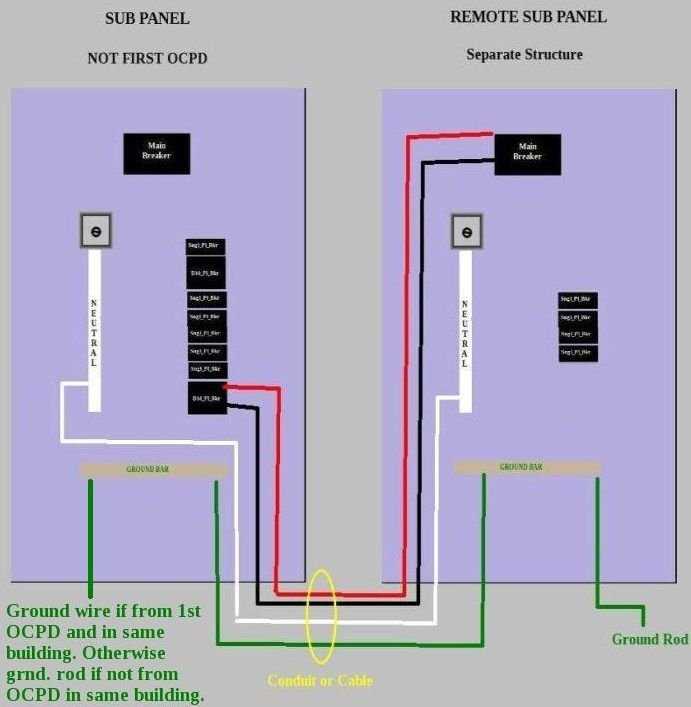

Step-by-Step Electrical Link Installation Between Primary and Secondary Breaker Boxes
Select a four-conductor feeder cable with adequate amperage for the secondary box, matching the breaker size in the service panel. For 60-amp auxiliary units, use 6 AWG copper or 4 AWG aluminum conductors. Secure the cable with insulated staples every 4.5 feet, maintaining 1.25-inch clearance from edges of wooden studs during routing.
Strip the outer sheath to expose individual wires, leaving 0.75 inches of insulation at termination points. Remove oxidation from aluminum conductors using a wire brush and apply antioxidant paste immediately to prevent corrosion. For copper, twist strands tightly before inserting into lugs.
Route the neutral and two hot wires to their respective bus bars in both boxes. Land the neutral wire on the isolated bar in the secondary unit–never bond it directly to the enclosure. Ground connections must bypass the switching mechanism, attaching to the dedicated ground bus in the primary panel and a separate bar in the secondary setup.
Torque all lug connections to the manufacturer’s specifications, typically 15-20 lb-in for small breakers and 25-35 lb-in for main terminals. Use a calibrated torque screwdriver to verify values; improper tension leads to overheating and potential failure. Label each conductor at both ends with heat-shrink tubing or permanent marker, noting feed origin and destination.
Install a separate grounding electrode system for detached auxiliary boxes if the structure exceeds 20 feet from the main building. Drive an 8-foot copper-clad rod at least 6 feet from the enclosure, bonding it with 4 AWG solid copper wire. For attached units, connect the ground bar to the main service panel’s ground via a continuous 8 AWG or larger conductor.
Test continuity between all buses before energizing. Use a multimeter set to ohms–readings below 1 ohm indicate proper bonding. Check voltage between hots (240V), neutral to ground (0V), and each hot to ground (120V). If discrepancies appear, recheck terminations and verify the feeder breaker is off.
Apply a thin coat of NO-OX-ID to aluminum connections post-installation to inhibit oxidation. Verify all unused openings in enclosures are sealed with knockout plugs to prevent dust and moisture ingress. Label the secondary breaker box exterior with load capacity and date of installation for future reference.
Selecting the Right Conductor Size for Auxiliary Distribution Boards
For 120V circuits in an auxiliary distribution setup, use 12 AWG copper conductors for 20-amp breakers and 10 AWG for 30-amp circuits–these sizes handle continuous loads without exceeding 80% of the breaker’s capacity at 60°C terminal ratings. Larger conductors (8 AWG for 40A, 6 AWG for 50A) are required when distances exceed 50 feet to counteract voltage drop, calculated using Vdrop = (2 × L × I × R) / 1000, where L is one-way length in feet, I is current in amps, and R is conductor resistance per 1,000 feet.
For 240V split-phase systems, match conductor size to breaker amperage based on NEC Table 310.16 (75°C column for THHN/THWN-2 insulation). Below are approved sizes for common breaker ratings, assuming copper conductors and ambient temperatures ≤ 30°C:
| Breaker Rating (A) | Minimum Copper Size (AWG) | Max Continuous Load (A) | Voltage Drop Limit (1%/100ft @ 240V) |
|---|---|---|---|
| 15 | 14 | 12 | 12 AWG (max 95 ft) |
| 20 | 12 | 16 | 10 AWG (max 110 ft) |
| 30 | 10 | 24 | 8 AWG (max 130 ft) |
| 40 | 8 | 32 | 6 AWG (max 160 ft) |
| 50 | 6 | 40 | 4 AWG (max 200 ft) |
| 60 | 4 | 48 | 3 AWG (max 240 ft) |
Aluminum conductors require upsizing by two AWG sizes compared to copper–e.g., 6 AWG aluminum for a 40-amp circuit. Verify terminal compatibility (many breakers and lugs are rated for copper only) and adjust for derating if conductors are bundled (NEC 310.15(B)(3)(a)) or ambient temperatures exceed 30°C (NEC Table 310.15(B)(16)). For 100A+ feeders, use 250 kcmil copper or 350 kcmil aluminum to meet 75°C ampacity requirements and minimize voltage drop over long runs.
Grounding Conductor Sizing
Grounding conductors must meet NEC Table 250.122, sized relative to the overcurrent device. For a 100A breaker, use 8 AWG copper or 6 AWG aluminum; for 200A, use 6 AWG copper or 4 AWG aluminum. Never reduce grounding conductor size below these minimums, even if the phase conductors are oversized for voltage drop compensation. For parallel runs (e.g., two sets of 3/0 AWG for a 200A service), each grounding conductor must be sized for the full breaker rating–for 200A, this requires two 6 AWG copper ground wires, not one.
Neutral conductors in shared-neutral circuits (e.g., multi-wire branch circuits) must be derated to 70% of the phase conductor ampacity per NEC 310.15(B)(5). For example, in a 20A, 120/240V MWBC with 12 AWG phase conductors, the neutral should be 12 AWG but calculated at 16A (20A × 0.8 × 0.7). If the neutral carries unbalanced current from multiple circuits, size it based on the sum of non-linear load currents (e.g., 2 × 12 AWG for two 20A circuits with significant harmonic distortion).
