Complete Sunpro Tachometer Wiring Guide for Vehicle Installations

For a 4-cylinder engine with a single-coil ignition, splice the signal lead directly into the negative (-) terminal of the coil. This eliminates the need for external resistors and ensures consistent readings without signal degradation. If working with a dual-coil system (common in V6/V8 setups), connect to both coil wires but use a diode to prevent backfeed–this prevents cross-talk that can distort measurements. Skip the vehicle’s tach output wire if it exists; manufacturer-built outputs often introduce latency or filtered signals unsuited for precise monitoring.

Ground placement is critical: attach the gauge’s ground wire to a clean, bare-metal chassis point near the engine block. Avoid sharing grounds with high-draw components like fuel pumps or ECUs, as voltage drops here will cause erratic needle swings. For diesel engines, tap into the alternator’s W-terminal (if equipped) instead of the coil–diesel ignition systems lack a traditional coil signal, and the alternator provides a cleaner, more stable pulse.

Use 18-gauge shielded wire for all connections to minimize electrical noise, especially in vehicles with aftermarket ECUs or high-voltage ignition systems. If the gauge flickers or jumps during revving, add a 0.1μF ceramic capacitor between the signal wire and ground–this filters out transient spikes without compromising response time. For MSD or CDI ignition boxes, connect to the tach output terminal *only* if the manufacturer specifies it; some outputs are scaled for specific gauges and may require a resistor to match the new instrument’s impedance.

Always verify connections with a multimeter before finalizing the setup. A steady 0.5–5V pulse (frequency proportional to RPM) should register on the signal wire; if voltage exceeds 12V or flatlines, recheck the source and bypass any intermediate modules like rev limiters or shift lights. For vehicles with variable-reluctance sensors (e.g., early OBD-I), a 10KΩ pull-up resistor between the sensor and gauge may be necessary to stabilize the signal. Ignore generic wiring color codes–verify each wire’s function with a service manual or factory schematics specific to the vehicle’s year and model.

Connecting Your RPM Gauge Correctly

Start by identifying the ignition coil’s negative terminal–this is the primary signal source for most mechanical pulse gauges. For conventional coil-based systems, splice the gauge’s white wire directly to the coil’s negative (-) post, ensuring a secure soldered or crimped connection to avoid voltage drop. If your vehicle uses a distributorless ignition (DIS), locate the tach signal wire from the engine control module (ECM) or crankshaft position sensor, typically labeled “TACH” or “RPM” in wiring manuals. Use a 1k-ohm resistor in series with the signal wire to prevent ECM damage from backfeed, particularly in late-model vehicles with sensitive electronics.

Ground the instrument’s black wire to a bare metal chassis point near the engine block, avoiding painted or coated surfaces. Poor grounding causes erratic readings or gauge failure–verify continuity with a multimeter (resistance

Troubleshooting Common Issues

If the dial fluctuates wildly, check for loose connections or shared circuits with high-current devices (e.g., electric fans). Isolate the signal wire by rerouting it away from power cables and ignition wires carrying >12V. For persistent interference, add a ferrite choke near the gauge’s connector. Verify the chosen cylinder count setting matches your engine (usually 4, 6, or 8 cylinders); incorrect calibration causes readings to be off by a factor of 1.5–2x. If the needle pegs at zero, test the signal wire for voltage pulses using an oscilloscope–absence indicates a faulty ECM output or broken wire.

Adapting the gauge to late-model vehicles with CAN bus systems requires a signal converter module to translate digital RPM data. These modules plug inline between the gauge and the vehicle’s OBD-II port, converting CAN messages into analog pulses. Some aftermarket ECUs provide a dedicated “RPM output” pin–consult the ECU’s pinout to identify it. For carbureted engines with points ignition, ignore the white wire and connect instead to the distributor’s contact points, using the gauge’s built-in points cleanup circuit to condition the signal.

Selecting the Right Gauge for Your Powerplant

For inline-4 engines under 2.5L, the CGR7611 model delivers precise pulse readings without calibration adjustments–its 0–8,000 RPM range fits stock ECU signals from Honda B-series, Toyota 3S-GTE, and Mazda BP-ZE setups. Larger engines (V6/V8) demand the SC96C or SC97C, which handle 1–8 cylinders with adjustable per-cylinder pulse settings (0–9,999 RPM); verify ignition coil type: single-coil distributors require the “tach” terminal lead, while coil-on-plug systems need direct wiring to the ECM’s tach output.

• Ford 4.6L/5.4L modular engines: SC96C (set to 4 pulses per revolution).
• GM LS-series (except LS3/LS7): SC109 (2 pulses per revolution).
• Rotary engines (RX-7/RX-8): SC97C (configured for 1 pulse per revolution).

Check resistance values: 5–15Ω for OEM gauges, 12–30Ω for aftermarket–mismatches cause erratic needle behavior or failure.

The SC99 covers specialized setups (turbocharged/diesel), supporting dual-range scaling (0–7,000/0–10,000 RPM) via dip switches; pair it with a 10K Ω resistor when connecting to mechanical injection pumps (Cummins 12V). Verify compatibility using a multimeter: probe the tach sender wire (black/white stripe) for a 0–12V square wave–amplitude must exceed 6V PP to trigger the gauge’s signal processor. Avoid models labeled “universal” unless the engine’s pulse count is confirmed; incorrect settings risk damaging the stepper motor.

How to Connect a Gauge Meter to Engine Ignition Circuits

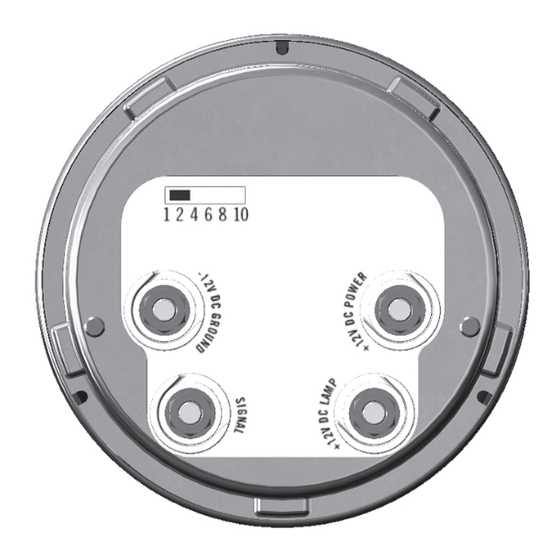

Locate the coil’s negative terminal first. Most automotive ignition coils use a single low-voltage input marked (-) or “TACH.” Splice a 18-gauge insulated wire into this connection–ensure the joint is soldered and wrapped with heat-shrink tubing to prevent corrosion. Run this lead to the gauge’s first input post, typically labeled “RPM” or “SIGNAL.” Verify polarity with a multimeter; reversed connections will give erratic readings.

Identify the 12V ignition-switched circuit on the fuse block. Use a test light to confirm voltage only appears when the key is turned to “ON” or “RUN.” Tap this source with a fused 20-gauge wire–add a 5A inline fuse within 6 inches of the connection point. Route this supply to the gauge’s power terminal, usually marked “+12V” or “IGN.” Avoid tapping directly to the battery; voltage drop under load will distort readings.

Ground the instrument properly. Attach the gauge’s ground terminal to a clean, bare-metal chassis point. Remove paint or corrosion with a wire brush first–poor grounding causes needle flutter at high RPM. For engines with isolated ground systems, run a dedicated 12-gauge ground wire back to the battery’s negative post.

Troubleshooting Common Problems

• No response: Check coil negative lead–ensure it’s not connected to a resistor wire. Swap in a known-good coil wire temporarily.
• Inconsistent readings: Inspect all splices and connectors for resistance. Replace any crimped connections with soldered joints.
• Needle jumps: Separate signal wires from high-current leads by at least 3 inches to avoid inductive interference.
• Zero reading: Verify the tach lead is connected to the coil side generating spark, not the distributor side.

Calibrate the gauge after installation. Start the engine and observe the scale–most V8 engines will read 800-1000 RPM at idle. Adjust the internal trimmer potentiometer, usually accessible via a small screw on the rear of the housing, until the needle matches a known-accurate reference. Repeat the process at 2500 RPM for precise high-range tracking.

Solving Frequency Indicator Connection Problems

Start by verifying the signal input with a multimeter at the harness connector. A working ignition coil should output 10–12V pulses on the tach signal wire (typically green or violet) during engine cranking. If readings fluctuate unpredictably or drop below 8V, inspect the coil windings for internal resistance–normal values range between 0.5–1.5 ohms for primary circuits. Replace coils exceeding 3 ohms or showing infinite resistance. Confirm the ground reference path–corrosion on the chassis bolt or crimped eyelet can introduce 50–100mV noise, distorting readings. Clean contact surfaces with 220-grit sandpaper and apply dielectric grease to prevent recurrence.

Incorrect scale calibration often stems from mismatched cylinder counts. Most mechanical rev counters default to 4-cylinder mode; adjusting for 6 or 8 requires bridging specific solder pads inside the meter housing. Locate the PCB jumper labeled “CYL” near the microcontroller–apply a 3mm solder blob to set 6 cylinders, or two separate blobs for 8. Factory settings revert if connections oxidize; reheating joints with a 35W iron ensures longevity. Validate changes by running the engine at 2,500 RPM–displayed values should stabilize within ±50 RPM of actual speed.

Sporadic Needle Behavior Fixes

Intermittent erratic movement usually points to electromagnetic interference. Route signal cables at least 15cm away from high-current lines (ignition leads, alternator output). Shielding the harness with braided copper mesh grounded at both ends reduces interference by 70%. Check for loose terminal crimps–tug each wire lightly while observing the gauge; a 0.3mm deflection indicates a faulty connection requiring re-crimping with 18–20AWG barrel connectors. For vehicles with aftermarket ECUs, insert a 0.1μF ceramic capacitor between the signal wire and ground near the meter to filter transients.
