Complete Guide to Wiring Your Truck Tailgate Light Bar with Diagram

Begin by mapping the power source–typically the vehicle’s fuse box–using a 15-amp circuit for consistent output. Avoid tapping into high-demand systems like brake controllers or fuel pumps; instead, target an auxiliary slot rated at 20 amps or higher. Secure a relay (SPST, 40A minimum) between the positive lead and the illumination unit to prevent voltage drop over extended lengths of 14-gauge wire. Ground the system directly to the chassis, avoiding painted surfaces; use a stainless steel bolt and star washer to ensure corrosion resistance.

Key connection points:

Power input: Crimp a ring terminal to the positive wire, then attach it to the relay’s 85-pin (trigger) via a inline fuse (10A). For switched activation, splice into the vehicle’s reverse or running lamp circuit, depending on intended operation mode. Ground: Route a separate 12-gauge wire from the unit’s negative terminal to the nearest unpainted metal frame point, stripping at least 0.5 inches of insulation for optimal contact. Output: The relay’s 30-pin connects to the illumination’s positive feed, while the 87-pin bridges to the battery via a 40A fuse for thermal protection.

Test continuity with a multimeter before finalizing connections. Probe the circuit at 12.6V with the engine off and verify voltage holds steady at 13.8V–14.4V when running. If flickering occurs, recheck the ground path–poor conductivity accounts for 80% of intermittent failures. For vehicles with PWM-controlled leds (pulse-width modulation), add a capacitor (220μF, 25V) across the power input to smooth current spikes.

Isolate all splices with adhesive-lined heat shrink tubing; avoid electrical tape for outdoor exposure. Bundle wires in split loom tubing (0.5-inch diameter) and secure them every 12 inches with nylon zip ties to prevent chafing against sharp edges. Label each segment–A (power), B (trigger), C (ground)–using a label maker for future troubleshooting.

Final verification requires a 3-minute stress test: Activate the system at full brightness while monitoring temperature at the relay and connections. Safe operating range is below 140°F (60°C); if readings exceed, upgrade the gauge of the power wire by one size or relocate the relay to a cooler environment. Store spare fuses (5A, 10A, 20A) and a 12-foot length of stranded copper wire (14AWG) for field repairs.

Connecting Rear Gate Illumination Strips: Step-by-Step Guide

Begin by identifying the vehicle’s power source for the strip. Most pickup trucks use a dedicated circuit beneath the rear panel–locate the harness near the left-side taillamp. Tap into the brown wire (running lights) and black ground wire with weatherproof connectors. Use a 10A fuse within 7 inches of the battery connection to prevent short circuits. For LED modules, ensure the voltage matches: 12V systems require no additional resistors, but 24V trucks need a step-down converter.

Route cables through the existing grommet between the cab and rear mechanism. Avoid sharp edges; secure wires every 12 inches with zip ties to prevent vibrations from damaging soldered joints. Use spiral wrap for sections exposed to weather–standard vinyl tubing cracks under UV exposure. For integrated brake signal functionality, splice the red wire from the strip into the vehicle’s brake harness (typically a yellow/red stripe). Test with a multimeter before sealing connections with dielectric grease.

Component Checklist for Reliable Installation

• Marine-grade butt connectors (size 18-14 AWG)
• Fuse holder with 10A fuse
• Heat-shrink tubing (minimum ¼” diameter)
• 16-gauge primary wire (adequate for 120W draw)
• Waterproof switch (optional, for manual control)
• Voltage tester and wire strippers

Grounding requires direct metal contact: sand the truck’s frame down to bare metal and attach the wire with a star washer for corrosion resistance. For trailer hitch models, extend cables through the hitch’s channel using conduit splitters to avoid pinching. If pairing with a backup camera, isolate the camera’s power using a relay–shared circuits cause interference. Finalize by waterproofing the plug connectors with silicone sealant; avoid electrical tape as it degrades within months.

Essential Gear for Rear Gate Lamp Strip Setup

Begin with a multimeter (minimum 10A DC rating) to verify live circuits before splicing. Digital models with auto-ranging simplify voltage checks at the fuse box–target the 30A trailer or brake fuse for a stable 12V source. For vehicles with automatic tail functions, probe the convenience socket or reverse relay pins to avoid voltage drops.

16-gauge primary wire (stranded copper, PVC-jacketed) handles 9-12A continuous load; upgrade to 14-gauge for runs exceeding 12 feet to prevent resistance buildup. Use heat-shrink tubing (minimum 3:1 shrink ratio) on all connections, paired with crimp connectors (butt/ring types, tinned copper) for corrosion resistance. Avoid solder-only joints; vibration degrades long-term reliability. A wire stripper with 12-18 AWG markings ensures clean cuts without nicking strands.

For mounting, aluminum trim tape (3M VHB 5952 series) bonds LED assemblies to painted surfaces without structural compromise. Pre-drill holes for screw mounts if the assembly lacks adhesive backing–use stainless steel #8 pan-head screws (3/4″ length) with rubber washers to prevent galvanic corrosion. A dielectric grease syringe (silicone-based) seals connectors exposed to road spray.

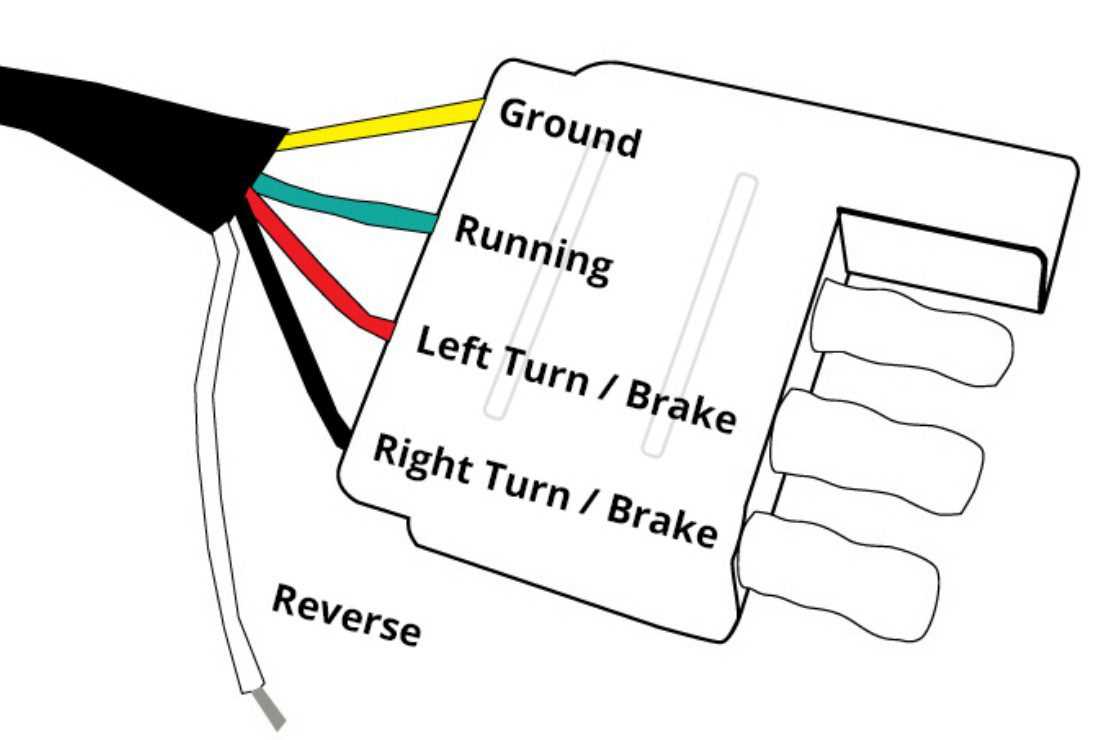

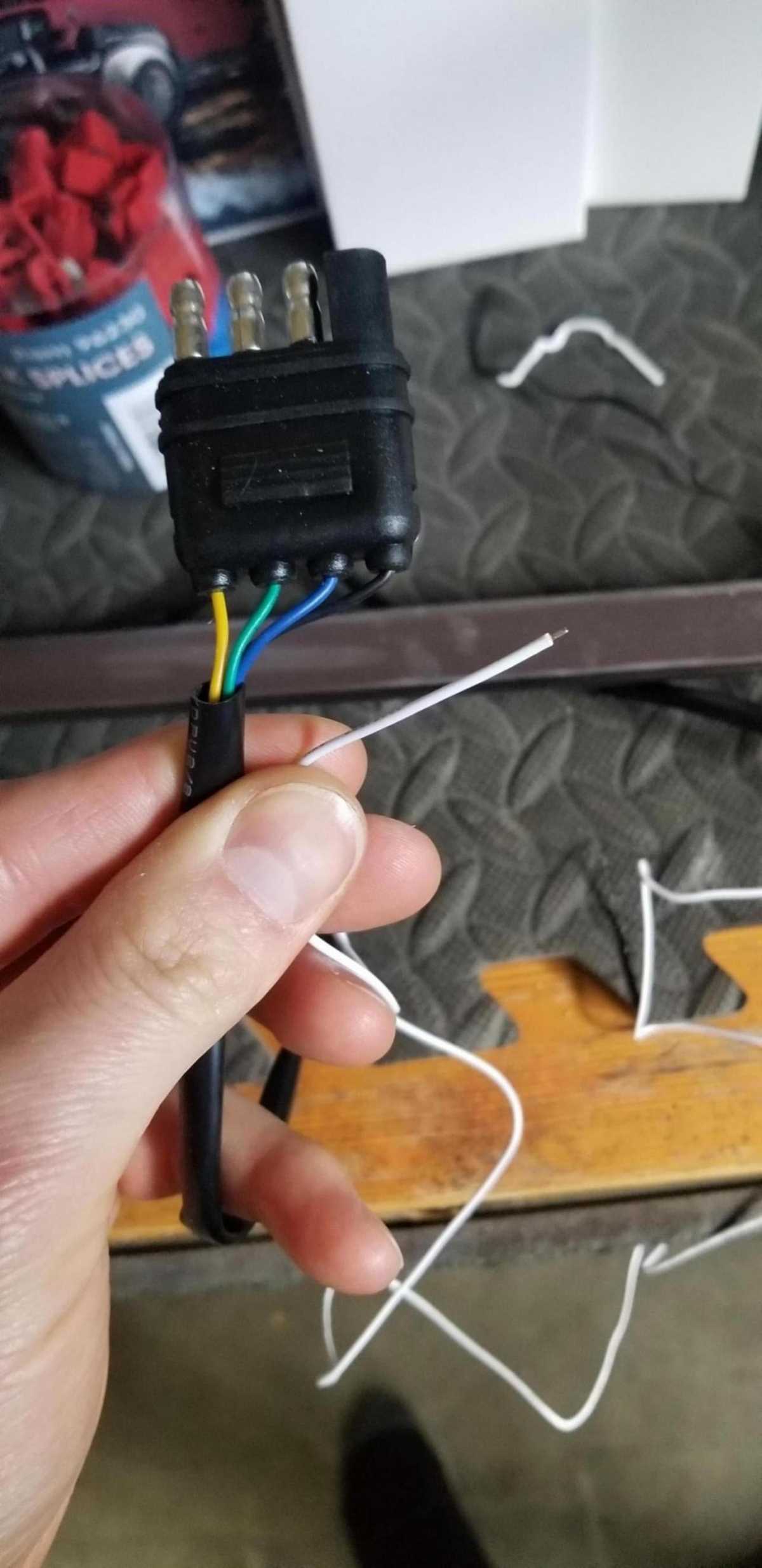

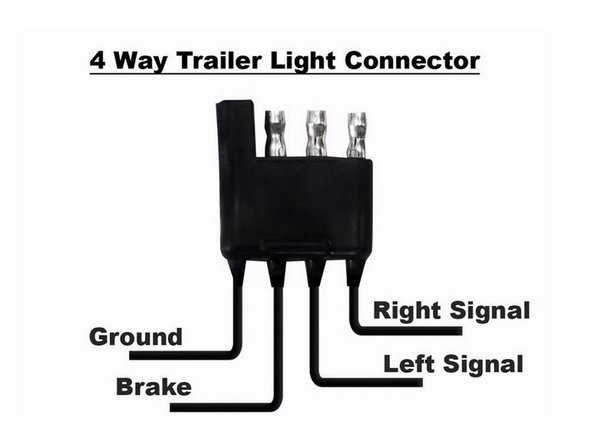

Fuse taps (ATC/ATO blade type, 10-15A) simplify tapping into OEM circuits; match the fuse rating to the LED strip’s max draw (typically 6-8A for 36-inch units). For plug-and-play setups, T-harness adapters (4-pin trailer connectors) eliminate splicing but add 0.3-0.5 ohms resistance–test with a dummy load before final installation. A 24V test light identifies hot circuits without risking ECM damage on CAN-bus vehicles.

Optional but critical for DIY precision: terminal crimping pliers (ratcheting, IWISS SN-2549 or equivalent) provide factory-grade joints under 5 lbs of pressure. Flexible conduit (split loom, 3/8″ ID) routes cables along gate hinges to prevent chafing–secure with nylon zip ties (UV-resistant, 8″ length) spaced every 6 inches. For concealed installations, fish tape (1/4″ steel) threads wires through hollow frames; lubed routes with PTFE spray reduce friction by 40%.

Step-by-Step Electrical Hookup for Rear Gate Illumination Strips

Locate the vehicle’s auxiliary fuse panel beneath the dashboard. Identify the 10A or 15A fuse slot labeled “interior lamps” or “cargo area” using a test light. Confirm power presence by probing the fuse’s output terminal–bright illumination verifies the correct slot. If absent, trace the wiring harness to the nearest switched 12V source, such as the rear dome lamp circuit.

Preparing the Power Feed

Strip 6mm of insulation from the positive lead of the illumination strip’s harness. Crimp a 16-14 AWG butt connector to the exposed copper, then attach a female spade terminal. Slide the spade onto the fuse panel’s verified output terminal. For ground, use a self-tapping screw secured to the vehicle’s unpainted chassis metal within 30cm of the strip’s intended mounting spot–scrape away any surface corrosion or paint first.

Route the harness along existing cable channels, avoiding sharp edges or moving parts. Use zip ties every 20cm to secure the wires, ensuring slack remains for gate operation. If splicing into an existing circuit, employ waterproof heat-shrink connectors; apply electrical tape only as a temporary measure. For ambient temperature strips exceeding 20W, run a dedicated 12-gauge wire directly from the battery with an inline 20A fuse within 15cm of the connection point.

Integrating the Control Module

Connect the strip’s input wires to the aftermarket controller or vehicle’s integrated switch. For basic installations, link the positive lead to the cargo switch (often found near the rear hatch release). To enable dimming functionality, splice into the variable-intensity circuit–common in luxury models like the Ford F-150 Platinum or Toyota Sequoia Limited. Verify polarity with a multimeter before making permanent connections.

Test the setup before final assembly. Activate the vehicle’s ignition (engine off) and toggle the switch. Observe uniform brightness across all segments; flickering indicates a poor ground or voltage drop. Use a non-contact voltage tester to check for stray current along exposed wires. If present, re-route the harness away from ignition coils or alternator leads. For RGB strips, confirm all color channels respond via the controller app or manual switch cycles.

Seal all connections with dielectric grease before reassembling trim panels. For outdoor-rated installations, apply adhesive-lined heat shrink tubing over splices and use silicone-filled wire nuts. Recheck the gate’s full range of motion to ensure wires aren’t pinched. Store spare 10A fuses and 16AWG wire in the glove compartment for quick repairs if issues arise later.

Identifying the Correct Fuse and Relay for Power Supply

Locate the vehicle’s fuse box layout in the owner’s manual–the schematic on the underside of the box cover is often incomplete or misleading. Manufacturers like Ford, GM, and Toyota label accessory circuits differently; for example, GM commonly uses “ACC” or “CIG” for auxiliary power, while Ford may designate it as “B+ Run/Acc.” Verify the amperage rating of the circuit: most aftermarket additions require 10A to 20A, but exceeding the fuse’s capacity risks melting insulation or tripping electrical faults. Use a multimeter to test candidate circuits–probe between the fuse slot and ground while the ignition is on; a reading of 12V confirms live power without parasitic drain.

Relay Selection and Pinout Verification

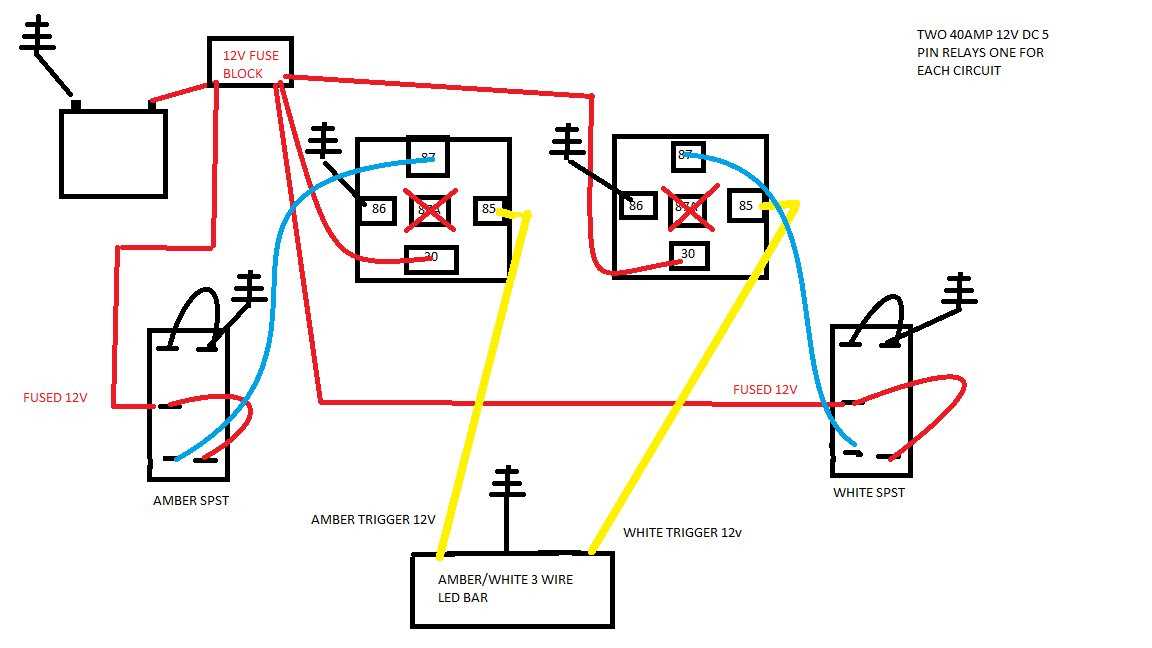

Install a 4-pin SPDT relay (ISO 280 standard) rated for 30A/14VDC minimum–avoid compact OEM relays found in fuse panels, as they often lack sufficient current handling for high-draw attachments. Pin 30 connects to the power source via an inline fuse (size based on device wattage: 5W = 0.4A, 100W = 8.3A). Pin 85 grounds directly to chassis or a dedicated ground point–never through switch contacts to prevent voltage drop. Pin 86 links to the trigger source (e.g., reverse lamp circuit or ignition-switched accessory line), ensuring the relay engages only when intended. Pin 87 outputs to the device; use 16AWG wire minimum for lengths under 3m to prevent excessive resistance.

Common pitfalls include misidentifying shared circuits–reverse lamps, for instance, may share power with backup sensors, causing interference if tapped incorrectly. Check for voltage drop by toggling the device: a flicker in instrument cluster lights or delayed engagement indicates an underpowered or shared circuit. Toyota’s rear harness often separates reverse power (fusible link) from rear wiper/liftgate circuits; GM vehicles bundle them under a single 20A “Rear Accessory” fuse. Always cross-reference with a workshop manual–third-party diagrams frequently omit splice points critical for clean integration.

For European models (VW/Audi/BMW), locate the central electric module or J393 control unit–aftermarket additions must tap into dedicated terminals (e.g., T32b/15 for VW) rather than splicing into CAN bus wires, which risks triggering fault codes. Renault/Nissan designate auxiliary power under “B+ Ignition” (15A) in the IPDM, but Nissan Altima’s trunk release circuit (fuse #52, 10A) is a safer alternative for steady power. Avoid using trailer wiring adapters–they often route through the OBD-II port or weak factory relays, leading to inconsistent performance under load.

Final validation: With the device disconnected, trigger the relay (e.g., shift into reverse) and measure voltage at the output terminal (pin 87). A steady 12V-14V confirms correct relay operation and circuit integrity. If voltage fluctuates, inspect the trigger source for intermittent connections or corroded pins–Ford’s F-150, for example, suffers from oxidized trailer module plugs causing erratic reverse lamp behavior. Secure all connections with soldered joints and adhesive-lined heat shrink; crimp connectors and electrical tape degrade within 12-18 months under heat and vibration.
