How to Wire a Three Way Light Switch Step by Step Guide

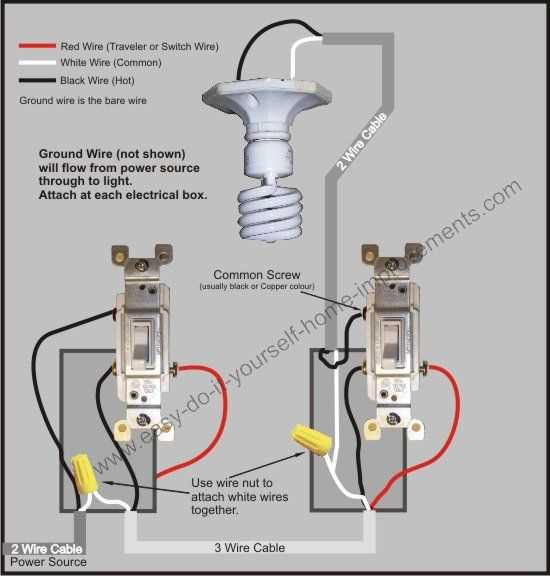

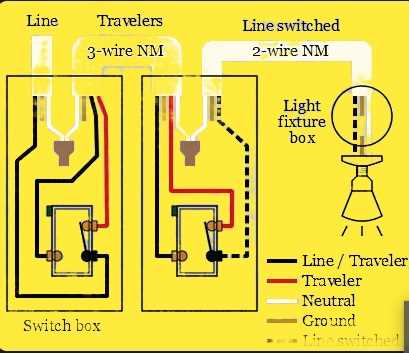

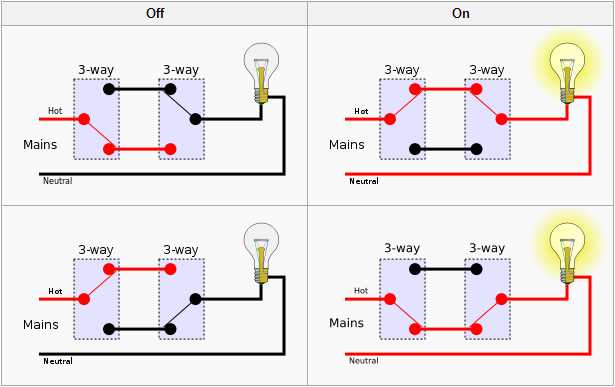

Start by identifying the common terminal on each control unit–this is typically marked with a darker screw or labeled “COM.” The remaining terminals will be traveler connections, usually brass or silver. Use 14-gauge NM-B cable for 15-amp circuits or 12-gauge if the breaker is rated at 20 amps. Run a three-wire cable (black, red, white, ground) between the first and second controller, ensuring the ground wire is secured to the green screw on each device.
At the power source, connect the line hot wire (black or red) to the common terminal of the first control. The neutral (white) should bypass both controllers and connect directly to the fixture. At the second control, attach the load hot wire (leading to the luminaire) to its common terminal. The traveler wires (black and red) from the three-wire cable must link the corresponding traveler terminals on both devices–color consistency is critical.
For safety, confirm all connections with a non-contact voltage tester before restoring power. If the circuit fails, check traveler wire continuity with a multimeter; resistance should read near 0 ohms between paired terminals. Incorrect configurations often stem from swapped traveler wires or missed ground connections–reverify each step if issues persist.
Terminal screws must be tightened to 12-15 in-lbs of torque to prevent loose connections, which cause arcing or overheating. In metal junction boxes, secure all grounds to the box itself using a grounding pigtail. For installations exceeding 8 feet, use cable clamps to prevent strain on terminals and consider staple support every 4.5 feet along the run.
Mastering Dual-Control Illumination Circuit Layouts
Identify the power source conductor immediately–it’s always black-insulated or marked with red tape if repurposed. Never connect this to ground terminals; doing so risks tripping breakers or creating fire hazards in residential wiring setups.
Label travelers with colored tape: one orange, one purple. This prevents confusion when routing through junction boxes, especially in multi-gang installations where conductors twist unpredictably. Use a continuity tester to verify cross-connections before securing wire nuts.
Position the common terminal at the bottom of toggle mechanisms for consistent orientation. Most manufacturers follow this convention, but exceptions exist–check device branding. Incorrect placement forces rewiring or misaligned toggles that bind during operation.
Install 12-gauge copper wire for circuits exceeding 15 amperes; use 14-gauge only in low-load scenarios. Smaller diameters overheat under sustained current, degrading insulation integrity over time.
Test both toggles after securing terminals but before finalizing wall plates. Flip each independently while observing fixture behavior–both should turn illumination on/off without flickering or partial activation. If inconsistency occurs, recheck traveler continuity at the farthest junction.
Anchor conduits at 48-inch intervals with metal straps when running exposed cables through basements or attics. Loose segments vibrate with thermal expansion, loosening connections under 240-volt loads.
Replace split-bolt connectors with insulated crimp sleeves for outdoor installations. Moisture corrodes traditional fasteners within months, introducing resistance that reduces efficiency by up to 23% in high-humidity climates.
Essential Equipment for Multi-Location Circuit Setup
Begin with insulated screwdrivers rated for 600V–both flathead (3/16″ or 4mm) and Phillips (#2) variants–to prevent short-circuiting during terminal adjustments. Include a non-contact voltage detector (12-1000V range) to verify power disconnection before handling conductors. Wire strippers with 12-14 AWG notches ensure clean cuts without nicking copper strands, crucial for maintaining conductor integrity under load.
- 14-gauge NM-B cable (Romex or equivalent) for 15A circuits, or 12-gauge for 20A applications–match existing branch circuit capacity.
- Grounding pigtails (6″ bare copper or green-insulated) with wire nuts sized for #12-#14 AWG connections.
- Two dual-location toggle devices (specifically rated for alternating circuit control, commonly marked “3-WAY” on the yoke).
- Electrical tape (PVC or rubber-based) to insulate splices and prevent grounding against metal junction boxes.
Specialized Tools for Precision Work
Use needle-nose pliers to bend conductor loops around terminal screws, ensuring ¾” of exposed copper wraps clockwise for secure mechanical grip. A fiberglass fish tape (1/8″ diameter, 25’ length) simplifies pulling conductors through conduit or hollow walls, while a stud finder with AC detection identifies live circuits behind drywall. For aluminum wiring retrofits, include oxide inhibitor compound (NOALOX or equivalent) to prevent corrosion at dissimilar metal junctions, applied after stripping but before securing terminals.
- Check local codes for AFCI/GFCI requirements–some jurisdictions mandate arc-fault protection on bedroom or basement circuits.
- Verify device compatibility: tamper-resistant models require compatible wall plates, and smart variants need neutral conductors (standard on modern builds post-2011 NEC).
- For conduit installations, procure ½” EMT or Schedule 40 PVC with appropriate bushings and straps (spaced every 3’ per NEC 352.30).
Installation Instructions for Dual-Point Circuit Control
Turn off power at the breaker panel before handling any conductors. Verify absence of voltage with a non-contact tester on both terminal screws of existing controllers and the traveler wires.
Identify the common terminal on each control unit–typically marked with a darker screw or labeled “COM.” Attach the line (hot) conductor to the first unit’s common terminal. Connect the load conductor to the common terminal of the second unit.
Link the traveler cables between the two units. Match brass or colored screws on both ends. Strip 5/8 inch of insulation from traveler ends, twist clockwise, and secure under terminal screws. Ensure no exposed copper extends beyond the screw clamp.
Ground both units by attaching bare or green conductors to the green grounding screw. If the box is metal, bond the ground wire to the box with a pigtail. Use a torque screwdriver to tighten terminal screws to 12 in-lbs.
Fold conductors neatly into the box, ensuring no sharp edges contact bare wire. Snap cover plates onto both units, then restore power. Test functionality by toggling each controller–both should independently turn the fixture on and off.
If the circuit fails, recheck traveler connections–reversing these between units will prevent proper operation. Also verify the line and load conductors are correctly assigned to common terminals on their respective units.
For finishing, wrap both boxes with electrical tape over terminal screws to prevent accidental short circuits during future maintenance. Label the breaker panel with the circuit’s location for quick identification.
Color Coding and Wire Identification for Multi-Location Control Circuits
Use black or red for travelers in all junction boxes–never deviate from this convention to prevent misfires. The common terminal, marked by a darker screw (often black or copper), connects to the hot feed (line) or the load (fixture), depending on the box’s role in the circuit. For power sources, split the neutral (white) into a pigtailed bundle, ensuring it bypasses terminals entirely to avoid accidental energization. If reusing old cables, verify continuity with a multimeter; insulation stripping can expose hidden nicks, risking shorts under 120V loads.
Ground and Auxiliary Markers
Bare copper or green wires must terminate on grounding screws–no exceptions–even in boxes without explicit ground ports (retrofit with a grounding pigtail). To distinguish travelers where cables share a conduit, wrap the first traveler with yellow electrical tape at both ends; the second gets blue. This mirrors NEC 200.6(E) but extends the logic to avoid reliance on screw terminal color alone. For split circuits (e.g., half-hot outlets), re-mark the split-tap leg with brown tape to flag its dual function.
Label all terminals directly on the wire with heat-shrink tubing–ink marks smear under heat or abrasion. In boxes with mixed 14/2 and 14/3 NM cable, reserve the red conductor strictly for travelers; reserve black for line/load hots. Conflicts arise when installers repurpose red for switched legs in single-pole setups–this violates NEC 200.7(C)(1) and risks tripped breakers during future modifications. Always cap unused wires, even neutrals, to prevent phantom paths via adjacent live circuits.
Critical Errors in Multi-Location Circuit Configurations
Connecting the common terminal to a traveler instead of the designated power source terminal guarantees immediate failure. Always verify the screw color coding or terminal markings before attaching conductors–manufacturers use brass for travelers and darker screws for the common input.
Ignoring polarity in feed and load connections creates confusion during troubleshooting. Label each conductor with its origin (e.g., “Panel L1,” “Luminaire Neutral”) before stripping insulation; this prevents reversed-line configurations that cause intermittent operation.
| Component | Acceptable Wire Gauges | Maximum Ampacity |
|---|---|---|
| Brass Terminals (Travelers) | 14–10 AWG | 15 A |
| Dark Terminal (Input) | 12–10 AWG | 20 A |
| Grounding Conductor | 14–8 AWG | – |
Using 14-gauge wire for 20-amp circuits violates NEC 210.20; the resulting voltage drop triggers breaker trips or overheating. Measure conductor length from the farthest point–every 100 feet of 14 AWG drops 3.1 volts at 15 amps, risking dimmed fixtures.
Omitting the grounding conductor at any junction leaves the circuit vulnerable to stray currents. Bond all metallic switch boxes to the grounding system; even non-metallic boxes require an attached grounding pigtail if the fixture uses metal components.
Twisting stranded wire around screw terminals without tinning invites loose connections. Use crimp connectors or terminal lugs rated for the specific gauge–stranded 14 AWG requires UL-listed fork or ring terminals to maintain secure contact.
Running travelers through the same conduit as neutrals induces inductive coupling. Separate circuits by bundling travelers together in one conduit segment and neutrals in another; this eliminates phantom voltages that cause flickering.
Assuming all toggle mechanisms have identical terminal layouts leads to reversed wiring. Test each installation with a multimeter in continuity mode–set one probe on the common terminal and cycle the actuator to confirm which traveler terminal toggles state.
