Step-by-Step TOA Audio Amplifier Circuit Design and Schematic Guide

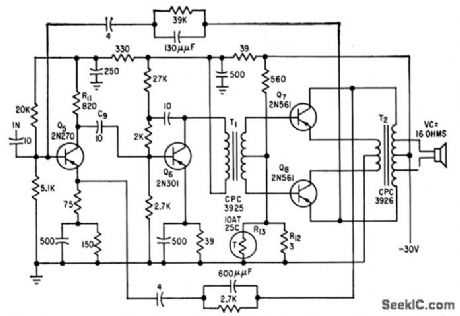

Start with a class-A pre-stage using a low-noise transistor like the 2N5089 or BC547. Bias it at 1-2 mA collector current to minimize crossover distortion while maintaining thermal stability. Pair it with a 10 kΩ input resistor to match typical line-level sources.

For the power stage, a complementary pair of TIP31C/TIP32C works reliably without requiring complex biasing. Each transistor should be attached to a heatsink rated for 20 W dissipation. Use a 470 Ω emitter resistor on each side to limit current and improve linearity.

The feedback loop should incorporate a 47 kΩ resistor in series with a 22 pF capacitor to roll off high frequencies above 20 kHz. This configuration reduces phase shift at ultrasonic frequencies, preventing oscillation. Ground the feedback network directly to the power supply star point to avoid ground loops.

Power supply filtering requires a bridge rectifier (1N4007) followed by 4700 µF electrolytic capacitors on each rail. Add 0.1 µF ceramic caps near the transistors to suppress high-frequency noise. For unregulated designs, keep the transformer secondary voltage within ±12–15 V to prevent overheating under continuous load.

Trace routing on a perfboard or custom PCB must separate input, output, and power grounds. Keep signal paths under 5 cm and use 22 AWG copper wiring for all critical connections. Test for stability by sweeping the load from 4 Ω to 8 Ω–any frequency drift above 5% THD indicates insufficient decoupling.

Building a High-Fidelity Audio Power Module: Schematics and Key Adjustments

Begin with a symmetrical dual-rail power supply (±24V to ±48V) using toroidal transformers rated for 30% above your expected load. Pair each rail with low-ESR capacitors (10,000μF per 1A of current draw) and snubber networks (0.1μF polyester + 10Ω resistors) to suppress high-frequency oscillations. Connect ground planes directly to a star point near the main reservoir caps to minimize interference loops.

For the output stage, select complementary emitter-follower transistors (e.g., MJL3281A/MJL1302A) biased via a Vbe multiplier with thermal compensation. Mount the multiplier directly on the heatsink adjacent to the output devices to stabilize quiescent current. Use emitter resistors (0.22Ω, 5W) for current limiting and mismatch correction. Balance the stage with matched transistor pairs (±5% gain tolerance) to reduce harmonic distortion.

Input conditioning requires a differential pair (e.g., 2SA970/2SC2240) with a tail current of 2mA for optimal slew rate. Couple inputs through 1μF polypropylene capacitors to block DC offsets, and follow with a 10kΩ volume potentiometer for attenuation. Feedback networks should use precision resistors (±1%, 0.1% for critical stages) and a 22pF compensation capacitor to prevent high-frequency peaking.

Layout prioritizes short, thick traces for high-current paths (minimum 3mm wide for 5A) and separated ground returns for signal and power sections. Decouple each semiconductor with 0.1μF ceramics placed within 10mm of the device leads. Test stability with a square-wave signal at 1kHz; adjust the compensation capacitor if ringing exceeds 5% overshoot.

Critical Parts for Building a High-Fidelity Audio Power Stage

Select a linear power supply with a toroidal transformer rated at least 30% above the continuous power output requirement. For a 100W unit, this means a 200VA core delivering dual 30V rails after rectification. Pair it with 10,000µF smoothing capacitors per rail–anything less risks hum and ripple interference audible at low signal levels.

Choose complementary power transistors with matched current gains (±5%) and thermal coefficients. MJL3281A (NPN) and MJL1302A (PNP) pairs from ON Semiconductor provide 30A collector current and 250W dissipation ratings, ideal for bridging configurations. Mount them to a 0.5°C/W heatsink using beryllium oxide washers–silicon pads introduce thermal lag.

Input sensitivity hinges on precision resistors with 1% tolerance. Metal film types like Vishay RN60C series ensure minimal drift across temperature swings. Configure a voltage divider delivering 1V RMS at the preamp stage, adjustable via multi-turn trims for fine calibration against source impedance variations.

Signal coupling capacitors demand film dielectric for flat frequency response. Polypropylene units rated 100V from WIMA MKP series eliminate phase distortion below 10Hz. Bypass electrolytics (Nichicon FW series) with 1µF polypropylene prevents roll-off at the high end.

Ground plane routing requires star topology: separate analog, digital, and power returns converging at a single point soldered directly to chassis. Use 2oz copper PCB traces or 10AWG busbars–any thinner wire introduces ground loops measurable on an oscilloscope.

Feedback network resistors define closed-loop gain. Metal film 0.1% parts (Susumu RR1220) paired with a 20pF NPO capacitor set slew rate and stability margins. Avoid carbon composition–they generate 1/f noise audible during silent passages.

Protection circuitry relies on fast-blow fuses sized at 1.5× maximum steady-state current. Littelfuse 326 series reacts within 3ms to short circuits. Installing a thermistor (Amphenol 507-103) on the heatsink triggers shutdown at 80°C, preventing thermal runaway without false trips.

Connectors must handle peak currents without signal degradation. Neutrik speakON NL4FC accommodates 30A continuous, while Wago 222 series lever-nuts secure input/output wires without oxidation-prone solder joints. Shielded cable (Mogami W2549) reduces RF pickup by 40dB compared to standard PVC-jacketed alternatives.

Step-by-Step Wiring Guide for Audio Signal Booster PCB

Begin by securing the board to a static-free work surface using non-conductive clamps. Verify component placements against the silkscreen markings–resistors (R1-R8), capacitors (C1-C5), and IC sockets must align precisely with labeled footprints. For through-hole variants, orient semiconductors (D1, Q1) with their flat edges or notched sides matching the board’s reference indicators. Pre-tin all pads for resistors and capacitors to simplify soldering, using 0.3mm gauge solder for optimal joint formation.

Critical Wiring Connections

Wire Type	AWG	Color Code	Terminal Pair	Soldering Tip
Power Input	18	Red (+), Black (-)	V+ → Board’s +12V | GND → Chassis Ground	Use heatshrink tubing to insulate joints
Speaker Output	16	White (L), Green (R)	OUT-L → Terminal Block A | OUT-R → Terminal Block B	Twist strands tightly before inserting
Audio Source	22	Shielded: Blue (L), Yellow (R) / Bare (Shield)	IN-L → RCA Jack 1 | IN-R → RCA Jack 2 | Shield → Ground Plane	Keep shield braid under 5mm to avoid inductance

Route wires away from heat-generating components–thermal relief pads near the voltage regulator (U1) should remain unobstructed. For signal paths, maintain a minimum 3mm clearance from power lines to prevent crosstalk. Use a multimeter in continuity mode to confirm no unintended short exists between V+ and ground before applying power. If incorporating a potentiometer (VR1), mount it at least 50mm from the PCB to avoid mechanical stress on solder joints during adjustment.

Final Assembly Checks

Inspect all joints under magnification–cold solders or excess flux residue can cause intermittent failures. Apply conformal coating to exposed traces near input/output terminals to mitigate oxidation. Secure loose wires with nylon ties, avoiding sharp bends (

Common Mistakes During Audio Power Stage Assembly Soldering

Avoid applying excessive solder as it creates bridges between closely spaced pads–particularly in SMD components like resistors or capacitors. Even 0.5mm gaps demand precise solder control; a 0.2mm bridge causes short circuits that may not be immediately visible yet degrade signal integrity. Use a flux pen on fine-pitch traces before soldering to prevent oxidation and maintain a clean joint surface. Temperature regulation matters: exceed 350°C for more than three seconds risks lifting pads on layered boards, especially FR-4 substrates thinner than 1.6mm.

Inverting component orientation during manual placement causes irreversible errors–polarized electrolytic capacitors and MOSFETs must align with silkscreen markings. Verify pinouts against datasheets before soldering; swapping gate-drain connections in switching stages leads to immediate thermal failure or erratic behavior. A multimeter in continuity mode detects incorrect connections pre-installation; probe each component footprint post-solder to confirm isolation between neighboring nets. Heat sinks require thermal paste application–neglecting this results in heat buildup exceeding 85°C at nominal loads, shortening semiconductor lifespan by 40%.

Skipping pre-tinning of stranded wires introduces unreliable joints; strand fraying increases resistance and compromises conductivity. Secure mechanical stability before soldering–vibration-sensitive designs like toroidal transformers need threaded mounting or adhesive fixation prior to electrical connections. Verify ground plane continuity across the board; inconsistent grounding manifests as hum or RF interference proportional to impedance mismatches above 0.1Ω. Post-assembly inspection should include thermal imaging for hotspots indicating poor solder joints or incorrect bias resistor values.

Voltage and Current Specifications for Audio Signal Booster Operation

Ensure the power supply delivers ±24V to ±60V DC for optimal performance in professional-grade units. Voltages below ±18V may reduce dynamic headroom, causing distortion at higher output levels. Always check the device’s datasheet for exact requirements–some models tolerate ±70V transient peaks, but sustained overvoltage risks component failure.

Idle current consumption typically ranges 50mA to 300mA per channel, depending on class (AB, D, or H) and quiescent bias settings. For class-D switching types, efficiency exceeds 90% at full load, while class-AB linear designs may drop to 50-65%. Measure current draw under no-signal conditions to verify thermal management–unexpected spikes indicate faulty biasing or defective output transistors.

Critical Compliance Values

• Maximum Output Current: 5A to 15A continuous, depending on load impedance (2Ω to 8Ω). Exceeding this threshold activates protection circuits, which may include thermal shutdown, short-circuit sensing, or DC offset detection.
• Input Sensitivity: 0.775V RMS (0dBu) for nominal output, adjustable via gain controls. Signals exceeding +24dBu (12.3V RMS) require input attenuation to prevent clipping.
• Power Bandwidth: 20Hz to 20kHz (±0.1dB) for high-fidelity models; budget variants may roll off at 10Hz or 40kHz (±3dB). Verify slew rate–10V/µs or higher minimizes transient intermodulation distortion.

For 4-ohm loads, reduce supply voltage by 15-20% compared to 8-ohm ratings to maintain reliability. Example: A unit rated for ±50V at 8Ω should operate at ±40V max for 4Ω. Parallel outputs (bridge mode) double current capacity but halve load impedance compatibility–ensure cooling is adequate for the increased thermal dissipation.

1. Use a regulated lab power supply for bench testing; unregulated supplies introduce ripple (>50mV PP) that degrades signal-to-noise ratio.
2. Avoid floating grounds–connect all signal references to a single star point to prevent ground loops.
3. Inspect electrolytic capacitors for ripple current ratings; undersized components overheat and fail prematurely. Replace with 105°C types rated for 2x the expected RMS current.
4. Verify protection thresholds: thermal cutoff at 85°C–100°C, short-circuit trigger at 20A–30A (instantaneous).

Voltage rails must be symmetric within ±0.1V to prevent DC offset at the output. Asymmetry causes transformer saturation in connected loudspeakers. For dual-rail designs, use matched diodes in the rectifier stage; mismatch introduces hum and increases total harmonic distortion (THD is typical for premium units).
