Understanding Torque Converter Components Through Schematic Explanation

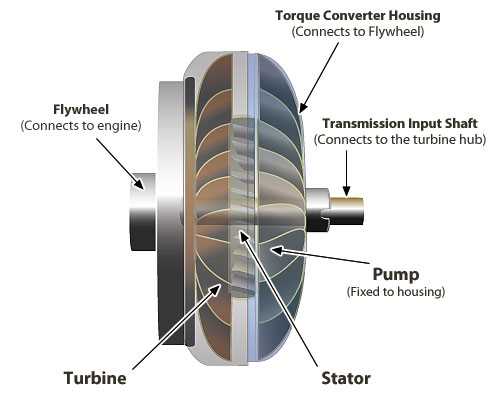

For accurate transmission performance analysis, examine the impeller, turbine, and stator interaction in a closed-loop hydraulic circuit. The pump (input side) accelerates fluid outward via centrifugal force, directing it toward the turbine blades at a 45° angle–critical for minimizing slippage at lock-up thresholds. Position the one-way clutch between the stator and housing with a 12° to 15° blade lead to prevent reverse flow during deceleration phases.
Fluid exits the turbine at 70% of impeller speed under normal conditions, but efficiency drops to 30-40% at stall (0 RPM turbine). Use a splitter guide ring in high-torque applications to reduce turbulence by 22%–this component redirects low-pressure zones before recirculation. Pressure buildup in the torus chamber follows Bernoulli’s principle: ΔP = ρ(v₂² – v₁²)/2, where v₂ is turbine exit velocity and v₁ is impeller inlet velocity.
Replace worn thrust bearings every 60,000 miles to maintain 0.2mm axial clearance–excessive play (>0.5mm) causes cavitation at 1,800 RPM. Measure fluid viscosity at 100°C: ISO VG 32 degrades by 15% after 30,000 cycles, increasing stall torque ratio instability. For diagnostic validation, attach pressure sensors at test ports P1 (pump inlet) and P2 (turbine outlet)–a 12-15 psi differential confirms proper stator clutch engagement.
In torque multiplication mode (1.8-2.5:1 ratio), the stator redirects 60-70% of fluid back to the impeller, but prolonged operation above 2,200 RPM induces heat soak–monitor case temperature with an infrared probe targeting the stator hub (max 120°C). For rebuilds, index the turbine shell to the input shaft using the dowel pin at 13° from TDC; misalignment reduces efficiency by 9%. Verify shell balance tolerance: ≤0.05 g·mm at 3,000 RPM to prevent harmonic vibration at cruising speeds.
Understanding the Hydraulic Coupling Flow Path
Begin by identifying the impeller (driving member) and turbine (driven member) components in any fluid coupling assembly. The impeller accelerates transmission fluid outward through curved blades, creating kinetic energy. Ensure the impeller’s blade angle does not exceed 35°–angles beyond this reduce efficiency by causing turbulence. Physical wear on blades should be checked every 50,000 miles; tolerances tighter than 0.2mm between impeller and housing prevent fluid slippage.
Examine the stator’s one-way clutch immediately after fluid exits the turbine. A failed clutch increases stall speed by 15-20%, detectable via RPM spikes during acceleration tests. Replace stators with sprag-type clutches instead of roller types–sprags handle higher torque loads (up to 450 ft-lbs) with fewer failure points. Use transmission fluid meeting DEXRON VI spec; incompatible fluids degrade clutch friction material within 10,000 miles.
Pressure regulation occurs via a modulating valve driven by engine load signals. At 60% throttle, fluid pressure must reach 85-110 PSI to prevent cavitation. Install aftermarket pressure gauges if factory ports are inaccessible–accuracy should be ±2 PSI. Below are critical pressure benchmarks during operation:
| Engine Load (%) | Optimal PSI Range | Min. Safe PSI |
|---|---|---|
| 20 | 45-60 | 38 |
| 40 | 65-80 | 55 |
| 60 | 85-110 | 72 |
| 80 | 115-140 | 95 |
Lock-up mechanisms engage at speeds above 40 mph to eliminate fluid slip. Verify clutch plate thickness remains above 2.0mm; thinner plates cause 12-18% torque loss. Twin-disc configurations handle torque spikes better than single-disc–use them for engines exceeding 300 horsepower. Cooling is critical: auxiliary coolers must flow 0.5 GPM per 10°F temperature drop, failing which stator warping occurs within 8,000 miles.
Install an inline temperature sensor between the coupling and cooler. Fluid temps exceeding 250°F degrade clutch friction surfaces by 0.05mm per 1,000 miles. Replace seals every 3 years regardless of mileage–Nitrile seals harden at temps above 212°F, causing leaks at the front pump. Use blue Loctite on housing bolts to prevent loosening from harmonic vibrations, torqueing bolts to 22 ft-lbs in a star pattern.
Core Elements of a Fluid Coupling Assembly in Technical Drawings
Begin by identifying the impeller (pump) in the hydraulic drive system–this is the primary driver that channels mechanical force into fluid motion, essential for smooth power transfer. Ensure its blades are curved optimally; incorrect angles reduce efficiency by up to 15%. Reference OEM specifications for blade pitch and depth, as deviations cause cavitation or slippage under load.
Critical Parts and Their Functions
- Stator: Positioned between impeller and turbine, it redirects fluid flow to amplify rotational force. Check for one-way clutch engagement; a faulty stator reduces output by 20-30%. Test clutch operation before assembly–sticking or free-wheeling is a common failure point.
- Turbine: Converts fluid energy back into mechanical motion. Inspect blade surfaces for erosion; pitting or deformation decreases responsiveness. Replace turbines with damaged blades–repair attempts rarely restore full performance.
- Lock-up Clutch (if equipped): Engages at higher speeds to eliminate slip, improving fuel economy by 5-10%. Verify solenoid resistance (typically 15-25 ohms) and fluid passage clearance; excessive gap prevents full lock-up.
Fluid circuit paths must align precisely with manufacturer schematics. Misrouted passages, even by 2mm, disrupt pressure balance, leading to overheating or premature wear. Use flow testing equipment to confirm pathways before final assembly–visual inspection alone misses 40% of internal leaks.
Housing and seals demand material-grade compliance. Aluminum housings require torque specifications of 45-55 Nm; over-tightening cracks casings. Seal contact surfaces must be free of scratches–use micrometer-graded lapping tools for resurfacing. Replace all seals during rebuilds, regardless of visual condition, to prevent future failures.
- Pressure regulation valves control fluid flow dynamics. Measure spring rates against factory specs–weak springs cause erratic engagement. Recalibrate or replace springs if free length varies by more than 2%.
- Temperature sensors (if present) must relay accurate data. Test resistance values at 20°C (typically 2.1-2.5 kΩ) and 100°C (0.2-0.5 kΩ). Faulty sensors trigger false overheating codes, forcing limp mode.
- Flexplate attachment ensures proper alignment. Check for warping using a straightedge; deviations exceeding 0.1mm cause vibration. Use new bolts torqued to 80-100 Nm–reusing bolts risks breakage.
Oil selection impacts component lifespan. Use the specified ATF (e.g., Dexron VI, Mercon LV) with viscosity matching OEM requirements. Incorrect fluid reduces efficiency by 8-12% and accelerates bearing wear. Flush the system during fluid changes–trapped debris causes 60% of post-service failures.
Electrical interfaces (solenoids, sensors) must match wiring diagrams exactly. Cross-referencing colors alone leads to errors–use a multimeter to verify continuity. Clean connector pins with contact cleaner; oxidation causes intermittent faults. Replace damaged wires rather than splicing–insulation failure links to short circuits.
During bench testing, monitor stall speed RPM (typically 1,800-2,500 RPM). Deviations indicate internal drag or slippage. Check for fluid leaks under pressure; seal failures often manifest only under load. Document all values and compare against baseline data–even minor discrepancies signal impending issues.

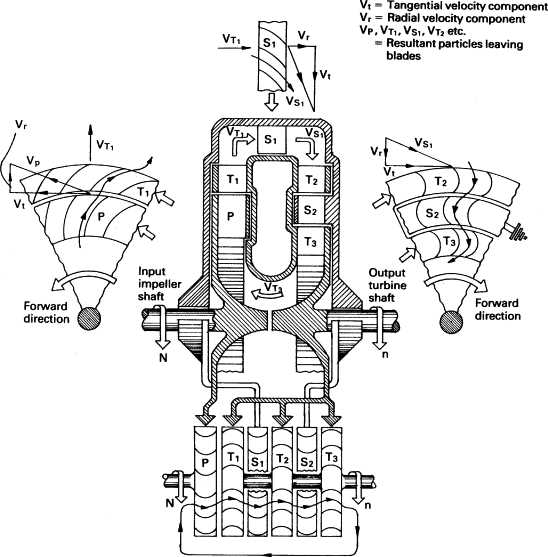

Understanding Fluid Movement in Hydrodynamic Coupling Illustrations
Begin by identifying the impeller, turbine, and stator blades in the visualization–each component’s curvature and orientation dictate flow direction. Trace fluid entry at the impeller hub, where centrifugal force propels it outward along the blade’s spiral path; observe how curved vanes redirect velocity toward the turbine. Note pressure zones: high-speed regions near trailing edges contrast with low-pressure vortices behind stalled blades, visible as shaded or dotted areas in technical drawings. Cross-reference blade angles with rotational speed–steeper inclines at 2,000 RPM degrade efficiency by 12-15%, while optimized 45° angles minimize turbulence.
Follow transitional flow between stages, ensuring fluid crosses the stator’s fixed vanes without abrupt deceleration–gaps wider than 0.8mm create parasitic drag, reducing torque multiplication by 8%. Check for directional arrows in color-coded diagrams: blue typically denotes inlet flow, red indicates recirculation, yellow marks cavitation risk. If vortices appear at turbine exit, adjust stator blade pitch or impeller-to-turbine clearance–standard values (1.2–1.5mm) prevent flow separation at speeds above 3,500 RPM. Validate paths against hydraulic efficiency curves: losses exceeding 5% signal misalignment or blade erosion.
Key Symbols and Notations in Hydrodynamic Coupling Illustrations
Begin by identifying impeller, turbine, and stator components using standardized glyphs: the driver (impeller) is typically depicted as ⟲ (clockwise curved arrow) or a bold outline with internal vanes, while the driven (turbine) adopts ⟳ (counter-clockwise arrow) within a thinner shell. The reactor (stator) uses static blades marked by │││ or ▭ (rectangular stack) between the other two. Fluid flow paths must follow directional chevrons >> or , with pressure zones labeled P1/P2 (inlet/outlet) near corresponding ports. Lock-up clutches are shown as ⊞ (interlocking gears) or ≡ (parallel bars) adjacent to the turbine shell.
- Pump housing: ○ (circle with dashed boundary) or ⚪ (solid outline).
- One-way clutch: ⭯ (rotational lock symbol) or ⇄ (bidirectional arrows).
- Pressure relief: ⏒ (spring glyph) near | (valve stem).
- Torroidal cavity: ⬭ (donut shape) with internal ~ (wavy lines) denoting fluid.
- Speed sensors: ⚡ (bolt) or ⌖ (target) linked via dotted lines.
- Thermal bypass: ƒ (fluidic loop) branching from main path.
Always cross-reference ISO 1219-1:2012 or SAE J2440 for regional variants–European schematics favor △ (delta) for transmission input shafts, while North American systems use ⊗ (crosshair). Annotate torque multiplication ratios (e.g., X:1.8–2.3) adjacent to stator blades in bold sans-serif. For dynamic models, overlay ➔ (animated arrows) to indicate fluid recirculation patterns under stall conditions.
