How to Build and Understand a Touch-Controlled Light Dimmer Circuit

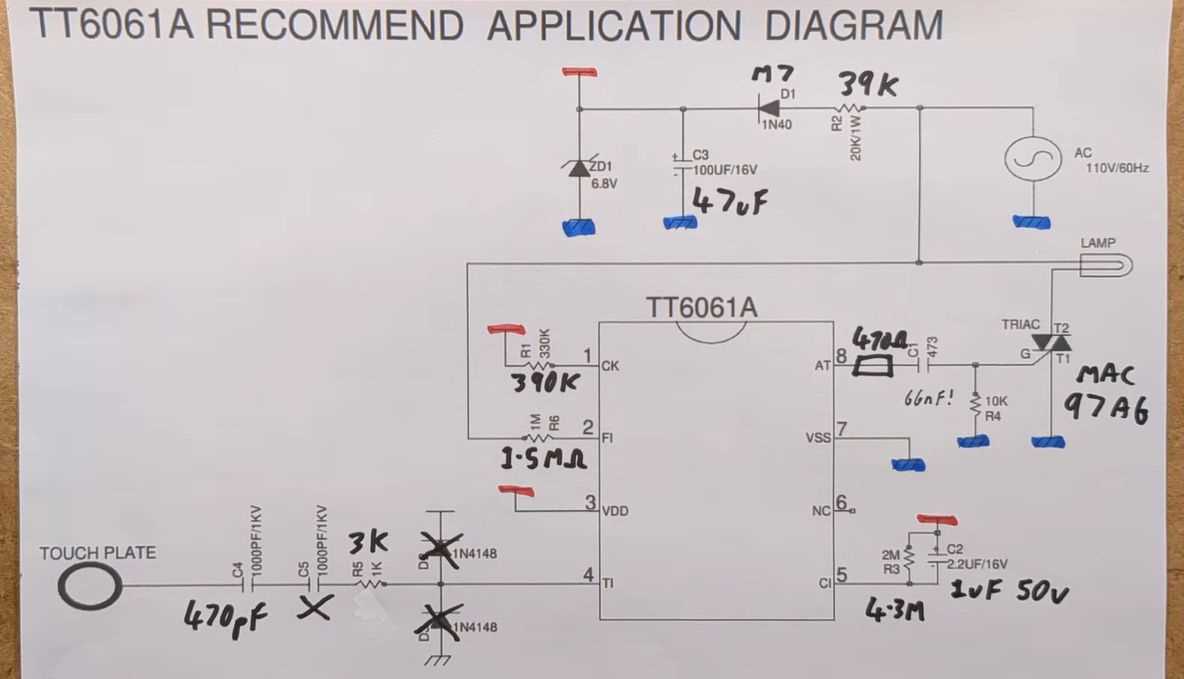

Use a triac-based switch as the core component for adjusting light intensity. Select a BT136 triac or similar for 600V/4A handling–ensure it matches your load’s voltage and current demands. Pair it with a MOC3041 optocoupler to isolate the low-voltage sensing circuit from the mains, reducing risk of shock or interference.

Add a capacitive sensor IC like TTP223 or AT42QT1010 for detecting finger proximity without mechanical parts. These chips output a logic signal when triggered, which you’ll route to the optocoupler. Keep traces short between the sensor and IC; stray capacitance can cause false triggers. Use a 0.1µF ceramic capacitor between the sensor pad and ground to stabilize readings.

Calculate the timing circuit values carefully. For gradual brightness changes, combine a 10kΩ resistor with a 100µF electrolytic capacitor to create a delay. Shorter delays (~50ms) respond faster but may flicker; longer delays (~500ms) smooth transitions but feel sluggish. Adjust these values in prototypes using a potentiometer before final soldering.

For PCB layout, place the mains wiring and capacitive pads on opposite sides of the board to minimize noise. Keep high-voltage traces (>5mm wide) away from low-voltage sections. Ground pours should surround sensitive components, tied to a single star ground point. Add snubber networks (e.g., 47Ω resistor + 0.01µF capacitor) across the triac to suppress voltage spikes from inductive loads.

Test with a variac or isolated bench supply before connecting to live voltage. Measure output waveform with an oscilloscope–triac-based designs should show a clean, phase-controlled sine wave. If flickering occurs, check for loose connections, incorrect resistor values, or insufficient gate current to the triac. For off-the-shelf reliability, consider pre certified modules like XMZC-1 if custom fabrication isn’t feasible.

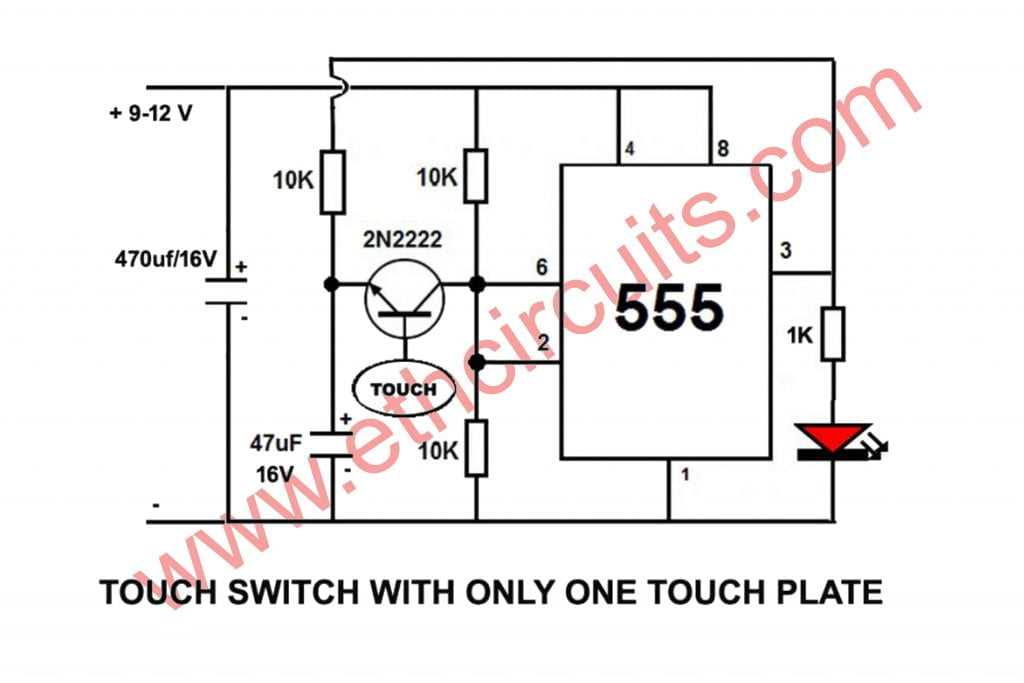

Capacitive Sensor-Controlled Lighting Circuit Design

For reliable sensitivity adjustment in proximity-based brightness regulators, use a 1MΩ potentiometer paired with a 10nF polyester capacitor between the sensor pad and the input of the primary IC. This combination enables fine calibration of trigger thresholds, preventing unintended activations while ensuring consistent response across environmental variations. Avoid ceramic capacitors here–they introduce microphonic noise that degrades performance.

Critical Component Selection

• Triac: Choose a snubberless type (e.g., BTA16-600BW) to eliminate the need for external RC suppression networks. Ensure it’s rated for at least 2× the load current to handle inrush surges from tungsten or LED bulbs.
• Current-limiting resistor: Use a 470Ω, 1W metal-film resistor for the gate drive. Carbon-film types fail prematurely under repeated thermal cycling.
• Sensor pad: Etch a 1.5cm² copper pad on the PCB’s top layer, covered with a 0.2mm soldermask or polyimide tape. Larger areas increase stray capacitance; smaller ones reduce detection range.

Isolate the control section from mains interference with a 5kV optocoupler (e.g., PC817). Ground loops are eliminated by referencing all low-voltage circuits to a single star point near the bulk capacitor. For transient protection, add a 1N4007 diode across the triac’s MT1-MT2 terminals and a 100nF, 275VAC X2-rated capacitor between live and neutral near the power entry. Leave at least 3mm creepage between high-voltage and low-voltage traces on the PCB–standard FR4 spacing is insufficient for 230VAC applications.

Core Parts for a Capacitive Brightness Control System

Select a TRIAC with a current rating slightly exceeding the load’s maximum demand–common choices include the BT136 (4 A) or BTA16 (16 A) for resistive loads. Verify the device’s gate trigger current (typically 5–50 mA) to ensure compatibility with the microcontroller’s output.

A microcontroller with capacitive sensing hardware simplifies integration; the ATtiny85 or STM8S001 offer built-in touch libraries and low-power modes. Program the MCU to scan electrodes with 10-bit resolution and apply noise filtering via internal registers to prevent false triggers.

The sensing electrode requires copper foil (minimum 1 cm²) or a flexible PCB trace, insulated with 0.2 mm PET film to stabilize readings. Position it no closer than 3 mm to grounded metal to avoid parasitic capacitance. For conductive surfaces, use a 1 MΩ series resistor to limit current.

A zero-crossing detector (e.g., MOC3021 optocoupler) synchronizes TRIAC switching with AC phase angles, reducing flicker and RF interference. Alternatively, a 4N25 optocoupler can isolate the MCU’s signal if galvanic separation is critical for safety.

For stable operation, include a voltage regulator (e.g., LM7805) to provide 5 V from a 9–12 V DC supply, and add a 10 µF electrolytic capacitor at the input to suppress transients. Place a 100 nF decoupling capacitor within 5 mm of each IC’s power pins to prevent reset errors during load changes.

Step-by-Step Assembly of a Proximity-Sensing Controller Board

Begin by securing the proximity-sensing PCB to a stable surface using M2.5 nylon standoffs, ensuring the copper pads remain unobstructed. Connect the sensor’s output pin to a logic-level MOSFET (e.g., IRLZ44N) gate via a 10kΩ pull-down resistor to prevent floating inputs–this stabilizes the switch response. For AC loads, isolate the MOSFET drain to a Triac (like BT139) with an MOC3021 optocoupler, maintaining galvanic separation between low-voltage control and mains circuits.

Critical Power and Signal Path Configuration

Wire the board’s VCC to a regulated 5V DC supply, adding a 100nF ceramic capacitor between VCC and GND as close as possible to the module to filter high-frequency noise–this prevents erratic triggering. For resistive loads under 2A, the MOSFET alone suffices; above this threshold, the Triac’s MT2 terminal must link directly to the load, with MT1 to neutral via a 33Ω snubber resistor and 10nF/400V capacitor to suppress voltage spikes. Verify all solder joints with a multimeter in continuity mode before energizing.

Calibrate sensitivity by adjusting the module’s onboard potentiometer: start at midpoint, then fine-tune until the pad responds consistently to a fingertip at 5mm distance (adjust ±10% per environment). For extended cable runs (>1m) between sensor and control circuit, use shielded twisted pair (e.g., Belden 9841) and tie the shield to ground at the controller end only to avoid ground loops. Test under load with a dummy resistor (10Ω/10W) before integrating into final deployment.

Integrating TRIAC with Optocoupler for Isolated Brightness Adjustment

Use an MOC3021 or similar zero-crossing optocoupler to isolate the control circuit from mains voltage. Connect the optocoupler’s LED anode to the microcontroller’s PWM pin via a 220Ω series resistor, and cathode to ground. The TRIAC gate (e.g., BT136) should be triggered through a 330Ω resistor from the optocoupler’s output, with the TRIAC’s MT1 pin tied to neutral and MT2 to the load. This configuration ensures galvanic isolation, preventing high-voltage feedback into low-voltage components.

Critical Component Selection and Wiring

Component	Specification	Role
Optocoupler	MOC3021, MOC3041	Zero-cross detection, isolation
TRIAC	BT136, BTA16	Switching high-current loads
Gate Resistor	330Ω (1W)	Limit current to TRIAC gate
LED Resistor	220Ω (1/4W)	Current limiting for optocoupler LED
Snubber Network	47Ω + 0.1µF (250V)	Suppress voltage spikes

Mount the snubber circuit across the TRIAC’s MT1 and MT2 terminals to suppress transient voltages, reducing false triggering. For inductive loads (e.g., fans, transformers), increase the snubber capacitor to 0.22µF and ensure the resistor is rated for 2W. Test the setup with an oscilloscope on the TRIAC’s gate signal–voltage spikes exceeding 10V should prompt a review of resistor/capacitor values. Always fuse the mains input separately (e.g., 2A slow-blow) to protect against short circuits, as TRIAC failures often result in uncontrolled conduction.

Calibrating Sensor Reactivity and Fine-Tuning Delay Parameters

Begin by adjusting the threshold capacitor (typically 10–47nF) in the feedback loop of the TTP223 or similar IC. A smaller value (10nF) reduces activation latency but increases susceptibility to noise; a larger value (47nF) smooths response but introduces a 50–200ms delay. For environments with high-frequency interference (e.g., fluorescent lighting), use a 22nF capacitor paired with a 1kΩ series resistor to filter transient spikes. Verify stability by testing with rapid finger taps–erratic triggering indicates inadequate filtering.

Tuning Response Curves

• For a linear ramp (e.g., brightness control), select a logarithmic potentiometer (10kΩ–100kΩ) between the sensor IC’s output and the PWM generator. This ensures perceptually even steps, preventing abrupt jumps at low/high extremes.
• If the application requires discrete steps (on/off or 3-level), replace the pot with fixed resistors (3.3kΩ, 10kΩ, 33kΩ) to define clear thresholds. Validate each step with an oscilloscope–rise/fall times should remain under 10ms to avoid visible flicker.
• Add a debounce circuit (RC network, 1μF + 10kΩ) for mechanical sensors or environments with vibration. Measure the time constant (τ = RC); values exceeding 50ms may cause missed inputs.

Optimize pulse-width modulation frequency based on load characteristics. For resistive loads (LEDs), use 500Hz–1kHz to eliminate audible hum; for inductive loads (motors), increase to 15kHz to minimize core saturation. If the sensor exhibits hysteresis (e.g., latching after release), reduce the pull-up resistor on the IC’s output pin from 10kΩ to 1kΩ or add a diode clamp (1N4148) to prevent signal leakage. Test with varying finger moisture levels–high humidity may require a 5% tolerance adjustment to avoid false triggers.
