Complete Guide to Tow Hitch Wiring Connections for Safe Vehicle Hookup
Begin by verifying the trailer connector type before proceeding–most modern setups use a 7-pin round (ISO 1724) or 13-pin (ISO 11446) interface. Match each circuit to its function: pin 1 (left turn/brake), pin 2 (fog light or reverse), pin 3 (ground), pin 4 (right turn/brake), pin 5 (tail/side marker), pin 6 (brake light), and pin 7 (auxiliary power or charging). Reverse polarity or incorrect pairing risks burning out bulbs or triggering fuse failures.
Use 16-gauge stranded copper wire for signal circuits and 12-gauge for power feeds–thinner wires overheat under load. Strip 6-8mm of insulation, crimp connectors with double-crimp terminals (e.g., butt or ring), and seal joints with heat-shrink tubing to prevent corrosion. Avoid twisting wires; solder joints under vibration can fracture.
Install a module relay (e.g., Hopkins 47485) if the vehicle lacks a dedicated trailer lighting controller. Bypass factory systems only if OEM documentation confirms compatibility–some ECUs monitor resistance loads and flag errors if altered. Test continuity with a multimeter (200Ω range) before finalizing connections; a reading below 5Ω indicates a sound ground, while fluctuating values suggest loose terminals.
Route wires along the vehicle’s frame, securing them every 30-40cm with cable ties or adhesive clips. Keep them away from exhaust manifolds, sharp edges, and moving components–heat degrades insulation, and chafing exposes conductors. For heavy-duty applications, upgrade to tinned marine-grade wire (e.g., Ancor) to resist saltwater corrosion.
Label each wire at both ends with colored shrink tubing or printed tags–yellow/orange for turn signals, brown for brake lights, white for ground. Document the layout in a hand-drawn schematic or use circuit-testing software (e.g., ETAP 7.5) to trace faults later. Replace any factory connector with weatherproof housings (IP67-rated) if exposed to moisture.
Connecting Your Vehicle’s Trailering System: A Detailed Guide
Begin by identifying the connector type on your vehicle’s rear socket. Most modern cars use a 7-pin round or 13-pin Euro-style plug, but older models may have a 4-flat configuration. Verify the pinout in your owner’s manual–manufacturers like Ford, Toyota, and Volkswagen often use slightly different color codes for auxiliary circuits, especially for reverse lights or battery charging lines. If mismatched, voltage surges can damage fuses or onboard modules.
Use a multimeter to test each terminal before connecting the trailer’s harness. Set the meter to DC voltage (20V range) and probe the socket while activating each function–turn signals, brake lights, and running lamps should register 12-14V. A reading below 11V indicates a corroded ground, weak battery, or faulty relay. For 13-pin systems, the permanent 12V supply (pin 9) must show consistent voltage even with the ignition off; intermittent power suggests a loose connection at the fuse box.
Route the harness through the vehicle’s frame or existing grommets to prevent chafing. Avoid sharp edges near the exhaust or suspension components–heat and vibration degrade insulation over time. Secure loops with zip ties every 18 inches, keeping slack away from moving parts like the driveshaft. For SUVs or trucks with rear air suspension, route the cables above the axle to avoid crushing during compression.
Ground the system directly to the vehicle’s chassis using a dedicated 8-gauge wire or thicker, bolted to bare metal. Paint or rust acts as an insulator; scrape the surface down to shiny metal before attaching the ring terminal. A weak ground causes erratic lighting, flickering, or complete failure under load. For trailers with electric brakes, the ground must handle 30 amps–use a heat-shrink terminal crimped and soldered for durability.
For trailers exceeding 3,500 lbs, install a breakaway battery kit with a standalone 12V battery. This powers the trailer’s brakes if it detaches from the vehicle. Choose a battery with at least 5 amp-hours capacity, mounted in a weatherproof box near the coupler. Wire it to the trailer’s brake controller via a красный/желтый провод (color varies by brand) and test by pulling the breakaway pin–brakes should engage within 1 second.
After installation, test the system with a trailer simulator or a real load. Activate left turn, right turn, hazards, brakes, and running lights simultaneously while monitoring for voltage drop. If lights dim under load, upgrade the wiring to 12-gauge or thicker. For LED trailers, bypass the vehicle’s bulb check system with a load resistor (available in 6-ohm, 50-watt models) to prevent false error codes on the dashboard.
Document your setup with photos or a wiring diagram specific to your vehicle model. Note any deviations from factory standards, such as relocated fuses or custom relays, to simplify future troubleshooting. Store this reference in the glove box–color codes and pinouts vary even within the same make, and aftermarket radios or alarm systems often repurpose wires that interfere with trailering functions.

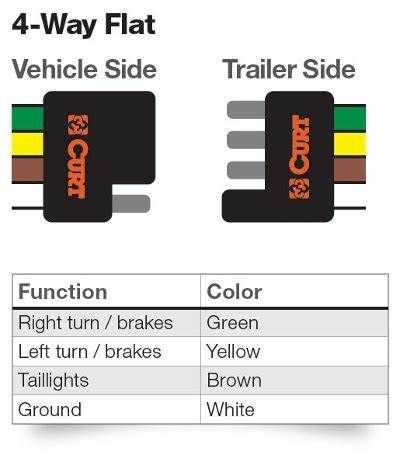

Step-by-Step Color Codes for Standard 4-Pin Plug Connections
Begin by matching the yellow wire to the left turn/brake signal on the vehicle’s circuit. Locate the corresponding terminal (typically marked “L” or “LT”) on the connector and secure the connection with a crimping tool, ensuring the metal contact is fully seated. Verify functionality by activating the left signal–the trailer socket should mirror the vehicle’s blinker without flickering or voltage drop. Use a multimeter to check for 12V output when brakes are engaged; readings below 11V indicate a poor ground or corroded terminal.
Ground and Auxiliary Connections
Attach the white wire to the ground terminal–this is non-negotiable. Select a bare metal surface on the chassis, sand off paint or rust, and use a star washer for maximum conductivity. For brown (running lights), splice into the vehicle’s marker light circuit, avoiding tap connectors that can loosen over time. Secure with solder or heat-shrink butt connectors rated for 20A. Green (right turn/brake) mirrors yellow’s setup but connects to the “R” or “RT” terminal; cross-test with a test light to confirm polarity before finalizing.
Diagnose miswires by reversing the sequence: plug in a trailer with known-good lights, then methodically test each function. If running lights work but turn signals fail, inspect the brown wire’s feed point–common issues include blown fuses or incorrect tapping into the tail light harness. For intermittent faults, bypass the OEM relay with a dedicated trailer module; generic modules add 5-10ms response time but eliminate voltage sag. Document each connection with labels (e.g., “Y/LT-12V”) to streamline future troubleshooting.
Troubleshooting Trailer Connection Signals
Grab a multimeter set to DC voltage and probe the vehicle-side connector’s pins while activating each function–turn signals, brake lamps, and reverse lights. A healthy circuit should read near battery voltage (12V-14V) during operation. If readings are absent or inconsistent, trace the harness from the connector back to the fuse box: corrosion at terminals or chafed insulation are primary culprits. Replace blown fuses first–common 10A or 15A ratings–but expect a short if the new fuse blows immediately, indicating a deeper fault behind the socket.
Test ground continuity by attaching the multimeter’s negative lead to the chassis and the positive to the ground pin. Resistance should measure below 1 ohm. Higher readings signify a corroded ring terminal or loose mounting bolt; sand the contact surface and retighten to 12-15 lb-ft. For vehicles with modular control boxes, jump power directly from the battery to the box’s input pins–if the module powers on, the issue lies upstream in the factory harness or switch assembly.
Use a load tester or spare bulb to verify circuit integrity under real conditions. Connect the bulb between each signal pin and ground–failure to illuminate points to an open circuit or defective relay. Below is a quick reference for expected pin functions:
| Pin | Function | Test Voltage (Key On) |
|---|---|---|
| 1 | Left Turn/Stop | 12V (flashing) / 12V (brake) |
| 4 | Ground | 0V |
| 5 | Reverse Lamp | 12V (shift to R) |
| 6 | Right Turn/Stop | 12V (flashing) / 12V (brake) |
Inspect the trailer-side plug for moisture ingress–oxygen-free electrical contact cleaner and dielectric grease prevent oxidation. If functions work intermittently, apply a thin coat of grease to each male contact before reassembly. For European-style 13-pin connectors, test the permanent 12V supply (pin 9) separately–a consistent 12V confirms the charge line is intact, while fluctuations suggest a failing alternator or wiring splice.
Voltage drop testing locates hidden resistance: back-probe both ends of a suspect wire while operating the circuit. A drop exceeding 0.5V indicates corrosion or undersized conductors–upgrade to 12 AWG minimum for lengths over 15 ft. If pulses sync but lamps glow dimly, verify filament voltage; LED arrays may require a pulse-width modulator bypass, while incandescent bulbs point to poor ground or excessive load. Check OEM service manuals for late-model vehicles featuring CAN bus-controlled signals–these need diagnostic scan tools to activate outputs during testing.
Essential Equipment and Supplies for Fitting a Vehicle Connection Kit
Begin with a multimeter (minimum 10A DC range) to verify circuit integrity before installation. For late-model vehicles, a scan tool with OBD-II compatibility is mandatory to disable trailer stability control–consult the manufacturer’s service bulletin for exact parameters (e.g., Ford PIDs differ from GM’s). Include heat-shrink tubing (polyolefin, 3:1 ratio) in 4mm, 6mm, and 8mm diameters; adhesive-lined variants prevent moisture ingress at splice points. A crimping tool with ratcheting mechanism (e.g., Amp or TE Connectivity) ensures gas-tight connections–avoid plier-style crimpers, which risk cold joints.
Stock tinned copper butt connectors (16-14 AWG) for main feed lines and insulated spade terminals (0.25″ quick-disconnect) for modular plug assemblies. For stubborn factory clips, use a plastic pry bar set (nylon tips) to prevent panel damage–metal tools scratch anti-chip coatings. A wire stripper with precision blades (e.g., Klein Tools 11055) cleanly removes insulation without nicking conductors; automated strippers jam on stranded wire. Include dielectric grease (silicone-based, NLGI Grade 2) to seal connectors against corrosion–petroleum-based compounds degrade PVC insulation over time.
Specialty Items for Challenging Applications
For European or CAN bus-equipped vehicles, a load-resistance module (e.g., Hopkins 48135) simulates trailer bulb presence to prevent “bulb-out” errors–bypass modules trigger false positives in BMW/Mercedes systems. A headlight waveform tester ($120+, e.g., Power Probe 4) identifies pulsed-voltage circuits (common in LED taillights) to prevent wire gauge mismatches. When routing cables, use split-loom tubing (0.5″ ID, polyethylene) with UV stabilizers–cheap vinyl tubing cracks under thermal cycling. Secure twisted-pair feeds with zip ties rated for -40°C to 90°C (e.g., Panduit CLF6S); standard nylon ties embrittle at 70°C.
