Complete Guide to Wiring Your Trailer Connectors and Diagrams
Begin by identifying the correct color-coding for your vehicle’s connector type–4-pin, 5-pin, 6-pin, or 7-pin. Most standard setups use brown (running lights), yellow (left turn/brake), green (right turn/brake), and white (ground). For heavier loads, add blue (electric brakes) and black (12V auxiliary power). Verify voltages with a multimeter at each terminal; even a 1-2 volt drop can cause intermittent failures.
Use tinned copper wire–minimum 16 AWG for lighting circuits, 14 AWG for brakes, and 12 AWG for auxiliary power. Avoid aluminum; it corrodes faster under vibration. Solder all connections, then cover with adhesive-lined heat-shrink tubing. Never rely on twist-and-tape methods–moisture ingress will compromise the circuit within weeks.
Route cables away from hot surfaces (exhaust, transmission) and sharp edges. Secure every 18 inches with zip ties or clamp protectors. For trailers over 3,500 lbs, install a breakway battery system wired directly to the brake output–this ensures emergency activation if the connection fails mid-tow.
Test functionality in this sequence: running lights, turn signals, brake lights, reverse lights (if equipped), and brake controller response. Use a dedicated trailer tester; visual checks alone miss voltage irregularities. If LEDs flicker, install a diode-based load equalizer–standard bulbs draw 2-3 amps, but LEDs may pull under 0.5 amps, causing hyperflash.

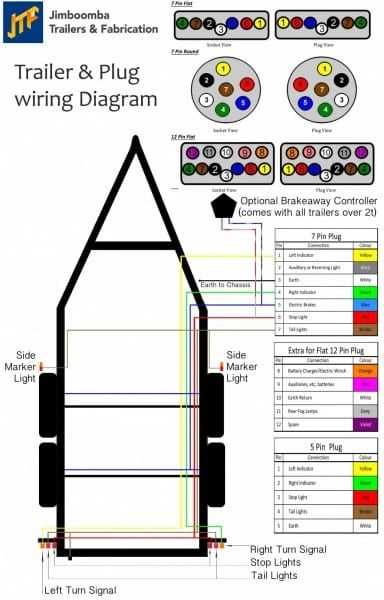

Understanding Vehicle Light Connection Schematics
Begin by identifying the connector type on your haulage coupling–most modern rigs use a 7-pin or 13-pin plug. The 7-pin layout handles basic functions: tail lamps, brake indicators, turn signals, and ground. Pin 1 (yellow) controls left turn/brake; pin 4 (green) manages the right counterpart. A dedicated brown wire (pin 3/7) supplies running lights, while white grounds the system. Verify each pin’s voltage with a multimeter–expect 12V pulses for signals, steady power for running lights.
For heavier loads requiring auxiliary power (e.g., reversing lights, electric brakes, or interior lighting), upgrade to a 13-pin socket. Here, pins 1–7 mirror the 7-pin standard, while additional pins deliver:
- Pin 8: Reverse lights (12V steady)
- Pin 9: Continuous power (permanent 12V for batteries)
- Pin 10: Electric brake activation (12V pulsed)
- Pin 11: Ground for auxiliary circuits
- Pin 12: Charge line for breakaway batteries (12V continuous)
- Pin 13: Ground for 12V permanent power
Use a voltmeter to confirm each circuit’s integrity–flickering lights often indicate corroded contacts or frayed cables.
Color Coding and Crosstalk Prevention
Avoid mixing wires by strictly adhering to regional color conventions. In North America, the SAE J560 standard dictates:
- White: Ground
- Brown: Side markers/running lights
- Yellow: Left turn/brake
- Green: Right turn/brake
- Blue: Electric brakes
- Red: Auxiliary/backup power
European ISO 1724 uses a different scheme–green/yellow stripes denote reverse lights, blue stripes mark permanent power. Label each wire at both ends with heat-shrink tubing to prevent misconnections. For multi-circuit setups, use a relay block to isolate high-current devices (e.g., brake actuators) from signal wires, reducing electromagnetic interference.
Inspect connectors monthly for signs of oxidation or water ingress. Silver-lead solder (not rosin-core) ensures corrosion-resistant joints. Apply dielectric grease to plug housings before reassembly to repel moisture. If circuits fail intermittently, test with a load simulator–LEDs draw minimal current and may not trigger older mechanical flasher units, requiring a solid-state replacement or inline resistor (typically 6Ω/50W).
Advanced Configurations and Safety Overrides
For towing rigs with ABS or stability control, integrate a brake controller module between the prime mover and coupling. These units modulate voltage to electric actuators (4–12V, depending on deceleration). Wiring steps:
- Locate the vehicle’s brake switch output (should spike to 12V when pedal is pressed).
- Connect to the controller’s input (typically labeled “Brake Feed”).
- Run the controller’s blue output to the coupling’s brake pin (usually pin 5 on 7-pin, pin 10 on 13-pin).
- Test by gently increasing pedal pressure–the coupling’s actuators should engage proportionally.
Calibrate the controller’s gain and response time based on the load’s mass (consult the device’s manual for specific values).
For failsafe protection, install a breakaway switch with a dedicated 12V battery. This device activates electric brakes if the coupling detaches. Wiring involves:
- A charged battery (minimum 5Ah) connected to the switch’s power terminal.
- A lanyard secured to the prime mover–if tension releases, the switch closes, sending 12V to the brake circuit.
- A battery charger integrated into the 13-pin’s permanent power line (pin 9) to maintain charge.
Test annually by simulating a detachment–brakes should engage within 0.5 seconds. Replace the battery every 2–3 years, regardless of apparent charge levels.

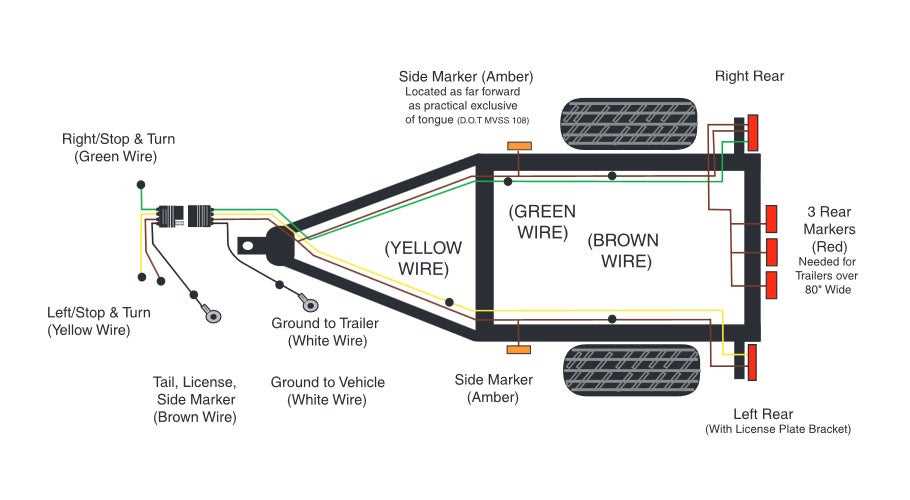

Standard 4-Pin Towing Plug Color Codes and Terminal Roles
Always match the connector’s cables to their designated pins before testing voltage or securing connections. A 4-pin plug follows a universal assignment: white serves as the ground, brown delivers running lights, yellow activates the left turn/brake signal, and green handles the right turn/brake signal. Verify each wire’s continuity with a multimeter–discrepancies here often explain flickering lights or dead circuits.
Install the white ground wire first, attaching it to the tow vehicle’s frame or designated bolt. A weak ground causes erratic signals, corrosion, or intermittent failures. Brown’s circuit should split to both rear marker lights, license plate illumination, and side reflectors. Cross-wiring this line disrupts visibility and may violate road regulations.
Pin Arrangements and Voltage Specifications
| Pin Number | Color | Function | Expected Voltage |
|---|---|---|---|
| 1 | White | Ground | 0V |
| 2 | Brown | Running lights | 12V DC (constant) |
| 3 | Yellow | Left turn/brake | 12V DC (pulsing) |
| 4 | Green | Right turn/brake | 12V DC (pulsing) |
Never splice additional loads into yellow or green circuits–these share the brake and turn signals. Instead, tap into the brown wire for extra lights, ensuring the total draw stays under 5 amps. If trailer lights behave unpredictably, isolate the issue by testing each circuit individually while the engine runs; alternator voltage fluctuations above 14.5V can damage bulbs.
Replace any cracked connectors immediately; moisture intrusion corrodes contacts within weeks. Use dielectric grease on terminals to prevent oxidation. For trailers exceeding 2,000 lbs, consider upgrading to a 5-pin system to accommodate reverse lights or auxiliary power–this avoids overloading the 4-pin’s limited capacity.
How to Verify Tow Vehicle Electrical Connections with a Multimeter
Set the multimeter to DC voltage (20V range). Connect the black probe to a clean metal ground on the vehicle’s chassis, then probe each connector pin with the red lead. A functional 4-pin setup should read: 12V+ on pin 1 (yellow/brown), ground on pin 4 (white), left turn/brake on pin 3 (yellow), and right turn/brake on pin 2 (green). Deviations below 11.5V indicate resistance or corrosion; zero volts signals an open circuit.
- For 7-pin configurations, add pins 5 (blue) for reverse lights (12V when reverse gear is engaged), pin 6 (red) for auxiliary power (continuous 12V, fused), and pin 7 (orange/brown) for electric brakes–test with a brake controller sending a pulse; expect 5-12V during activation.
- Switch to resistance mode (200Ω range) to check continuity: disconnect the harness, probe the vehicle-side connector against the matching socket on the plug. Readings above 5Ω suggest corroded terminals or frayed cables.
- Ground faults on pin 4 are common–test by probing the pin while engaging turn signals; voltage fluctuations confirm a poor ground, often resolved by cleaning the chassis contact point or replacing the ground wire.
Troubleshooting Faulty Tow Vehicle Lighting Systems
Begin by disconnecting the connector at the rear of the vehicle and inspecting the pins for corrosion or bent contacts. Use a multimeter set to continuity mode–probe each pin to verify signal strength from the vehicle’s harness. If readings are inconsistent, trace the cable loom back to the fuse box and check for blown fuses or loose connections within the junction points.
Ground faults rank among the most frequent causes of intermittent lighting failures. Locate the ground wire, typically attached to the frame near the coupling assembly, and ensure it is free of rust or paint. Scrape the contact surface to bare metal and reattach with a star washer to guarantee a solid bond. Test by connecting a jumper wire from the ground post directly to the vehicle’s chassis–if lights illuminate, the original ground path is compromised.
Dim or flickering lights often indicate voltage drop. Measure voltage at the connector while activating the turn signal or brake pedal–readings below 11V confirm excessive resistance in the circuit. Examine splices and connectors for loose crimps or frayed wires, particularly where cables flex near the hitch. Replace any damaged sections with marine-grade wire and heat-shrink terminals to prevent moisture ingress.
LED assemblies may fail to operate due to insufficient current from incandescent-rated controllers. Install a dedicated pulse converter between the vehicle’s harness and LED cluster to regulate voltage spikes. Avoid cheap adapters–opt for units with built-in load resistors to mimic traditional bulb resistance and prevent hyper-flashing.
Inspect trailer-side plugs for water intrusion, especially in sealed units with pitted seals. Disassemble the plug and dry internal components with compressed air, then coat contacts with dielectric grease before reassembly. For temporary repairs in wet conditions, wrap connections in self-fusing silicone tape to maintain conductivity until proper replacements are sourced.
Rapid blinkers usually signal a bulb failure but can also result from poor socket contact. Remove each bulb and clean the base with fine sandpaper if tarnished. Check socket springs for tension–compress them with needle-nose pliers if flattened. For sealed beam units, verify the lens hasn’t cracked, allowing moisture to corrode filaments.
Persistent shorts trigger fuse blowouts. Disconnect the entire harness and test each circuit individually with a test light. Probe only the suspected circuit while keeping others isolated–if the light illuminates, a short exists between that wire and ground. Use tone generators to trace wires through looms, listening for the signal near potential chafing points against sharp edges or exhaust components.
