Complete Guide to Building and Understanding Trimmer Circuit Schematics
Start with a single-turn variable resistor in series with a fixed 1 kΩ carbon-film resistor. This pairing creates a 10:1 adjustment range while stabilizing the wiper against mechanical noise. For temperature drift below 50 ppm/°C, pair the potentiometer with a matched-resistor divider using 1% tolerance SMD parts. Bypass the adjustment node with a 0.1 µF X7R ceramic capacitor to shunt RF interference directly to ground.
Use a dual-gate MOSFET when the adjustment element must isolate control signals from high-voltage rails. Connect the first gate to the resistive divider and the second gate to a local 5 V reference; this configuration yields a 0.5 mV/step resolution across a 0–10 V output swing. Always place the MOSFET’s source resistor (470 Ω) immediately at the device pin to prevent parasitic oscillations above 1 MHz.
For multi-channel synchronization, arrange identical resistive ladders on a shared substrate and drive them from a single buffered op-amp. Choose a rail-to-rail input/output amplifier with a quiescent current below 50 µA to keep thermal gradients under 0.2 °C across the substrate. Terminate each ladder output with a 10 nF polypropylene capacitor to eliminate phase skew between channels.
When printed-circuit paths exceed 25 mm, replace the variable resistor with a digitally addressable resistor array. Use a three-wire SPI interface, clocking at 1 MHz, with chip-select cycling every 500 µs to refresh all channels. Embed CRC-8 checksums in the data stream to catch single-bit errors; retransmit corrupted packets without user intervention.
Ground the adjustment assembly through a dedicated via directly under the resistive element to reduce loop area. Route the via to an inner ground plane rather than the top-layer pour to minimize crosstalk from nearby switching regulators. If 3.3 V logic drives the element, insert a 22 Ω series resistor on the digital line to damp ring exceeding 1.8 V.
Adjustable Voltage Regulator Blueprint: Key Implementation Steps
Begin with a precision potentiometer (10kΩ linear taper) as the core tuning component, pairing it with a LM317 variable regulator IC for stable output. Ensure the wiper connects directly to the ADJ pin while the outer pins link to input and ground through a 240Ω resistor and 1μF tantalum capacitor. This configuration guarantees
For high-current applications (5A+), replace the LM317 with a TPS5430 buck converter, adding a schottky diode (1N5822) between input and output. Use a 0.1Ω sense resistor to monitor current, with a 100nF ceramic capacitor across the feedback network to suppress oscillation. Trace width should exceed 3mm per ampere for PCB layouts.
Thermal management demands a heatsink rated for 5°C/W when operating above 2W, secured with thermal compound (0.5mm thick). Calibration requires a 4½-digit multimeter–adjust the potentiometer while measuring output, then lock it in place with thread-locking adhesive to prevent drift. For remote tuning, integrate a digital resistor (MCP4131) controlled via SPI.
Noise-sensitive applications (audio preamps, RF stages) need additional filtering: place a 10μH inductor in series with the output, followed by a 47μF polymer capacitor. Keep the inductor’s DCR below 0.1Ω to avoid voltage sag. For dual-polarity setups, mirror this arrangement using a LM337 for the negative rail, ensuring both rails track within 50mV.
Validate performance under load with a programmable DC load sweeping from 10% to 100% of rated current. Check for overshoot () during transients and thermal throttling (>80°C). Finalize by encapsulating the assembly in a conductive EMI shield if operating near switching regulators.
Key Elements for Building a Precision Adjustment Setup
Begin with a variable resistor–specifically a potentiometer of 10 kΩ to 100 kΩ resistance range–selected based on the required tuning sensitivity. Carbon film types are cost-effective for general use, while conductive plastic variants offer superior durability and noise resistance for high-precision applications. Ensure the wiper contact is rated for at least 10,000 cycles to avoid premature failure in frequent adjustment scenarios.
Pair the potentiometer with a capacitor to stabilize frequency-dependent settings. A ceramic capacitor (10 pF–100 nF) works for filtering, but for audio or signal shaping, polypropylene or polyester film capacitors (0.1 µF–1 µF) provide lower distortion. Match capacitance to the intended frequency range: smaller values for RF tuning, larger for low-pass smoothing. Always verify voltage ratings–twice the operating voltage prevents dielectric breakdown.
A stable DC supply is non-negotiable. Use a linear regulator (e.g., LM7805 or LM317) for voltages between 3.3 V and 12 V, ensuring ripple below 10 mV RMS. Switched-mode power supplies introduce high-frequency noise, which necessitates additional LC filtering (47 µH inductor + 100 µF capacitor) if unavoidable. For battery-powered systems, lithium-ion cells (3.7 V) with a buck-boost converter (e.g., TPS63000) maintain consistent voltage during discharge cycles.
Supporting passive components demand attention to detail. Use metal film resistors (1% tolerance) for voltage dividers to avoid drift from temperature fluctuations. For pull-up/pull-down configurations, 10 kΩ–100 kΩ values balance current draw and noise immunity. Avoid carbon composition resistors–they introduce excess thermal noise. In high-impedance paths, include shielded cables (RG-174 coax) or guard rings on PCBs to minimize stray capacitance interference.
Component Selection Quick Reference
| Component | Type/Value Range | Critical Specifications | Use Case |
|---|---|---|---|
| Potentiometer | 10 kΩ–100 kΩ | Linear taper, 10k cycles min, low noise | Fine-tuning thresholds |
| Capacitor | 10 pF–1 µF | X7R dielectric (ceramic), NP0 (precision), ≥50 V rating | Frequency shaping, ripple filtering |
| Voltage Regulator | 3.3 V–12 V | <10 mV ripple, thermal shutdown protection | Stable power delivery |
| Resistor | 1 kΩ–1 MΩ | 1% tolerance, metal film, ≥0.25 W power rating | Voltage division, pull-up/down |
For mechanical stability, select potentiometers with knurled shafts or multi-turn designs (e.g., 10-turn cermet trimmers) for sub-millivolt adjustments. Panel-mount styles simplify user access, while PCB-mounted versions suit automated calibration setups. Include anti-tamper seals or locking screws if environmental vibrations exceed 5 Hz–loose components drift over time, degrading performance.
Test each assembled configuration with an oscilloscope (50 MHz bandwidth minimum) to confirm signal integrity. Probe the output node while sweeping the potentiometer; distortion, overshoot, or settling times beyond 1% indicate mismatched impedance or poor grounding. For RF-heavy designs, add a spectrum analyzer check–harmonic distortion should remain below −40 dBc. Document baseline settings; thermal drift (typically 50–200 ppm/°C) can be compensated via software or hardware calibration loops.

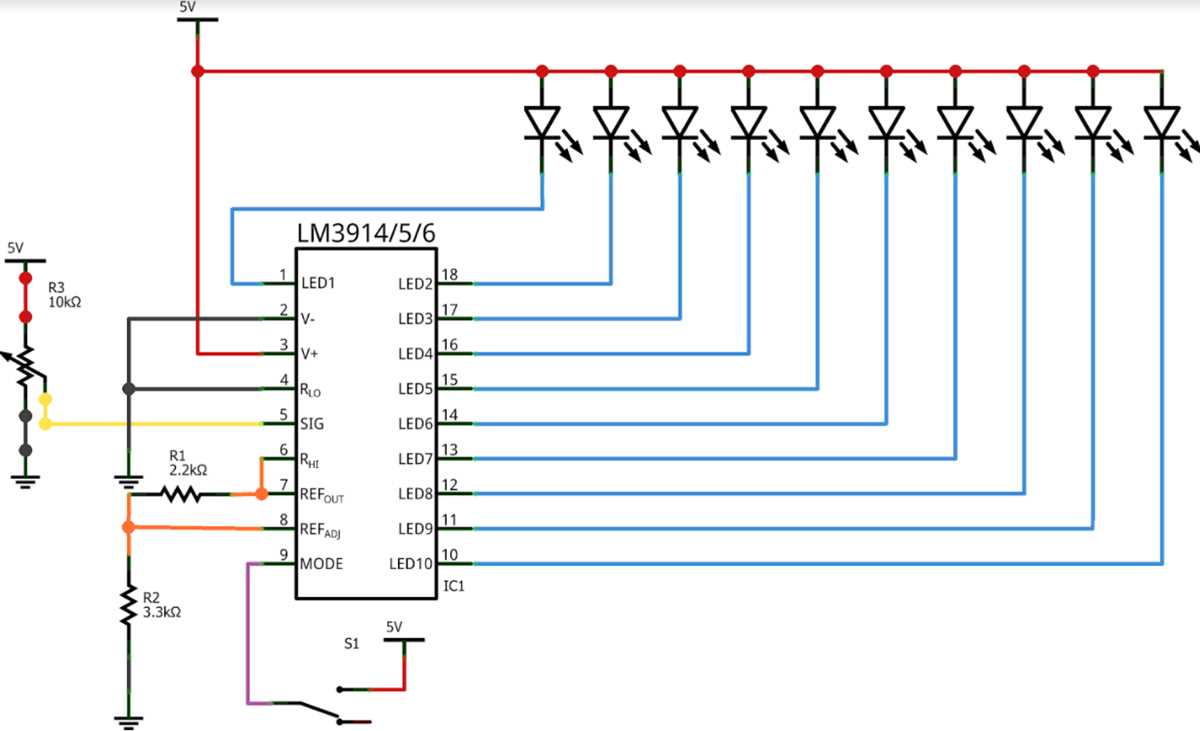

Step-by-Step Wiring of a Precision Adjustment Potentiometer
Locate the variable resistor’s three terminals: the outer pins connect to the fixed resistance path, while the center wiper pin adjusts output. Desolder the existing component if replacing an old one, ensuring the pads are clean of residue–use flux and a solder wick for stubborn remnants. For new installations, match the footprint to the board layout; 5mm and 7mm potentiometers are common for compact setups, while 10mm variants suit breadboards with wider spacing.
Critical Connections
- Power Supply: Solder one outer pin to the supply rail (
VCCorVin), verifying voltage limits–25V for standard carbon-film potentiometers, higher for wirewound types. Use a multimeter in continuity mode to confirm zero resistance between the pin and rail before proceeding. - Ground Reference: Attach the opposing outer pin to the ground plane. For split-rail systems, connect to the appropriate negative rail (
VEEor-V). Avoid common grounding errors by tracing the PCB’s ground path with a probe; shared traces with high-current components (e.g., power amplifiers) may introduce noise. - Output Tap: Wire the center wiper to the target node–typically a signal input, feedback loop, or reference voltage. For op-amp configurations, couple the wiper to the inverting input via a 10kΩ resistor to minimize loading effects. In RF applications, use a ceramic capacitor (10–100pF) in parallel to the wiper to suppress parasitic oscillations.
Post-Wiring Verification
- Set the potentiometer to mid-position. Measure voltage between the wiper and ground; it should equal half the supply voltage ±5% for linear taper models. Nonlinear (log/anti-log) types require logarithmic scaling checks–use a DMM with a “dB” mode.
- Test adjustability by rotating the shaft from end to end. Resistance should vary smoothly without abrupt jumps; erratic readings indicate a faulty element or dirty track–clean with isopropyl alcohol or replace.
- For trimmable devices (e.g., bias adjustments), mark the optimal setting with a non-conductive marker (e.g., nail polish) after calibration. Recheck stability after 24 hours; thermal drift in carbon potentiometers can shift values by up to 10%.
Frequent Errors in Adjustable Component Layout Designs
Skipping polarity indicators for variable resistors leads to incorrect assembly. Always mark the wiper and terminal connections–even on basic potentiometers. A missing dot or arrow on the schematic forces technicians to guess orientation during soldering, increasing failure rates by up to 30% in prototype batches.
Grouping tuning devices too closely without spacing considerations causes unintended coupling. Maintain at least 5mm clearance between adjustable elements if they share a ground plane. PCB traces for adjacent trimmers must not run parallel beyond 8mm to prevent parasitic capacitance that distorts expected calibration curves.
Label inconsistencies between the layout and the bill of materials create confusion. Use identical designators (e.g., VR1, RT2) across all documentation–schematic sheets, board layers, and assembly notes. A single mismatch like VR3 vs. RT4 delays production by hours when pick-and-place machines default to error modes.
Ignoring power dissipation ratings when selecting adjustable resistors risks thermal runaway. Calculate the expected voltage drop across each device and cross-reference with manufacturer wattage specs. A 10kΩ trimpot rated for 0.25W will overheat if subjected to 12V continuous, degrading reliability within minutes.
Environmental Factor Overlooks
Placing high-sensitivity trimming components near heat sources invalidates calibration. Avoid positioning them within 2cm of voltage regulators, inductors, or power transistors. Thermal gradients as small as 5°C alter resistance values sufficiently to shift oscillator frequencies by 1% or cause ADC readings to drift outside tolerance bands.
Dimensional changes from temperature cycling aren’t reflected in static schematics. If a rotary potentiometer expands 0.1% per 10°C, annotate this on the layout to warn assemblers about potential mechanical misalignment during automated optical inspections. Missing this detail leads to false rejects or undetected alignment failures in final testing.
Documentation Gaps
Omitting default wiper positions forces technicians to debug default states from scratch. Specify whether each tunable device should be centered, fully clockwise, or set to a specific resistance value (e.g., 50% of total range) on assembly drawings. Without this, startup sequences may fail silently or require manual intervention.
Failing to include test points adjacent to every adjustable node prevents efficient calibration. Place a via or pad next to each wiper terminal and label it clearly (e.g., TP_VR1_WIPER). This allows direct probing without disturbing soldered connections, cutting alignment time by 40% during mass production runs.
