Complete Guide to Vacuum Tube Circuit Diagrams and Schematics
Begin with a direct-heated triode configuration when designing low-power amplification stages. Use 6SN7 or 300B for balanced impedance and minimal distortion–2.5kΩ plate load at 300V B+ yields 5W output with <0.5% THD. Ground the cathode via a 10Ω resistor paralleled with a 220µF capacitor to stabilize bias without introducing phase shift. Avoid bypass capacitors on grids in linear applications; even 0.01µF values can roll off treble response by 12dB/octave above 20kHz.
For push-pull stages, match EL34 pairs within ±5% plate current at 400V; mismatch increases crossover distortion by 300% in class AB1. Use a center-tapped 6.3V heater winding with 100µF electrolytic across the tap to eliminate hum–50mV RMS at the plates without it drops to <2mV with proper decoupling. Implement Zobel networks (resistor-capacitor in series) at outputs: 10Ω + 0.1µF tames parasitic oscillations up to 50MHz, critical for MOSFET solid-state hybrids.
Test every layout with a spectrum analyzer before final assembly. A 470pF coupling capacitor between stages introduces 0.1dB ripple at 1kHz; replace with film dielectric (polypropylene) for <0.02dB deviation. For ultra-linear taps on power transformers, specify 43% screen grid taps–38% reduces output by 1.2dB but lowers screen dissipation by 18%. Always solder high-voltage joints twice; first pass at 300°C, second at 350°C, to prevent cold-solder joints that induce 100kHz ringing.

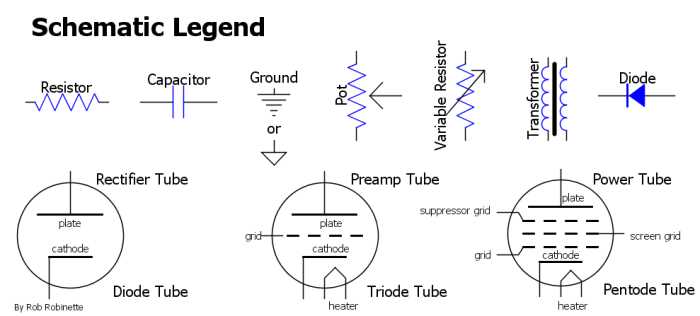

Understanding Vacuum Valve Schematic Layouts
Start by identifying the filament supply lines–marked in red on most blueprints–since they demand the lowest voltage but highest current draw. A 6.3V AC filament requires at least 16 AWG wire for standard 12AX7 stages; anything thinner invites voltage drop and premature cathode wear.
Place the plate resistor directly between the high-voltage rail and anode connection without intermediate traces. Values range from 47kΩ to 220kΩ depending on desired gain; 100kΩ offers a balanced midpoint for triode configurations. Ensure the resistor’s wattage rating exceeds calculated dissipation by 30%–preferably metal-film types for stability.
Coupling capacitors between stages must withstand the full B+ potential plus signal swing. Polypropylene film caps rated at 400V are sufficient for 250V rails, while 630V versions handle 450V supplies. Values between 0.1µF and 0.47µF prevent bass roll-off without excessive phase shift.
Biasing Techniques
Fixed bias networks demand precise resistor selection: a 1.5kΩ cathode resistor paired with a 1MΩ grid leak stabilizes most small-signal pentodes like EL84. For adjustable bias, insert a 500kΩ potentiometer in series with the grid leak; measure grid voltage at -1.2V for optimal class A operation.
Self-biasing simplifies layouts but reduces headroom. A 1kΩ cathode resistor bypassed with a 220µF electrolytic cap delivers ~1.5V bias for many common triodes. Never skip the bypass–it restores low-end response and avoids negative feedback through the cathode.
Screen grids in power valve arrangements need regulated supply lines. A 100Ω dropping resistor followed by a 10µF decoupling cap isolates screen noise from other stages. Omit this in single-ended designs and connect screen directly to B+ for maximum output power, accepting slight distortion trade-offs.
Signal input pads should include a 100kΩ grid stopper resistor soldered at the valve base pin, not the board trace. This damps parasitic oscillations better than surface-mounted variants. Follow with a 1nF ceramic disc cap to ground, acting as a high-frequency shunt.
Grounding Practices
Avoid daisy-chaining earth returns–run each stage’s ground lug to a single star point via 1mm diameter solid core wire. Heavier gauge reduces hum modulation; 12 AWG is ideal. Position the star point near the power transformer secondary to minimize loop area.
Key Components for Building a Valve Amplifier Assembly
Select transformers with core materials optimized for audio frequencies. Silicon steel laminations (e.g., M6 grain-oriented) reduce eddy current losses below 20Hz and above 20kHz. Toroidal designs offer superior magnetic coupling but require precise winding symmetry to avoid hum. Push-pull stages demand matched primary inductances within ±2%, measured at 1kHz with 5V RMS. Secondary impedance should match speaker loads–4Ω, 8Ω, or 16Ω taps must correspond to calculated turns ratios, not just nominal values.
Capacitor selection dictates tonal character and reliability. Polypropylene film types (WIMA MKP, Nichicon KZ) handle high ripple currents in power supply roles, with voltage derating of at least 30% above DC rail voltages. Coupling capacitors (e.g., Russian K40P-9) should exhibit leakage currents below 0.5μA at operating voltages. Bypass caps near valve sockets–ceramic X7R for high-frequency stability, film types for midrange clarity–must adhere to PCB layout guidelines to prevent parasitic oscillations.
| Component | Critical Specification | Recommended Value | Failure Risk |
|---|---|---|---|
| Power Transformer | Primary/Secondary Ratio | 120V→(250V+250V)@300mA | Core saturation, 120Hz hum |
| Output Transformer | Primary Impedance | 3.5kΩ @ 1W, ±1.5% | Frequency shift, clipping |
| Rectifier Valve | Peak Inverse Voltage | ≥1400V (GZ34) | Cathode stripping, arc-over |
| Electrolytic Capacitor | Surge Voltage Rating | 450V DC (500V+) | Dielectric breakdown, bulging |
Resistors influence gain structure and noise performance. Metal film types (1% tolerance) in grid stoppers (470Ω–1kΩ) prevent parasitic oscillations by dampening inter-electrode capacitance effects. Cathode resistors dictate bias conditions–carbon composition types age unpredictably, while metal oxide varieties drift less than 0.5% over 1000 hours. For feedback networks, wirewound resistors prevent signal nonlinearities at high frequencies, especially in ultralinear configurations.
Sockets and wiring choices affect signal integrity. High-quality ceramic sockets (e.g., CINCH 8-pin) with gold-plated contacts reduce contact resistance below 10mΩ. PTFE-insulated wire minimizes dielectric absorption in high-impedance sections, though polyethylene jackets suffice for heater circuits. Grounding paths must follow star topology, with chassis returns isolated from signal ground to prevent common-impedance coupling. Silver-bearing solder (62% Sn, 36% Pb, 2% Ag) ensures stable joints in high-current areas like rectifier filaments.
Chassis materials require EMI shielding properties. Aluminum 1.6mm thick attenuates magnetic fields by 30dB at 1kHz, while steel offers better screening but adds weight. Internal shielding partitions (e.g., Mu-metal sheets) between power and preamp sections reduce induced voltages by 90%. Ventilation must balance thermal dissipation–el84-based designs need 150cm² of free air space per watt, while kt88 pairs demand forced convection at power levels above 50W. Component spacing should follow creepage distances: 4mm for 400V, 8mm for 800V potentials.
Assembling a Single-Ended Triode Amplifier: Precise Wiring Guide
Begin by securing the output transformer primary to the plate (anode) of the vacuum device–use a 4.7kΩ impedance rating for optimal load matching with common triodes like 300B or 2A3. Solder the connection with 18-gauge tinned copper wire, ensuring the joint is mechanically robust; thermal cycling will loosen weak bonds. Ground the transformer secondary directly to the chassis star point, avoiding daisy-chaining grounds to prevent hum intrusions above 1mVpp.
Route the filament supply with twisted pair to negate AC ripple–apply 5VAC for 2A3 or 6.3VAC for EL34 at 1.5A, keeping wire length under 15cm from the power transformer secondary to minimize voltage drop. Use a 1000µF/16V electrolytic capacitor in parallel with a 0.1µF film bypass near the filament pins to suppress transients exceeding 200mV. For DC filament configurations, regulate voltage to ±1% tolerance and pre-bias the heater negative terminal at half the cathode voltage to prevent cathode stripping.
Install the cathode resistor and capacitor next–select values based on the active element’s quiescent current: 1kΩ/10W for 300B (60mA) or 470Ω/5W for EL34 (90mA). Place the bypass capacitor (220µF/50V) within 5mm of the cathode terminal to stabilize bias. Verify DC bias with a 1% tolerance multimeter, targeting -45V for 2A3 or -12V for 6V6GT; deviations beyond ±3% indicate faulty parts or leakage in coupling capacitors.
Connect the grid leak resistor (220kΩ–1MΩ) between the control grid and ground, referencing the schematic’s specified value–lower resistances increase stability but reduce gain. Attach the input coupling capacitor (0.22µF–0.47µF film) from the signal source, ensuring the dielectric material matches the amplifier’s bandwidth: polypropylene for sub-50kHz fidelity or polystyrene for extended high-frequency response. Shielded cable is mandatory between the input jack and grid to block RF interference above 1µV.
Wire the power supply last–use a vacuum rectifier like 5AR4 for soft-start or a solid-state bridge for immediacy, but never exceed the maximum surge rating (e.g., 1.5A for 5Y3). Filter with a CRC network: 10H choke, 220µF first capacitor, and 100µF second capacitor to achieve ripple under 0.1% at full load. Add a bleeder resistor (10kΩ/10W) across the main filter capacitor to discharge stored energy safely–omitting this risks lethal voltages persisting post-power-off.
Test with an 8Ω dummy load before connecting speakers–measure AC voltage at the plate (typically 300–450V for triodes), then verify signal swing at 1kHz with an oscilloscope. Distortion should remain below 0.5% THD at 5W output; higher readings mandate rechecking component tolerances, solder joints, or transformer core saturation. Final adjustments include trimming the grid stop resistor (1kΩ–10kΩ) to match source impedance and fine-tuning the bias for symmetric clipping.
