Guide to Creating a Safe and Functional Two Phase Electrical Circuit Layout

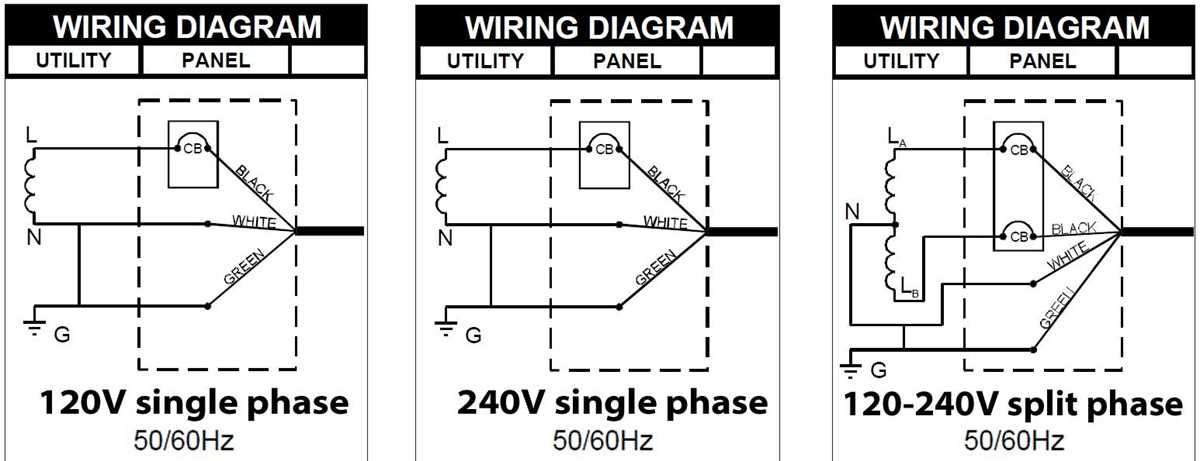

Start by mapping out split-voltage installations with a 240V split arrangement–two live conductors differing by 180° phase angle sharing a neutral. This setup eliminates the need for separate transformers while delivering both 120V and 240V outputs. Use 10 AWG copper wire for branch circuits under 30A and upgrade to 8 AWG for 40–50A loads to prevent voltage drop over extended runs.
Label every conductor at both ends: L1 (black), L2 (red), N (white), and G (green). Insulate splices with heat-shrink tubing rated for 600V minimum. Avoid daisy-chaining receptacles; instead, run individual 12 AWG cables from the subpanel to each outlet for consistent power delivery.
Mount a double-pole 50A breaker feeding a 4-slot subpanel for residential applications. Allocate separate circuits: one for high-draw appliances (oven, dryer) and another for low-load devices (lights, outlets). Ground the panel directly to the main service ground rod with a #6 bare copper conductor buried 8 ft deep.
Verify torque specs on terminal screws–16 in-lbs for 10–14 AWG, 20 in-lbs for 8–6 AWG–using a calibrated screwdriver. Test continuity with a multimeter: L1-L2 should read 240V, L1-N and L2-N each 120V, and N-G 0V. If readings deviate, inspect neutral-ground bonds in the subpanel.
Include an arc-fault circuit interrupter (AFCI) breaker for bedroom and living area circuits to comply with NEC Article 210.12. Mark circuit directories with load IDs (e.g., “Range – 240V 50A”) on the panel door using engraved aluminum tags. Secure cables every 4.5 ft with non-metallic staples in unfinished basements, spacing them at least 1.25 in from edges of wooden studs.
Dual-Circuit Electrical Layout Guide
Use a split-bus configuration to balance load across both legs of a 240V supply. Install a double-pole breaker (e.g., Siemens Q240) rated for 30A per leg for residential applications. Connect L1 to the red conductor, L2 to the black, and neutral to the white; ground must terminate at the green or bare copper terminal. Avoid sharing neutrals between circuits–each branch should have its own return path to prevent overload.
Critical Connection Details
- Label all conductors at both ends (e.g., “L1-Red-30A,” “N-White”).
- Use crimp sleeves or lever nuts (Wago 221) for splices–twist-on connectors are not approved for this setup.
- Test voltage between L1-L2 (should read 240V), L1-N (120V), and L2-N (120V) before energizing.
- Route high-power appliances (e.g., electric ranges) on dedicated legs to prevent voltage drop.
For commercial installations, reference NEC Article 210.4 for multi-wire branch circuits. Use a torque screwdriver (e.g., Klein JIS T60) to tighten terminals to manufacturer specs (typically 20 lb-in for #10 AWG). If adding a subpanel, maintain separate grounding and neutral buses–mixing them violates Code and creates shock hazards. Replace any damaged insulation immediately; exposed conductors increase arc fault risk.
Key Elements in Dual-Circuit Electrical Configurations
Start with a split-bus panel rated for at least 125A if handling residential loads up to 10 kW. Verify the main breaker matches the service drop capacity–typically 100A or 200A for modern installations. Smaller gauges like 6 AWG may suffice for sub-circuits, but primary conductors should never drop below 2 AWG for copper or 1/0 AWG for aluminum.
Use double-pole breakers for all 240V appliances, ensuring compatibility with the panel’s busbar spacing. Test breaker brands against panel specifications–Square D and Siemens often require proprietary models. Label each breaker clearly with load type (e.g., “Oven Line A/B”) to prevent miswiring during maintenance.
Meter Base and Service Entry Requirements
Install a ring-type meter socket with a bypass lever for emergencies. Secure it to a non-combustible surface, keeping a minimum 36-inch clearance from windows, doors, or combustible materials. For buried service drops, use direct-burial cable (UF-B) with a 24-inch depth requirement under driveways, 18 inches elsewhere.
Thermal magnetic breakers excel for inductive loads like motors, while AFCI/GFCI hybrids are mandatory near water sources. Prioritize surge protectors with a joule rating above 2,000 for sensitive equipment. Avoid mixing conductor metals in critical paths–oxidation at copper-aluminum junctions can cause hotspots.
Grounding rods must be driven to a minimum 8-foot depth, spaced at least 6 feet apart. Use a #6 AWG solid copper bonding conductor for connections, exothermically welded if possible. For detached structures, run a separate grounding electrode conductor rather than relying on the neutral path.
Load Calculation and Conductor Sizing
Calculate demand using the 80% rule for continuous loads–divide the total wattage by 240V to get amperage, then multiply by 1.25. For example, a 4,500W dryer requires at least a 25A circuit (4500/240 = 18.75A × 1.25 = 23.4A). Always round up to the next standard breaker size.
Inspect insulation types: THHN for dry locations, THWN-2 or XHHW for wet or underground. Verify temperature ratings–most terminals accept 75°C conductors, but check equipment labels. Use anti-oxidant grease on aluminum connections to prevent corrosion, and torque all screws to manufacturer specs with a calibrated driver.
Step-by-Step Guide for Creating a Dual-Circuit Electrical Layout
Begin by identifying the load requirements for each section of the split-system. Measure the amperage and voltage needs of connected devices–lights, motors, or appliances–and list them in a table for clarity. For instance:
| Device | Voltage (V) | Current (A) | Circuit Assignment |
|---|---|---|---|
| High-speed motor | 240 | 15 | Line A |
| Industrial lighting | 120 | 10 | Line B |
Select appropriate wire gauge based on the calculated current and distance from the power source. Use the National Electrical Code (NEC) tables for reference–12 AWG for 20 A, 10 AWG for 30 A, and so on. Label each conductor with its intended path: hot, neutral, or ground. Ground wires must connect to a grounding bus in the panel.
Panel and Component Placement
Sketch the main distribution board layout first. Position two separate breakers (or fusible switches) for the dual-channel supply, ensuring they match the load demands. For 120/240 V systems, designate one breaker for each channel, with the neutral bar shared. Verify breaker compatibility–double-pole for 240 V, single-pole for 120 V.
Mark connection points for each branch on the schematic. Use consistent symbols: zigzag for resistors (loads), straight lines for conductors, and circles for junctions. Group related components–switches near loads, relays adjacent to control devices–to minimize clutter. Annotate each symbol with voltage and function (e.g., “SW1 – 240 V motor”).
Test the draft by tracing each path manually. Confirm no overlaps exist between channels and that neutral returns are correctly routed. For three-wire installations, ensure the neutral carries only unbalanced current, not full load. Finalize by adding protective devices–surge suppressors or residual current circuit breakers–where transient risks are present. Validate calculations against local codes before proceeding to physical installation.
Critical Errors in Dual-Line Electrical Installations
Avoid mixing conductors from different voltage legs in shared terminals. Standard residential split-setups deliver 120V from line-to-neutral and 240V line-to-line; cross-connecting these causes immediate short-circuits. Use insulation-piercing pliers to verify individual wire voltages before securing connections–never assume polarity based on color alone, as codes vary by region (e.g., NEC permit black/red for live legs, IEC may use brown/black). Install a dedicated clamp meter at the breaker panel to confirm phase balance; mismatched amperage between legs reduces motor efficiency by up to 40% and risks overheating neutrals.
Neglecting isolated ground bonding leads to dangerous stray currents. In a dual-feed system, the neutral must bond exclusively at the service disconnect–not at subpanels–to prevent ground loops. Copper busbar corrosion from oxidation increases resistance; torque neutral lugs to 20 lb-in minimum using calibrated drivers, then coat with antioxidant paste (e.g., Noalox). Overlooked bonding violations cause GFCI nuisance tripping and violate Article 250 of the electrical code, risking failed inspections.
Skipping conductor derating for conduit fill triggers excessive heat. Four 6 AWG THHN wires in 1/2-inch EMT exceed NEC fill limits (40% cross-sectional area)–use 3/4-inch minimum or derate amperage by 25%. Aluminum conductors (e.g., 2/0 AWG) require termination kits with oxide inhibitor; without it, thermal cycling loosens connections, causing arcing. Label every breaker with exact circuit purpose and load rating–unmarked panels confuse maintenance and violate OSHA 1910.303 requirements.
Determining Conductor Cross-Section and Protection Ratings for Split Electrical Systems
Begin by identifying the load current per leg using the formula I = P / (V × PF), where P is the total power in watts, V is the line-to-neutral voltage (typically 120V in North American splits), and PF is the power factor (default to 1.0 for resistive loads, 0.8–0.9 for inductive). For a 5 kW load, each conductor carries ~20.8 A. Always round up to the next standard breaker size–25 A in this case.
Consult NEC Table 310.16 or IEC 60364-5-52 for cross-sectional area. At 75°C, 10 AWG copper (5.26 mm²) handles 30 A, but derate by 20% for ambient temperatures above 30°C. In a 40°C environment, the adjusted limit drops to 24 A–still adequate for the 25 A breaker. Aluminum conductors require upsizing: 8 AWG (8.37 mm²) matches the copper capacity.
For prolonged heavy loads (above 80% of breaker rating), upsize conductors one gauge. A 30 A breaker feeding a 24 A load demands 8 AWG copper (8.37 mm²), not 10 AWG. Voltage drop calculations (VD = (2 × I × L × R) / 1000) must confirm
Neutral conductors in balanced systems can match the leg size, but unbalanced loads (e.g., non-linear devices) demand equal sizing. Dedicated equipment grounding conductors follow NEC 250.122: 10 AWG copper for ≤60 A circuits. Conduit fill limits (NEC Chapter 9, Table 4) may force upsizing–three 8 AWG conductors fit ½″ EMT, but six require ¾″.
Motor loads add complexity: nameplate FLA dictates conductor size, while breaker sizing uses FLA × 2.5 for ≤1 hp or FLA × 1.75 for larger motors (LRA ≈ FLA × 7) must not trip overloads–verify breaker curves (e.g., B or C type).
European split systems (400V line-to-line, 230V line-to-neutral) halve the current for identical power. A 5 kW load draws ~10.9 A per leg–1.5 mm² copper (16 A capacity) suffices at 75°C. Breakers scale down proportionally: 16 A MCB with curve C. Always cross-check local amendments (e.g., BS 7671 in the UK) for derating factors in enclosed spaces or harmonic-rich environments.
