Complete UC3844 PWM Controller Circuit Schematic and Design Guide
Begin with a 12V input if your design targets low-power DC-DC conversion–this simplifies isolation requirements and reduces component stress. The core IC, operating at 52 kHz nominal frequency, delivers optimal efficiency when paired with a 1nF timing capacitor and a 5.1kΩ resistor to ground. Verify startup behavior by ensuring the bootstrap pin reaches 34V before controller activation; unstable supplies cause unpredictable switching or failure to initialize.
Place the current-sense resistor directly between the source and ground to minimize parasitic inductance effects–values above 0.3Ω introduce measurable losses. Compensation networks demand precise component selection: a 10μF output capacitor with 100mΩ ESR paired with a 20kΩ feedback resistor eliminates subharmonic oscillations. Neglecting this adjustment leads to jittery duty cycles and audible noise in high-current applications.
For high-side switching, a 10V Zener diode clamps gate drive voltages–exceeding 20V damages the driver stage. Grounding the error amplifier reference pin through a 1μF decoupling capacitor prevents false triggering during transient load changes. Test thermal behavior by monitoring heatsink temperatures; sustained currents above 1.5A require board-mounted copper pours measuring at least 30mm² per watt dissipated.
Layout demands attention to critical paths: route the current-sense trace away from switching nodes to avoid capacitive coupling, which distorts feedback signals. Use separate ground planes for analog and power stages–star grounding prevents ground bounce from corrupting regulation. Isolated designs benefit from optocoupler placement within 5mm of the controller to maintain signal integrity under fast transients.
Diagnose irregular waveforms by probing the oscillator ramp pin–flattened slopes indicate excessive capacitance loading. Achieve tight output regulation (±2%) by matching the feedback divider resistors within 1% tolerance. For designs requiring overcurrent protection, set the threshold at 1.2 × nominal load current to avoid false trips during startup or brief overloads.
Step-by-Step Implementation of a Current-Mode PWM Controller Schematic
Begin by selecting a 47μF electrolytic capacitor rated for at least 50V for the VCC pin to ensure stable startup and operation. Connect this capacitor from pin 7 to ground, bypassing it with a 0.1μF ceramic capacitor in parallel to filter high-frequency noise. For the compensation network, use a 10kΩ resistor in series with a 1nF capacitor between the error amplifier output (pin 1) and its inverting input (pin 2) to achieve a crossover frequency of ~10kHz. Avoid resistor values below 5kΩ to prevent excessive phase shift.
- Use a 1kΩ resistor for current sensing (pin 3) to limit the maximum peak switch current to ~1A with a 0.5Ω shunt resistor.
- Place a Schottky diode (e.g., 1N5822) across the MOSFET’s drain-source to clamp flyback voltage spikes, ensuring the diode’s reverse voltage exceeds the input supply by at least 30%.
- For the oscillator timing, combine a 10kΩ resistor and a 1nF capacitor between pin 4 and ground to set a switching frequency of ~50kHz (adjust values using the formula:
f ≈ 1.72 / (R × C)). - Decouple the supply rail with a 100nF capacitor placed within 2mm of the chip’s power pin to prevent false triggering due to transient drops.
Test the layout with an oscilloscope probing pin 6 (gate drive) and the MOSFET’s gate–verify a clean, rectangular waveform with rise/fall times under 100ns. If ringing exceeds 1Vpp, reduce the gate resistor value from 22Ω to 10Ω or add a small ferrite bead in series with the gate trace. For thermal considerations, ensure the ground plane under the IC has a copper pour of at least 10mm² to dissipate the ~1.5W typical power loss at full load.

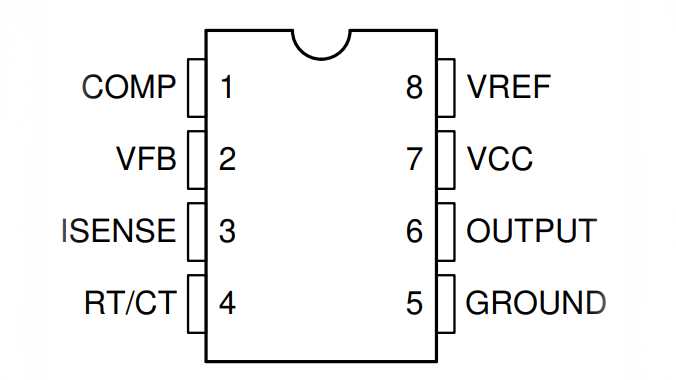

Pin Configuration and Signal Flow in the PWM Control IC
Start by verifying the VCC pin (7) accepts a supply range of 10V to 30V–operating outside this window risks unstable switching or permanent damage. Keep the decoupling capacitor (0.1μF ceramic) within 2mm of the pin to suppress high-frequency noise induced by parasitic inductance.
The output stage (6) delivers up to 1A peak current, but thermal shutdown engages at 150°C; ensure the SOIC-8 pad is soldered to a copper pour of at least 2 cm² for adequate heat dissipation. Drive impedance below 10Ω prevents shoot-through during high-side/low-side transitions.
Input and Feedback Path Critical Points
Configure the error amplifier (pin 2) with a 2.5V reference tied to the non-inverting input; a resistor divider connected to the inverting input sets the regulation point. Increase the divider’s lower resistor to 10kΩ minimum–values below 5kΩ risk oscillation due to reduced phase margin. Capacitive loading above 100pF degrades transient response.
At the current sense comparator (pin 3), limit the peak sense voltage to 1V to avoid saturating internal clamping. Use a 1Ω sense resistor for 1A peak current; scale proportionally for higher power (e.g., 0.5Ω for 2A). Place the resistor adjacent to pin 3, with traces ≤10mm to prevent EMI coupling.
| Pin | Function | Recommended Range | Typical Connection |
|---|---|---|---|
| 1 | Compensation | Voltage: 1.4V–6V | RC network to pin 2 |
| 4 | RT/CT | Frequency: 50kHz–500kHz | Timing resistor/capacitor |
| 5 | Ground | – | Star ground to power return |
Timing and Protection Considerations
Set switching frequency via pin 4: 10kΩ resistor and 1nF capacitor yield ~100kHz; reduce capacitor to 220pF for 500kHz. Lockout thresholds are 16V (start) and 10V (shutdown)–bypass with a 1μF tantalum capacitor if supply slew exceeds 5V/μs to prevent false triggers.
Under-voltage lockout (UVLO) on pin 7 triggers hysteresis: 6V hysteresis prevents chatter at the 16V/10V thresholds. If using external bias (e.g., auxiliary winding), add a diode (1N4148) in series to block reverse conduction during start-up. For fault conditions, the internal soft-start (2.5V reference charge) extends to 50ms; override with an external capacitor on pin 8 (e.g., 0.1μF for 200ms delay).
Step-by-Step Assembly of a PWM Controller for Step-Down Power Stages
Begin by connecting the high-voltage input to the switching MOSFET’s drain via a fast recovery diode, ensuring the anode faces the input rail. Select a diode with a reverse recovery time under 50 ns to minimize switching losses. For a 24V input, a 100V Schottky diode provides sufficient margin while reducing conduction losses compared to standard silicon types.
Wire the feedback network by placing a precision voltage divider between the output node and the error amplifier’s noninverting pin. Use 1% tolerance resistors–10 kΩ for the upper leg and 2 kΩ for the lower–to set a 2.5V reference. Bypass the divider midpoint with a 100 nF ceramic capacitor to filter high-frequency noise without introducing phase lag in the control loop.
Insert the compensation components between the error amplifier’s output and inverting input. A 10 kΩ resistor in series with a 1 nF capacitor forms a type-II compensator, stabilizing the loop with a crossover frequency around 10 kHz. Ensure the resistor’s value is at least twice the divider’s equivalent resistance to avoid altering the DC setpoint.
Attach the current sense resistor between the MOSFET’s source and ground. For a 1A nominal load, a 0.2 Ω resistor with a 1% tolerance yields 200 mV at full current, matching the internal comparator’s threshold. Use Kelvin connections to eliminate trace resistance errors, especially in layouts where the sense path exceeds 5 mm.
Route the gate drive signal through a 10 Ω series resistor to limit peak currents and reduce ringing. Place a 1N4148 diode across the resistor to accelerate turn-off by providing a low-impedance discharge path for the gate capacitance. Verify the driver’s supply decoupling with a 1 µF MLCC positioned within 2 mm of the IC’s power pin to prevent false triggers.
Connect the soft-start capacitor to the designated pin, selecting 1 µF for a 10 ms ramp time. If the application requires a slower startup to avoid inrush currents, increase the capacitance proportionally–3.3 µF extends the ramp to 33 ms. Ensure the capacitor’s voltage rating exceeds the maximum gate drive voltage by at least 20% to prevent dielectric breakdown.
Interleave the power ground and signal ground at a single star point, using vias to tie the MOSFET’s source pad directly to this node. Avoid daisy-chaining grounds; even a 5 mΩ trace impedance can introduce enough noise to destabilize the current loop. For layouts with aggressive thermal constraints, replace vias with multiple parallel thermal pads.
Test the assembled regulator under load before enclosing the design. Apply a 100 kHz switching frequency by setting the timing resistor to 10 kΩ and the timing capacitor to 1 nF. Verify the output ripple stays below 50 mV peak-to-peak at full load, adjusting the compensation components if overshoot exceeds 5% of the nominal output voltage.
Critical Component Selection for PWM Controller-Based SMPS
Select a MOSFET with RDS(on) under 50 mΩ and a VDSS rating at least 1.5× the maximum input voltage. For a 24 V input, opt for devices like the STP120N6F6 (40 mΩ, 60 V) or IRFB4110 (4 mΩ, 100 V) to minimize conduction losses. Gate charge (Qg) should not exceed 50 nC to ensure rapid switching; values above 80 nC increase drive circuit stress and delay turn-off, risking shoot-through.
Inductor core material must balance saturation flux density (Bsat) and core losses. Ferrite (e.g., 3C95) suits frequencies 100–500 kHz, while powdered iron (Kool Mu) tolerates higher ripple currents but suffers from lower μi. For a 5 A, 100 kHz design, target 30–60 μH with Isat ≥ 6 A. Wind count: use 20–30 turns of #22 AWG on an EE25 core for
Output capacitors require ESR below 50 mΩ to suppress voltage ripple to TPSV686M016R0080, 68 μF, 16 V, 8 mΩ ESR) outperforms MLCCs in ripple current handling but lacks transient response speed. Combine with 2–3 X5R/X7R ceramics (e.g., GRM32ER71C226ME20L, 22 μF, 16 V) in parallel for high-frequency stability. Input bulk capacitance should derate to 50% of rated voltage–use 105°C, 10,000-hour rated electrolytics (e.g., Nichicon UHE1V102MPD) if operating above 85°C ambient.
