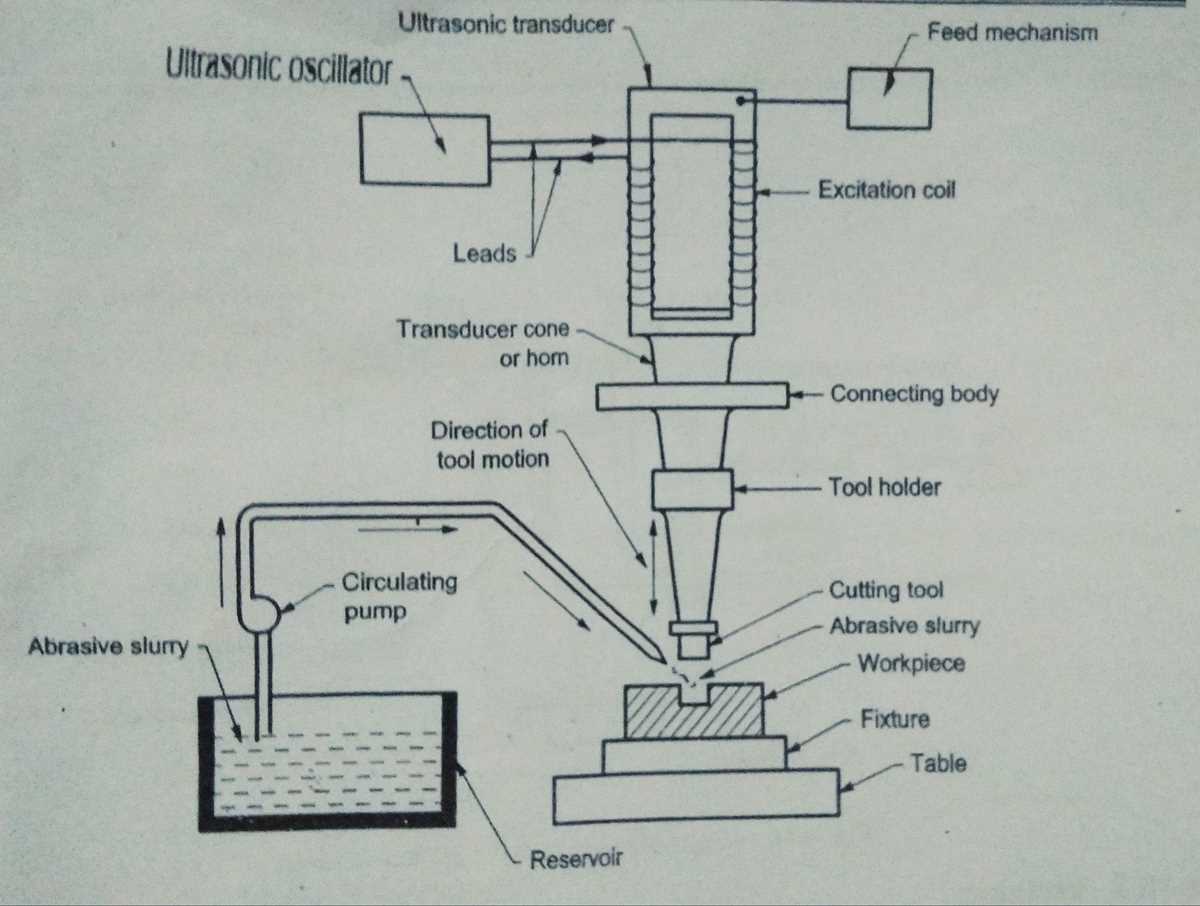

Schematic Layout and Working Principle of Ultrasonic Machining Process
For precise material removal in hard or brittle substrates, integrate a piezoelectric transducer as the primary vibration source. Ensure it operates at frequencies between 18–40 kHz to maximize acoustic energy transfer while minimizing tool wear. Pair the transducer with a conical or stepped horn to amplify displacements–critical for achieving amplitudes of 10–50 micrometers at the tool tip.
Select abrasive slurry based on workpiece hardness. For ceramics like alumina or zirconia, use boron carbide or silicon carbide particles sized 15–50 microns. Density and viscosity must suspend particles uniformly; water-based fluids with 30–60% solid content prevent settling without restricting flow. Adjust viscosity with additives like glycerin if chipping occurs.
Design the toolholder to maintain concentric alignment under cyclic loads. Tungsten carbide or titanium alloys resist fatigue; avoid sharp interior corners–radii of ≥1.5 mm prevent stress risers. Use a collet or shrink-fit assembly to clamp the tool; press fits degrade amplitude consistency. Coolant channels inside the holder reduce thermal drift, especially during extended cycles.
Position the workpiece fixture perpendicular to the tool axis. Hydraulic or pneumatic clamping prevents micro-vibrations from shifting the part. For contours, employ a CNC-controlled 2–5 axis stage–accuracy of ±0.02 mm ensures repeatability. Isolate the setup from floor vibrations with rubber pads or pneumatic isolators.
Monitor process parameters with sensors: accelerometers on the horn (0.1% resolution), strain gauges on the tool (5% drift tolerance), and laser displacement sensors for depth tracking. Log data at 1 kHz intervals to correlate feed rate, amplitude, and surface finish. Adjust frequency in 50 Hz steps if resonance shifts due to load changes.

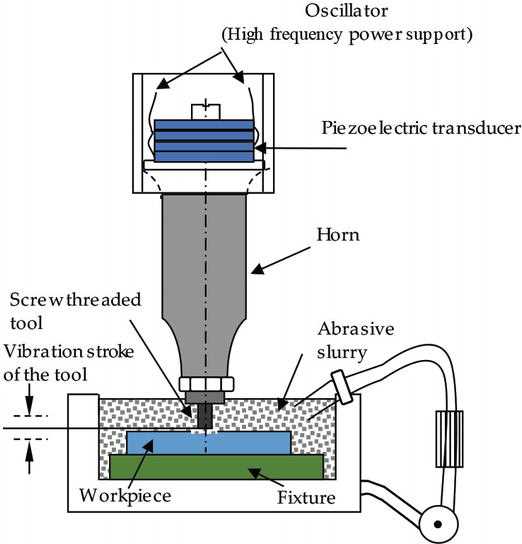

Visual Representation of High-Frequency Abrasive Process
Begin by positioning the transducer at the core of the setup, ensuring it oscillates at 20–40 kHz with amplitudes between 10–50 µm. The vibrating tool should align perpendicularly to the workpiece, maintaining a gap of 0.05–0.5 mm to allow abrasive slurry flow. Use boron carbide or silicon carbide particles (100–800 grit) suspended in water at a 20–30% concentration by volume for optimal material removal rates (MRR) of 0.5–15 mm³/min, depending on material hardness–softer materials like glass yield higher MRR, while titanium alloys require longer cycles.
Critical Components and Their Roles
| Component | Function | Key Specification |
|---|---|---|
| Power Generator | Converts electrical input to high-frequency mechanical oscillations | 1–3 kW, 20–40 kHz |
| Horn/Tool Holder | Amplifies vibrations and transmits them to the tool | Titanium or aluminum alloy, 20–30 dB gain |
| Tool | Delivers oscillations to the workpiece via abrasive impact | Mild steel or stainless steel, profiled to match desired cavity shape |
| Slurry Pump | Maintains uniform abrasive suspension flow | 0.5–2 L/min, 0.1–0.3 MPa |
Minimize tool wear by selecting a tool material with a hardness 2–3 times that of the workpiece–stellite or tungsten carbide for ceramics, stainless steel for softer metals. Adjust the static load (5–25 N) based on material brittleness: lower loads for fragile materials to prevent cracking, higher loads for metals to enhance impact efficiency. For complex geometries, pre-machine the tool with electro-discharge machining (EDM) to match the reverse profile of the desired cavity, ensuring ±0.02 mm tolerance on critical dimensions.
Core Elements of a High-Frequency Vibration Cutting System
Select a transducer with a power rating between 200–2000 W, depending on material hardness–softer alloys like aluminum require 200–500 W, while tungsten carbide demands 1200–2000 W. Ensure the device operates at a fixed frequency (typically 18–40 kHz) with less than ±0.2 kHz deviation to prevent tool wear or slurry inefficiency. Opt for piezoelectric transducers over magnetostrictive variants; they offer 95%+ energy conversion efficiency and minimal heat buildup. Mount the transducer directly onto a rigid horn made of titanium or Monel K-500–these alloys withstand 30+ MPa dynamic stresses without fatigue.
Design the horn’s amplitude gain to reach 20–50 µm peak-to-peak at the tool tip. A stepped or exponential taper yields the highest magnification (up to 8× the input displacement) while reducing stress concentrations. Avoid conical tapers; they create hotspots under cyclic loading. Tool materials must pair hardness with toughness: diamond or cubic boron nitride (CBN) for ceramics, and high-speed steel (HSS) for abrasive slurries working on glass. Bond the tool to the horn via vacuum brazing or threaded joints–resistance welding risks micro-fractures that propagate under cyclic vibration.
Use a recirculating slurry delivery system with a pump maintaining 0.5–2 L/min flow at 20–100 kPa. Adjust particle size (10–80 µm) based on surface finish requirements: finer grits (10–20 µm silicon carbide) achieve Ra 1.5 µm. Maintain slurry temperature below 30°C using a chiller to prevent viscosity loss and sedimentation. Replace slurry every 4–6 hours of operation; contaminated or degraded suspensions reduce cutting efficiency by 40–60%.
Incorporate a three-axis CNC control with ±0.005 mm positional accuracy to synchronize feed rates (0.1–1 mm/min) with vibrational amplitude. Soft materials like copper require slower feeds (0.2 mm/min) to avoid tool skipping, while hardened steels tolerate 0.8 mm/min. Implement force feedback via piezoelectric sensors–ideal normal forces range from 5–50 N, with thresholds triggering automatic retraction if exceeded by 20%. Store workpiece-holding fixtures in a climate-controlled environment to prevent thermal expansion errors, especially for precision features below 0.1 mm tolerance.
Precision Material Removal Through High-Frequency Vibration: A Sequential Guide
Select a transducer matched to the target frequency–typically 18–40 kHz–with a power rating that scales linearly to workpiece hardness. Hardened alloys like Inconel demand 1000–1500 W/cm², while softer ceramics require only 200–400 W/cm². Mount the transducer on a rigid Z-axisslide with ±0.01 mm positional repeatability, calibrated using laser interferometry before each cycle.
Slurry composition dictates abrasive efficiency. Suspend boron carbide (B₄C) or silicon carbide (SiC) in deionized water at 20–35% concentration by volume; finer grains (3–10 µm) yield tighter tolerances but reduce removal rates by 60%. Add ethylene glycol at 5% to prevent sedimentation, and maintain pH 8.5–9.0 with potassium hydroxide to avert corrosion. Agitate the slurry at 120 RPM using a paddle mixer with dual counter-rotating blades to sustain uniform particle distribution.
Position the workpiece fixture within 0.2 mm of the vibrating tool; tool overhang must not exceed 1.5× its diameter to avoid lateral deflection. Apply static force via pneumatic actuator: 2–15 N for brittle materials, 20–50 N for metals. Initiate the vibration cycle with a ramp-up segment–0.1–0.3 seconds–to dampen transient oscillations. Monitor displacement amplitude real-time via eddy-current probes, adjusting the generator’s phase-locked loop to hold ±5% of target (typically 10–50 µm).
Execute removal in 0.5–3.0 second bursts, interleaved with 0.2-second dwell intervals to flush debris. For 3D cavities, divide the toolpath into 0.05 mm axial increments; spiraling trajectories reduce taper by 40% compared to linear passes. After each burst, retract the tool 0.1 mm and pulse the slurry nozzle at 3 bar to clear agglomerated particles–clogging reduces removal rates by 70% if left unchecked.
Post-Cycle Validation Parameters
Rinse the workpiece with pressurized filtered water (1 µm particulate rating) for 10 seconds to remove residual slurry. Measure surface roughness (Ra) inline using a confocal probe: target ≤0.4 µm for optical components, ≤1.2 µm for aerospace alloys. Verify dimensional accuracy with coordinate measuring machine (CMM) probing; deviations >0.03 mm indicate tool wear–replace the tool after 12–18 hours of use if diamond-coated, or 4–6 hours if uncoated tungsten carbide.
Key Design Factors for Acoustic Tool and Material Interaction
Select tool materials with a hardness at least 20% higher than the workpiece to prevent premature wear. Tungsten carbide and tool steels (e.g., AISI D2) outperform softer alloys by maintaining dimensional accuracy over prolonged cycles. For ceramics, use diamond-coated tips; their abrasion resistance extends life by 30-50% compared to untreated steel.
- Match tool amplitude to material removal rate: ±15-50 μm for brittle materials (glass, silicon), 30-80 μm for metals (titanium, Inconel). Exceeding these ranges creates micro-cracks.
- Hollow tools reduce mass, increasing resonance frequency by 12-18%. Opt for wall thickness between 0.8-1.5 mm–thinner walls flex excessively, thicker ones dampen oscillations.
- Workpiece clamping must dampen vibrations locally. Use fixtures with elastomer pads (shore hardness 40-60) to prevent stress concentration. Fixture stiffness should exceed workpiece rigidity by 1.5x.
Slurry viscosity directly impacts cutting speed. SiC abrasives (220-320 grit) in water at 30-40% concentration balance removal rates and surface finish (Ra 0.3-0.8 μm). Increase to 50% for hardened alloys, but expect 10-15% slower material removal due to particle interference. Adjust tool feed rate proportionally: 0.5-1.2 mm/min for linear cuts, 0.8-2.0 mm/min for contoured geometries.
