Key Underfloor Heating Circuit Diagrams and Installation Layouts

Begin with a twin-loop configuration for zones under 30 m² to balance flow rates–use 16 mm pipes spaced 150 mm apart for concrete slabs, reducing to 100 mm spacing near exterior walls. For larger areas, split into multiple manifolds with independent thermostatic controls to prevent uneven heat distribution. Avoid serpentine patterns in long rooms over 8 meters; instead, use a parallel return layout to maintain consistent surface temperatures.

Install a dedicated 22 mm supply line from the boiler to the manifold, ensuring minimal pressure drop. Pair each zone with a 3-port motorized valve and a room thermostat, calibrating for 5°C differential to prevent overshooting. In screed applications, embed sensors at mid-depth to monitor thermal lag–adjust pump speeds accordingly, targeting a 0.5–0.8 m/s flow velocity to avoid laminar layers.

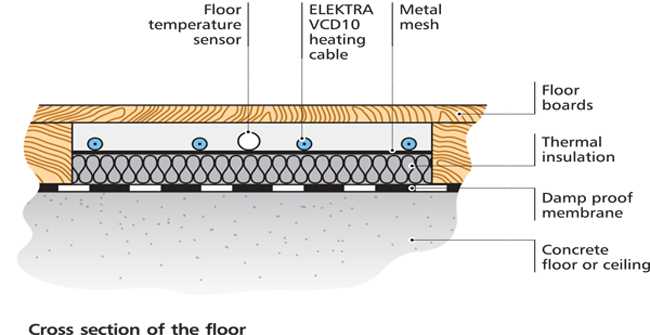

For hydronic systems, use oxygen-barrier PEX pipes with 2 mm wall thickness to resist permeation. In retrofit scenarios, low-profile solutions demand pipe diameters of 12 mm or less–prioritize aluminium heat spreaders beneath timber floors to compensate for reduced mass. Always pressure-test circuits at 6 bar for 24 hours before covering, and insulate return lines within 1 meter of the manifold to curb standby losses.

Combine separate mixing valves for high-temperature sources like boilers with low-temperature loops. Set supply temperatures at 35–45°C for screed, adjusting to 28–32°C for timber substrates to prevent warping. In multi-story builds, cascade manifolds vertically to simplify balancing; use air vents at the highest points to eliminate trapped gases.

Ground-source setups require larger pipe diameters (20–25 mm) and closer spacing (80–100 mm) to offset lower ambient temperatures. Integrate a buffer tank sized at 10–15 L per kW output to stabilize fluctuations, and isolate zones with check valves to prevent reverse thermosiphoning. For electrical alternatives, wire thermostats in series with contactors, limiting circuit lengths to 50 meters to avoid voltage drop.

Planning Hydronic Radiant Layouts for Optimal Efficiency

Begin by mapping pipe runs with a serpentine pattern for uniform heat distribution–spacing shouldn’t exceed 300mm for standard residential floors. Use 16mm piping for zones under 20m² and 20mm for larger areas to maintain pressure balance. Install manifolds with flow meters to monitor individual loops; even minor imbalances can reduce performance by 15-20%. Keep loop lengths between 80-100m to prevent excessive pressure drops, critical for maintaining water temperatures between 35-50°C.

• Zone control valves should be placed at the manifold, not within pipe runs, to simplify maintenance.
• Avoid sharp bends–use 5D radius fittings to minimise turbulence and potential leaks.
• Thermal insulation beneath pipes must meet EN 1264 for floors (minimum R-value 1.25m²K/W).

Integrate a mixing valve with a bypass to prevent boiler short-cycling; set it to maintain a 5-10°C temperature differential between supply and return. Use two-port valves for variable-flow systems or three-port valves for constant-flow configurations–never mix types in the same setup. For screed depths over 65mm, increase pipe spacing to 350mm to compensate for thermal lag. Add a deaerator at the highest point to eliminate airlocks, a common cause of cold spots.

Label every loop at the manifold with its corresponding room and length–saves 30+ minutes during troubleshooting. For wooden subfloors, reduce pipe spacing to 200mm and limit flow temperatures to 45°C to avoid warping. Always pressure-test at 1.5x operating pressure for 24 hours before covering pipes. Final tuning requires checking return temperatures 24 hours after activation–expect ±2°C deviation across loops; larger variances indicate sizing errors.

Key Elements of a Hydronic Radiant Floor Setup

Install a manifold station with flow meters for precise temperature regulation in each loop. Opt for brass or stainless-steel manifolds rated for 6 bar pressure to handle thermal expansion cycles. Position the station centrally to minimize pipe runs and ensure uniform distribution–ideally within 5 meters of all loops. Include an integrated mixing valve to blend return water with supply, maintaining consistent inlet temperatures between 35–45°C for screed systems.

Use oxygen-barrier PEX or PE-RT tubing with a minimum 16mm internal diameter for residential applications. Lay tubing in a serpentine or spiral pattern with 100–150mm spacing to achieve even surface warmth. Maintain a depth of 40–60mm beneath the finish layer to prevent cracking. Secure tubes with plastic staples or aluminium heat diffusion plates if installing above insulation. Avoid sharp bends–minimum radius should be 8 times the tube diameter to prevent flow restrictions.

Insulation and Structural Layers

Lay a rigid foam board insulation layer (20–50mm thick) with an R-value of at least 1.2 m²K/W beneath the tubing. For ground floors, use extruded polystyrene (XPS) with compressive strength exceeding 200 kPa to support loading. Add a vapour barrier to prevent moisture ingress, especially in concrete slabs. For upper floors, foil-backed insulation reflects radiant energy upward, improving system responsiveness by 15–20%. Edge insulation strips (10mm thick) prevent thermal bridging along perimeter walls.

Select a screed material based on drying time and thermal conductivity. Anhydrous calcium sulphate screed offers the fastest installation (7-day curing) and conductivity of 2.2 W/mK, while traditional sand-cement screed (1 W/mK) requires 28 days. Pour screed to a minimum 65mm depth over tubing–excess thickness increases response time. Reinforce with steel mesh if spanning weak points, such as joist gaps or heavily trafficked areas.

Pump and Control Systems

Choose a variable-speed pump with a head pressure of 3–6 meters to overcome friction losses in typical 70–100m loops. Pair it with a buffer tank (minimum 5 litres per kW of output) to prevent short cycling and maintain stable flow. Install zone actuators to modulate individual loop temperatures based on room demands–programmable thermostats should integrate with weather compensation controls for outdoor reset functionality. Use high-limit aquastats to cut pump power if return temperatures exceed 50°C, protecting tubing integrity.

Avoid plastic spacing clips beneath manifolds; instead, mount on galvanized steel brackets anchored to the wall. This eliminates vibration noise and ensures long-term positional stability. Include isolation valves on each loop for maintenance–full-port ball valves offer minimal pressure drop. For multi-storey setups, incorporate differential pressure bypass valves to balance flow between floors automatically.

Test loops at 1.5 times operating pressure (minimum 6 bar) for 24 hours before covering tube. Use air-free water or glycol mixture in colder climates; 25% propylene glycol solution prevents freezing to -12°C. Calibrate flow meters to within ±5% of target flow rate–visual indicators in transparent housings simplify commissioning. Finalize by backfilling manifolds with inhibititor to reduce internal corrosion risks.

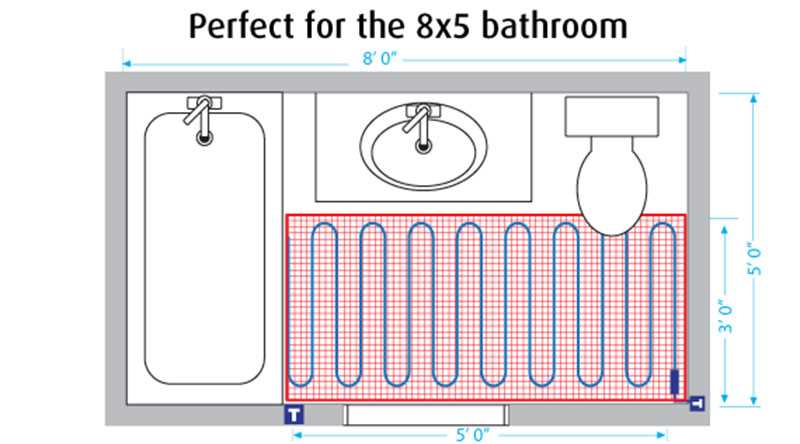

Planning a Single-Zone Hydronic Floor Layout

Start by calculating the required pipe length per square meter–typically 3.5 to 5 meters for optimal thermal distribution in a standard screed installation. Use 16mm PE-X or PE-RT tubing spaced 150mm apart for rooms up to 20m²; reduce spacing to 100mm for larger areas or high heat-loss zones like conservatories. Map the run from the manifold outward in a serpentine pattern, keeping the loop length under 100 meters to prevent excessive pressure drop. Avoid sharp bends (minimum 5x pipe diameter radius) and crossings over expansion joints, which must be bridged with sleeves.

Key Manifold and Control Integration

Position the manifold centrally to balance flow, equipping it with a mixing valve set to 35–45°C for floors with tile or stone, or 28–32°C for wood or carpeted surfaces. Install a pump capable of 2–3 meters head pressure for a 120m loop, using a differential pressure bypass to maintain flow if zone valves close. Integrate a room thermostat (preferably wireless) with a 0.5°C hysteresis to prevent rapid cycling, and include an outdoor reset sensor to modulate supply temperature based on ambient conditions. Label each pipe run with flow direction and zone identifier using heat-resistant tags.

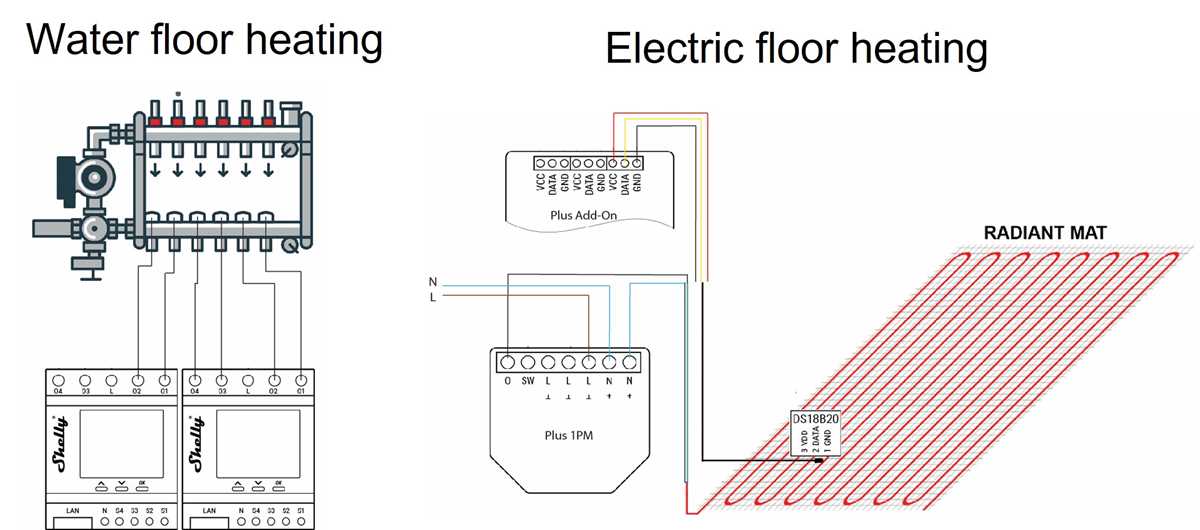

Step-by-Step Wiring for Manifold and Thermostat Connections

Locate the manifold’s power supply terminals–typically marked L (live), N (neutral), and G (ground). Verify voltage with a multimeter (220–240V for EU, 120V for US). Connect the mains cable to the manifold first, securing strands tightly under terminal screws. Use 2.5mm² wire for 16A circuits, downgrading gauge only if manufacturer permits.

• Strip insulation 8–10mm from wire ends–excess bare conductor risks shorting against adjacent terminals.
• Loop wire clockwise around screws to prevent expulsion during tightening.
• Torque screws to 1.2Nm (use a calibrated screwdriver) to avoid thread stripping.

Route actuator wires (usually 4–5 per zone) from the manifold’s lower terminals to the designated thermostat slots. Match wire colours to zone labels–red/common, blue/neutral, black/switched live. For daisy-chained setups, twist same-colour ends together before inserting into terminal blocks to maintain polarity consistency. Keep runs under 30m per zone to prevent voltage drop.

Each thermostat requires a dedicated neutral (blue) and switched live (black) for power, plus a signal wire (often yellow or white) connecting back to the manifold’s actuator control board. Terminate signal wires individually–never splice–into the actuator’s micro-terminals (max current: 1A). Label every wire end with shrink tubing before crimping to avoid miswiring.

1. Pair the thermostat’s power wires (L, N) with the manifold’s supply terminals–ensure GFCI protection if circuits serve wet areas.
2. Attach the signal wires from each thermostat to the corresponding actuator channel (e.g., T1 to Actuator 1).
3. Configure thermostat dip switches: set heating mode (typically closed on call), hysteresis (±0.5°C default), and cycle delay (3–5 minutes to prevent actuator burnout).

Test continuity with a multimeter set to resistance mode–actuators should click and resistances drop when thermostats call for heat. Verify 0Ω across closed contacts. Energise the system in stages: first the manifold, then one thermostat at a time. Monitor actuator LED indicators (steady green = ready; flashing amber = fault). If any zone fails to engage, recheck signal wire polarity and thermostat settings before debugging mains supply.
