USB C Wiring Layout and Pin Configuration Schematics Guide
Begin with the power delivery (PD) negotiation lines. The CC (configuration channel) pins–typically labeled CC1 and CC2–must be connected to a 5.1kΩ pull-down resistor to ground. This pulls the voltage below 0.25V to signal a downstream-facing port (DFP) or host device. Omit this step, and the port won’t negotiate voltage beyond 5V, crippling fast-charging capabilities. For dual-role ports, include a 10kΩ pull-up resistor to a 3.3V or 5V source on one CC pin; rotate this resistor between CC1 and CC2 when switching roles.
Route the VBUS and GND traces with 2oz copper thickness. A standard 24-pin Type-C receptacle carries up to 5A at 20V (100W), requiring VBUS traces at least 4mm wide on outer layers or 6mm on inner layers. GND planes should mirror VBUS width, or use multiple vias to distribute current. Avoid daisy-chaining VBUS; instead, fan out directly from the connector to the power source. Thermal reliefs on VBUS pads will weaken current capacity–omit them for high-power designs.
Differential pairs demand controlled impedance. SuperSpeed lanes (TX1/RX1, TX2/RX2) must maintain 90Ω differential impedance (±10%). Use 0.1mm wide traces spaced 0.2mm apart on a 0.15mm dielectric (FR-4 4-layer stackup). Route pairs length-matched within 0.15mm; serpentine traces if necessary. Keep pairs at least 0.5mm from vias or plane edges to avoid crosstalk. Decouple each lane with a 0.1µF capacitor placed within 2mm of the connector pads to filter high-frequency noise.
Ground referencing is non-negotiable. Split the ground plane into analog and digital sections under the connector, stitching them together with multiple vias. Isolate sensitive signals (e.g., SBU pins) from noisy traces (VBUS, lanes) using guard traces tied to the analog ground. The SBU pins can double as auxiliary channels in audio adapters–route them symmetrically to avoid skew. For EMI compliance, add a common-mode choke (e.g., Wurth 744231111) on the differential pairs before they reach the connector.
ESD protection must clamp before the connector. Place TVS diodes (e.g., Littelfuse SP1003) on VBUS, CC, and SuperSpeed lanes, with clamping voltage below 10V. Connect diode anodes to signal lines and cathodes to ground. Use a 4-layer board with dedicated ESD ground layer beneath the connector to shunt strikes away from sensitive circuitry. Avoid placing components on the back side of the connector; heat during soldering can damage them.
Terminate unused pins systematically. Floating SBU pins invite noise–tie them to ground via 1MΩ resistors. Unused SuperSpeed lanes can remain open, but terminate both ends of each lane with 45Ω resistors to ground or a pull-up voltage if the PHY supports disablement. Never leave VBUS open; connect it to a current-limited 5V source or fuse to prevent back-powering.
Validate with a 3-point test: First, measure CC pin voltage; it should toggle between 0.2V (DFP) and 1.8V (UFP) during role negotiation. Second, verify VBUS rises to negotiated voltage (5V-20V) within 300ms of cable insertion. Lastly, scope differential pairs for eye patterns–amplitude must exceed 800mV peak-to-peak with
Demystifying Type-C Connector Schematics
Begin by identifying the Power Delivery (PD) controller IC–typically a TPS6598x, CYPDxxxx, or STM32G0 series. This IC governs negotiation protocols and power states, interfacing directly with the CC pins (CC1/CC2) via 5.1kΩ pull-down resistors on the downstream-facing port (DFP) or 10kΩ pull-up resistors on the upstream-facing port (UFP). Omit series resistors on CC lines only if the controller includes integrated termination; otherwise, use 0.1% tolerance resistors to prevent miscommunication.
| Pin | Function | Typical Voltage (DFP) | Termination |
|---|---|---|---|
| A5/B5 (CC1/CC2) | Channel Configuration | 0.2V–1.2V | Pull-down/up 5.1k/10kΩ |
| A4/B4 (SBU1/SBU2) | Sideband Use | 0V–3.3V | None (or 10kΩ pull-down) |
| A8/B8 (VBUS) | Main Power Rail | 5V–20V | None (protection via TVS) |
Route VBUS through a bidirectional TVS diode (e.g., SMF5.0A) rated for the maximum expected voltage (24V for 20V profiles) before any load or ESD protection IC. Place 100nF decoupling capacitors as close as possible to the connector’s VBUS pins–minimum two per pin pair–to suppress high-frequency noise from switching regulators. Avoid daisy-chaining capacitors; each pair should have a direct path to ground plane.
For high-speed data lanes (TX/RX pairs), maintain impedance control at 90Ω differential (±10%) using stripline or microstrip topology on a four-layer PCB (top-signal, GND, power, bottom-signal). Use 0.1mm trace width with 0.2mm spacing for 10Gbps+ operation. Insert common-mode chokes (DLW21SH501XK2L) on each pair within 10mm of the connector to filter EMI; omit series capacitors or resistors that degrade signal integrity.
SBU pins (A4/B4) support alternate modes like DisplayPort. When unused, tie them to ground via 10kΩ resistors to prevent floating inputs. For active configurations, route through level shifters (TXS0104E) if interfacing with 1.8V logic ICs. Verify signal swings with an oscilloscope; tolerances beyond ±0.2V from VDD/2 may trigger false mode detection.
Implement overcurrent protection on VBUS using a current-sense amplifier (e.g., INA226) with a shunt resistor (P-channel MOSFET (AO3400A) on the high side when current exceeds 5A (for 20V/5A profiles). Ensure the MOSFET’s VGS threshold is compatible with the controller’s gate drive (3.3V–5V logic).
Validate the schematic with a USB-IF PD protocol analyzer (e.g., Total Phase Beagle USB 480). Test all power profiles (5V/3A, 9V/3A, 15V/3A, 20V/5A) and cable orientations; CC pin voltage should stabilize at 0.4V–1.2V for DFP and 0.8V–2.4V for UFP. Log capacitance on VBUS pins–a value above 1μF per 100mm² may violate USB-C specifications and cause handshake failures.

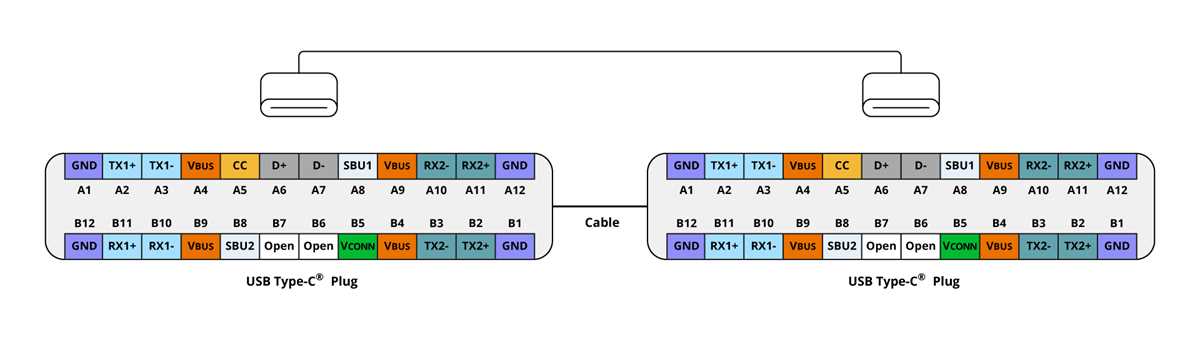

Key Components of a USB-C Connector Pinout
Prioritize verifying the power delivery (PD) pins–VBUS (A4, A9, B4, B9) and GND (A1, A12, B1, B12)–before evaluating signal integrity. Voltage levels fluctuate between 5V (default) and 20V (negotiated via PD protocol), making proper coupling capacitors (10µF near VBUS pins) critical to suppress transients. Mismatches here risk underpowering or frying attached devices.
Signal and Communication Lines
- SuperSpeed pairs (TX1/RX1, TX2/RX2): Differential pairs
A2/A3 (TX1+/−),B10/B11 (RX1+/−), and secondary pairsA10/A11 (TX2+/−),B2/B3 (RX2+/−)demand strict impedance control (90Ω ±10%). Use 0.1µF AC-coupling capacitors on each lane to block DC offset and maintain signal fidelity up to 10Gbps (USB 3.2 Gen 2). - CC (Configuration Channel): Pins
A5(CC1) andB5(CC2) govern cable orientation detection and PD negotiations. Pull-down resistors (5.1kΩ to GND) on disconnected CC lines prevent false triggers, while a 1µF capacitor stabilizes communication. Omit these and risk erratic charging or data dropouts. - SBU (Sideband Use): Pins
A8andB8enable alternate modes (e.g., DisplayPort, Thunderbolt). Terminate both with 50kΩ pull-up resistors to VBUS if unused to avoid interference. Active protocols require dedicated ICs (e.g., TPS65987) for hot-plug detection.
Isolate the D+ (A6) and D− (A7) pins for legacy compatibility. These support USB 2.0 (480Mbps) when SuperSpeed lanes are inactive. Use 15kΩ pull-down resistors on both to prevent floating states, and ensure traces are ≤60mm long to avoid signal degradation. Neglecting this causes enumeration failures in older peripherals.
- Test VBUS and GND continuity with a multimeter at 1A load before soldering connectors.
- Validate CC pin behavior with an oscilloscope during plug/unplug cycles; expected voltage ranges: 0.25V–2.05V (detached), 0.4V–3.3V (attached).
- For high-current designs (>3A), double the VBUS/GND pins’ trace width to 1.5mm (~2oz copper) and add thermal vias under the connector to dissipate 5W+ loads.
Step-by-Step Guide to Assembling Power Delivery Connections
Begin by identifying the PD (Power Delivery) controller IC–common choices include the FUSB302, STUSB4500, or TPS65987. Solder the IC to a prototyping board with a minimum 4-layer stackup to ensure stable power planes and signal integrity. Verify the recommended footprint from the datasheet; incorrect pad spacing can cause shorts during reflow.
Connect the CC (Configuration Channel) pins to pull-down resistors (5.1kΩ for UFP, 10kΩ for DFP). These resistors define the port’s role–source or sink–and must match the PD negotiation protocol. Route the CC lines as differential pairs with controlled impedance (90Ω ±10%) to prevent signal degradation. Bypass capacitors (0.1µF and 1µF) should be placed within 2mm of the IC’s power pins to filter high-frequency noise.
High-Voltage Power Path Construction
For 20V/5A delivery, use a buck-boost converter with a 6A-rated MOSFET (e.g., SI7860). The input capacitor (22µF, 35V X7R ceramic) must handle the voltage ripple; place it adjacent to the converter’s input terminal. Add a current-sense resistor (5mΩ, 1% tolerance) in series with the power path–this enables overcurrent protection. Route the high-current traces (80 mils minimum width) on outer layers to reduce resistive losses.
Integrate a gate driver (like the DRV8323) to manage the MOSFET switching. The driver’s bootstrap capacitor (0.1µF) must be low-ESR and positioned near the driver’s VBOOT pin. Configure the PWM signal from the microcontroller (3.3V logic) with a dead-time of 50–100ns to prevent shoot-through. Test the switching waveform with an oscilloscope; ringing above 10% of the target voltage indicates poor layout or inadequate decoupling.
Safety and Validation Protocols
Add a TVS diode (e.g., SMAJ18A) across the VBUS line to clamp transient voltages. Place a PTC resettable fuse (6A trip current) in series with VBUS to protect against sustained overcurrent. For galvanic isolation, use an optocoupler (e.g., PC817) between the microcontroller and PD controller–this prevents ground loops in multi-board systems. Validate the setup with a USB PD analyzer; ensure the port negotiates to the desired voltage (5V, 9V, 15V, or 20V) within 300ms of connection.
Monitor thermal performance: the MOSFET’s junction temperature should not exceed 125°C under full load. Use a thermocouple to measure the heatsink or PCB copper pour temperature. If exceeding 80°C, increase copper area or add thermal vias. For EMI compliance, shield the buck-boost converter with a grounded copper pour and route sensitive traces away from switching nodes. Finalize by checking compliance with IEC 62368-1; failures typically stem from missing shielding or improper grounding.
