Build Your Own USB MP3 Player Step-by-Step Circuit Guide
For a minimalist audio playback module, integrate an ATmega328P microcontroller with a VS1003 or VS1053 codec chip for compressed file decoding. Power input should range between 3.3V–5V, regulated via an AMS1117-3.3 or equivalent LDO. Data storage requires a microSD slot (SPI interface) with FAT32 support, paired with a 24MHz crystal oscillator for clock stability.
Signal amplification demands a PAM8403 Class-D amplifier, ensuring ≥3W output at 4Ω impedance. Volume control can be achieved through a rotary encoder with integrated push-button, reducing component count. For file navigation, implement three tactile switches (play/pause, next, previous) debounced in firmware to avoid false triggers.
Critical connections include MOSI, MISO, SCK, and CS lines for SPI communication between the microcontroller, codec, and SD card. Ground isolation between analog and digital sections prevents noise coupling, typically addressed with a pi-filter (10µF + ferrite bead) on the power rail. Test points for SCLK, LRCK, and DATA signals simplify debugging during PCB assembly.
Avoid using electrolytic capacitors for coupling; opt for ceramic 1µF alternatives to eliminate DC offset. The VS10xx series requires a 150Ω resistor on the XRESET pin for proper initialization. For EMI compliance, route high-speed traces (≥50MHz) as short strips with matched impedance, referencing ground planes throughout.
Firmware must parse ID3 tags and handle variable bitrate (VBR) files efficiently–account for buffer underruns by preloading 512-byte chunks into RAM. Open-source libraries like Arduino’s VS1053 or STM32 Cube HAL accelerate development but verify their timing constraints for real-time audio playback.
Designing a Compact Audio Playback Schematic
Select a microcontroller with integrated DAC support, such as the STMicroelectronics STM32F4 series or the Espressif ESP32, to handle audio decoding without external chips. These controllers offer 16-bit resolution I2S output, sufficient for most portable applications, and include built-in USB PHY for file transfer at 480 Mbps. Verify compatibility with FAT32 filesystem libraries like FatFs to ensure reliable storage access on SD cards or flash memory up to 64 GB.
For audio amplification, use a class-D amplifier module like the PAM8403 or MAX98357A, which provides 3 W output per channel at 4 Ω impedance with 90% efficiency. Below is a component pairing recommendation:
| Function | Component | Key Specifications |
|---|---|---|
| Processing Core | STM32F405RG | 168 MHz Cortex-M4, I2S, 1 MB Flash |
| Audio Decoder | VS1053B | Ogg Vorbis/MP3/WMA, SPI interface |
| Power Regulation | TPS62743 | 3.3 V, 300 mA, 90% efficiency |
| Storage | MicroSD Card | Class 10, FAT32 |
Route power traces separately from signal lines, using 20 mil width for ground paths and 10 mil for VCC to minimize noise. Decouple the microcontroller with 0.1 µF ceramic capacitors nearest to each VDD pin and a 10 µF tantalum capacitor for bulk stabilization. For the PAM8403, add a ferrite bead (e.g., BLM18PG121SN1) between the amplifier’s power input and the main 3.3 V supply to block high-frequency noise.
Implement a dual-pole LC filter on the amplifier output with a 22 µH inductor and a 470 µF capacitor to suppress switching noise before the 3.5 mm audio jack. Test signal integrity with an oscilloscope at 1 kHz sine wave; total harmonic distortion should remain below 0.1%. For firmware, use DMA-driven I2S transfers to free CPU cycles for filesystem operations, ensuring glitch-free playback at 44.1 kHz sample rate.
Core Elements in Portable Audio Decoder Blueprints
Select a microcontroller with dedicated audio processing capabilities, such as the STM32F4 series or ESP32-WROVER. These units integrate DACs (digital-to-analog converters) with 16-bit resolution or higher, reducing the need for external components. Prioritize models offering I2S or PCM interfaces–critical for seamless audio data streaming without latency. Check flash memory specs: 512KB provides enough headroom for firmware, playback controls, and basic UI logic, while 1MB or more allows additional formats like FLAC or OGG.
For storage, opt for a microSD card slot with SDIO interface speeds (up to 100 MHz) over slower SPI alternatives. This ensures fluid track switching and minimal buffering, especially when handling high-bitrate files. Avoid generic card reader ICs; instead, use purpose-built controllers like the GL823 or VL817–these support card detection, voltage switching, and error correction with minimal firmware overhead. Ensure the chosen microcontroller includes DMA (Direct Memory Access) to offload data transfers from the CPU core.
Critical passive components often overlooked include:
- Low-noise LDO voltage regulators (e.g., TPS7A4700) to stabilize power rails for analog sections
- Ferrite beads or inductors (470Ω @ 100 MHz) on power lines to suppress high-frequency noise
- Decoupling capacitors: 10µF X5R ceramic near IC supply pins, plus 0.1µF per VCC/AVCC pair
- Precision resistors (0.1% tolerance) for I/V converters and feedback loops in amplifier stages
Amplification demands careful matching. Class D mono amplifiers (e.g., PAM8403) deliver 3W into 4Ω with 90% efficiency but require LC output filters to mitigate EMI. For low-power designs, Class AB bridged load amplifiers (e.g., TDA2822) simplify circuitry but draw more quiescent current. Incorporate a headphone jack with automatic impedance detection–use a dedicated IC like TPA6130A2 to prevent DC offset damage to sensitive drivers, or implement discrete transistors in a common-collector configuration for higher output current.
Signal routing prioritizes separation of digital and analog grounds. Use a star-topology grounding scheme at a single point near the power input, with separate traces for return paths of mixed-signal ICs. Clock signals (MCLK, BCLK, LRCK) demand controlled impedance traces (50Ω) and minimal vias; route alongside solid ground planes to reduce jitter. Include ESD protection diodes (e.g., PRTR5V0U2X) on exposed ports–USB, card slots–to handle contact discharge events up to 8 kV without damaging downstream ICs.
Step-by-Step Assembly of Audio Decoder Module
Begin by verifying the board’s power requirements–most compact decoder units operate at 5V DC. Use a regulated power supply with a current rating of at least 500mA to prevent voltage drops during operation. Solder the input power connector first, ensuring correct polarity; reverse polarity will damage the microcontroller. If the board lacks a fused input, add a 1A polyfuse to protect against short circuits.
Attach the storage interface next. For microSD slots, align the connector precisely–misalignment causes intermittent read errors. Secure it with a low-temperature soldering iron to avoid melting adjacent components. For flash memory chips, verify pin assignments against the datasheet; swapping data and clock lines renders the module inoperable. Apply flux to improve solder flow and reduce bridging risks.
Install the DAC (digital-to-analog converter) last–handle it with ESD precautions. Match the IC orientation to the silkscreen markings; reversing it requires desoldering, which risks pad lift. Use a thin gauge wire to connect any missing pull-up resistors (typically 10kΩ) on the I²S lines if not pre-populated. Test continuity between the DAC output and the line-out pads before proceeding.
- Check ground plane integrity–scratch through solder mask on large pads to ensure solid grounding for noise-sensitive audio paths.
- Use shielded cables for analog outputs to minimize interference from the switching regulator.
- If the board includes a headphone amplifier, confirm its gain setting–default is usually 1x; higher gains may require input attenuation.
Before powering on, probe critical points with a multimeter:
- Input voltage at the regulator (5V ±0.2V).
- 3.3V rail for logic components (stable, without ripple).
- Ground continuity from DAC to output jack.
Any deviation indicates solder defects or component failure.
Finalize assembly by mounting the module in an enclosure drilled for connectors. Secure all cables with zip ties to prevent strain on solder joints. Power up while monitoring current draw–nominal consumption is 150–250mA; higher values suggest a short. Load test tracks via the storage medium; distortion or dropouts point to incorrect I²S timing or faulty DAC configuration.
Power Delivery Solutions for Compact Audio Devices

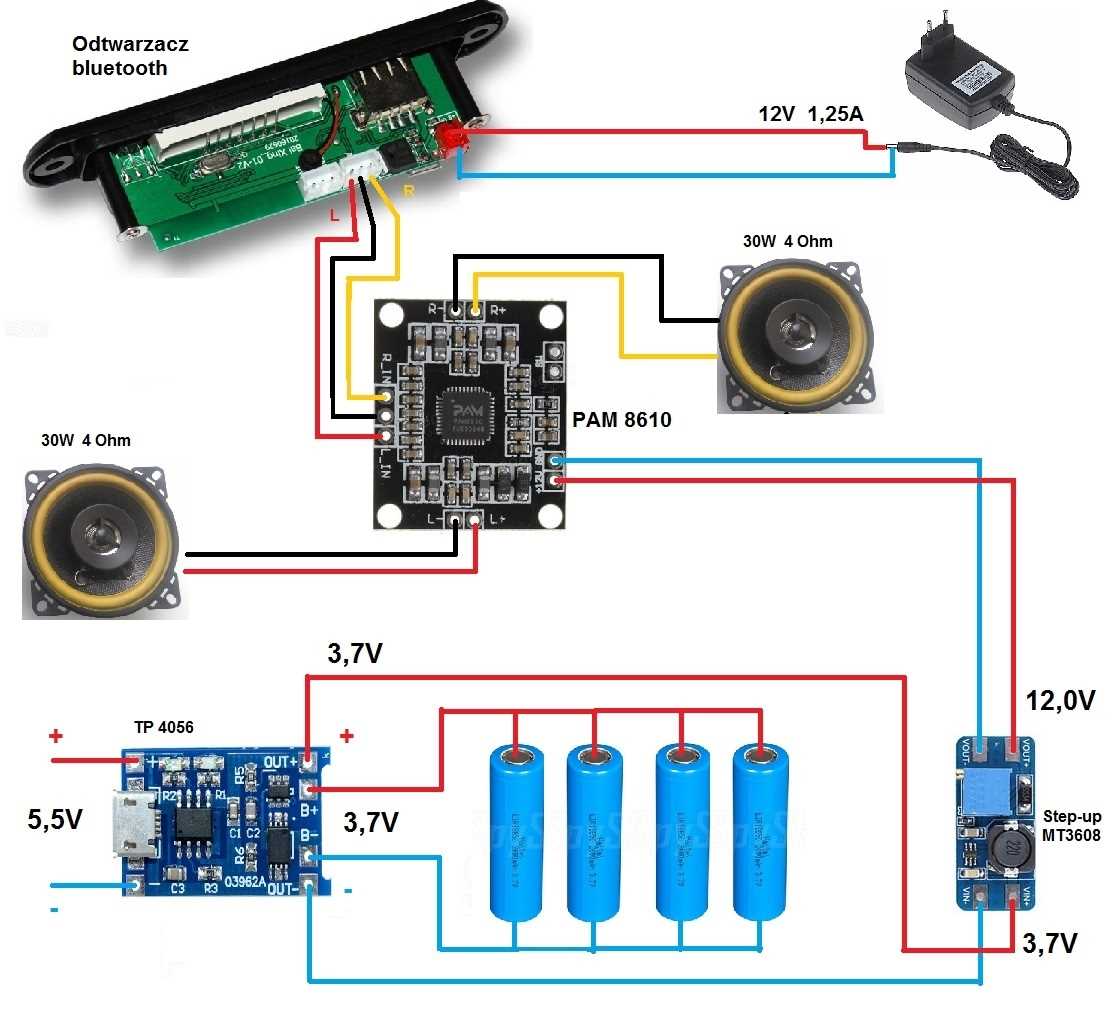

For portable sound units requiring 3.7V lithium-ion cells, implement a TP4056 charge controller module with integrated overcurrent and thermal protection. This IC handles 1A input and includes cell balancing for safe charging cycles, crucial for preventing battery degradation during rapid power delivery. Pair it with a 1N5817 Schottky diode to prevent reverse current flow when the external source disconnects, ensuring stable voltage during playback.
Low-dropout linear regulators like the MCP1700 provide cleaner power for sensitive audio components while dissipating minimal heat. Configure it with a 1µF ceramic capacitor on both input and output terminals to maintain stability under load transients. The MCP1700’s dropout of only 178mV at 250mA makes it ideal for squeezing maximum runtime from batteries with shrinking charge capacity.
Avoid power source switching issues by adding a prioritization mechanism using two SS34 Schottky diodes. This setup allows dual-input operation (battery and external supply) without cross-conduction, essential for uninterrupted operation during input changes. Include a 10kΩ resistor to ground on the priority node to ensure crisp switching transitions and eliminate floating voltage conditions.
For rechargeable cells exceeding 2000mAh capacity, integrate coulomb counting via the MAX17043 fuel gauge IC. This provides 1% accuracy in remaining charge estimation, critical for preventing sudden device shutdowns. The MAX17043 communicates via I²C, enabling real-time power management adjustments based on usage patterns.
High-current applications demand a step-up converter like the MT3608, configured for 5V output with an inductor valued between 4.7µH and 10µH. Match the inductor’s saturation current to the device’s maximum draw, typically 2A for compact units. Add a 22µF output capacitor to suppress voltage ripple below 10mVpp, preserving audio fidelity during peak demands.
Always include polyfuse resettable fuses sized at 150% of the maximum expected current draw. These provide fail-safe protection against sustained overcurrent conditions without requiring manual reset. For battery-powered units, add a 3mm tactile switch for forced hard reset when software-controlled power management fails, ensuring recovery from non-responsive states.
