Complete Guide to Building a Vacuum Tube Amplifier Circuit Layout
Start with a single-ended triode (SET) configuration for minimal distortion and a warm harmonic signature. Use an EL34, 6L6GC, or KT88 in class A mode for outputs between 15–50 watts, ideal for guitar preamps or high-efficiency speakers. Power transformer ratings must exceed the tube’s maximum dissipation–300–400V primary, 6.3V/5A secondary for heaters–with a 5H choke to smooth rectified current and reduce ripple to below 0.1V RMS. Ground the chassis via a star connection to avoid earth loops, especially in push-pull designs.
For frequency response shaping, employ a RC-coupled stage with a 1MΩ grid resistor and 0.1µF coupling capacitor, targeting a 3Hz–50kHz bandwidth at -3dB. Bias the stage using fixed bias via a -40V to -80V grid supply or a cathode resistor with bypass capacitor (typically 220µF/100V) for self-biasing. Match tube pairs within ±5% plate current in push-pull topologies to prevent asymmetrical clipping and DC offset at the output transformer. Use Mumbetal cores for the output transformer to minimize hysteresis losses at 20Hz–20kHz.
Rectification demands a solid-state bridge or GZ34/VR tube, paired with first-order LC filtering (10H choke + 47µF capacitor) to drop ripple below 0.5V under full load. Stiffen the B+ rail with a 500µF/450V electrolytic across the first capacitor to handle transient current spikes, particularly in pentode stages. Test each stage’s idle current with a 10Ω resistor in series with the cathode and monitor voltage drop–100mV per watt is a safe baseline. Use silver-mica capacitors for high-frequency stability and polypropylene film types for coupling to preserve phase integrity.
Key Schematics for Tube-Based Audio Designs
Begin with a classic Class A single-ended topology using an EL34 or 6L6GC output stage. Ensure the power supply delivers 250–350V DC with minimal ripple–use a choke-input filter (10H, 200mA) paired with 470μF electrolytic capacitors. The bias circuit must include a 1kΩ potentiometer in series with a 1W resistor for precise adjustment; target -30mA to -50mA idle current.
For preamplification, select a 12AX7 or ECC83 in a common cathode configuration. Maintain a plate load resistor between 100kΩ–220kΩ and a bypass capacitor (0.22μF–1μF) to shape frequency response. Include a grid stopper resistor (1kΩ–4.7kΩ) near the tube socket to prevent parasitic oscillations. To avoid microphonics, use suspended sockets with high-quality silver-mica coupling capacitors (0.1μF, 600V).
- Phase splitter: Implement a long-tailed pair with 12AT7, ensuring symmetrical drive to push-pull stages. Use a 1MΩ tail resistor and matched plate resistors (22kΩ–47kΩ) for balance.
- Feedback loop: If applying global feedback, limit the network to -6dB–-12dB to preserve harmonic integrity. Calculate resistor values (start with 22kΩ input, 1kΩ feedback) using the formula
Rf = Rin / (10^(dB/20) - 1). - Power transformer: Specify secondary windings for 300V CT (120mA), 6.3V (3A), and 5V (2A) for rectifier filaments. Use a Hammond 274BX or custom-wound toroidal core.
For layout, keep high-impedance nodes (grid circuits) short and shielded. Ground all chassis points to a single star point near the first filter capacitor. Use twisted-pair wiring for heater supplies to minimize hum; elevate the reference to 50–100V DC using a voltage divider if necessary. Test for stability with a square wave input–ringing at 10kHz indicates excessive phase shift or poor grounding.
Key Components of a Basic Tube Amplifier Schematic
Select vacuum tubes based on desired tonal characteristics: 12AX7 for preamplification stages, EL34 for power output in guitar setups, and 6L6 for cleaner, higher-headroom performance. Match tube types to the intended application–distortion pedals benefit from higher-gain triodes like ECC83, while hi-fi designs demand lower-noise options such as 6DJ8.
Power transformers must handle the total B+ voltage with a 20% overhead to prevent saturation. For a 300V B+ supply, specify a transformer rated for at least 360V RMS. Core material matters: grain-oriented silicon steel reduces hysteresis losses, critical for maintaining consistent frequency response. Always include secondary windings for filament voltage–typically 6.3V AC for indirectly heated cathodes.
- Capacitors in the signal path dictate tonal shaping. Paper-in-oil types (e.g., Jensen) excel in midrange clarity, while polyester capacitors introduce slight compression, useful for taming harsh transients. First-stage coupling capacitors should be 0.1µF to 0.47µF for full-range audio, but reduce to 0.047µF for bass-heavy or guitar applications to roll off undesirable high-frequency noise.
- Resistors in the plate and grid circuits set gain structures. Carbon composition resistors (e.g., Allen-Bradley) add subtle harmonic warmth but drift with temperature; metal film types offer stability but may sound sterile. Grid leak resistors should be 1MΩ to 2.2MΩ–lower values increase input impedance, reducing capacitive loading on source components.
- Bypass capacitors across cathode resistors (typically 25µF to 100µF) determine low-frequency response. Omission flattens bass response but introduces negative feedback, tightening transient response. For guitar designs, bypass partially (e.g., 50% of the resistor value) to retain dynamic touch sensitivity.
Biasing and Power Supply Considerations
Fixed-bias configurations require precise adjustment: target 60% to 70% of maximum plate dissipation for EL34 tubes, measured via a bias probe or clamp-on meter. Self-biasing (via cathode resistor) simplifies design but reduces efficiency–30% to 50% less output power compared to fixed bias. Always include a bias adjustment pot (typically 50kΩ) with a 100kΩ series resistor to prevent accidental zero-bias conditions, which can destroy tubes.
Rectifier tubes (e.g., 5AR4/GZ34) introduce voltage sag, softening transients. Solid-state diodes eliminate this effect but may sound harsh; add a small resistance (10Ω to 50Ω) in series to replicate the tube rectifier’s dynamic compression. For dual-rail supplies, use separate windings for positive and negative rails to avoid crosstalk–critical for phase splitter stages like the long-tailed pair.
- Reservoir capacitors (electrolytic) smooth B+ ripple. Minimum values: 47µF per 1W of amplifier output; exceeding 220µF risks exceeding surge current ratings of rectifier tubes. Snubber capacitors (0.1µF polypropylene) across diodes reduce HF noise from switching.
- Choke-input filters reduce hum but occupy space. Specify chokes with inductance ≥10H for 100mA current handling. Air-core types avoid saturation but radiate magnetic fields–shield with mu-metal if placed near signal paths.
- Bleeder resistors (100kΩ to 200kΩ, 2W) discharge filter capacitors when powered off. Omission poses electric shock hazards and accelerates capacitor leakage current over time.
Layout and Grounding Practices
Avoid daisy-chaining ground returns. Use a star-ground topology, connecting all grounds at a single point near the first filter capacitor. Separate high-current grounds (heater, cathode) from signal grounds (grid, input) to prevent hum induction. For printed circuits, dedicate a ground plane on the reverse side, breaking it only at sensitive nodes (e.g., grid circuit) to avoid ground loops.
Input jacks should connect via shielded cable (cloth-braided for vintage aesthetics, or coax for modern builds). Keep input traces short–exceeding 3cm introduces parasitic capacitance, dulling high frequencies. Output transformers require symmetry: center-tap the secondary for single-ended designs, or use separate bobbins for push-pull configurations. Mount transformers perpendicular to power transformers to minimize electromagnetic interference.

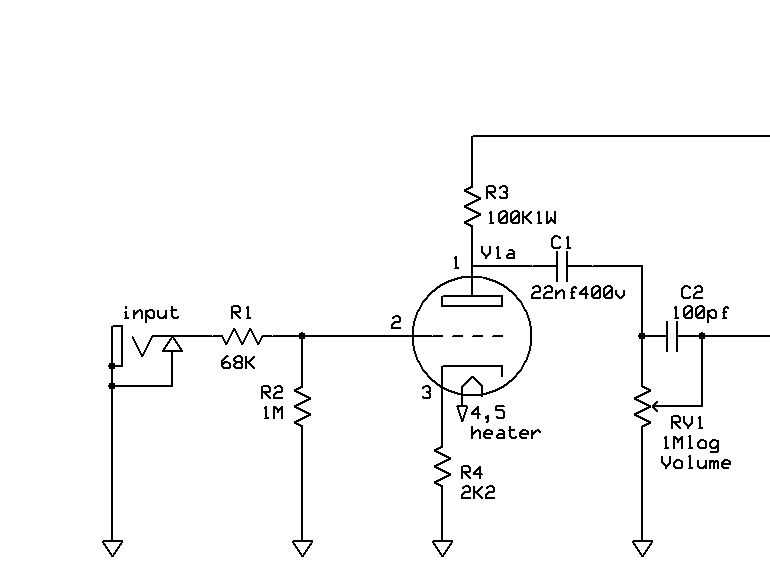

Step-by-Step Guide to Sketching a Single-Ended Triode Schematic
Begin by positioning the vacuum tube centrally on graph paper or a digital drafting tool with a grid overlay–standard spacing for component placement in tube-based designs is 0.1-inch increments. Label the tube’s pins immediately: pin 1 (filament), pin 2 (grid), pin 3 (plate/anode), and the opposing filament pin (typically 4 or 5) for clarity before connecting any elements. Below the tube, sketch a vertical supply rail for high-voltage DC (B+), keeping it at least 1.5 inches from the tube to accommodate decoupling capacitors. Use a dashed line for B+ to distinguish it from signal paths.
Critical Component Placement
| Component | Value/Type | Position Relative to Tube | Connection Notes |
|---|---|---|---|
| Cathode Resistor | 1.5kΩ–2.7kΩ (adjust for bias) | Directly beneath pin 2 (grid) | Connect to ground via bypass capacitor (22µF–47µF) |
| Plate Load Resistor | 100kΩ–220kΩ (carbon film) | Vertical, 0.5 inches from pin 3 (plate) | Top end tied to B+, bottom to coupling capacitor |
| Coupling Capacitor | 0.1µF–0.47µF (film or oil-filled) | Between plate resistor and output | Isolate DC from next stage; film types preferred for audio |
| Grid-Leak Resistor | 470kΩ–1MΩ (carbon composition) | Above pin 2 (grid), angled 45° | Links to input source; critical for bias stability |
Wire the filament supply last: use twisted-pair for AC (6.3V RMS) or a dedicated DC source (e.g., 12V with series resistors for current limiting), routing leads perpendicular to signal paths to minimize hum. Add a 10–100µF electrolytic capacitor across the filament pins at the socket as a final step–polarity matters if using DC. For single-ended output, ground the unused transformer winding or place a 1W dummy load resistor (e.g., 8Ω–16Ω) in series with a 100µF capacitor to simulate a speaker. Verify all connections with a continuity tester before applying power: shorts to the chassis or misrouted grid resistors can destroy tubes instantly.
