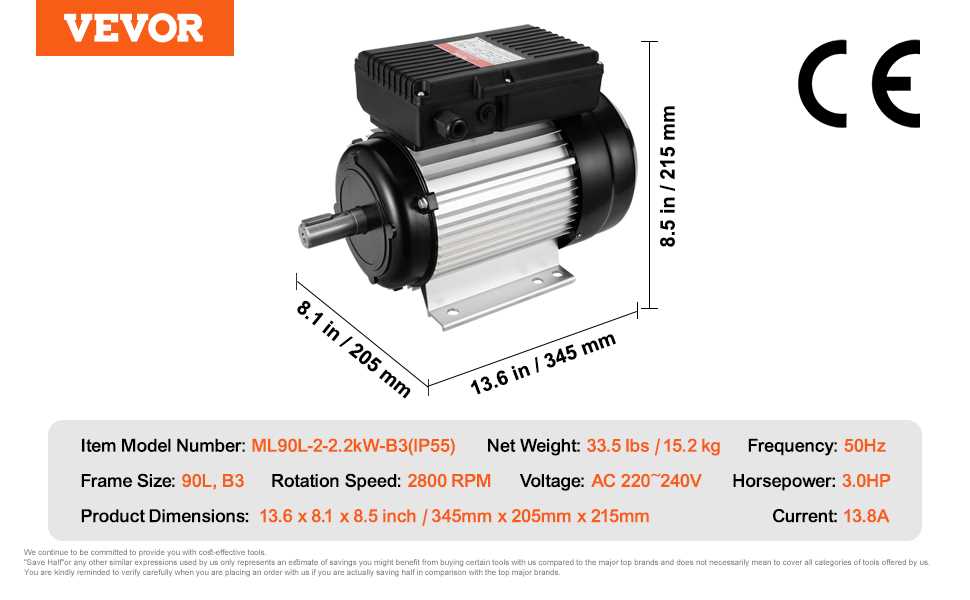

Complete Guide to Vevor Electric Motor Wiring Schematic and Connections

Before attempting any installation, locate the terminal block on the drive mechanism. Most models include clearly labeled connections: L1/L2/L3 for input voltage, U/V/W for output phases, and a grounding point. Verify the voltage rating (typically 110V, 220V, or 380V) on the manufacturer’s plate to avoid mismatches. If the plate shows dual ratings (e.g., 220V/440V), ensure the bridge jumpers match the supplied current.

Use stranded copper wire with a cross-section of at least 1.5 mm² for 1.5 kW units and 2.5 mm² for 2.2 kW or higher. Route conductors through flexible conduit if the assembly operates near moving parts or sharp edges. Secure all joints with crimp connectors and heat-shrink tubing; soldering alone without mechanical clamping risks loosening under vibration. A multimeter set to continuity mode confirms absence of shorts between phases before energizing.

Capacitor-start configurations require an extra relay or centrifugal switch wired in series with the auxiliary winding. Check the switch’s rated current–most fail at 3–5 A if overloaded. For reversible setups, a double-pole double-throw (DPDT) switch or relay between U and V terminals reverses rotation without swapping all three phases. Label cables immediately after testing; diagrams printed on waterproof polyester film resist oil and dust.

Thermal overload protection must be sized to the full-load current listed on the nameplate. Standard bimetallic breakers trip at 120–130% of the rating; adjust the dial accordingly. If ambient temperatures exceed 40°C, reduce the trip setting by 10% or install a separate thermal sensor on the stator windings. Ground the motor frame directly to the main panel, not through piping or machine structures, to prevent stray currents.

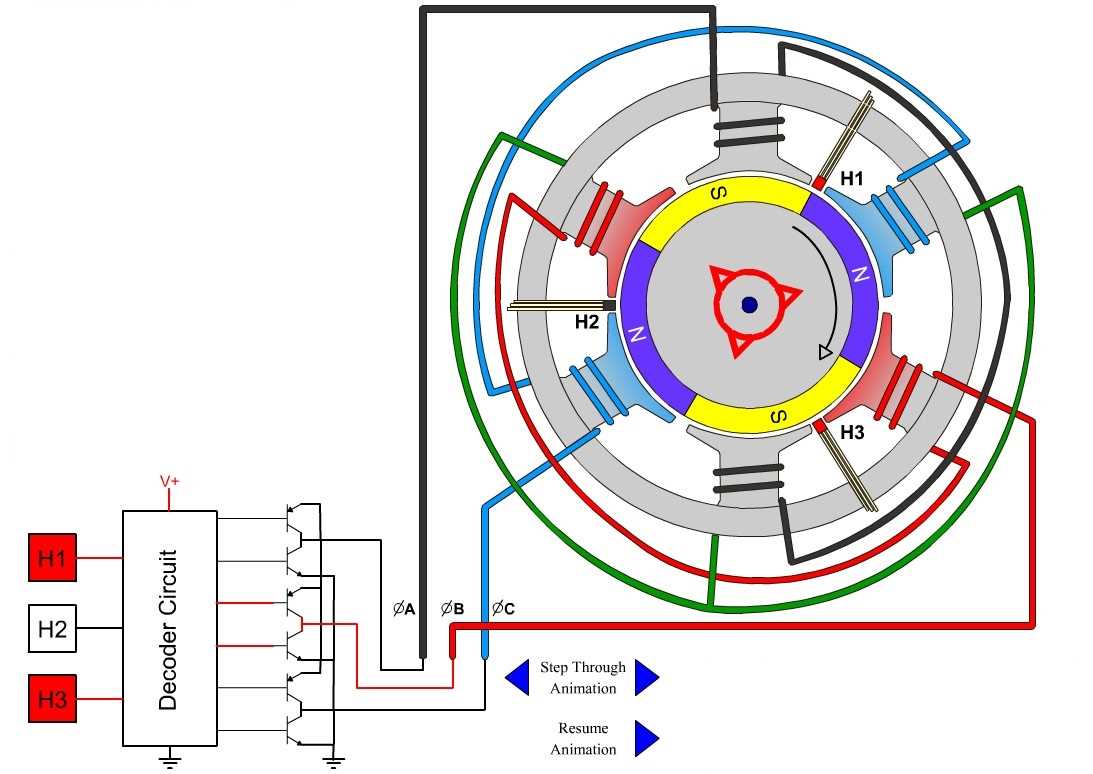

Schematic Layout for Industrial Drive Connections

Start by identifying the terminal box markings–typically labeled U, V, W for three-phase variants or L1, L2 for single-phase setups. Cross-reference these with the manufacturer’s label plate, which specifies voltage (220V/380V), current draw, and RPM. Incorrect pairing leads to reversed rotation; verify phase sequence with a multimeter before securing bolts.

For dual-voltage configurations, locate the bridge jumper–often a copper strip between Z1/Z2 or W2/U2. Remove it only if rewiring for higher voltage (e.g., 380V). Single-phase versions require a run capacitor; match its microfarad rating to the model’s specs (commonly 10–50µF). Mount it directly on the housing, using insulated leads to prevent arcing.

Use 2.5mm² copper wire for 1.5kW units and 4mm² for 3kW or above. Secure connections with crimp terminals and heat-shrink tubing; bare wires risk ground faults. Test continuity between ground terminal and stator casing–readings above 0.5MΩ indicate faulty insulation, requiring immediate replacement of windings.

Reversing direction is done by swapping any two supply leads (e.g., U↔V). For adjustable-speed applications, confirm the controller’s PWM compatibility–Vevor VFDs often default to 0–10V analog input. Calibrate frequency limits to avoid exceeding the rating (e.g., 50Hz locked rotor current). Never skip thermal overload protection; pair with a 1.15× full-load current breaker.

How to Identify Drive Mechanism Terminal Markings and Linkages

Examine the unit’s data plate first–most manufacturers etch standardized abbreviations directly onto the casing. Common labels include “U,” “V,” and “W” for three-phase stator inputs, while single-phase variants often feature “L” (line) and “N” (neutral) alongside a starting capacitor terminal marked “C” or “S.” If the plate is absent or illegible, proceed to the housing inspection.

Locate the junction box–typically a rectangular enclosure secured by two to four screws. Remove the cover to reveal six terminals arranged in two horizontal rows for three-phase setups or three terminals for simpler configurations. Trace each lead back to its origin: the thicker wires usually connect to the stator windings, while thinner leads may serve auxiliary functions like thermal protection or capacitor links.

Decoding Common Terminal Designations

Three-phase drives frequently use “U1,” “V1,” “W1” for incoming power and “U2,” “V2,” “W2” for outgoing connections. Some models reverse this pattern, so cross-reference with the schematic if available. Single-phase models simplify this: “L” accepts the live input, “N” grounds the circuit, and the third terminal–often “Z” or “Aux”–links to the capacitor or centrifugal switch. Dual-voltage units add a fourth terminal labeled “230V” or “460V,” requiring selective bridging for voltage adjustment.

Observe color-coding if present–European standards often assign brown (live), blue (neutral), and green/yellow (earth), while North American models may deviate with black, white, and green. When colors are ambiguous or stripped, use a multimeter in continuity mode: probe each terminal while rotating the shaft manually. The correct stator leads will show near-zero resistance, while capacitor or switch terminals exhibit intermittent contact.

For capacitor-start mechanisms, identify the centrifugal switch connections by their distinct placement–one lead attaches to the capacitor, the other bridges to the stator winding. If the switch is internal, the external terminals will show no direct link to the capacitor; instead, the capacitor will connect directly to the “S” or “C” terminal. Always discharge capacitors before measurement to avoid false readings or hazards.

Check for auxiliary terminals marked “TH,” “BR,” or “96”–these typically connect to built-in thermal protectors or braking resistors. Overlooking these during reinstallation can result in overheating or uncontrolled deceleration. Verify their function by consulting the technical manual–some models integrate these into the primary circuit, while others route them through separate relays.

Reassemble the junction box only after confirming each connection matches the intended configuration. Misaligned linkages–such as swapping “V” and “W” in a three-phase setup–can cause reverse rotation or immediate burnout. For delicate adjustments, use insulated crimp connectors and heat-shrink tubing to prevent shorts from vibration or moisture ingress.

Document each step with photographs or handwritten notes, especially if the original markings are unclear. Include measurements of wire gauge, terminal spacing, and capacitor microfarad values–this data proves invaluable for future troubleshooting or when sourcing replacement components.

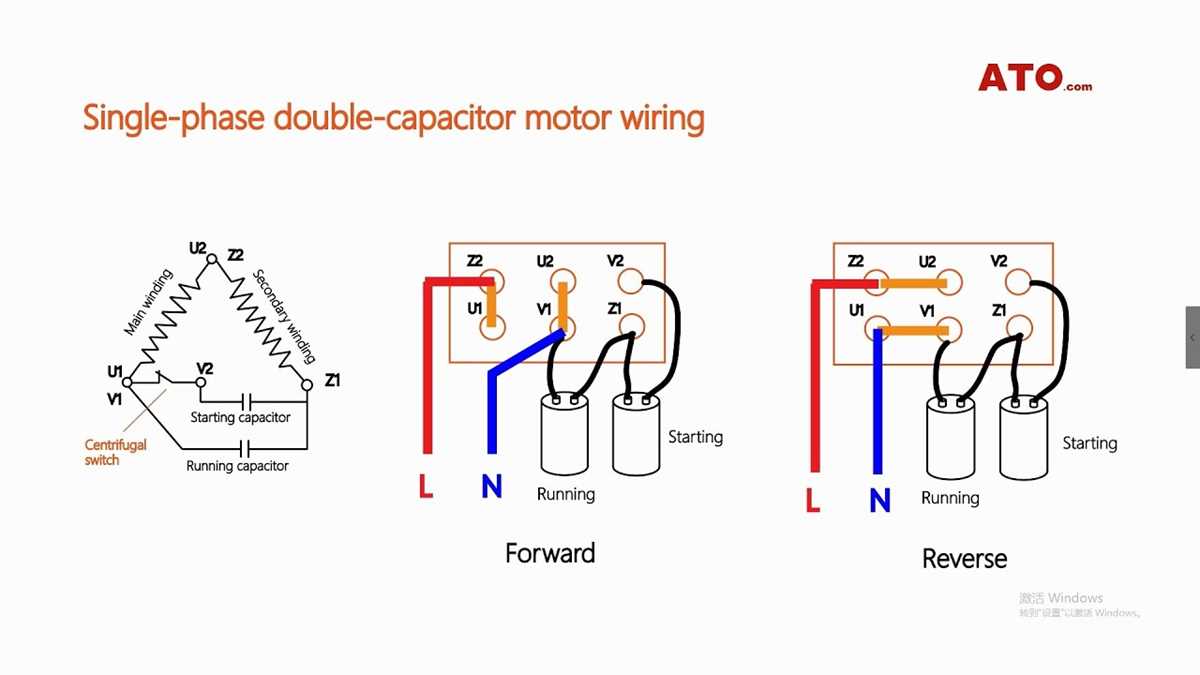

How to Connect Single-Phase Induction Units with Run/Start Components

Identify the main and auxiliary windings on the device’s terminal board. Most compact power sources list them as “U1/U2” (primary) and “Z1/Z2” (secondary). Verify with a multimeter: resistance between U1-U2 will read 3-12 ohms, while Z1-Z2 typically measures 15-60 ohms depending on frame size. Label each terminal clearly before proceeding.

For permanent-split capacitor (PSC) setups, attach one lead of the run capacitor (usually 5-50 µF) directly to the Z1 terminal. Connect the capacitor’s opposite lead to the U1 terminal. Jumper U2 and Z2 together. Power input wires go to U1 (live) and the common jumper (neutral). Check rotation by briefly energizing–adjust leads if direction is incorrect.

Common Pitfalls and Fixes

• Capacitor polarity: Non-polarized types are standard; reverse leads if hum persists.
• Loose connections: Crimp fork terminals to prevent arcing, especially in 230V models.
• Voltage mismatch: Confirm the supply matches the unit’s plate–PS185 variations tolerate ±10%.
• Start capacitors: If present, wire in parallel with the run component; disconnect after spin-up using a centrifugal switch or relay rated for 1.5x full-load current.

Always secure leads with nylon ties after testing–even minor vibration can work hardened copper loose over 12-18 months. Recheck torque specs annually: 2.5 Nm for M4 terminals, 4 Nm for M5.

Diagnosing Frequent Assembly Errors in Powered Mechanisms

Check polarity reversal at terminals first–swap leads if the device rotates backward or fails to start. Most 3-phase units show distinct resistance between phases (typically 0.5–5 ohms); readings outside this range indicate shorted coils or broken connections. For single-phase variants, verify the start capacitor (marked with capacitance in μF): bulging, leakage, or a capacity deviation over 10% signals replacement.

• Inspect brush holders for misalignment–spring tension should compress graphite contacts by 2–3 mm without binding.
• Test thermal overload protectors by applying brief 12V across terminals; absence of a click confirms a faulty switch.
• Examine commutator surfaces under magnification; grooves deeper than 0.2 mm require turning.
• Ensure grounding clips engage the stator frame flush; resistance above 0.1 ohms necessitates cleaning oxide layers.

Thermal imaging reveals hotspots invisible to touch: concentrate on bearing housings, windings, and rectifier plates. Isolate vibrations exceeding 0.15 mm/s RMS–check shaft runout with a dial indicator (

Adjusting Power Supply Configuration for Dual-Voltage Capability (110V/220V)

Locate the metal terminal box on the side of the unit–most models feature a removable cover secured by two screws. Inside, you’ll find six color-coded leads grouped in pairs: two black, two red, and two blue or white. Confirm the existing 110V arrangement: black leads connected together, red joined to a single supply line, and blue/white paired similarly on the other line. Disconnect all connections by loosening the terminal screws completely, noting the exact positions for reassembly.

For 220V operation, reconfigure the leads into a “series” pattern. Connect the first black lead to the first red lead using a short jumper wire (14 AWG minimum). The second black lead now becomes one 220V input terminal, while the second red lead serves as the other. Repeat this for the blue/white pair–jumper the first blue/white lead to the first of the opposite set, leaving its mate to function as the second input point. Use crimp connectors or solder joints for reliable current flow.

Before energizing, verify continuity between adjacent terminals with a multimeter. Resistance readings should align with the windings’ specifications–typically 2-10 ohms for low-horsepower models. If readings exceed 15 ohms or display open circuits, recheck jumper placements. Insulate all exposed connections with heat-shrink tubing rated for 600V; electrical tape is insufficient for prolonged high-current use.

Label the new terminal configuration directly on the enclosure with adhesive tags: “L1 220V” and “L2 220V.” Avoid relying on color memory alone–misconnections risk irreversible coil burnout. For reversible rotation units, maintain the original capacitor wiring; relocate only the run/start leads during voltage transition.

Voltage Conversion Reference Table

Power Input	Black Leads	Red Leads	Blue/White Leads	Jumper Requirements
110V (Parallel)	Pair joined	Single line	Pair joined	None
220V (Series)	Black-1 → Red-1	Black-2 → L1	Blue-1 → White-1	14 AWG copper wire

Reattach the terminal cover securely; loose covers can vibrate free under load, exposing high-voltage components. Test under no-load conditions first–listen for abnormal humming or excessive heat within 30 seconds. If temperatures rise above 60°C (140°F) during this test, immediately power down and re-inspect connections for faulty jumpers or oxidized terminals.

For installations requiring both voltages, add a dual-voltage selector switch (DPST) rated for 30A minimum. Wire the switch to alternate between parallel (110V) and series (220V) configurations without manual terminal adjustments. Mount the switch in a waterproof enclosure if operating in damp environments–corrosion on selector contacts reduces switching reliability over time.

Document all changes in a log attached to the unit, including date, voltage setting, and technician initials. For motors above 3 HP, consult the nameplate for thermal protection requirements–some models mandate external overload relays when switching to higher voltage. Failure to adjust protective devices can trigger nuisance tripping or, conversely, insufficient fault response during overload events.

Safety Verification Checklist

• Terminal cover reinstalled with original hardware
• No exposed conductors within 10mm of grounded surfaces
• Multimeter continuity test passed on all windings
• No-load temperature test completed without abnormalities
• Dual-voltage selector switch (if used) secured against accidental toggling
