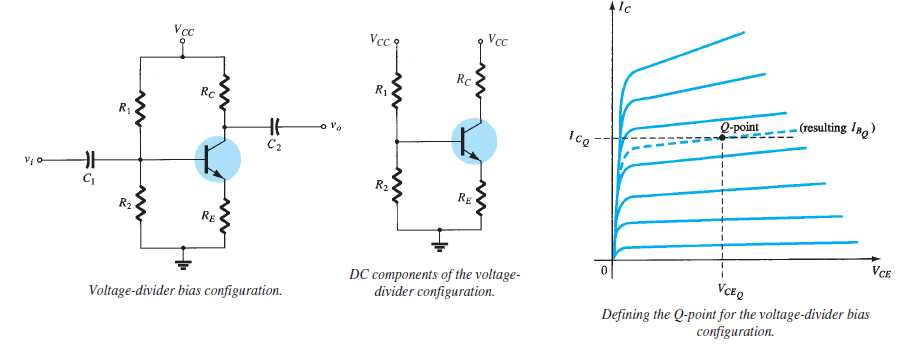

Voltage Divider Bias Circuit Schematic and Practical Application Guide
Use a pair of series resistors between the power rail and ground to establish a steady reference point for the transistor’s base terminal. A typical ratio for R1/R2 lies between 4:1 and 10:1; values around 10 kΩ and 2.2 kΩ yield a stable operating point for most small-signal amplifiers without excessive current draw.
Place a bypass capacitor–10 µF to 100 µF–across the lower resistor to shunt AC signals to ground, preserving the DC bias while improving gain. Verify the quiescent collector current remains within 1–5 mA by adjusting R1; higher values reduce current, lower values increase it, but keep the emitter resistor at 100–1 kΩ to maintain linearity.
Add a small emitter resistor (220–470 Ω) for thermal stability; it creates negative feedback that counters temperature-induced drift in the transistor’s gain. Ensure the supply remains at least 1.5 times the sum of the emitter and collector resistors’ voltage drops to avoid saturation.
Measure the node between the two bias resistors with a multimeter–expect approximately 0.6–0.7 V for silicon transistors–to confirm proper forward biasing. Deviations indicate incorrect resistor values or an open connection, which must be corrected before signal integrity tests.
Limit the input signal amplitude to half the bias voltage swing to prevent clipping. For 12 V supplies, input peaks should not exceed 1 V; exceeding this risks distortion and unpredictable behavior at the output.
Stable Transistor Configuration Using Resistive Network
Select resistor values with a ratio of 1:3 to 1:10 between the upper and lower legs to ensure predictable static operating conditions. For a typical 12V supply, use 22kΩ and 6.8kΩ resistors–this combination delivers approximately 2.5V to the base terminal while maintaining a collector current within 1–5mA for most small-signal transistors. Verify the emitter resistor value: for 2.5V base potential and 0.7V base-emitter drop, the emitter should sit at ~1.8V, dictating a 1.8kΩ emitter resistor if targeting 1mA collector current.
Measure the node where the two resistors meet before connecting the transistor; voltage here must remain stable (±5%) under supply variations from 9V to 15V. If stability drifts beyond this range, replace carbon-film resistors with metal-film types (tolerance ≤1%) and add a 10µF decoupling capacitor across the upper resistor to suppress high-frequency noise. Avoid using values below 1kΩ in either leg–excessive current draw risks thermal runaway and power dissipation exceeding 0.25W per resistor.
- Calculate the Thévenin equivalent resistance (Rth) as R1∥R2–this must stay under 10kΩ for reliable biasing.
- Use a beta (hFE) nominal value of 100 for initial design, then adjust emitter resistance if actual beta exceeds 200.
- Position a bypass capacitor (22µF–100µF) across the emitter resistor to maintain AC gain while preserving DC stability.
For high-temperature environments, reduce the upper resistor by 15% and increase the emitter resistor by 10%; this compensates for the negative temperature coefficient of VBE (≈−2mV/°C). Test the configuration under full load: output swing should reach 80% of supply rail without clipping. If clipping occurs, lower the collector resistor value by 30% or introduce a diode-connected transistor in parallel with the lower leg for dynamic compensation.
Building a Resistive Allocation Network for Stable Transistor Operation
Select a transistor with known gain characteristics–hβ values between 100 and 300 (e.g., 2N3904) ensure predictable behavior. Choose upper and lower resistor values (R1 and R2) to create a reference split at the base; a common setup uses 33 kΩ and 10 kΩ, respectively, for a 12 V supply. Calculate the reference point using Vref = Vcc × R2 / (R1 + R2), yielding ≈2.8 V for this pair, which keeps the base-emitter junction forward-biased without saturating the device.
Attach the collector load (RC)–typically 1 kΩ to 4.7 kΩ–between the positive rail and the collector terminal. This component determines the output swing and power dissipation; lower values increase current draw but improve response speed. Insert an emitter resistor (RE) of 470 Ω to 2.2 kΩ to stabilize operating conditions against temperature drift; bypassing it with a 10 µF capacitor eliminates AC feedback while preserving DC stability.
Assemble components on a breadboard in this order: ground rail → R2 → base node → R1 → supply rail. Connect the transistor’s emitter to RE, then to ground. Link the collector to RC, and attach the bypass capacitor between the emitter junction and ground. Use a multimeter to verify the reference split matches calculated values (±0.1 V tolerance); discrepancies indicate incorrect resistor values or poor solder joints.
Apply input – a 1 kHz sine wave of 1 Vpp – through a coupling capacitor (1 µF) to the base node. Observe output at the collector via an oscilloscope; clipping on one side suggests the reference split is too low–reduce R1 by 20%. If distortion occurs across both peaks, increase RE by 10% increments until symmetry is achieved. Record the quiescent collector current (ICQ) by measuring voltage across RC; target 1–5 mA for small-signal amplifiers.
Fine-Tuning for Environmental Variability
Replace fixed resistors with 1% tolerance metal-film types if ambient temperature exceeds 50°C. For supply fluctuations (±1 V), scale R1 and R2 proportionally–example: double both to 66 kΩ and 20 kΩ for a 24 V rail. Swap the transistor for a Darlington pair if load currents exceed 200 mA; recalculate RE using RE = (Vref – 0.7 V) / IE, substituting 1.4 V for the base-emitter drop.
Determining Resistor Ratios for Consistent Transistor Operation
Begin by ensuring the base potential remains at roughly 0.7V above the emitter for silicon components. Use a 1:10 current ratio between the emitter stabilization element and the upper arm of the resistive network to guarantee thermal stability. For a 2N3904 with a 5mA collector current, set the emitter leg at 1kΩ; this yields 5V across the emitter node when paired with a 15V supply.
The lower resistive segment should pass ten times the base current to minimize loading. With a β of 100, base current hovers near 50μA – multiply by 10 to get 500μA flowing through the bottom resistor. Ohm’s law dictates 10kΩ for the lower resistor when the supply sits at 15V, maintaining 5V at the midpoint.
Adjust the upper resistor to drop the remaining 10V while carrying 500μA. A 20kΩ value satisfies this requirement without shifting the quiescent point. Verify stability by substituting extreme β values (e.g., 50 and 300) into the loop equation; the collector-emitter potential should vary less than 10% from nominal 7.5V.
Thermal Drift Mitigation
Keep the emitter resistor above 500Ω to suppress thermal runaway; lower values invite excessive junction heating. Paralleling a small capacitor (10μF) across the upper resistor filters noise while preserving steady-state conditions. High-frequency designs demand ceramic caps to avoid phase lag.
Calculate worst-case tolerance stacking: ±5% resistors can swing the midpoint ±0.5V. Use precision metal-film units if drift exceeds 2% over temperature. For critical stages, incorporate a potentiometer in series with the upper resistor, trimmed to exact β compensation.
Supply-Independent Scaling
Normalize resistor values to supply variations by expressing them as fractions of the rail: 1/3 for the upper segment, 1/6 for the lower, 1/15 for emitter impedance. This ratio holds across 9V to 30V systems, ensuring identical small-signal gain and power dissipation. Swap the emitter resistor for a diode string when rails exceed 20V to clamp thermal coefficients.
For Darlington configurations, halve the lower resistor’s current multiplier (5× instead of 10×) to account for cascaded base-emitter drops. Verify startup timing by ensuring the midpoint reaches 90% of final value within 100ms; sluggish rise indicates excessive capacitance or undersized resistors.
Critical Errors in Stabilized Polarization Network Construction
Selecting resistor values without accounting for the device’s input impedance creates an unstable operating point. A 10 kΩ upper resistor paired with a 1 kΩ lower resistor delivers a near-ideal ratio for a bipolar junction with 1 mA collector current, yet this pair fails if the base presents only 5 kΩ effective load. Always compute the Thevenin equivalent resistance seen by the base terminal–typically less than one-tenth the input impedance–to prevent the network loading the junction and skewing quiescent conditions.
Disregard thermal drift in passive component selection leads to unpredictable temperature behavior. Carbon-film resistors shift ±2 % across 25 °C, while metal-film parts drift
Omitting a bypass capacitor across the lower resistor allows AC signals to modulate the reference, injecting hum into the output. A 10 µF ceramic capacitor (X7R dielectric) placed directly across the lower element ensures a solid DC anchor while shunting noise below 20 Hz. Larger values risk phase shifts; smaller values leave high-frequency artifacts unfiltered.
Grounding Pitfalls in Reference Networks
Star grounding must be enforced between the emitter return and reference node; a single shared path introduces millivolt-level offsets that appear as DC drift, particularly at currents above 10 mA. Route the emitter trace directly to the reference node with
Measuring and Validating Static Potentials in Linear Arrangements
Attach probes directly to test points without disrupting component connections. Floating ground references often create hidden errors–use a differential setting on multimeters rated for at least 10 MΩ input impedance to prevent loading effects. For accurate readings, allow components to reach thermal equilibrium before logging values.
Expected target potentials at key nodes vary with resistor pairing ratios. A reference table for common configurations:
| Resistor Pair (kΩ) | Target Potential (V) | Allowable Deviation (%) |
|---|---|---|
| 10:1 | 4.5 | ±2 |
| 22:2.2 | 3.8 | ±1.5 |
| 47:4.7 | 3.1 | ±1 |
| 100:10 | 2.7 | ±0.8 |
Exceeding allowable deviations signals possible faults–check solder joints, resistor tolerances, and adjacent coupling paths. Replace any resistor outside its rated tolerance band, especially if values drift under thermal stress.
Ground loops distort readings–keep probe grounds short and connect to a single reference plane. If measuring near switching sections, use a 100 nF ceramic capacitor across meter terminals to filter high-frequency noise. For low-level signals, switch to a 4-wire sensing mode to cancel lead resistance errors.
Oscilloscopes reveal dynamic shifts missed by meters. Set trigger to 50% of the expected steady-state level and observe waveforms during power-up. Any overshoot exceeding 15% of the final value indicates oversized decoupling capacitors or improper startup sequences.
Cross-verify readings with a secondary instrument to rule out meter calibration drift. Keep a log of all measurements at 25°C ambient–temperature coefficients of resistors typically range from 50 to 150 ppm/°C, causing measurable shifts at elevated operating points.
When potentials align within spec yet behavior remains erratic, scope transistor junctions. Extract β values from datasheets and compare against simulated collector currents. Even minor mismatches (below 5%) between expected and measured collector potential can point to incorrect bias network design.
Troubleshooting Edge Cases
Unstable readings often stem from parasitic paths. Lift one leg of each resistor in sequence while observing node potentials–sudden jumps indicate leakage through adjacent traces. Replace any resistor showing reverse-biased diode behavior across its terminals.
