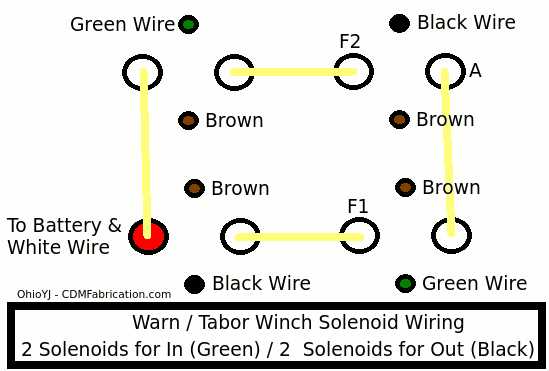

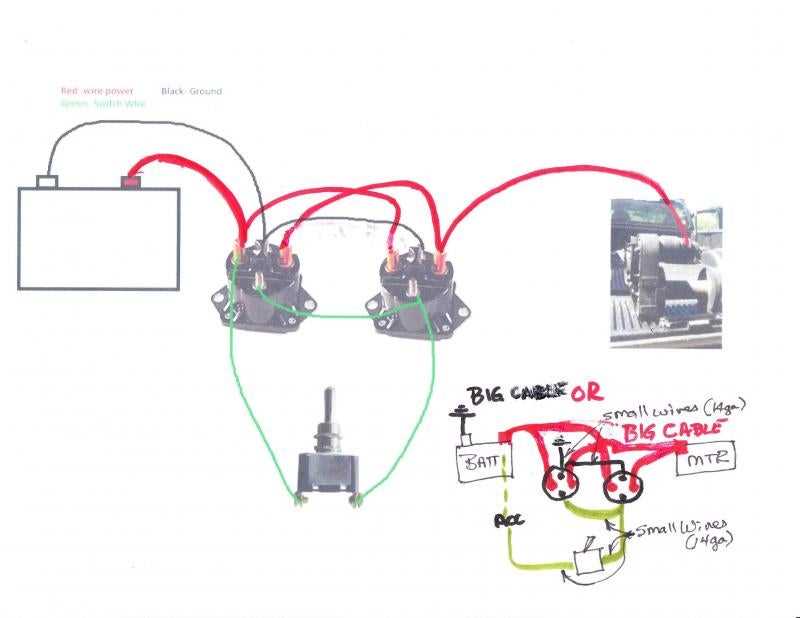

Complete 4 Solenoid Warn Winch Wiring Diagram and Connection Guide

For heavy-duty recovery systems, a four-relay control setup ensures seamless operation under load. Begin by verifying the rated amperage of your power source–most industrial-grade devices require 12V or 24V systems with a minimum 60A circuit breaker near the battery terminal. Connect the main power feed directly to the positive terminal, avoiding splices or undersized cables to prevent voltage drop during peak demand.

Mount the relays within 12 inches of the motor assembly to minimize resistance in control signals. Use 10 AWG wire for motor leads and 14 AWG wire for control circuits, with all connections crimped and soldered for corrosion resistance. Label each relay: primary engage, secondary engage, primary retract, secondary retract–miswiring risks reversing polarity or damaging the motor windings.

The trigger switches should be wired in series with a momentary-on configuration to prevent accidental activation. Install a double-pole, single-throw (DPST) override switch between the battery and the first relay to cut power instantly if the system locks or overheats. Test each relay independently with a multimeter–coil resistance should measure 80–120 ohms; deviations indicate a faulty unit needing replacement.

Ground all components to a single clean, unpainted metal chassis point, no farther than 18 inches from the relays, using 8 AWG wire for the earth connection. Apply dielectric grease to all terminals to inhibit oxidation, particularly in high-humidity environments. If integrating a wireless remote, ensure its receiver is fused at 5A and isolated from direct battery current to avoid interference.

After assembly, operate the system in short bursts (5–10 seconds) to verify directional control before full deployment. Listen for unusual noises–whining or arcing suggests incorrect relay timing or loose connections. Routinely inspect for frayed insulation or heat discoloration; symptoms of overload will appear as melted wire jackets or pungent odors. Replace any compromised components immediately to maintain system integrity.

Step-by-Step Guide to Configuring a Heavy-Duty Pulling Device with Quad-Actuator Setup

Begin by verifying the voltage rating of your auxiliary power source–most off-road recovery systems operate at 12V, but some industrial variants use 24V. Connect the positive lead from the battery directly to the first actuator’s common terminal, ensuring 4-gauge or thicker cable for high-amperage demands. The negative return should link to a dedicated chassis ground point, avoiding shared connections with sensitive electronics to prevent voltage spikes.

Label each actuator terminal based on function: inbound (power feed), outbound (motor), and auxiliary (control). Wire the second actuator’s inbound terminal to the first’s outbound, creating a daisy-chain for efficient current distribution. Use weatherproof crimp connectors and heat-shrink tubing to seal junctions against moisture ingress, a primary cause of early failure in exposed installations. Test continuity with a multimeter before finalizing connections to avoid reverse polarity.

Integrate a dual-pole safety switch between the power source and first actuator to isolate the system during maintenance. For rock crawlers or utility vehicles, install a momentary rocker switch with an LED indicator–mount it within 12 inches of the operator’s seat for quick access. The switch’s output wires should connect to the auxiliary terminals of the third and fourth actuators, enabling bidirectional control. Avoid splicing control wires; instead, run dedicated 18-gauge wires from the switch to each actuator to eliminate signal degradation.

Fuse protection is non-negotiable: place a 30-amp ANL fuse within 7 inches of the battery’s positive terminal, followed by a 150-amp mega fuse at the first actuator’s inbound connection. These ratings accommodate peak loads during initial spooling. For systems exceeding 10,000 pounds of pull capacity, add a secondary 200-amp breaker between actuators two and three to handle surge currents during line tensioning. Never substitute fuse holders with cheaper alternatives–corrosion-resistant marine-grade components extend service life in humid environments.

Finalize the setup by calibrating the control module: engage the auxiliary switch in short bursts to confirm actuator response times (typical activation delay is 150-200ms). If the motor runs sluggishly or emits a high-pitched whine, recheck ground connections–poor grounding is the leading cause of erratic behavior. For advanced configurations, wire a wireless remote receiver to the fourth actuator’s auxiliary terminal, using a 12V relay to prevent backfeed into the control circuit. Document the layout with a schematic on waterproof paper, including wire colors and terminal numbers, for troubleshooting.

Pinpointing Connections for Each Relay Contact

Begin by locating the power feed cable–typically a red or yellow 4–6 AWG conductor–attached to the heavy-duty battery clamp. Trace this lead directly to the first relay’s input stud, ensuring no intermediate connections deviate to other components. Label this terminal “B+” or “Battery In” using heat-shrink tubing to prevent misidentification during reassembly. The opposing stud on the same relay carries the motor’s positive lead, often marked “M+” or “Motor Out,” which must be secured with a 10mm nut and star washer to prevent loosening under vibration.

For ground paths, identify the black or brown 6–8 AWG cable exiting the gearbox housing. This conductor terminates at the relay designated for lowering or reverse operation, labeled “GND” or “Ground.” Verify continuity between this terminal and the chassis using a multimeter set to ohms; resistance should read under 0.5Ω. If readings exceed this, clean contact surfaces with a wire brush and reattach, applying dielectric grease to inhibit corrosion. The second ground lead, usually paired with a white tracer, connects to the motor’s frame–ensure this is fastened to a bare metal point, not painted surfaces.

Control circuits use thinner 16–18 AWG wires, color-coded blue, green, or purple. The blue conductor routes from the remote switch to the “Lower” relay coil, while its green counterpart activates the “Raise” relay. Strip exactly 6mm of insulation, twist strands clockwise, and insert into the relay’s spade terminal before crimping with a ratcheted tool–avoid solder, as heat can degrade the connection over time. Purple wires, if present, serve auxiliary functions like brake engagement or LED indicators; confirm their purpose via the manufacturer’s color key before energizing.

Test all relay contacts by manually depressing their plungers while monitoring voltage at the motor terminals. A properly configured system will show battery voltage at “M+” during raising and reversal of polarity for lowering–any deviation indicates a reversed or misrouted cable. Use a 12V test light to verify activation sequences; the lamp should illuminate brightly without flickering, signaling solid contact. If intermittent operation persists, disassemble the relay and inspect the internal contact plates for pitting, replacing the unit if burns exceed 1.5mm in diameter.

Step-by-Step Power Hookup Guide for 12V Pulling Gear

Begin by securing the battery terminals–positive cable to the 12V source’s red post and negative to the grounding point near the motor housing. Use 2 AWG cables for primary power lines to prevent voltage drop under load; anything thinner risks overheating during prolonged pulls. Connect the relay block’s input lugs directly to the battery’s posts, ensuring no intermediate splices that could introduce resistance. Label each line with heat-shrink tubing: red for power, black for ground, blue for control circuits.

Attach the control module’s trigger wires to a dedicated switch or remote pendant. The ground wire (typically green) must terminate at the vehicle’s chassis or motor frame–never daisy-chain it with other components. For four-relay systems, split the control feed into two pairs: one for in-haul (motor rotation) and one for out-haul (reel direction). Verify polarity with a multimeter before energizing; reversed connections will fry the relays instantly. Splice all joints with crimp connectors rated for 200+ amps, then seal with adhesive-lined shrink tube to prevent corrosion from moisture or road salt.

Testing and Validation

Before load testing: disengage the gear’s clutch and cycle the switch 3–5 times to confirm smooth relay engagement. Listen for rapid clicking–this indicates a weak battery or undersized cables. If the motor stalls or hums without movement, check for 12V at the motor terminals; absence signals a broken relay or burnt brushes. After validation, wrap all exposed conductors in loom tubing, securing it with zip ties every 6 inches to prevent chafe. Store the remote pendant in a dry compartment to avoid signal interference from electromagnetic noise.

Diagnosing Common Errors in Electromagnetic Clutch Control Circuitry

Start by verifying the power feed to the control module with a multimeter–readings below 11.5V indicate a weak battery or corroded terminals. Clean connections with a wire brush before rechecking; oxidized copper disrupts signal transmission even if visual inspection shows no damage. Replace any crimped connectors with soldered joints for long-term stability under vibration.

Misaligned activation sequences often stem from swapped control lines. Label each cable with heat-shrink tubing before disassembly to prevent confusion during reassembly. Check the sequence against the vehicle’s service manual–most layouts follow a clockwise pattern starting with the positive lead, but aftermarket kits occasionally deviate from OEM standards.

Intermittent failures usually trace to loose ground connections. Secure the negative terminal directly to bare metal using a star washer and dielectric grease to prevent oxidation. Avoid bolting to painted surfaces; even high-quality paint creates resistance over time. Test continuity at multiple points along the ground path to isolate high-resistance segments.

Identifying Specific Fault Codes

• Code 12: Indicates an open circuit in the first relay coil. Measure resistance across the coil terminals–values outside 50-70 ohms confirm a damaged unit. Bypass the relay temporarily with a jumper wire to verify whether the issue lies in the relay or upstream wiring.
• Code 18: Signals a short to ground in the third circuit. Disconnect the module and probe both ends of the affected line; persistent ground contact suggests insulation failure. Repair with automotive-grade shrink tubing or replace the entire harness if chafing is extensive.
• Code 24: Points to voltage drop during engagement. Check the alternator output and battery health–consistent 13.8-14.4V is required. Load-test the battery; sulfated plates cause voltage sag under load even if static readings appear normal.

Heat-related failures accelerate with poor ventilation. Mount the control box in a shaded, well-ventilated area, away from exhaust manifolds or hydraulic lines. Upgrade to silicone-jacketed cables if operating in temperatures above 85°C–PVC insulation degrades rapidly under sustained heat.

Preventing Recurring Issues

Apply dielectric grease to all connectors after cleaning to repel moisture. Re-torque connections to manufacturer specifications–overtightened terminals warp, while loose ones corrode. Replace any damaged terminal boots immediately; water ingress triggers latent shorts weeks after the initial repair.

1. Test engagement under load at least once monthly to catch degrading components early.
2. Inspect cables for nicks or exposed conductors after off-road use–minor abrasions propagate into complete failures.
3. Log voltage and resistance readings during each service to identify trends before critical failures occur.

Remote activation systems introduce additional failure points. Verify the handheld unit’s battery voltage if erratic operation occurs–most units require 7.2V minimum. Signal interference from CB radios or portable chargers can disrupt commands; route control cables perpendicular to high-current lines to minimize cross-talk.
