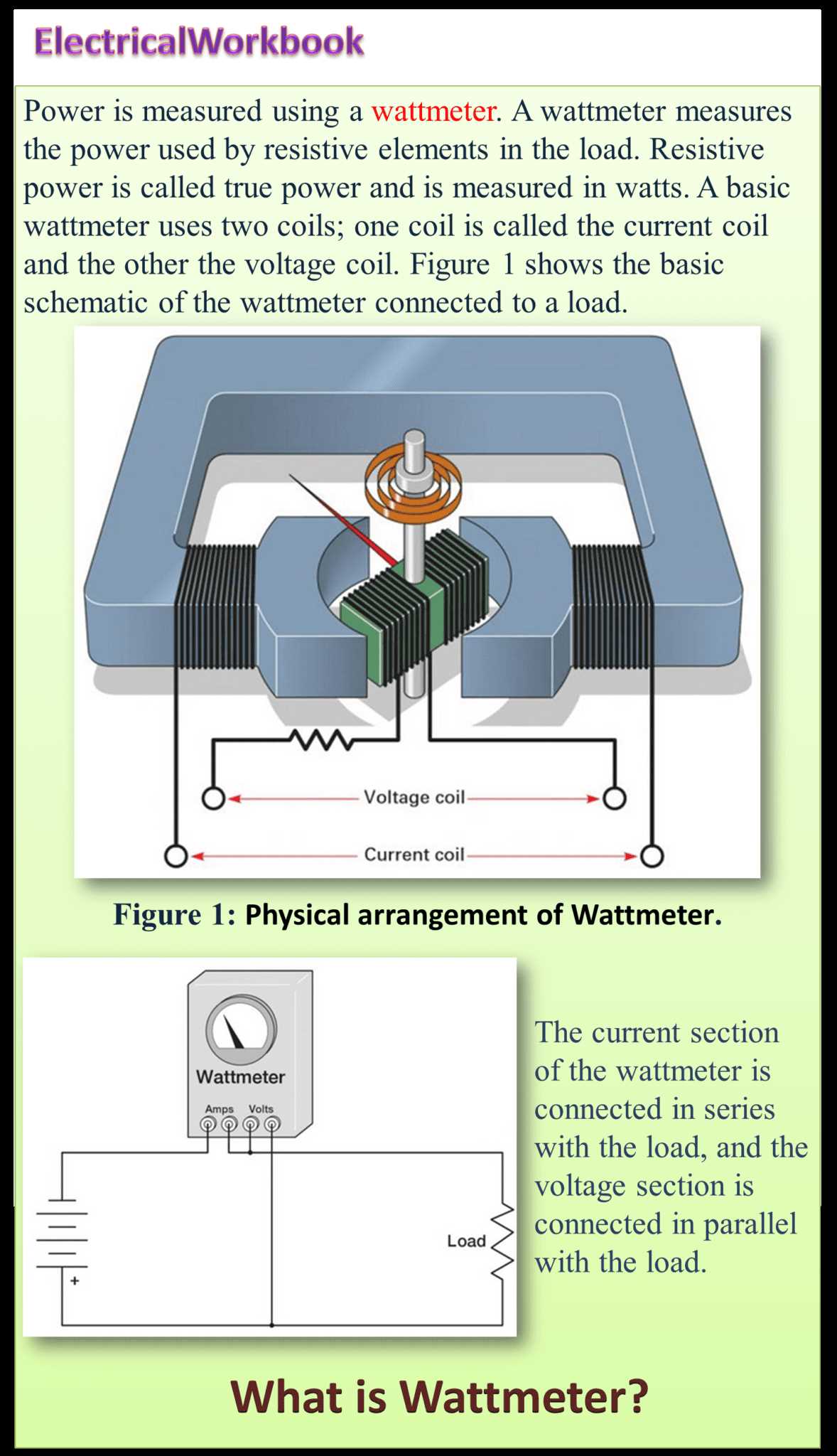

DIY Watt Meter Circuit Design Guide with Schematic and Components

Start with a shunt resistor rated for the expected current load–typically 0.01Ω for household applications or 0.001Ω for high-current systems. Pair it with an instrumentation amplifier like the INA125 or AD8221 to boost the millivolt signal to a measurable voltage range (0–5V or 0–3.3V). Ensure the amplifier’s gain is adjusted to avoid saturation while preserving resolution. For a 10A system with a 0.01Ω shunt, a gain of 50 will convert the 100mV drop into 5V.

Process the amplified signal through an ATmega328P or STM32F103, using the MCU’s 10-bit ADC (or external 12/16-bit ADC for higher precision). Sample the voltage at 1kHz minimum to capture transient loads; oversampling improves accuracy by averaging noise. Store samples in a circular buffer to calculate real-time power consumption using the formula P = V × I, where I is derived from the shunt voltage drop.

Display readings on an OLED SSD1306 or 16×2 LCD, updating every 200ms to avoid flicker while maintaining responsiveness. For wireless monitoring, integrate an ESP8266 or nRF24L01 module. Transmit data to a local server via MQTT or HTTP POST, using JSON formatting for compatibility with dashboards like Grafana or Home Assistant.

Calibrate the setup by applying known loads (e.g., a 100W bulb or 1kΩ resistor) and adjusting software offsets. Fuse the high-side current path with a PPTC resettable fuse to prevent damage from short circuits. For AC systems, use a current transformer like the SCT-013 with a burden resistor, followed by a precision rectifier (LM358) to convert AC to DC for measurement.

Optimize power supply stability–linear regulators (LM7805) introduce noise, while buck converters (MP1584) add ripple. Use capacitive filtering (470μF electrolytic + 0.1μF ceramic) to smooth the input. Ground the shunt resistor to the same point as the microcontroller’s analog reference to minimize noise coupling.

Building a Power Measurement Tool: Hands-On Instructions

Select a current sensing method–Hall-effect sensors or shunt resistors–based on your load range. For shunt resistors, pick a low-value component (e.g., 0.01Ω to 0.1Ω) to minimize voltage drop while ensuring measurable signals. Pair it with an instrumentation amplifier like the INA125 or AD8221 to boost the signal before feeding it to an ADC. Avoid cheap op-amps; their input offset voltage introduces errors at low currents.

Combine voltage and current readings using a microcontroller like the STM32F103 or Arduino Nano. Use the formula P = V × I for DC systems, or P = V × I × cos(φ) for AC, where φ is the phase angle between voltage and current. For AC, sample both waveforms simultaneously with synchronized ADCs (minimum 10 kS/s) to capture phase shifts accurately. Skip this step for DC–phase correction isn’t needed.

Calibrate the tool with known loads. Use a 10W resistor for DC or a variac for AC tests. Compare readings against a trusted multimeter like the Fluke 87V. Adjust software scaling factors if readings deviate more than 2%. Log raw data to an SD card for post-processing–avoid real-time display unless latency isn’t critical. For high-power systems (>1kW), add a relay or MOSFET to disconnect loads during faults.

Opt for isolated measurements when working with mains voltage. Use isolated amplifiers (ISO124) or optocouplers (HCPL-7840) between sensing components and the microcontroller. Ground loops distort readings; keep analog and digital grounds separate until a single star point. For wireless monitoring, transmit data via HC-05 Bluetooth or ESP32 Wi-Fi, but limit packet size to avoid lag.

Test under real conditions. Measure a 60W bulb, a desktop PC (300-500W), and a motor (check startup surges). If readings fluctuate, add a low-pass filter (RC circuit: 1kΩ + 10µF) to the ADC input. Store final results on an OLED (SSD1306) or send them to a PC via UART. For battery-powered designs, use a TPS63020 buck-boost converter to extend runtime below 3V input.

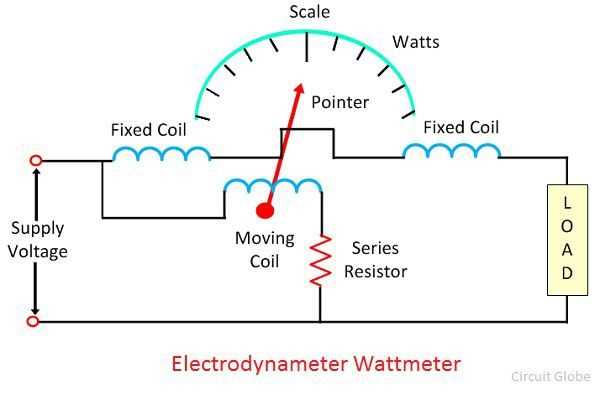

Critical Elements and Their Functions in Energy Measurement Schematics

Select a precision shunt resistor rated for 0.1% tolerance or better–this component defines current sensing accuracy. Place it in series with the load to ensure minimal voltage drop while maintaining a linear response across the measurement range. For 10A applications, a 0.01Ω resistor yields a scalable 100mV drop at full scale, allowing direct coupling with operational amplifiers without signal distortion. Avoid carbon-film resistors; use metal-foil or thick-film variants to prevent thermal drift exceeding ±25 ppm/°C.

Voltage Divider Configuration

Construct the voltage divider with high-stability resistors, ensuring a ratio of at least 1000:1 to avoid loading the main supply. A 1MΩ and 1kΩ pair minimizes input impedance effects, critical when measuring sources above 50V. For 230V mains, this setup delivers a safe 230mV scaled signal while drawing under 250µA. Bypass the 1kΩ resistor with a 10nF ceramic capacitor to filter high-frequency noise without phase shift above 1kHz.

Choose an instrumentation amplifier with a CMRR of 120dB or higher, such as the AD8221, to reject common-mode interference from switching supplies. Configure its gain via a single resistor between pins 1 and 8; a 499Ω resistor yields a ×100 gain, converting the shunt’s 100mV full-scale output to a 10V analog signal suitable for ADC input. Decouple power rails with 0.1µF and 10µF capacitors placed within 2mm of the amplifier’s pins to suppress oscillations.

Integrate a 16-bit delta-sigma ADC with a sampling rate of 10Hz or higher to capture true RMS values. The AD7793, with its built-in PGA, simplifies scaling for shunt voltages down to 40µV. Route analog traces away from digital lines, using a ground plane beneath the ADC to reduce electromagnetic coupling. For calibration, inject a 50Hz, 1A sinusoidal current via a precision current source, adjusting the amplifier’s offset trim until the ADC outputs exactly 5000 counts at 100% scale.

Building a Simple Power Measurement Device from Scratch

Gather these components first: a 0-1A analog panel indicator (100µA or 1mA full-scale), a 0.1Ω 5W current shunt, a 10kΩ linear potentiometer, a 9V battery clip, and two binding posts for input/output connections. A small perforated board (5x7cm) will serve as the base. Ensure the shunt’s power rating exceeds your maximum expected load by at least 20%.

Mounting and Initial Wiring

Secure the panel indicator to the board with two M3 screws (6mm length). Position the shunt parallel to the board’s long edge, 2cm below the indicator, using solder or a small bracket for stability. Solder the battery clip’s red wire directly to the indicator’s positive terminal. Route the black wire to the first binding post, leaving the second binding post unconnected for now.

Attach the shunt’s terminals to the binding posts using 18AWG solid wire. The first post connects to the shunt’s input side; the second post attaches to the output. Keep wire lengths under 5cm to minimize resistance errors. Verify polarity–reversing the connections will skew readings.

Calibration Setup

Connect the potentiometer in series with the indicator’s negative lead. Solder one outer leg to the indicator’s negative terminal, the other to the battery clip’s black wire. The wiper (center leg) goes to ground. This forms a voltage divider for full-scale adjustment. Test with a 100Ω 1W resistor across the binding posts: the indicator should settle near mid-scale.

1. Apply a known load (e.g., 12V 5W bulb) to the binding posts. Measure the actual current with a multimeter in series–record this value.
2. Adjust the potentiometer until the indicator matches the multimeter reading. For example, if the multimeter shows 417mA, set the indicator to ~40% of full scale.
3. Repeat with loads of 30%, 70%, and 100% of the indicator’s range. If linearity drifts, replace the potentiometer or check for loose solder joints.

Enclose the assembly in a plastic project box (10x8x5cm). Drill holes for the indicator, binding posts, and a 3mm vent above the shunt to prevent overheating. Label input/output terminals with “+” and “-” symbols. For safety, add a 250mA fuse in series with the positive binding post if measuring inductive loads (e.g., motors).

To calculate power consumption, multiply the indicator’s percentage reading by the shunt’s voltage drop (typically 0.1V at full scale). Example: At 60% deflection, voltage = 0.06V. Power = (0.06V / 0.1Ω) * load voltage. For a 9V circuit at 60%, this yields 3.24W. Accuracy degrades above 1.5A–limit use to small DC loads.

How to Measure Current and Voltage Accurately for Power Calculation

Use a four-wire Kelvin connection to eliminate lead resistance errors when measuring low currents. For DC systems, ensure test leads contribute less than 0.1Ω total resistance–shunt resistors with sub-milliohm values require this precision. AC measurements demand synchronous sampling; phase shifts above 0.5° distort reactive component readings by over 1%.

Select instruments with input impedance exceeding 10MΩ for voltage sensing. Multimeters with 1MΩ impedance introduce errors on high-resistance sources; bench meters with 10GΩ inputs avoid this. For transient signals, employ differential probes with bandwidths 5× the signal frequency to prevent waveform clipping or amplitude attenuation.

Calibrate sensors before each critical test cycle. Offset drift in Hall-effect current transducers can reach 0.5% per °C; temperature-compensated models reduce this to 0.01%/°C. Voltage dividers using precision resistors (0.01% tolerance, 5ppm/°C drift) maintain accuracy across ±10% supply variations.

When measuring pulsed loads, use true RMS converters with crest factors above 10:1. Average-responding meters misread currents with duty cycles under 20%, introducing errors up to 30%. For DC-DC converters, capture both input and output power simultaneously–sampling delays corrupt efficiency calculations by mixing steady-state and transient data.

Measurement Type	Required Bandwidth	Maximum Phase Error
DC	50Hz	0.1°
AC (50-60Hz)	1kHz	0.5°
Switching (100kHz)	5MHz	1.0°
Transient (	50MHz	2.0°

Isolate measurement grounds from power grounds. Ground loops through a single 0.1Ω path create 100mV errors at 1A–optocouplers or isolated amplifiers prevent this. For high-side current sensing, use amplifiers with common-mode rejection above 80dB at 100kHz to reject switching noise.

Sample at least 10× the highest frequency component. Undersampling aliases high-frequency noise into the measurement band; 1kHz signals require 10kSa/s minimum. For chaotic loads (e.g., motor drives), increase to 100× to capture harmonics up to the 99th order–missing components underestimate losses by 8-12%.

Verify readings against a traceable standard every 100 hours of operation. Even stable references drift; a 2.5V bandgap regulator can shift ±5mV over six months. Cross-check with a precision calibrator monthly if environmental conditions exceed ±5°C or 30% humidity swings.

Minimize parasitic inductance in current paths. A 10nH loop inductance generates 1V/μs spikes in 10A circuits–twisted pairs or coaxial cables reduce this by 90%. Voltage probes with ground leads longer than 5cm act as antennas; use spring-loaded tips or soldered connections for frequencies above 1MHz.
