How to Wire a Well Pump Step-by-Step Connection Guide
Begin by disconnecting all power sources at the circuit breaker before handling any electrical components. A 3-phase submersible motor rated at 230V or 460V requires precise cable sizing–14 AWG for runs under 100 feet, 12 AWG for distances up to 250 feet, and 10 AWG for longer spans to prevent voltage drop. Always use waterproof epoxy-filled splice kits when linking conductors to the pressure switch, ensuring no exposed wires remain. Verify torque specs on terminal connections: 12-15 inch-pounds for #10 wire, 8-10 inch-pounds for #14.

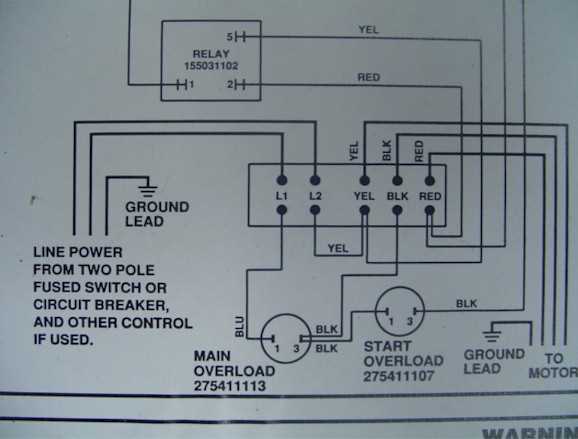

Connect the control box using a 4-wire configuration: two hot legs (L1, L2), one neutral, and a ground. For single-phase setups, attach the start capacitor between the “Start” and “Run” terminals, checking capacitance values–typically 10-50 μF for motors under 1.5 HP. Overload protection must match the motor’s full-load amperage (FLA); install a 10-amp breaker for a 1 HP unit, 15-amp for 2 HP. Label each wire before securing them in the terminal block to avoid miswiring.
Test the setup with a multimeter: measure 230V between L1 and L2, 115V from each hot leg to neutral. If voltage reads outside ±5% of expected values, recheck connections at the junction box. Ground the system via an 8-foot copper rod driven at least 4 feet from the tank, bonded to the control box with #6 AWG copper wire. Never bypass the pressure switch; set cut-in at 30 PSI and cut-out at 50 PSI for standard residential systems.
Use heat-shrink tubing over splices to seal out moisture–standard electrical tape degrades within months underground. Replace corroded components immediately; even minor oxidation on terminals increases resistance, leading to motor burnout. For deep-set installations (below 200 feet), upgrade to 2 AWG aluminum wire for the run from the breaker to the control box to handle higher current loads without overheating.
Electrical Setup for Submersible Water Extraction Systems
Install a double-pole circuit breaker rated for 230V with amperage matching the motor’s nameplate (typically 15–30A). Connect black and red conductors from the breaker to L1 and L2 terminals on the pressure switch, ensuring copper or aluminum conductors sized per NEC Table 310.16 for the expected load. Ground the system with an 8 AWG bare copper wire run directly to a grounding rod driven at least 8 feet into damp soil near the control box.
For single-phase motors below 2 HP, use a start capacitor (40–100 µF, 250–370V AC) wired in series with the auxiliary winding. Verify capacitance with a multimeter–deviations above 10% cause overheating. Cross-reference motor specs with the following torque requirements:
| Motor HP | Capacitor Range (µF) | Max Starting Torque (lb·ft) |
|---|---|---|
| 0.5 | 30–50 | 12 |
| 1.0 | 60–80 | 25 |
| 1.5 | 70–90 | 38 |
| 2.0 | 80–100 | 50 |
Route supply cables through schedule 80 PVC conduit from the control box to the wellhead, securing with stainless steel straps every 4 feet. Seal conduit ends with dielectric grease and heat-shrink tubing to prevent moisture ingress. For depths exceeding 200 feet, upsize conductors one gauge to compensate for voltage drop–use the formula Vdrop = (2 × I × R × L) / 1000 where I is current, R is conductor resistance per 1000 feet, and L is length in feet.
Fault Protection and Testing
Install a thermal overload relay set to trip at 115% of motor rated current. Test monthly by simulating a locked rotor condition–apply 1.5× nameplate amperage for 3 seconds using a variable transformer. If the relay fails to open, replace the control box immediately. For 3-phase configurations, add a phase monitor to detect voltage imbalance exceeding 5%–unbalanced phases degrade insulation within 500 operating hours.
Avoid running the system dry by wiring a low-water cutoff float switch in series with the pressure switch. Mount the switch 18–24 inches above the intake screen and calibrate sensitivity to activate at 1 GPM residual flow. For cold climates, wrap exposed piping with self-regulating heat tape (12W/ft) and insulate with ¾-inch closed-cell polyethylene sleeves. Secure taps every 3 feet with UV-resistant zip ties.
Document all connections with three copies of a labeled schematic: one affixed inside the control box cover, one filed with property records, and one stored digitally in a non-volatile format. Include conductor gauges, breaker ratings, and torque specs for terminal screws (typically 12–15 lb·in for #10–#14 AWG, 25–30 lb·in for #4–#8 AWG). Verify all splices with a megohmmeter before energizing–resistance should exceed 1 MΩ per phase-to-ground at 500V DC.
Locating and Matching Conductors in Submersible Installation Systems
Check for factory-printed labels on each conductor; manufacturers often stamp L1, L2, Ground, or color bands directly onto insulation. If labels are absent, measure voltage at the pressure switch terminals–black and red wires typically register 230V between them, while either conductor paired with green or bare copper should read 120V.

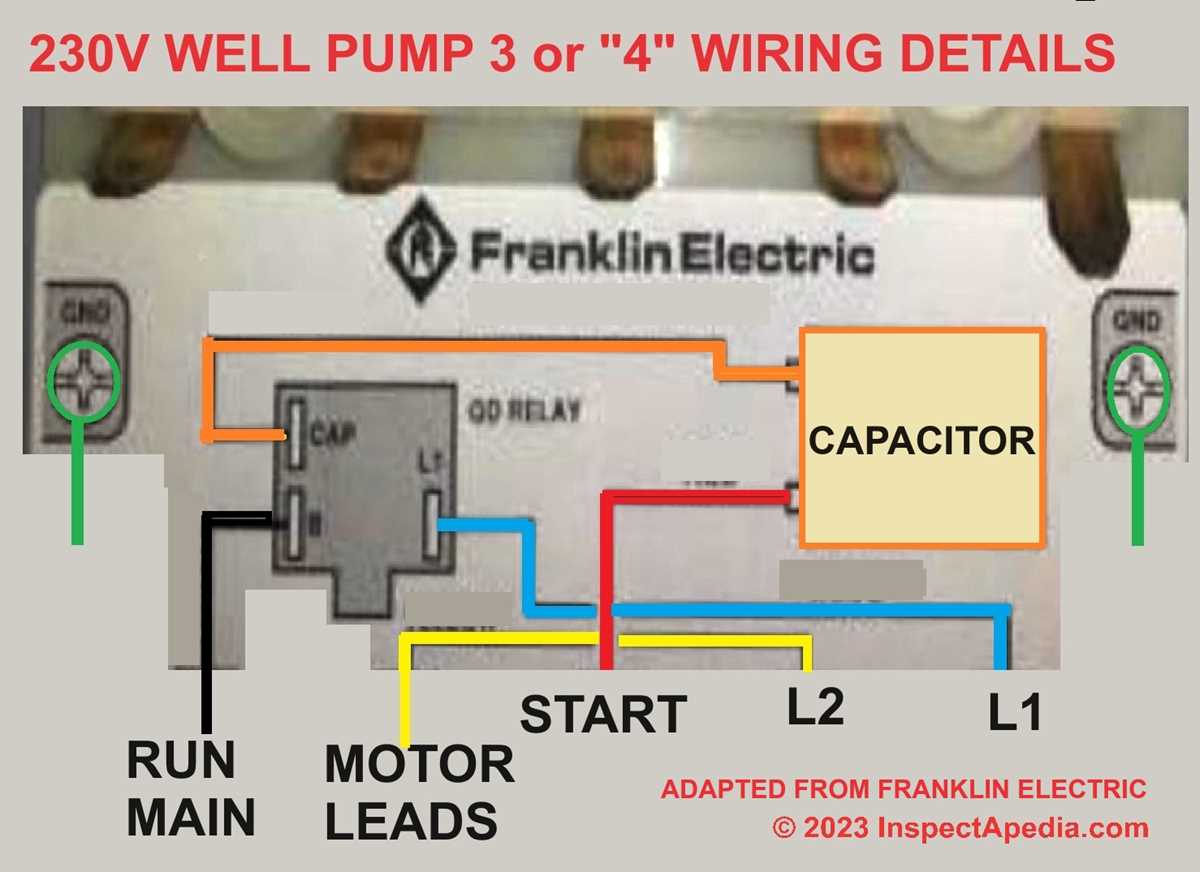

Identify the control circuit by tracing the thin conductor that exits the motor housing toward the surface relay or capacitor box. This lead is often brown, yellow, or marked with a dashed stripe; misconnecting it can prevent startup or trip thermal protection within seconds.
Key Terminal Markings
- Start: Tagged S or stamped near the capacitor socket; usually thinner gauge.
- Run: Larger cross-section, labeled R adjacent to heavy-duty lug.
- Common: Shared return marked C, often bridged to the ground bus.
- Ground bus: Flat steel bar under the junction box lid, sometimes drilled for #6 or #8 copper.
Use a non-contact voltage tester before handling; probe each conductor individually at the splice point. Confirmed energized leads–indicated by steady beep–must be temporarily capped with insulated wire nuts before proceeding. Confirm continuity between motor leads and corresponding relay contacts; a resistance reading above 0.5Ω suggests corrosion or broken strands.
Surface Equipment Quick Reference
- Pressure switch terminals: numbered 1–4; odd pairs correspond to incoming supply.
- Motor relay socket: 4-pin layout; pin A sits opposite ground symbol.
- Capacitor block: oval or cylindrical body with +/– polarity often molded into casing.
Keep a photo record as you remove each conductor; snap shots of terminal strips before disassembly. Label each conductor sleeve with numbered flags matching terminal numbers; photo verification reduces cross-wiring errors during reassembly.
Step-by-Step Guide to Setting Up Your Underground Fluid Extraction System
Shut off the main power supply at the circuit breaker before handling any electrical components. Verify the absence of voltage using a non-contact voltage tester on all cables and terminals to prevent accidental shocks. Label each conductor clearly with waterproof tags–black for hot, white for neutral, green or bare copper for ground–to eliminate confusion during reassembly.
Insert the motor unit into the borehole only after confirming the drop pipe and cable length match the depth specifications in the manufacturer’s manual. Secure the cable to the drop pipe at 3-foot intervals using UV-resistant zip ties to prevent strain on the connections. Avoid sharp bends in the cable; maintain a minimum radius of 10 times the cable diameter to prevent insulation damage.

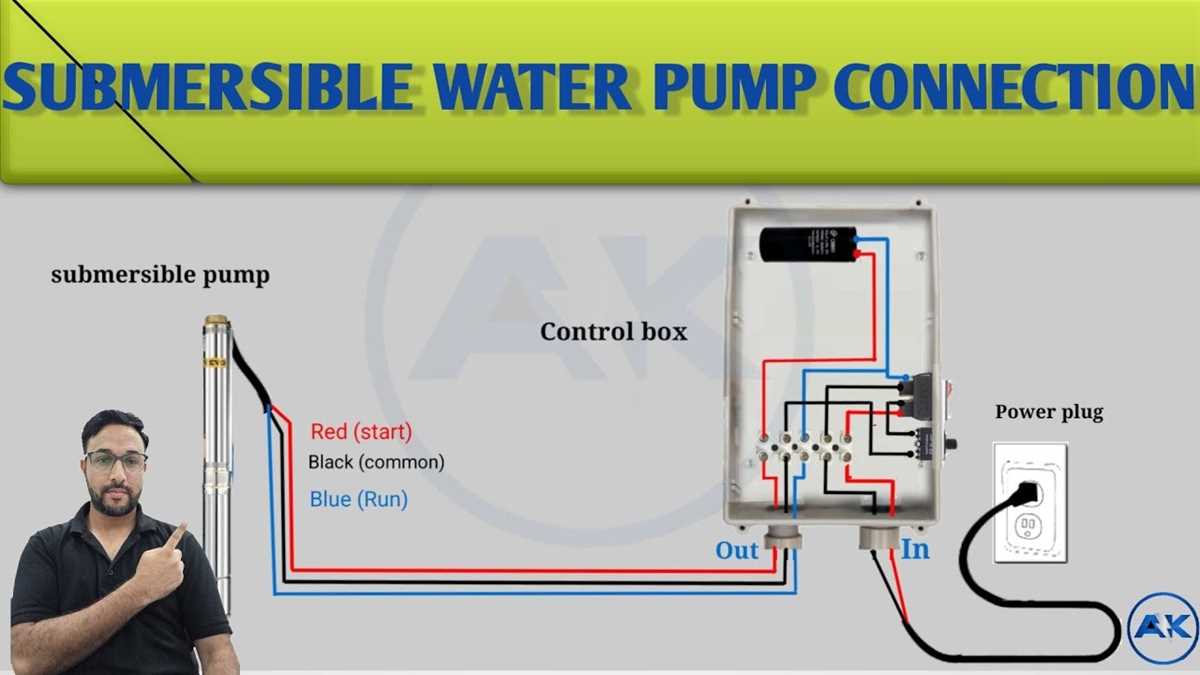

Connect the submersible unit’s lead wires to the surface control box by stripping ½ inch of insulation from each end. Match wire colors precisely: red to the protected start terminal, black to the main power terminal, and yellow to the capacitor terminal (if applicable). Torque terminal screws to 12-15 inch-pounds using an insulated screwdriver to ensure consistent conductivity without over-tightening.
Attach the ground wire to the control box’s grounding lug and bury an 8-foot copper grounding rod at least 6 feet deep near the box. Bond the rod to the control box with 6-gauge solid copper wire, using a crimp connector and antioxidant compound at every joint. Test the grounding resistance with a megohmmeter; readings should not exceed 25 ohms for safe operation.
Activate the circuit breaker and monitor the system for the first two minutes. Listen for unusual noises such as grinding or humming, which indicate misalignment or air locks. Check the pressure switch settings–adjust the cut-in pressure to 30 PSI and cut-out to 50 PSI if necessary–then verify the unit cycles correctly without short-cycling.
Critical Errors in Submersible Motor Installation and Prevention
Incorrect gauge selection is responsible for 40% of premature motor failures. Always match conductor size to the manufacturer’s ampacity chart–undersized cables cause voltage drop and overheating, while oversized ones waste resources. For a 2 HP motor at 230V, #10 AWG copper is minimum; #8 extends life under heavy loads. Verify distance calculations: every 100 feet beyond 50 requires one additional gauge size up. Use a clamp meter to confirm current draw post-installation; discrepancies over 5% indicate setup flaws.
Neglecting proper grounding increases shock hazards and voids UL certification. Bury a dedicated 8-foot copper-clad rod at least 6 feet from the control box, connecting it to both the motor frame and panel with #6 bare wire–never share circuits. Check resistance with a megohmmeter; values below 25 ohms signal poor conductivity. Replace corroded clamps and tighten connections to 25 lb-in torque. Test ground continuity before energizing; a broken path can arc internally, melting insulation without tripping breakers.
Pressure switch misconfiguration causes short-cycling, cutting motor life by 60%. Set cut-in 2 PSI below tank pre-charge and cut-out 2 PSI below bladder pressure–deviations strain diaphragms. Wire contacts in series with a 30/50 PSI differential for 1/2 HP units; larger systems need wider margins. Bypass terminals during testing to verify manual operation. Apply dielectric grease to terminals to prevent oxidation; clean contacts monthly with emery cloth.
