Understanding Schematic Diagrams Key Components and Their Functions

what does a schematic diagram show

Examine any blueprint for electronic systems, and you’ll find three core elements: component relationships, signal flow, and logical connections. These visual representations strip away physical layout details to expose how each part interacts–transistors link to resistors, processors interface with memory, and power lines feed into subsystems. Without this abstraction, tracing faults or modifying designs would require disassembling hardware first.

Key symbols serve as universal shorthand:

  • Lines denote wires or traces, often annotated with voltage levels or signal types.
  • Symbols (e.g., AND gates, capacitors) map directly to real-world parts but eliminate size or shape constraints.
  • Labels pinpoint exact resistor values, IC pin numbers, or net names, critical for troubleshooting or replication.

Ignore these conventions, and even a simple radio circuit becomes unreadable.

Use these diagrams to:

  1. Validate designs before prototyping–check for missing ground connections or unpowered IC pins.
  2. Debug issues by cross-referencing signals against expected behavior.
  3. Document modifications clearly, ensuring future engineers or technicians follow the same logic.

Cloud-based tools like KiCad or Altium integrate schematic capture with PCB layout, but a hand-drawn sketch on graph paper still outperforms digital chaos without systematic planning.

For precision:

  • Group related components (e.g., oscillator circuits) together, using dashed boxes to mark functional blocks.
  • Color-code power rails (red for VCC, blue for GND) to prevent shorts during board assembly.
  • Annotate test points, indicating where to probe signals with a multimeter or oscilloscope.

Mistakes here propagate to physical boards, wasting time and components.

Understanding Circuit Blueprints: Key Elements Revealed

Start by identifying power rails–the horizontal lines at the top and bottom of a circuit illustration label voltage sources. A single line marked “+5V” indicates a regulated supply, while dual rails like “+12V” and “−12V” signal symmetric power for operational amplifiers. Ground symbols, typically a downward-pointing triangle or three horizontal bars, unite all return paths; distinguish digital grounds from analog to prevent noise coupling.

Trace signal routes: arrows or dot-ended lines reveal intended flow, while crossing lines without dots imply no connection. Resistors use rectangular boxes or jagged lines, capacitors are parallel lines (one curved for electrolytic), and inductors appear as coiled springs. Transistors show three terminals labeled E, B, C or S, G, D; dual-gate MOSFETs add a fourth lead. Integrated circuits display a rectangle with numbered pins aligned clockwise from the notch or dot.

Examine control logic gates: AND gates form a flat-fronted D-shape, OR gates curve outward, NOT gates include a small circle at the output. Flip-flops and latches appear as rectangles with labeled inputs (R, S, D, CLK) and outputs (Q, Q̅). Sensors and actuators link to microcontroller ports; thermistors, light-dependent resistors, and potentiometers use variable resistor symbols. Pull-up/pull-down resistors (4.7 kΩ common) ensure digital pins read stable logic levels.

Annotate wire gauges: 22 AWG wires suit prototyping, while 18 AWG handles currents above 5 A. Color codes follow conventions–red for power, black for ground, yellow or orange for signals–to streamline debugging. Jumper settings, often represented by dashed lines or arrowed connectors, toggle firmware modes during development. Test points, marked “TP” followed by numbers, provide scope probe access for real-time waveform verification.

Key Components Represented in Electrical Blueprints

Always begin by identifying power sources–batteries, AC mains, or generators–marked clearly with voltage ratings and polarity. Use standardized symbols like ± for batteries or ~ for AC lines. Verify connections with a multimeter before proceeding; incorrect polarity destroys components.

Resistors appear as zigzag lines (─///─) with labeled resistance values in ohms, kilohms, or megohms. Include power ratings (e.g., ¼W, 1W) if space permits–1/4W resistors fail under ½W loads. Color-coded bands confirm values: red-red-brown-gold equals 220Ω ±5%.

  • Fixed resistors: R1 470Ω 1%
  • Variable resistors (potentiometers): VR1 10kΩ with adjustable wiper
  • Thermistors: NTC 10kΩ for temperature-dependent resistance

Capacitors use parallel lines (││) for non-polarized types or curved lines (│() for electrolytic variants. Note:

  1. Ceramic: C1 0.1µF (voltage tolerance >50V)
  2. Electrolytic: C2 1000µF 16V (polarity critical)
  3. Film: C3 0.47µF 250VAC for noise filtering

Leakage current increases with age; replace if equivalent series resistance (ESR) exceeds 10Ω.

Semiconductors require precise symbols and annotations. Common examples:

  • Diodes: D1 1N4007 (arrow for cathode)
  • LEDs: LED1 RED (series resistor calculated as (Vin - Vf)/If)
  • Transistors: Q1 2N2222 NPN (label E, B, C)
  • ICs: U1 LM358 (pin numbers mandatory)

Thermal management details (heatsinks, thermal paste) belong in mechanical drawings, not here.

Inductors and transformers use coil symbols (⊃⊂ for air-core, ⊃⚪⊂ for iron-core). Specify:

  • Inductance (e.g., L1 10µH)
  • Current rating (e.g., 5A)
  • Core material (ferrite, powdered iron)

For transformers, add turns ratio (e.g., 120V:12V 10VA) and phase dots if polarity-sensitive circuits (e.g., flyback converters).

Switches and relays require exact state labeling. Use:

  • SPST: SW1 (on/off)
  • SPDT: SW2 A/B (toggle between two paths)
  • Relays: K1 12VDC 10A (coil voltage and contact rating)

Annotate “NC” (normally closed) and “NO” (normally open) contacts for relays.

Ground symbols vary by context:

  • Chassis ground: ┴ (connected to enclosure)
  • Signal ground: ⏚ (isolated from power)
  • Earth ground: ⏚ with three lines (safety-critical)

Never mix ground types without galvanic isolation (optocouplers, transformers).

Test points should be explicitly labeled (e.g., TP1, TP_Vout) and positioned near critical nodes. Use distinct colors or shapes (e.g., diamonds) for rapid identification. Include probe notes like "10x scope probe required" if high impedance is necessary. Always cross-reference with PCB layout diagrams to ensure physical accessibility.

How Circuit Blueprints Streamline Troubleshooting

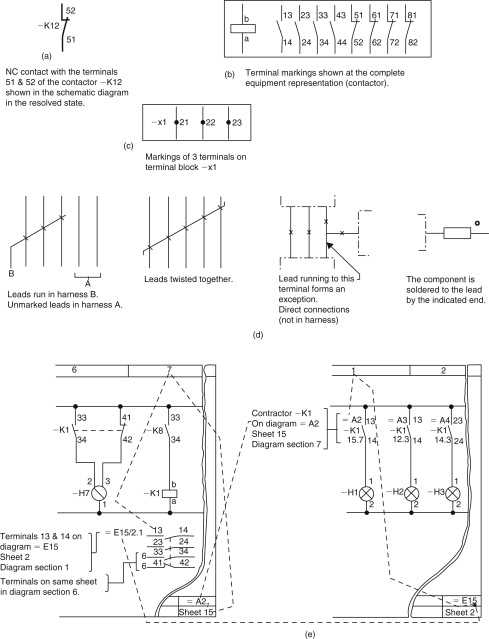

what does a schematic diagram show

Start by converting physical layouts into functional blocks–each representing a discrete component or sub-circuit. Label power rails (e.g., +5V, GND) in bold at the margins to instantly trace their paths. Use standardized symbols for resistors (R), capacitors (C), and ICs (U) with pin numbers adjacent to connections. Group related elements (e.g., oscillators, voltage regulators) inside dashed boxes to visually isolate modules. Add color-coding for signal types: red for high-voltage, blue for digital logic, green for analog inputs. Include a legend with exact tolerances (±5%, 100nF) and maximum ratings (25V, 1A).

Symbol Component Key Detail
NPN Transistor Arrow indicates emitter; base width = 0.2mm
LED Light Emitting Diode Anode (long leg) to +V; Vf = 2.1V, If = 20mA
X Crystal Frequency printed under part; 12pF load caps required

Pinpoint Errors with Layered Verification

Overlap a transparency of the PCB layout onto the blueprint–misaligned traces instantly expose shorts or broken paths. Verify ground loops by checking every GND node converges at a single star point; floating grounds cause noise. For power integrity, ensure decoupling caps (

Common Symbols Used in Electronic Circuit Representations

Resistors use a zigzag line (ANSI) or a rectangle (IEC). Fixed resistors include numeric values (e.g., “10k” for 10 kilo-ohms), while variable resistors (potentiometers) add an arrow through the symbol. Always label tolerance (±5%, ±1%) adjacent to the value for clarity–omitting this risks misinterpretation during assembly or testing.

Capacitors appear as two parallel lines (non-polarized) or a curved line facing a straight one (polarized). Electrolytic capacitors require a “+” sign near the positive terminal, crucial for correct polarity in high-voltage circuits. For surface-mount devices (SMD), codes like “104” (0.1 µF) or “226” (22 µF) replace symbols–verify datasheets to avoid mismatches in footprint or capacitance.

Transistors use distinct shapes: BJTs feature a circle with three leads (collector, base, emitter), while MOSFETs use a vertical line with source, gate, and drain connections. Darlington pairs combine two BJT symbols inside one circle. For logic gates, the IEEE standard (rectangular shapes) contrasts with traditional symbols (curved outlines)–stick to one standard per project to prevent errors in multi-page designs.

Key Differences Between Circuit Blueprints and Wiring Layouts

Start by identifying functional components in circuit blueprints–they represent idealized connections using standardized symbols. These illustrations focus on logical relationships rather than physical placement, allowing engineers to analyze signal flow, power distribution, and subsystem interactions without spatial constraints.

  • Symbolic vs. Physical: Circuit blueprints use generic resistors, capacitors, and ICs to depict functionality, while wiring layouts specify exact wire gauges, connector types, and pin assignments.
  • Scalability: Blueprints scale effortlessly for complex systems (e.g., PCB designs), whereas wiring layouts become cluttered with more than 20-30 connections.
  • Layering: Multi-sheet blueprints handle hierarchical designs (e.g., microcontrollers referencing subcircuits), while wiring layouts typically remain single-layer for clarity.

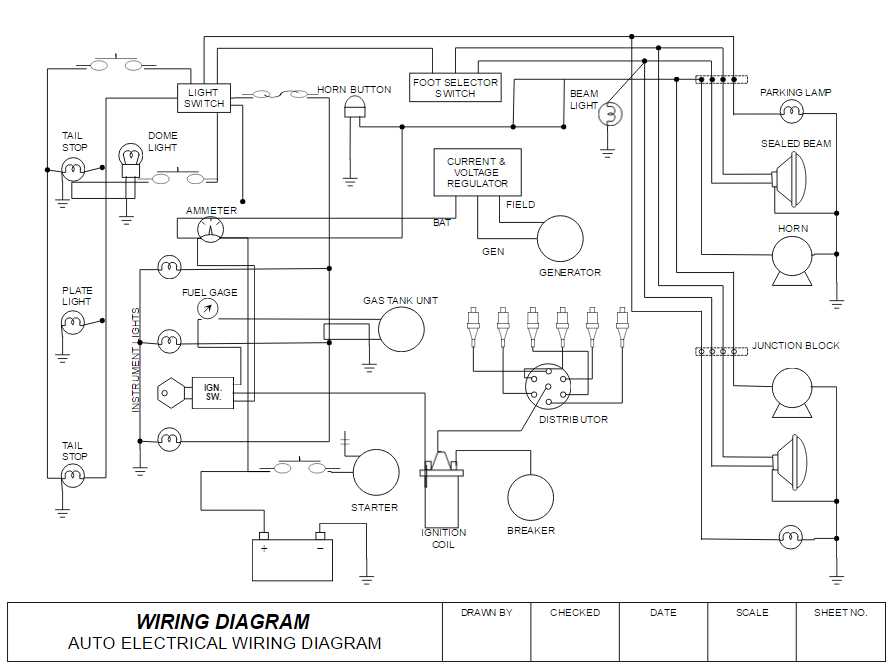

For troubleshooting, wiring layouts prove superior–they map actual harness routes, terminal locations, and splice points. A technician can trace a 12V wire from battery to load in a vehicle wiring layout, whereas a circuit blueprint omits physical wires, showing only the battery symbol connected to a motor symbol via abstract lines.

Choose circuit blueprints for:

  1. Design validation (simulating voltage drops across components).
  2. Documenting firmware interactions (e.g., SPI bus communication).
  3. Modular projects requiring reusability (e.g., amplifier stages).

Opt for wiring layouts when:

  • Fabricating enclosures (labeling drill points for switches).
  • Installing off-the-shelf components (e.g., aftermarket car stereos).
  • Compliance documentation requires physical proof (e.g., aviation harness specs).

Critical tools reveal usage patterns:

  • KiCad/EAGLE: Blueprints (netlists exported for PCB milling).
  • AutoCAD Electrical: Wiring layouts (layered with DIN rail placements).
  • Fritzing: Hybrid views (breadboard prototypes with schematic overlay).

For hybrid projects (e.g., Raspberry Pi clusters), pair both: use blueprints to define GPIO-to-sensor logic, then translate to wiring layouts marking JST connector polarities and gauge AWG-22 wires. Always validate wiring layouts against blueprints–mismatches between symbolized 10kΩ pull-ups and physical trim pots waste diagnostic time.
