How to Wire White Rodgers Gas Valves Step-by-Step Guide with Diagrams
Begin by locating the thermocouple terminals–typically marked TH or TC–on the control module. Connect the positive lead (red or copper-colored) to the terminal nearest the pilot assembly inlet, ensuring a secure crimp or screw-down connection. The negative lead (usually silver or white) attaches to the adjacent terminal, completing the safety circuit that enables fuel flow when heat is detected. Failure to observe polarity can render the safety lockout feature inoperative.
Identify the main circuit on the module: it consists of two terminals labeled MV (main valve) and PV (pilot valve). A 24VAC transformer output connects directly to MV, while PV must be wired in series with the thermostat’s call-for-heat contacts. Use 18-gauge, heat-resistant conductors for this segment; anything thinner risks voltage drop under load. If the system includes a pressure regulator, its solenoid coil often taps into the PV circuit–verify the coil’s resistance (typically 20–40 ohms) before energizing to prevent overheating.
Examine the ignition sequence wiring: modern smart modules require a separate 24V feed to an IGN terminal. This powers the spark generator or hot-surface igniter. Route this conductor away from inductive loads (pumps, motors) to avoid transient spikes that can prematurely degrade the igniter. Ground all chassis points to a common bus bar; floating grounds introduce erratic spark behavior and falsely trigger fault codes.
For modulating models, note the input/output pair (often marked I/O or 4-20mA). These terminals receive feedback from external sensors (temperature, pressure) and send proportional signals to the actuator. Use shielded twisted-pair cable with the shield tied to chassis ground at one end only; grounding both ends creates ground loops. Calibrate the actuator’s zero and span per the datasheet–typically adjusting a 5K potentiometer while monitoring current draw across the I/O terminals.
Label every conductor at both ends with heat-shrink tubing or adhesive tags. Color-code thermostat circuits red (R), white (W) for heat calls, and green (G) for fan control. Keep high-voltage (120V or 240V) lines physically separated from low-voltage runs by at least 1 inch or use a dedicated cable trough. After assembly, energize the system and measure voltage drop across MV and PV terminals–expect 22–24VAC; anything below 20VAC indicates excess load or undersized conductors.

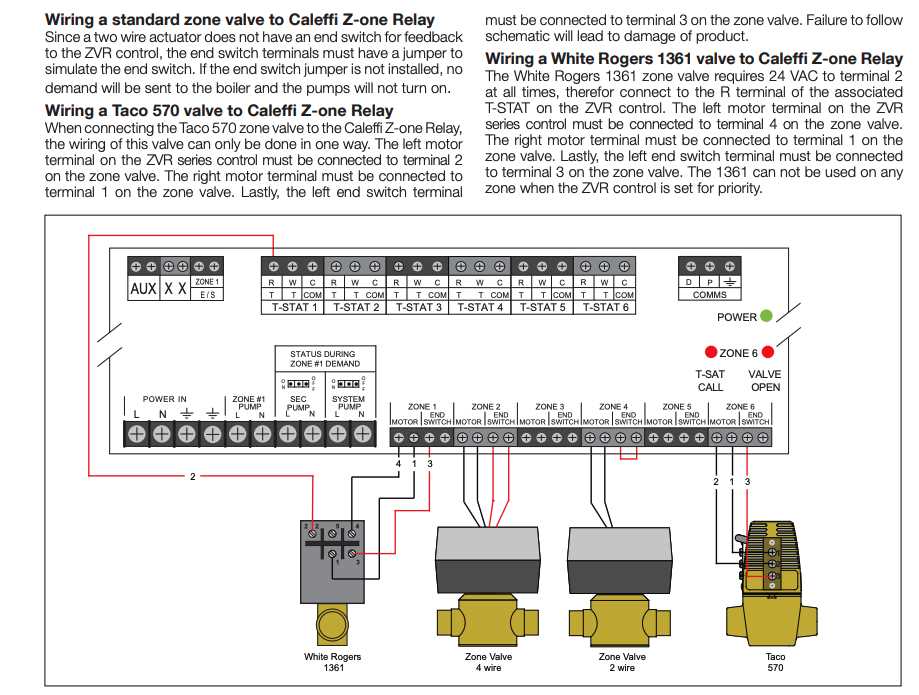

Electrical Schematic for HVAC Fuel Regulator Connections
First, ensure the control module’s power terminals (typically labeled “R” and “C”) match the furnace transformer’s output–common configurations include 24V AC. Verify polarity if the system uses DC microcircuits, as reversal can damage sensitive relays. For dual-stage regulators, connect the first stage to “W1” and the second to “W2,” aligning with thermostat demand sequences. Use 18-gauge solid copper wire for low-voltage runs under 10 feet; upgrade to 16-gauge if exceeding this length or routing through high-resistance conduits.
- Disconnect the appliance’s main power at the circuit breaker before handling any terminals to prevent arcing or short circuits.
- Label each wire at both ends with heat-resistant tags–avoid masking tape as it degrades under thermal stress.
- Check for continuity between the regulator’s safety coil (often marked “MV”) and ground using a multimeter; readings above 0.5 ohms indicate corrosion or loose connections.
- For modulating setups, the proportional controller requires a dedicated 2-wire shielded cable to prevent interference from adjacent HVAC components.
After securing connections, test the system in “manual ignition” mode via the appliance’s diagnostic interface. Observe flame rectification signals between the ignition sensor and controller–fluctuations outside ±1.2VDC suggest electrode fouling or improper gap alignment (optimum: 0.12–0.16 inches). Replace any connectors showing heat discoloration; oxidized terminals cause voltage drops exceeding 0.3V, leading to lockouts. Log baseline resistance values for future troubleshooting; typical ranges are 20–40 ohms for safety coils and 12–18 ohms for primary control circuits.

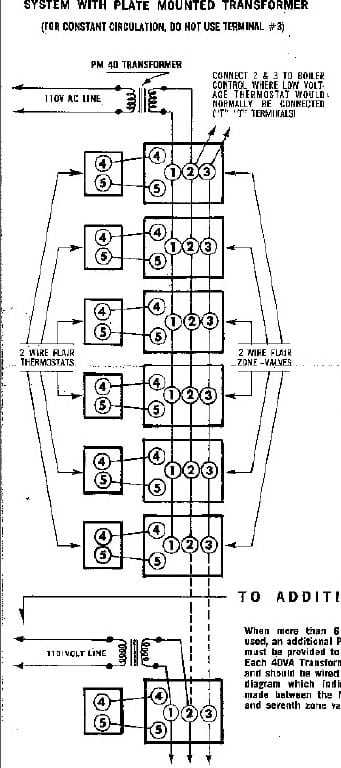

Termination Points on Combustion Control Units: A Safe Hookup Guide
Locate the data plate on the control assembly before making any connections. Most models feature a small metal tag riveted to the housing, listing terminal numbers with corresponding functions. For example, terminals labeled “TH” or “THW” typically designate thermostat inputs, while “MV” or “MV/PV” indicate main and pilot operation points. Confirm these designations against the unit’s documentation–never assume standardized labeling across brands or even product lines within the same manufacturer.
Use a multimeter set to continuity mode to verify unmarked connections. Probe each terminal against the device’s metal chassis to identify ground points, which often measure near-zero resistance. If the control includes an integrated safety switch–such as a flame rollout detector–its terminals may appear without labels but will show low resistance when functional. Never jumper these points; incorrect connections can bypass critical safety mechanisms.
Distinguish between constant and switched power terminals. The first, often marked “24VAC” or “P” (power), supplies uninterrupted current, while switched points like “W” (heat) or “R” (cool) energize only when the corresponding signal activates. Connecting a 24-volt hot lead to a switched terminal risks backfeeding and damaging control boards. Always double-check with a voltage tester–probing live circuits requires proper PPE, including insulated gloves rated for line voltage.
Record terminal positions with photographs before disassembly. Snap clear images from multiple angles, ensuring labels and nearest reference points (e.g., mounting screws, conduit knockouts) remain visible. If the data plate lacks details, note unique identifiers like terminal screw thread types–metric vs. imperial–or adjacent hardware spacing. These subtleties prevent mix-ups during reinstallation, especially when working under poor lighting or tight spaces.
Pay attention to pilot assembly connectors, which frequently use spade or micro-fit terminals. These smaller points may carry low-current signals for flame sensing or pressure monitoring, and forcing standard 18-gauge wiring into them can damage internal pins. For micro-fit connectors, use the exact crimp tool specified in the maintenance manual–generic crimpers can create intermittent faults that trigger nuisance lockouts.
Handling Unconventional Configurations
Some units integrate modulating controls with multi-pin terminals labeled numerically (1–8) instead of alphanumerically. Pin 1 often corresponds to common, with subsequent pins carrying staged heating or fan signals. Cross-reference these against the control’s ladder diagram–typically printed on the inside of the access cover–to avoid miswiring sequencing logic. Incorrect staging can cause short cycling or incomplete combustion, elevating carbon monoxide risks.
Always disconnect power at the distribution panel and verify absence of voltage with a non-contact tester before touching any terminals. Even “low-voltage” points can store hazardous charge in capacitors. After wiring, recheck each connection with a torque screwdriver set to the manufacturer’s specification–typically 8–10 inch-pounds. Loose terminations generate heat and can arc, while overtightened screws strip threads or crack terminal blocks.

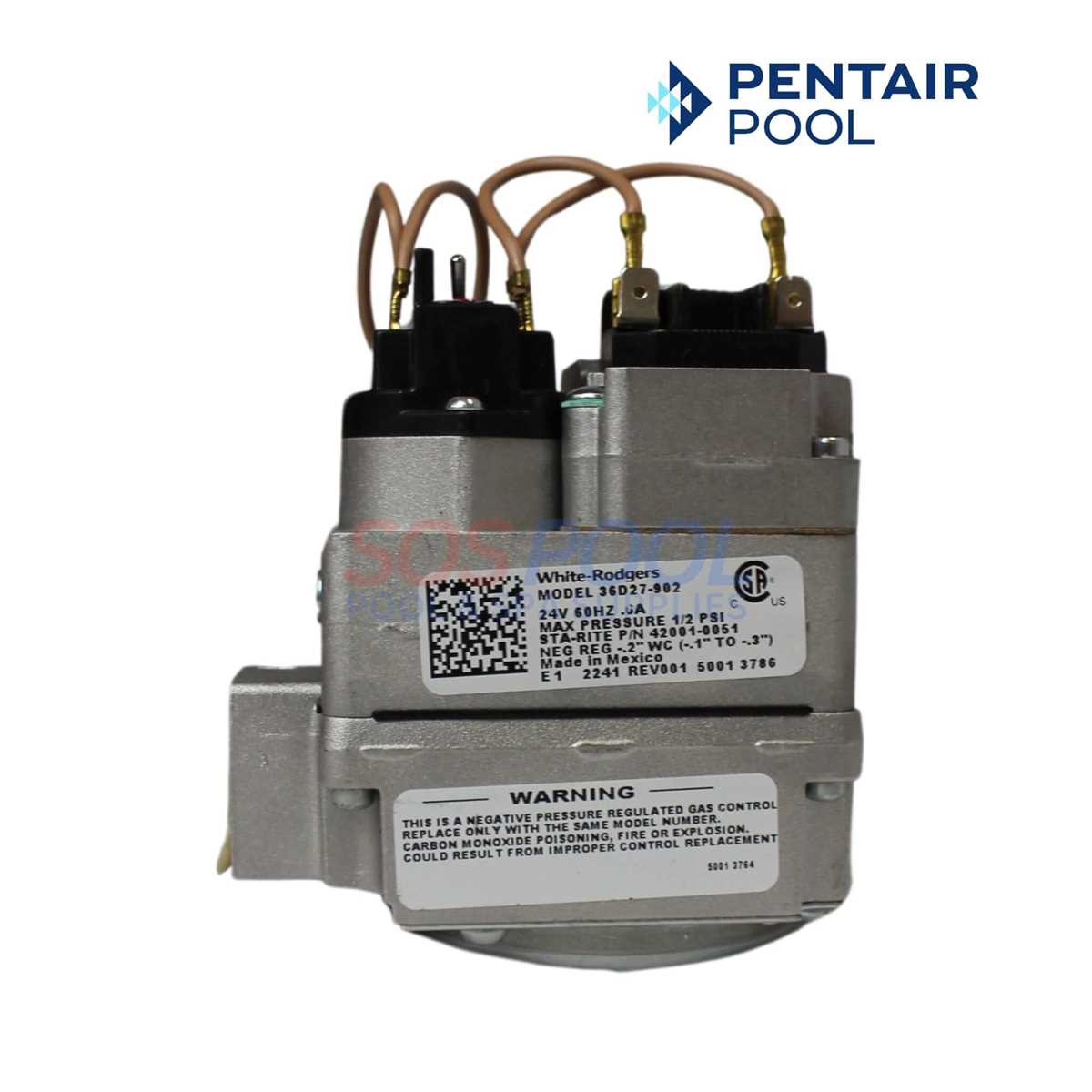

Step-by-Step Connection Guide for Popular Combustion Control Units
Begin by disconnecting power at the circuit breaker to prevent accidental activation. Identify the terminal block on the control module–typically marked with alphanumeric labels (e.g., “TH,” “TR,” “MV,” “PV”). For series 36C/36J models, connect the thermostat’s “R” wire to the “TH” terminal, “W” to “TR,” and ensure the 24V common wire secures to the designated “C” post. If the appliance includes a millivolt pilot system, verify the pilot generator’s output (0.5–0.6 VDC) between “TH” and “MV” before proceeding. Failure to confirm voltage may result in intermittent ignition or safety lockout.
| Model | Terminal Pairings | Voltage Check (AC) | Critical Notes |
|---|---|---|---|
| 36C (1-stage) | TH-TR: 24V input MV-PV: Main burner |
24–28V between TH-C | Polarity-sensitive meter required for MV testing |
| 37C (2-stage) | TH-W1: First stage TH-W2: Second stage MV-PV: High fire |
17–19V between W2-C (second stage) | Check resistance: 120Ω ±10% across pilot terminals |
| VS8520/8620 | M1-M2: Modulating burner EX1-EX2: External overrides |
0.8–1.2V across M1-M2 (min load) | Tighten EX terminals to 8 in-lbs; loose connections cause erratic modulation |
Strip wires to 3/8″ exposure, twist strands clockwise, and insert fully into terminals–avoid bending conductor ends, which weakens grip. For modulating units like VS8520, observe color-coded wiring: brass screws (R, W, Y) accept thermostat leads, while silver screws (C, X) ground the circuit. After securing connections, restore power and initiate a heating cycle. Watch for consistent ignition–delays exceeding 15 seconds indicate reversed polarity on MV terminals or insufficient thermopile output. If unsure, swap MV and PV leads; correct orientation ensures immediate flame response.
Diagnosing Power Supply Problems in Fuel Control Modules
Start by verifying the input voltage at the control terminals with a multimeter set to AC or DC, depending on the system’s configuration. For 24VAC systems, readings below 22V or above 28V indicate a fault in the transformer, loose connections, or excessive circuit resistance. If the supply originates from a DC source, check for a minimum of 18VDC; deviations suggest diode failure, capacitor leakage, or insufficient charging. Measure voltage drop across each terminal pair while the system demands activation–consistent drops exceeding 2V often reveal corroded contacts or undersized conductors.
- Inspect the thermostat subbase for oxidation or pitted contacts–clean with 400-grit sandpaper and recoat with dielectric grease.
- Trace the line from the power source to the module, ensuring no splices introduce resistance–crimp connectors should show continuity below 0.5Ω.
- For intermittent faults, flex cables while monitoring voltage; a fluctuating reading confirms broken strands or internal conductor fatigue.
Testing Component Integrity Under Load
Simulate operational demand by jumpering the R and W terminals at the subbase–observe if the relay energizes and voltage stabilizes. If voltage sags but recovers without load, suspect a failing transformer; replace it with an identical VA-rated unit. Check the furnace’s safety switches–high-limit and rollout sensors–by bypassing them one at a time; voltage restoration after bypass indicates a tripped safety requiring reset or replacement. For electronic modules, test for transient voltage spikes with an oscilloscope–peaks above 35VAC can damage internal semiconductors, necessitating a line filter or transient suppressor.
- Use a clamp meter to measure current draw during activation–values exceeding 0.8A suggest coil shorts or solenoid wear.
- Examine the control board for bulging capacitors or discolored traces–these often fail before noticeable voltage anomalies.
- For smart systems, disconnect the communication bus and retest power–interference from data lines can cause erratic voltage readings.
If voltage persists at the module but the solenoid fails to engage, perform a manual override test by bridging the 24V and common terminals with a 18AWG wire for no longer than 3 seconds. Audible clicks or solenoid movement confirm an open coil, requiring full replacement. Absence of response suggests stuck plungers–apply penetrating oil to the housing interface and cycle the mechanism multiple times. Persistent failure mandates replacement of the entire assembly; mismatched impedance can overload low-voltage circuits, leading to premature failure.
