Complete Guide to Wiring a Full Home Backup Generator Step by Step
Install a dual-pole, double-throw transfer switch (60-400 amp) rated for your main service panel amperage. Connect it within 12 inches of the panel door to comply with NEC Article 702. Label the switch clearly with wire gauge (minimum #6 AWG copper for 60A, #1/0 AWG for 200A) and circuit identification. Include a grounding busbar bonded to the neutral terminal only in the standby position–never in both positions simultaneously.

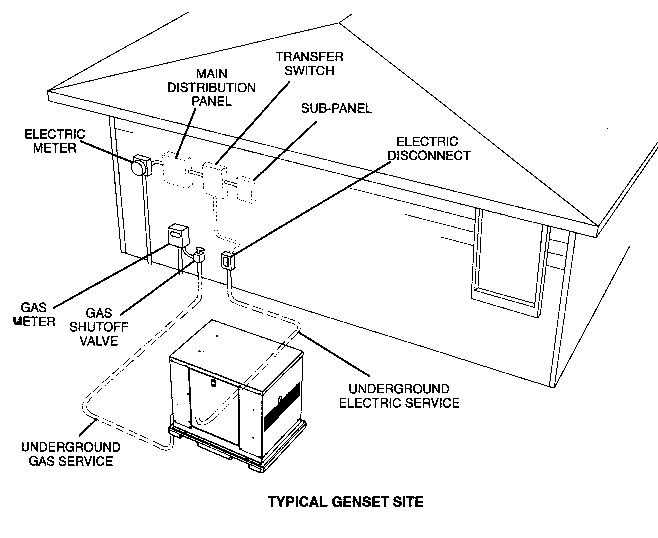

Run conduit-protected conductors (schedule 80 PVC or rigid metal) from the switch to the outdoor power unit’s junction box. Use direct burial cable (UF-B type) only if trenching meets local code depth (18 inches minimum) and bury alongside a plastic warning tape 12 inches above. Include a weatherproof disconnect within 3 feet of the unit’s fuel inlet to meet OSHA lockout/tagout requirements.
Size the overcurrent protection (breaker) to match the standby unit’s surge rating–typically 125% of continuous load. For 20-24kW liquid-cooled models, use a 250A molded-case circuit breaker with Class T fuses to prevent nuisance trips during motor start-ups (compressors, well pumps). Connect separate 120V circuits for the control panel and block heater to prevent voltage sag.
Test the system quarterly with a clamp-on ammeter to verify voltage drop (neutral-to-ground voltage at the transfer switch (aluminum wiring (if present) annually for oxidation at terminals–clean with a stainless-steel brush and apply antioxidant paste.
For subpanels, extend the three-wire feed (hot-hot-neutral) from the main switch with identical sizing. Use load calculation software (Siemens Simaris or ETAP) to sequence high-demand appliances (HVAC, water heater) to avoid overloading the standby unit’s 3,600 RPM alternator. Avoid backfeeding portable units–this violates NEC 702.11 and risks feedback fires.
Power System Integration for Residential Backup Solutions
Install a manual transfer switch rated for at least 125% of the continuous load capacity–common models like Generac RTSY200A3 handle 200 amps. Position it within 10 feet of the main service panel to minimize voltage drop, using 2/0 AWG copper conductors for runs exceeding 15 feet. Verify the switch’s NEMA 3R enclosure rating for outdoor installation, with a dedicated 4-inch concrete pad elevated 6 inches above grade to prevent moisture ingress.
Size circuit breakers based on the alternator’s surge capability: a 22 kW unit requires a 100-amp double-pole breaker in the subpanel, while a 30 kW unit demands 125 amps. Use a 3-phase rotary switch for models above 48 kW to avoid neutral overload. Route all conductors in Schedule 40 PVC conduit buried at 18 inches depth, with sweep bends at 90-degree turns to prevent cable damage during pulling.
Critical Load Prioritization
| Appliance | Typical Wattage | Recommended Wire Gauge | Breaker Size |
|---|---|---|---|
| Refrigerator | 700–1200 W | 12 AWG | 20 A |
| Well Pump (1 HP) | 2200 W | 10 AWG | 30 A |
| Electric Range | 12,000 W | 6 AWG | 50 A |
| HVAC (5-ton) | 5000 W | 8 AWG | 30 A |
Bond the grounding electrode system to the backup unit’s frame using an 8 AWG bare copper conductor, terminating at a driven ground rod with
Commissioning Checklist
Test the system under load by simulating a power outage: verify the alternator reaches 3600 RPM within 3 seconds, the transfer switch engages within 10 seconds, and voltage stabilizes at 120/240 V (±3%). Measure harmonic distortion at the main lugs–values above 5% indicate incorrect alternator-to-load matching. Calibrate the automatic voltage regulator to maintain output within 118–122 V under a 5 kW load. Document all readings in a compliance log for warranty validation.
Key Components Needed for a Backup Power Transfer Switch Installation
Install an automatic transfer switch (ATS) rated for your system’s amperage–typically 100A, 200A, or 400A for residential setups. Ensure the unit supports dual-power sources and includes built-in surge protection. Models like Generac RTS series or Cummins Onan OT Series offer seamless transitions between grid and auxiliary power, eliminating manual intervention during outages.
Select copper wiring sized according to the NEC (National Electrical Code) table 310.16–for 200A service, use 2/0 AWG for hot conductors and 4 AWG for grounding. Avoid aluminum unless the switch terminals are explicitly rated for it. Secure a subpanel if isolating critical circuits (refrigerator, medical equipment, sump pump) from non-essentials, ensuring compliance with NEC Article 702.
Include a lockout kit or interlock device for manual switches to prevent backfeeding–a violation of NEC 705.12(B) that risks electrocuting utility workers. For standalone units, pair the switch with a power inlet box (L14-30 for 30A, L5-50 for 50A) and a twist-lock plug to match the portable unit’s output. Verify voltage compatibility: 240V dual-phase for most homes, 120V for smaller setups.
Mount the switch within 5 feet of the main panel, adhering to NEC 225.30, to minimize voltage drop. Use conduit (1/2″ or 3/4″ EMT) for protection–flexible metal conduit (FMC) allows flexibility in tight spaces. Include a grounding rod if the auxiliary unit lacks a bonded neutral, and bond all metallic components to the grounding electrode system per NEC 250.50.
Test the system with a load bank to confirm the switch triggers within 30 seconds of grid failure (per IEEE Standard 1547). For liquid-cooled units, install a condensate drain line and fuel regulator if using propane or natural gas. Document all connections with a labeling kit–mark circuits “LOAD SIDE ONLY” and “GRID DISCONNECT REQUIRED” for safety and maintenance clarity.
Step-by-Step Connection Guide for Manual Transfer Switches
Select a listed transfer panel rated for 200+ amps with a UL 1008 certification. Verify its compatibility with your service panel’s main breaker size–most residential setups require a 100–200 amp capacity. Install the panel within 3 feet of the main service box to minimize voltage drop, using 2/0 AWG copper conductors for runs exceeding 10 feet.
Panel and Subpanel Integration
- Shut off the main breaker at the service entrance.
- Mount the transfer unit adjacent to the service box, ensuring a minimum 30-inch clearance per NEC 110.26 for workspace.
- Route the feeder cables from the main panel’s bus bars to the transfer unit’s input lugs, torquing to 50–70 lb-in for aluminum or 60–80 lb-in for copper (check manufacturer specs).
- Connect the output lugs of the transfer unit to the subpanel using conductors sized per NEC Table 310.16–typically 4/0 AWG for 200-amp services.
- Label all breakers in both panels with circuit IDs matching the original service box.
Grounding and Neutral Isolation: Separate the neutral and ground bars inside the transfer unit if it’s a separately derived system (required for most standby units). Bond the neutral bus to the ground bus only at the service entrance, then run a dedicated #6 AWG ground wire from the transfer unit’s ground lug to the main panel’s grounding electrode conductor. Verify all connections with a megohmmeter (target
- Use a torque screwdriver calibrated to NFPA 70E standards for all lug tightenings.
- Avoid paralleling conductors–each circuit must have dedicated wires.
- Test polarity with a non-contact voltage tester before final closure of the panel covers.
Electrical Code Requirements for Backup Power Source Circuit Interrupter Positioning
Circuit breakers for standby power systems must be installed within 3 feet of the transfer switch, per NEC Article 445.18. This distance ensures rapid disconnection during faults without relying on extended conductor runs that could delay protection. Exceptions apply if manufacturer specifications allow alternative placements, but local amendments may override this–for example, California’s CEC requires the interrupter to be immediately adjacent to the switch in all residential applications. Verify state codes before finalizing layouts.
NEC 230.72(A) mandates that the feeder circuit interrupter be located on the supply side of the service disconnect, not downstream. When integrating emergency power, this rule prevents backfeeding hazards by isolating the grid from the failover unit’s output. Use listed hardware with UL 1008 certification to meet compliance; modular solutions often bundle interrupters with transfer switches, but standalone devices must still adhere to the 3-foot rule unless waived by AHJ.
For subpanel-fed installations, NEC 225.31 requires a separate shutoff within sight of each auxiliary panel. If visibility is obstructed (e.g., due to walls or doors), an additional lockable disconnect must be installed at the subpanel location. AHJs frequently interpret “within sight” as unobstructed line-of-sight up to 50 feet, but confirm with local inspectors–some jurisdictions like NYC permit remote switching via a listed interlock kit, provided the interrupter is accessible within 10 feet of the panel.
Ground fault protection (NEC 210.8) applies to all circuits serving receptacles rated 150V or less to ground, extending to backup power feeders. Install a GFCI breaker at the source if the failover unit supplies outdoor or wet-location outlets, even if the primary panel lacks them. Omitting this risks non-compliance, as NEC treats emergency-supplied circuits identically to standard ones. Coordinate with transfer switch wiring to avoid nuisance tripping–use Type B GFCIs for variable-speed drives common in modern backup units.
Load-side taps (NEC 240.21) must not exceed 10 feet in length unless specified by an engineering evaluation. When extending a backup power branch circuit, ensure the tap conductor’s ampacity matches the smallest upstream breaker, using Table 310.16 for derating calculations. AHJs often demand locknut bushings or PVC conduit for taps routed through metal junction boxes. For generators rated above 15 kW, NFPA 110 requires a dedicated overcurrent device sized at 115% of the unit’s nameplate current–locate this in the same enclosure as the transfer switch to simplify inspections.
