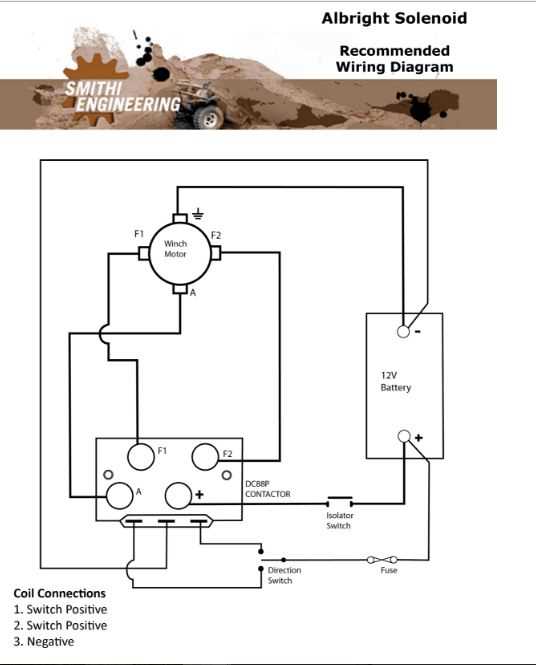

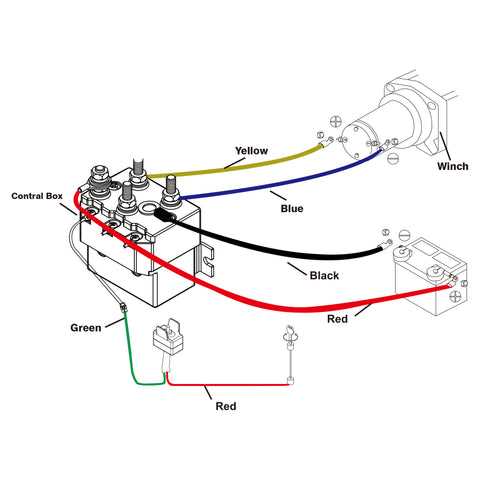

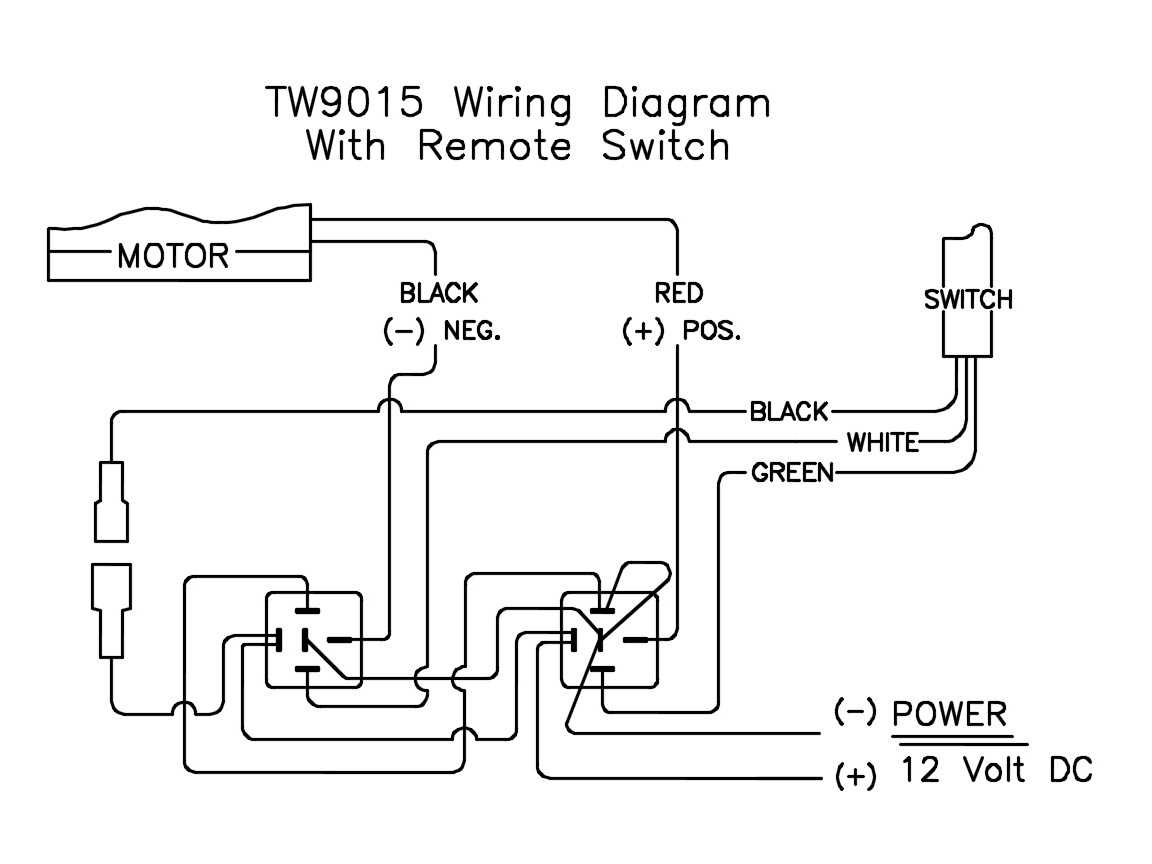

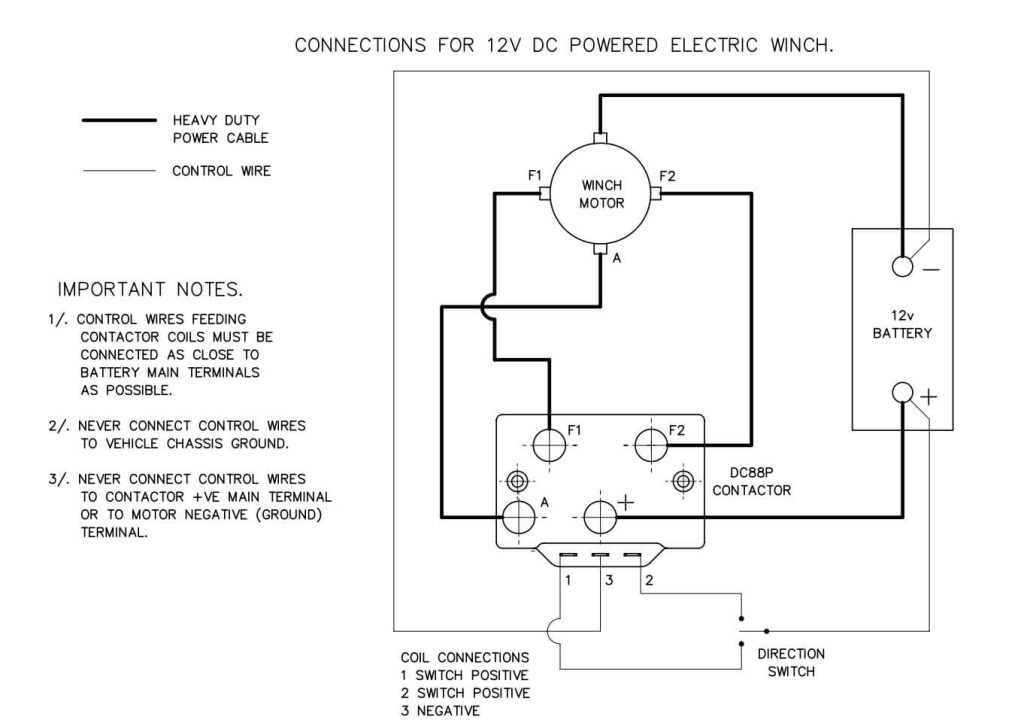

Step-by-Step Winch Relay Electrical Connection Guide and Schematic
Use a 30-amp or 40-amp automotive-grade switch to handle the current draw of a high-power traction device. Install the control unit as close to the battery as possible–ideally within 30 cm–to minimize voltage drop. Route the positive cable directly to the battery terminal, avoiding shared fuse blocks or accessory circuits. Ground the system to the chassis at a clean, rust-free point near the motor for stable performance.
Critical steps:
1. Component selection: Choose cables rated for 125% of the maximum load. For a 10,000 lb capacity unit, this means 6-gauge THHN wire or thicker.
2. Circuit protection: Add a 300-amp ANL fuse between the battery and the switching module. Place it no more than 7 inches from the battery to protect the entire circuit.
3. Switch positioning: Mount the toggle or rocker switch on the dashboard or control panel where it’s easily accessible while operating the vehicle. Use a sealed, waterproof enclosure if exposed to moisture.
Secure all connections with heat-shrink tubing and dielectric grease to prevent corrosion. Test the setup with a multimeter before full operation–voltage at the motor should match the battery voltage (12.6V–14.4V) under load. If readings drop below 11V, inspect connections for resistance or undersized cables. Never bypass fuse protection, even for temporary testing.
Setting Up Your Pulling Device Control Circuit
Use a 4-pin SPDT switchgear module rated for at least 40 A continuous load. Connect the input lug to the vehicle’s auxiliary power bus fused at 60 A, the common terminal to the solenoid coil, and the normally closed pin to a secondary 15 A fused ignition-switched circuit for momentary override. This arrangement prevents accidental engagement when the ignition is off while allowing a backup control path if the primary switch fails.
Ground Path Optimization
Mount the control box within 40 cm of the motor assembly to minimize voltage drop across the activation coil leads. Crimp 8 AWG tinned copper wires directly to the solenoid posts, then secure them with heat-shrink tubing filled with dielectric grease. Route the ground return through a dedicated chassis stud located no farther than 15 cm from the motor housing to avoid introducing resistance that could weaken magnetic pull strength.
| Component | Minimum Gauge | Recommended Fastener |
|---|---|---|
| Control coil leads | 14 AWG | M5 stainless steel ring terminal |
| Motor power cables | 2/0 AWG | M8 copper lug |
| Chassis ground | 6 AWG | M6 zinc-plated stud |
Apply anti-corrosion paste to every terminal before tightening to a torque of 12 Nm for M6 fasteners and 25 Nm for M8 connections. Check the entire circuit with a multimeter set to 200 Ω range; any resistance exceeding 0.3 Ω indicates a compromised joint that should be reworked immediately.
Pinpointing Critical Elements in Your Pulling Device Control Loop
Locate the power distribution block first–this chunky terminal cluster handles incoming current from the battery. Verify its amperage rating matches your setup’s draw; a 300A block won’t suffice for a 500A motor under load. Check for corrosion on brass studs–oxidation increases resistance, risking voltage drop that starves downstream components.
Trace the solenoid unit next. Four main terminals define its role: two thick posts for high-current switching, a thinner post for control input (trigger), and a ground terminal. The control post typically links to a dashboard switch via an automotive fuse–replace any fuse below 20A if frequent activation burns contacts.
Decoding Switch Mechanism Behavior
The activation button often conceals subtle design quirks. Momentary switches default to normally-open position; latching switches retain state until manually toggled. Test continuity across switch terminals–infrequent use invites contact pitting, causing intermittent failures. If resistance exceeds 0.2 ohms, replace immediately.
Inspect cables for heat-induced insulation degradation. Silicone-jacketed wires resist melting better than PVC but degrade under prolonged UV exposure. Use a thermal camera to identify hotspots–consistent 90°C readings signal impending failure. Upgrade to tinned copper conductors if crimp connections blacken from oxidation.
Ground paths demand equal scrutiny. A single 6-gauge cable routed directly to chassis frame outperforms multiple thin wires scattered across body panels. Measure voltage drop across ground points–readings above 0.1V indicate resistance buildup. Clean mounting surfaces to bare metal; paint or rust acts as an insulator.
Verifying Auxiliary Safety Features
Thermal cutouts embedded in motor assemblies prevent overheating. These snap-action bimetallic strips trip around 120°C–test by applying heat with a rework station. If no click occurs, the device has failed silently. Override switches bypass these safeguards–avoid engaging them without monitoring motor temperature.
Remote pendant controllers introduce another failure point. Look for frayed leads at stress points–repeated coiling breaks internal conductors without visible damage. Confirm signal integrity by tracking resistance from pendant plug to solenoid–fluctuating readings suggest internal shorts. Use dielectric grease on connector pins to repel moisture if operating in wet environments.
Installing a Pulling Device Control Switch: A Detailed Procedure
Begin by disconnecting the vehicle’s battery terminals to eliminate power flow during installation. Use a 10mm wrench to loosen the negative clamp first, followed by the positive. This sequence prevents accidental short circuits.
Locate the auxiliary power source–typically a 12V fuse panel or direct battery connection. For most setups, a 40-amp circuit breaker is required between the battery and the control box. Attach 4 AWG cables to handle the current draw, securing connections with crimp connectors and heat shrink tubing to prevent corrosion. Route cables away from moving parts and exhaust systems.
- Mount the switching module in a dry, accessible spot–under the hood near the battery or inside the cabin’s fuse box area. Avoid placements exposed to water or extreme heat.
- Strip ½ inch of insulation from each wire end using wire strippers. Twist strands tightly before inserting into connectors.
- Connect the primary power input (battery side) to the common terminal marked “30” on the module. Attach the output (device side) to terminal “87” for standard operation.
- Ground the control module by linking terminal “85” to the vehicle’s chassis with a 12 AWG wire. Use a dedicated ground point free of paint or rust.
For the activation circuit, link the control switch to terminal “86” using 14 AWG wire. If using a momentary pushbutton, add a 10A fuse in-line to protect the circuit. Test the switch by briefly pressing it; the module should emit a clear *click* indicating engagement. Reconnect the battery and verify operation with the device at low load before full deployment.
Finally, secure all wiring with zip ties every 6 inches and use wire loom for protection. Recheck connections for tightness after a 24-hour period–loose terminals are a common failure point. Apply dielectric grease to terminals to inhibit future corrosion, especially in high-moisture environments.
Common Errors in Tugger Circuit Hookups
Skipping the ground verification leads to intermittent failures. Attach the negative terminal directly to bare metal–paint, rust, or debris weakens conductivity. Test each connection with a multimeter; readings below 0.2 ohms confirm solid grounding.
Overlooking fuse placement invites fire risks. Insert an inline fuse within 7 inches of the battery positive terminal, matching the motor’s amp draw. Most heavy-duty units require 300-400 amp fuses–never exceed manufacturer specs.
Twisting wires instead of crimping or soldering creates loose joints. Use heat-shrink tubing over connections; electrical tape degrades under vibration. Inspect terminals for corrosion monthly, especially in humid or salty environments.
Mixing wire gauges strains components. 1/0 AWG suits primary feeds, while 4 AWG suffices for control circuits. Smaller gauges overheat under load–measure resistance to prevent voltage drop beyond 3%.
Ignoring Polarity Reversals
Rewiring for reverse operation demands relocating contacts. Swapping terminals improperly burns solenoids or destroys motors. Label all leads before disconnecting; trace circuits with a probe to avoid misalignment.
Neglecting Load Tests Before Field Use
Bench-test circuits under 50% of rated load. Simulate real conditions by lifting test weights–stuttering or overheating indicates faulty relays or undersized cables. Document performance; fluctuations signal pending failures.
Diagnosing Pulling Gear Switch Problems
Check the control module connector for corrosion first–oxidized pins cause intermittent failures. Use a multimeter in continuity mode to test each terminal against the solenoid connections. Voltage should read 12V at the input terminal when activation occurs; if not, inspect the fuse panel or power distribution block for blown circuits. Replace any damaged connectors with heat-shrink terminals to prevent moisture ingress.
Testing Current Flow and Ground Integrity
Attach a clamp meter to the positive lead while engaging the system–current draw should spike briefly then stabilize. If readings fluctuate wildly, the motor brushes or internal windings may be failing. Verify ground paths by probing between the chassis and housing; resistance above 0.5 ohms indicates a poor connection. Clean rusted mounting points with a wire brush and apply dielectric grease to prevent future corrosion.
Inspect the low-voltage side for signal drops–connect a test light to the trigger circuit and observe brightness changes. Dim or flickering output suggests a weak battery, corroded relay socket, or chafed wire insulation. Trace each conductor visually from the dashboard switch to the actuator, squeezing gently to detect hidden breaks. Re-route any compromised sections through conduit to avoid pinch points near suspension components.
