Step-by-Step Guide to Building Your Own RF Remote Control Circuit
For a robust short-distance command link, start with a 433 MHz RF module pair (e.g., FS1000A transmitter and XY-MK-5V receiver). These components handle data rates up to 4 kbps and operate reliably within 30–100 meters without obstructions, making them ideal for DIY automation projects.
Connect the transmitter’s data pin to a microcontroller’s PWM output–an Arduino Nano or ESP8266–to encode button presses into modulated pulses. Use a HT-12E encoder for analog simplicity, feeding its 4-bit address and 4-bit data inputs from pushbuttons or sensors. Power both modules with 5V DC, adding a 1000 µF capacitor across the receiver’s power pins to filter noise.
Avoid interference by soldering 17 cm copper wire antennas to both boards (λ/4 for 433 MHz), ensuring consistent signal strength. For longer ranges, replace the ISM-band modules with LoRa transceivers (e.g., RFM95W), which support 2–15 km at lower power but require SPI configuration. Test the link with a basic sketch sending periodic ASCII characters–if the receiver prints garbled data, reduce baud rate or shield cables with aluminum foil.
To control high-voltage loads, isolate the receiver’s output using a 5V relay module or a TLP291-4 optocoupler. Limit inrush current with a 1N4007 diode across inductive loads (e.g., motors). For battery-powered setups, switch to 315 MHz modules–they consume ~30 mA during transmission but halve standby current with a deep-sleep circuit (e.g., MOSFET-controlled power rail).
Debug signal integrity using an oscilloscope or logic analyzer. Check for spikes on the data line–add a 1 kΩ pull-down resistor if false triggers occur. For multidirectional setups, assign unique address bits (via DIP switches) to each unit, preventing cross-talk. Document the pin layout: encoder pins 1–8 for address/data, pin 17 for transmission enable, and pin 18 for VCC.

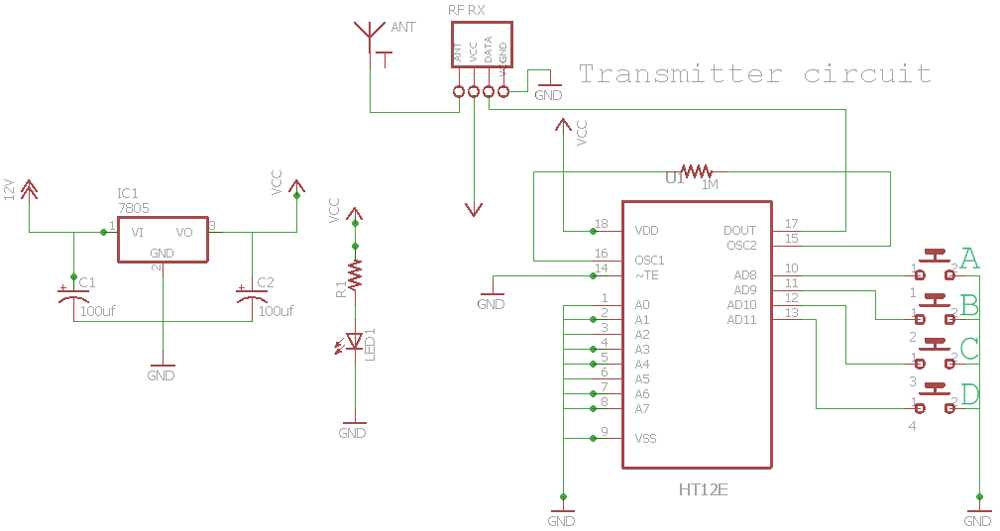

Designing a Transmitter-Receiver Schematic for Short-Range Signal Transmission
Start with an HT12E encoder paired with a 433 MHz RF module for data transmission–this combination ensures reliable encoding of 4-bit parallel input into serial signals. Match it with an HT12D decoder on the receiving end to reconstruct the original data stream. Use a 3V power supply (e.g., CR2032) for the handheld unit and a 5V regulator (7805) for the base station to maintain signal integrity.
Critical component pairing: The encoder-decoder duo requires matching address lines (A0–A7) for proper synchronization. Mismatched configurations will prevent signal validation. Add a 1MΩ resistor between the encoder’s OSC1 and OSC2 pins for stable clock generation, and a 50kΩ equivalent on the decoder side for synchronization. For the RF link, select modules with a built-in SAW resonator (e.g., STX882/STR882) to minimize frequency drift.
Optimizing Signal Range and Robustness
Position the antenna (17.3 cm quarter-wave for 433 MHz) vertically and away from metal surfaces to avoid signal attenuation. For indoor use, expect a 30–50 meter range; outdoors with line-of-sight, extend this to 100+ meters by adding a 100µF capacitor across the RF module’s power pins to filter noise. Replace standard jumper wires with stripped coaxial cable for the antenna connection to reduce interference from nearby electronics.
Power-Saving and Error Handling
Integrate a momentary pushbutton with a 10kΩ pull-down resistor for each channel to trigger data bursts only during key presses, cutting idle power consumption to microamp levels. For error resilience, implement a 3-second timeout on the decoder: if no valid signal arrives, default to a fail-safe state (e.g., turning off all outputs). Use a Schottky diode (1N5817) at the power input to protect against reverse polarity without introducing significant voltage drop.
Core Parts for a Homemade Signal Transmission System
Start with a 433 MHz RF transmitter-receiver pair. These modules are low-cost (FS1000A) draws 12V at peak transmission, while the receiver (e.g., XY-MK-5V) needs 5V regulated input. Pair them with an HT12E encoder (transmitter side) and HT12D decoder (receiver side) to convert parallel data (e.g., button presses) into serial signals for transmission. This setup supports 4-bit data transmission–enough for 16 commands–but requires a shared address byte (8 bits) between encoder and decoder to prevent interference.
Power requirements vary by component. The transmitter needs a stable 12V source, such as a 9V battery with a 7812 voltage regulator, to avoid signal degradation. The receiver, however, is less tolerant–use a 5V linear regulator (LM7805) or a USB power bank to prevent noise from corrupting the weak incoming signals. For mobile designs, add a 220 μF capacitor across the power terminals to smooth voltage spikes, especially if using motors or relays as outputs. Avoid cheap switch-mode supplies; their high-frequency noise can swamp the receiver’s sensitivity (typically -105 dBm).
Key Component Specifications
| Component | Model | Voltage Range | Current Draw | Notes |
|---|---|---|---|---|
| RF Transmitter | FS1000A | 3–12V | 20–40 mA | Antenna: 17.3 cm wire (optimal length) |
| RF Receiver | XY-MK-5V | 5V | 4 mA (idle) | LO (Local Oscillator) pin must be grounded |
| Encoder | HT12E | 2.4–12V | 500 μA | Requires 75kΩ oscillator resistor |
| Decoder | HT12D | 5V | 1 mA | 1.1MΩ oscillator resistor |
| Voltage Regulator | LM7805 | Input: 7–30V | Output: 1A max | Add 0.1 μF caps on input/output for stability |
For the input interface, use momentary pushbuttons or a 4×4 matrix keypad. Connect buttons directly to the encoder’s data pins (D0–D3), ensuring each pin has a 10kΩ pull-down resistor to prevent floating inputs. On the receiver side, decode outputs can drive BC547 transistors or 5V relays to switch higher-current loads (e.g., LEDs, motors, or mains devices). For relay control, add a flyback diode (1N4007) across the coil to protect the decoder’s output pins from voltage spikes. Avoid using the decoder’s VT pin for switching; it’s a validity flag, not a power output.
Prototyping starts on a breadboard with short jumper wires (under 10 cm) to minimize noise pickup. Keep the antenna vertical and away from metal objects or other RF sources (Wi-Fi routers, microwaves) to maintain a 50–100 meter range outdoors. For PCB etching, use ground plane techniques beneath the receiver module to shield it from interference. If range drops unexpectedly, replace the default wire antenna with a ¼-wave monopole (17.3 cm for 433 MHz) or a coiled wire (10 turns around a 3 mm former) to match impedance. Test transmissions with a logic analyzer or cheap oscilloscope–encoders should emit clean 12-bit frames (8-bit address, 4-bit data) at ~1–2 kHz.
Debugging Common Issues
If signals fail to transmit, verify these checks first:
- Oscillator resistors: 75kΩ (encoder), 1.1MΩ (decoder). Wrong values cause erratic framing.
- VT pin: Connect an LED here to confirm reception. No blink = address mismatch or weak signal.
- Power separation: Receiver’s 5V must be isolated from transmitter’s 12V to avoid noise.
- Transmission protocol: Encoder sends 12 bits per frame; verify with a scope on the transmitter’s DATA pin.
For persistent issues, swap modules–cheap receivers often fail silently. Replace suspect units rather than re-soldering connections.
Step-by-Step Assembly of Signal Emitter and Sensor Pair
Begin by soldering the 433 MHz RF module’s VCC pin to a 5V power source–verify stability with a multimeter to avoid voltage drops exceeding 0.2V. Ground the module’s GND pin directly to the primary ground plane, ensuring a trace width of at least 1mm for heat dissipation. Connect the DATA pin to a 10kΩ pull-up resistor tied to VCC, then route it to the microcontroller’s GPIO (e.g., ATtiny85 pin PB3). For the sensor module, mirror this setup but substitute the pull-up with a 4.7kΩ resistor on the DATA pin, wired to an interrupt-capable input (e.g., Arduino Nano D2). Avoid shared ground loops by isolating emitter and sensor grounds until final integration.
Align antenna placement before enclosure assembly: extend a 173mm solid-core wire vertically from the emitter’s ANT pad, stripping insulation only at the contact point–insulation interference degrades range by up to 30%. On the sensor, use a coiled 68mm wire for compact installations, ensuring clearance from metallic surfaces (minimum 2cm). Program the emitter first with short-duration bursts (50ms on, 200ms off) to test transmission fidelity; monitor sensor output via serial (baud 9600) for consistent pulse detection. Final calibration requires incremental power adjustments–increase emitter supply to 6V if signal integrity falters beyond 15 meters, but add a 1N4007 diode in series to protect downstream components from backflow.
Coding Guidelines for Microcontroller Integration in Transmitter Assemblies
Define interrupt service routines (ISRs) with minimal execution time–target under 50µs for 8-bit systems. Prioritize hardware-specific flags over software counters to reduce jitter in signal handling. Example: use INT0 on AVR for edge-triggered inputs instead of polling loops.
Implement state machines with a dedicated transition table. Encode states as 8-bit integers when possible to conserve memory. Avoid recursive functions–stack depth on Cortex-M0 cores peaks at 32 levels in most implementations. Document each state’s expected exit conditions directly in the header file.
Use compiler-specific pragmas to enforce data placement. Align critical variables–like timer configurations–to 32-bit boundaries with __attribute__((aligned(4))) for ARM thumb code. Keep calibration constants in flash, not RAM, to prevent corruption during brown-out events.
Adopt logarithmic scaling for analog inputs to minimize quantization errors. Map 10-bit ADC readings to 8-bit outputs using uint8_t value = (log2(raw) * 255) / 10. Verify saturation bounds with worst-case temperature drift simulations–typically ±2 LSB at 125°C.
Restrict dynamic memory allocation to initialization phases. Prefer static arrays sized for worst-case payloads. If dynamic buffers are unavoidable, implement a custom allocator with fixed 16-byte blocks to prevent fragmentation on PIC18 architectures.
Encode command sequences as bitfields. Reserve the upper nibble for function identifiers, lower nibble for parameters. Example: 0xA5 = toggle relay 5. Validate checksums with CRC-8 before processing–polynomial 0xD5 yields optimal error detection for 6-byte packets.
Store firmware updates in dual-bank flash partitions. Use a bootloader occupying no more than 4KB. Trigger swaps only upon verifying signature match–ECDSA-256 reduces brute-force vulnerability by 14 orders of magnitude compared to SHA-1. Maintain a recovery counter in EEPROM to roll back after failed updates.
