Step-by-Step Guide to Connecting Two Switches to One Light
Install a three-way setup for flexibility–this allows either control point to toggle the same output independently. Begin by identifying the common terminal on both devices, typically marked with a distinct color or label like “C” or “COM.” Connect this terminal from the first unit to the power source (live wire). The remaining terminals, often labeled “L1” and “L2” or similarly, serve as travelers; link these between both units using paired conductors.
Run a separate conductor from the common terminal of the second control to the load (the fitting). Ensure the neutral wire is connected directly to the load if required, bypassing the switching mechanism entirely. Confirm all connections are tight and insulated to prevent arcing or short circuits, which can damage components or create hazards.
For safety, use a voltage tester to verify no live current remains before handling exposed wires. Label each conductor during installation to avoid confusion–travelers must match between both devices. If the circuit includes a grounding wire, bond it to the metal casing of both controls and the fixture’s housing to meet electrical codes.
Test the configuration by activating either control–it should reliably power the output on or off regardless of the other’s state. If the setup fails, recheck connections, ensuring travelers are not reversed and the common terminals align with the correct wires. Follow local regulations for conduit, junction boxes, and wire gauge to prevent overheating.

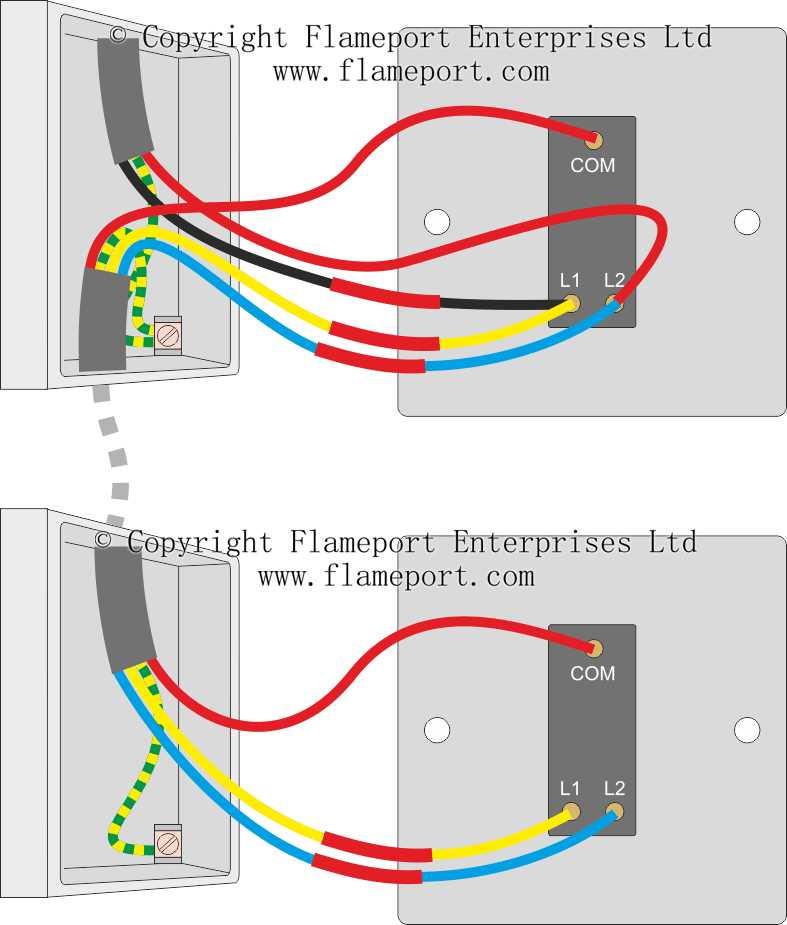

Connecting Dual Controls to a Single Fixture: Practical Schematics
Begin by running a 3-conductor cable between the two control points. Use 14-gauge wire for 15-amp circuits or 12-gauge for 20-amp setups. Connect the black wire from the power source to the common terminal of the first device, then link the red wire to its traveler terminal. At the second control point, attach the red wire to one traveler terminal and the black wire to the other, ensuring both red wires connect to corresponding terminals at both ends.
Follow this color-coded sequence for clarity:
- Black (common): Incoming live from source (first device) or outgoing to fixture (second device)
- Red/White (marked black): Traveler wires between both devices
- White: Neutral (pigtail at both devices)
- Green/bare: Ground (connect to all metal parts)
At the fixture, splice the white neutral wire from both control cables together with the lamp’s neutral. The black wire from the second device connects directly to the lamp. Verify connections by toggling both devices–the lamp should respond identically to either, regardless of the other’s position. Use a multimeter to test for 120V between common and neutral at both points before energizing.
Common Mistakes to Avoid
Never connect the common terminal of the second device to a traveler wire–this creates a short when both are in opposite positions. Avoid using 3-way devices for single-pole applications; their internal mechanisms differ. Keep traveler wires isolated–touching them together while live will trip the breaker immediately. Label all wires during installation; misidentifying travelers complicates troubleshooting later.
For circuits exceeding 100W, use a relay-based solution (e.g., Lutron’s MA-PRO) instead of direct wiring. Traditional configurations struggle with LED loads under 20W, causing flickering or failure. Always terminate unused wires with wire nuts; capped conductors prevent accidental shorts. If incorporating a dimmer, ensure compatibility with your bulb type–most modern LEDs require ELV or CL dimmers, not standard incandescent-rated ones.
Essential Equipment and Supplies for Installing Dual Controls
Start with a non-contact voltage tester (CAT III 600V minimum) to verify circuit deactivation before handling conductors. Models like Fluke 1AC-II or Klein NCVT-3 detect live wires through insulation, reducing accidental shock risks. Pair it with a multimeter (digital, 600V AC/DC range) for accurate voltage, continuity, and resistance checks.
- Wire strippers: Choose ergonomic, auto-adjusting tools like Klein Katapult or Ideal SureStrip for 12-14 AWG solid/stranded copper. Avoid cheap models–poorly aligned blades create nicks, weakening conductors.
- Needle-nose pliers: 8-inch angled jaws (e.g., Knipex 03 02 200) reach tight spaces; serrated tips grip 18-10 AWG wires without slipping.
- Screwdrivers: Flathead (3/16″ and 1/4″) and Phillips (#1/#2) insulated shafts (rated 1000V). Wera or Wiha brands resist stripping screw heads.
Use Romex® NM-B cable (12 AWG for 20A circuits, 14 AWG for 15A) with THHN/THWN-2 conductors for exposed runs. For conduit setups, pull THHN/THWN-2 individual wires: black (hot), red (switched hot), white (neutral), green/bare (ground). Terminate with lever connectors (Wago 221 series) or twist-on wire nuts (Ideal 74B) rated for the conductor gauge.
Mounting hardware requires:
- Deep switch boxes: 4″ square (for dual gangs) or 3.5″ octagonal (for ceilings), rated for 20 cubic inches per conductor.
- Device cover plates: non-metallic Decora-style for two gangs, or toggle-style if using older mechanics.
- Cable clamps: plastic (Carlon B432R) or metal (Garvin GSST) for 1/2″ NM cable or conduit.
- Grounding pigtails: 6-inch 12 AWG bare copper for bonding switches.
Select two single-pole or three-way toggles (e.g., Leviton 5603-I or Lutron Maestro MA-T51) with matching amp ratings (15A or 20A). For smart variants, ensure neutral wire compatibility–avoid dimmers unless the fixture supports resistive loads.
Step-by-Step Installation of Dual Control Points for a Single Fixture
Begin by confirming the circuit’s power is disconnected at the breaker. Verify absence of voltage using a non-contact tester on all conductors–both incoming supply lines and traveler pairs. Identify the feed cable (hot, neutral, ground) at the first control point, then trace the existing path to the second point and fixture. Use 14 AWG conductors for 15-amp circuits or 12 AWG for 20-amp circuits; matching wire gauge prevents overheating.
Route three cables between the two control devices: two travelers (red/black or marked as distinct colors), one common terminal (brass screw), and a ground (bare/green). At each device, connect:
| Terminal | Wire Color/Type | Connection Rule |
|---|---|---|
| Common (brass screw) | Incoming hot (black) or outgoing to fixture (black) | Always attach the feed wire at one device and the load wire at the other |
| Traveler terminals (dark screws) | Red + black (or two distinct colors) | Interconnect both devices; polarity doesn’t matter |
| Ground | Bare/green | Bond to metal box and device grounding screw |
Secure all connections with wire nuts sized for the conductor count–typically red for three wires, yellow for two.
Test functionality after restoring power: flip one device to confirm it toggles the fixture on/off independently, then repeat with the second device. If the circuit fails, re-check traveler continuity with a multimeter (readings should alternate 0V/120V between travelers when toggling devices). Miswired commons often cause both devices to work only simultaneously–correct by swapping the common wires at one device.
Common Errors When Installing Dual Controls for a Fixture
Misidentifying the neutral conductor leads to immediate failure. In most circuits, the neutral wire is white or gray, but older installations may use unconventional color-coding. Verify with a multimeter–zero volts between neutral and ground confirms correctness. Reversing neutral with a traveler wire in a three-way setup causes flickering and overheating. Label wires before disconnecting to prevent confusion during reconnection.
Overlooking terminal tightness creates intermittent faults. Loose screws on control devices generate heat and arc faults, damaging contacts over time. Torque screw terminals to 12–15 inch-pounds; excessive force cracks the housing. Use captive washers on back-wired terminals to ensure a lasting grip. Replace stripped or corroded screws rather than reusing them.
Incorrect jumper placement disrupts function
Connecting jumpers haphazardly between multiple toggles alters the intended circuit path. In a two-toggle setup, incorrect jumper routing can bypass one control entirely, leaving it nonfunctional. Follow manufacturer diagrams precisely–deviations often void warranties. Use stranded copper wire (14 AWG) for jumpers to handle current spikes without overheating. Secure jumpers with wire nuts rated for 600V to prevent short circuits.
Neglecting ground continuity invites safety hazards. Every metallic component must bond to the grounding system. Omitting ground wires from electronic dimmers leads to erratic behavior or shutdowns. Test continuity between ground and control device screws after installation. For metal enclosures, use green grounding screws; plastic boxes require a separate ground pigtail. Failure to ground properly risks equipment damage and shock when touching surfaces during operation.
How to Test the Electrical Connection Before Securing It
Start by verifying the power supply with a non-contact voltage tester. Hold the probe near the circuit breaker terminals and each conductor–live, neutral, and ground–before handling any components. A glowing indicator or audible alert confirms the line is live; absence means the breaker is disengaged or the tester may be faulty. Repeat this check on all exposed wires at the junction box and control points to eliminate false negatives.
Use a multimeter set to AC voltage mode (typically 200–600V range) to measure between pairs: live-to-neutral should read 110–130V, live-to-ground near identical, and neutral-to-ground close to zero. Deviations (e.g., voltage on neutral-to-ground) signal poor grounding, a floating neutral, or crossed connections. If readings fluctuate, recheck connections upstream–loose terminals or corroded contacts often cause intermittent voltage drops.
Functional Check Under Load
Temporarily activate the mechanism using a scrap wire jumper: connect the live feed directly to the output terminal while observing for sparks, arcing, or heat buildup. A faint click or smooth operation confirms the device engages correctly; buzzing, flickering, or tripping hints at mismatched amperage or faulty contacts. After verifying, restore all connections and energize the circuit fully–watch for 30 seconds to detect delayed faults.
Check each actuator position individually. For three-way setups, toggle every combination (e.g., Up/Up, Up/Down, Down/Up, Down/Down) while monitoring the fixture’s behavior. Consistent response confirms polarity alignment; erratic switching suggests reversed travelers or incorrect phasing. If a bulb flickers in certain positions, test with an incandescent–LEDs may exaggerate minor issues invisible to traditional filaments.
Finalize by performing an insulation resistance test if possible: disconnect power, isolate conductors, then measure between each wire and ground using a megohmmeter (500V scale). Minimum 1 megaohm indicates healthy isolation; lower values suggest moisture ingress, damaged sheathing, or compromised terminals. Reassemble only after confirming all metrics meet local code requirements–typically 250kΩ for residential circuits under 300V.
