Step-by-Step Guide to Wiring a Two-Way Light Switch with Diagram
Install a two-point control circuit with a neutral return to avoid voltage drops–this ensures consistent performance under any load. Use 14-gauge solid copper wire for 15-amp circuits; 12-gauge for 20-amp setups. Label each conductor at both ends before stripping insulation: line (hot), load (hot), neutral, and traveler pairs. Failure to mark wires leads to misconnections and potential short circuits.
Mount the junction boxes at heights between 48 and 52 inches above finished floor level–adjustable for accessibility but below standard door frames to prevent interference. Leave 6 inches of slack inside each box for connections; longer lengths complicate folding and increase resistance. Secure cables with clamps every 12 inches to prevent strain on terminals.
Connect the fixed hot (from the supply) to the common screw on one control. Link the load hot (to the fixture) to the common screw on the second control. Attach both traveler wires to the brass screws–their interchangeability enables operation from either point. Ground all components with a continuous 10-gauge bare wire bonded to metal boxes and switch yokes.
Test continuity before energizing: set both toggles to the off position, then verify no current reaches the load. If the circuit activates unexpectedly, disconnect power and recheck traveler connections–transposed wires are the most common error. Use a multimeter in ohmmeter mode to confirm zero resistance between travelers when toggles align correctly.
Avoid backstab terminals–they weaken over time and cause intermittent failures. Instead, loop wires clockwise around screws and tighten to 12 inch-pounds; overtightening risks damaging conductors. For moisture-prone areas, seal box entries with silicone and use waterproof covers marked “Suitable for Wet Locations.”
Dual-Control Circuit Connection Guide
Begin by identifying the common terminal on each mechanism–it’s typically marked “COM” or highlighted in a contrasting color. Connect the live feed (hot wire) to the first device’s common terminal, ensuring it’s secured with a terminal screw and stripped no more than 6mm of insulation. This wire carries the current supply directly from the breaker or fuse box.
Attach a traveler wire to the remaining terminals on both devices, using consistently colored conductors (e.g., red and black) for clarity. These wires form the interchange link, allowing either control point to toggle the circuit state. Route them through the same junction box or conduit to maintain organization and reduce electromagnetic interference.
Link the second common terminal to the load–usually a luminaire or outlet–via a dedicated conductor. Use a wire nut or push-fit connector if splicing is necessary, and wrap the connection with electrical tape to prevent accidental contact. Verify the load’s wattage rating aligns with the breaker’s amperage (typically 15A for residential circuits).
Ground both mechanisms by attaching a bare or green-insulated conductor to the grounding screw on each unit. This connection prevents voltage leaks and ensures safety during faults. For plastic enclosures, bond the ground wire to the nearest grounded metal box or conduit via a pigtail.
Test the installation by toggling each control point independently. The circuit should respond instantly, without flickering or delayed activation. If issues arise, recheck terminal tightness–loose connections are the primary cause of intermittent operation. Use a multimeter to confirm 120V (or 230V in EU/UK systems) across the travelers when the circuit is open.
For multi-location control, expand the setup by adding intermediate devices between the two endpoints. Each additional control requires an extra pair of travelers, connected in parallel to the existing links. Use 3-wire cable (plus ground) for these extensions, labeling each conductor to avoid misconnection.
Avoid mixing solid and stranded wire in the same terminal unless the mechanism specifies compatibility. Stranded wire tends to loosen over time under solid cores, leading to oxidation and heat buildup. If combining types is unavoidable, crimp a spade connector or use a wire nut with a dedicated short length of solid wire.
Seal unused terminals with wire nuts or terminal caps, even if not immediately required. This prevents accidental shorts and simplifies future modifications. Label all conductors at both control points for maintenance ease, using a consistent naming convention (e.g., “T1” for traveler one, “L” for load).
Essential Tools and Components for Dual-Control Installation
Begin with a non-contact voltage tester to confirm circuits are de-energized before handling conductors. Models like the Klein NCVT-3 detect AC voltage up to 1000V with both visual and audible alerts, reducing risk of accidental shock. Pair it with insulated screwdrivers (VDE-certified, tip sizes #1 and #2) to prevent short circuits while securing terminal connections. Include wire strippers with a 10–18 AWG gauge range; those with built-in cutters (e.g., Ideal T-Strippers) streamline work by eliminating tool swaps.
Source solid copper THHN/THWN conductors rated for 600V minimum. Use 14 AWG for 15A circuits or 12 AWG for 20A applications–verify local codes as some jurisdictions mandate 12 AWG for all residential feeds. Traveller conductors between control points must match the feed gauge. Secure connections with UL-listed lever nuts (e.g., Wago 221 series) or brass screw terminals; lever nuts reduce installation time by 40% compared to twisting and taping. Ground conductors (bare or green-insulated) should match the feed gauge.
Critical Safety and Miscellaneous Gear
| Item | Specification | Purpose |
|---|---|---|
| Fish tape | 1/8″ × 25 ft steel | Route conductors through conduit or walls |
| Circuit tracer | Sperry Instruments ET64220 | Identify breaker assignments in unlabelled panels |
| Multimeter | Fluke 117 (True-RMS) | Verify continuity and load values pre/post-installation |
| Conduit bender | 1/2″ EMT deductible | Shape protective tubing for precise angles |
Affix control devices to standard single-gang or double-gang electrical boxes; 4″ square boxes with mud rings accommodate deeper configurations if bundling conductors exceeds capacity. Use device straps with side-mounted screws to align toggles neatly. For exposed installations, select weatherproof covers (NEMA Type 3R) and silicone gaskets to prevent ingress. Avoid plastic enclosures in attics exceeding 105°F–opt for metal boxes with integral grounding.
Dual-element fuses or breakers (e.g., Square D QO series) protect against short circuits and overloads. Select a 15A fuse/breaker for 14 AWG feeds or 20A for 12 AWG. Keep spare fasteners (#6-32 machine screws, 1/2″ sheet metal screws) to replace stripped threads. A headlamp with 200 lumens output frees both hands for workspace illumination, while anti-fatigue mats reduce strain during prolonged kneeling on hard surfaces.
Step-by-Step Installation Guide for Dual-Control Circuit Configuration
Ensure the power source is disconnected at the breaker panel before handling any conductors. Use a non-contact voltage tester to confirm all terminals are de-energized. Failure to verify this step risks severe electrical shock or damage to components.
Identify the three conductors required: common (typically colored red or black), travelers (often yellow or white with colored stripes), and neutral (white or gray). Label each wire with masking tape to prevent confusion during connection. Incorrect pairing may render the system inoperable or create a short circuit.

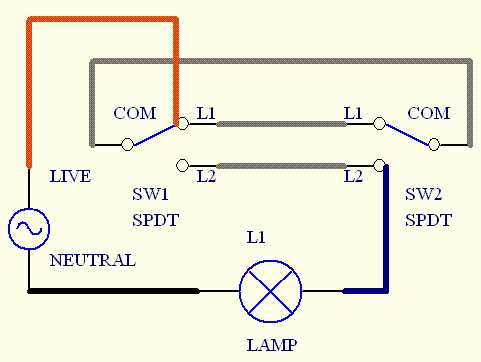

Connect the common conductor to the terminal marked COM or L on both control points. This terminal is usually darker or positioned apart from the others. Secure the connection with a screwdriver, ensuring no bare wire extends beyond the screw. Loose connections generate heat and increase fire risk.
Attach the traveler conductors to the remaining terminals, often labeled L1 and L2. Polarity does not matter, but consistency between both devices is critical–swap wires if the circuit behaves unpredictably. Use wire nuts or lever connectors for splices in junction boxes to maintain safety compliance.
Ground the installation by connecting the bare or green conductor to the metal casing of each control device and the junction box, if metallic. Omitting this step violates electrical codes and leaves the system vulnerable to faults. For plastic enclosures, ground the traveler conductors at the breaker panel instead.
Test the configuration by restoring power and toggling both control devices. Each should toggle the load independently without flickering, buzzing, or intermittent failure. If issues arise, recheck terminal connections and conductor routing–crossed wires often cause malfunction.
Enclose all splices and exposed conductors in approved junction boxes, securing covers tightly. Label the circuit at the breaker panel for future reference. Document the setup with a simple schematic, noting conductor colors and terminal assignments to simplify troubleshooting later.
Identifying Common Conductors in Dual-Control Installations
Locate the supply line using a non-contact voltage tester–this is the conductor carrying current from the breaker. In most configurations, it terminates at one control point, called the primary terminal, typically marked “COM” or “Common.” The other two terminals on each device are travelers, which interconnect both mechanisms. Trace these interlinking cables; they often share the same color-coding (red/black or yellow) but never carry continuous voltage when both toggles are in the off position.
Confirm the neutral return path if present–it’s usually bundled separately in modern installations but may be lost in older conduit systems. Use a multimeter to verify absence of potential between travelers and ground; a reading above 5V AC suggests misconfiguration. Label each conductor immediately after testing to prevent cross-wiring errors during reassembly.
