How to Wire a Two Way Switch Step by Step Guide with Diagram

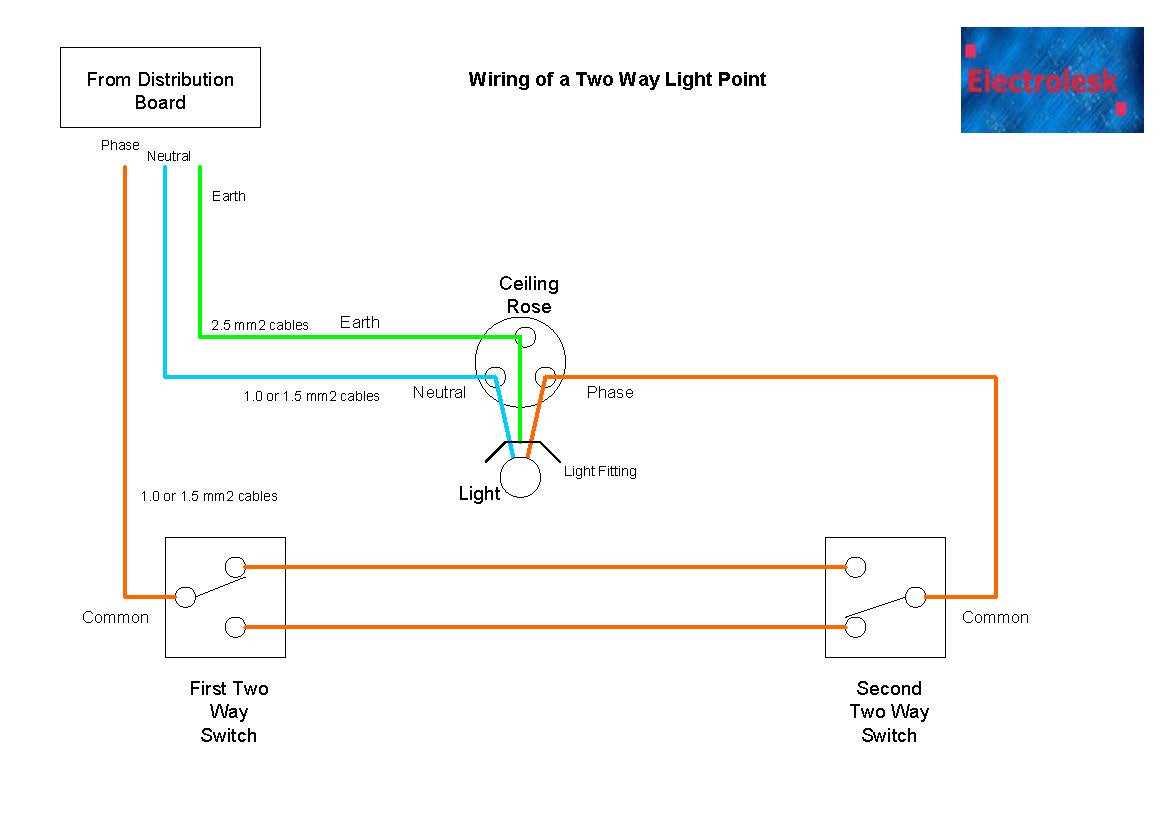

Install a dual-control circuit by connecting the common terminal of the first mechanism to the power source–typically a black or red conductor. Route the traveler wires (often yellow or brass-screwed terminals) between both devices, ensuring identical color coding at each endpoint. Terminate the second device’s common terminal to the load, such as a lighting fixture or outlet, using a matching wire gauge for the circuit’s amperage rating–14 AWG for 15-amp circuits, 12 AWG for 20-amp.
Label every conductor before disconnecting old components to prevent cross-connections. Use a non-contact voltage tester to confirm power isolation before handling terminals. Secure connections with wire nuts or lever connectors, twisting clockwise until tight; tug-test each joint to verify mechanical integrity. For multi-story installations, run traveler cables through conduit or NM cable within wall cavities, maintaining a 12-inch clearance from insulation to reduce heat buildup.
Ground both mechanisms to the electrical panel’s ground bus using a continuous bare or green conductor. In metal boxes, bond the ground to the box itself with a pigtail before attaching to the device. For three-gang boxes, stagger the traveler placement vertically to avoid overcrowding–top position for upward travel, bottom for downward. Test functionality with a multimeter: probe common to traveler terminals with power restored; toggling either device should alternate continuity between travelers and common-lead.
For dimmable setups, substitute standard devices with ELV or forward-phase models matched to the load type (LED, incandescent). Verify bulb compatibility–low-wattage LEDs may require neutral-connected dimmers. In outdoor applications, seal all entry points with silicone caulk and use weatherproof junction boxes rated IP65 or higher. For frequent reconfigurations, employ labeled terminal blocks in an accessible junction box near the midpoint of the traveler run.
Connecting Dual-Control Electrical Circuits
Begin by labeling the power source live (L) and neutral (N) wires at both control points–this prevents confusion during installation. Use a voltage tester to confirm the live conductor is de-energized before handling terminals. Secure connections with screw terminals rated for at least 10A; spring-loaded types may degrade under frequent use.
Route the common conductor from the first control unit to the corresponding terminal on the second, ensuring no exposed copper exceeds 1mm beyond the clamp. Use 1.5mm² stranded copper wire for runs under 20m; upgrade to 2.5mm² for longer distances to minimize voltage drop. Twist the ends of stranded wires before inserting them into terminals to prevent stray strands from causing shorts.
| Terminal Type | Wire Gauge (mm²) | Max Load (A) | Notes |
|---|---|---|---|
| Brass screw | 1.5 | 10 | Pre-tin stranded ends |
| Cage clamp | 2.5 | 16 | No tools needed for insertion |
| Push-in | 1.0 | 6 | Use for temporary setups only |
Identify the traveler wires–these must connect to identical L1 and L2 terminals at each control point. Use a multimeter in continuity mode to verify correct pairing before energizing the circuit. Mark traveler wires with colored sleeves at both ends (e.g., red for L1, blue for L2) to avoid miswiring during future maintenance.
Install a 5A fuse or circuit breaker on the live feed to either control unit to protect against overloads–standard residential circuits typically require 6A protection, but derate for inductive loads like motors. Ground the metal faceplates of both units using green/yellow 1.5mm² wire bolted to a dedicated earth terminal or back box; never rely on drywall anchors for grounding.
Test functionality by toggling both controls in sequence–if the load remains on when both units are in opposite states (on/off), check for reversed traveler connections. Use a non-contact voltage detector to scan for unintended live wires in wall cavities after installation; residual current can linger in improperly terminated circuits.
For dimmable setups, ensure both control units are rated for LED compatibility and match the minimum load requirements of the chosen fixture (typically 10W minimum). Avoid daisy-chaining multiple dimmable circuits on a single feed, as this can cause flickering or premature failure of control units.
Core Elements Required for Dual-Control Electrical Installation
Start by securing two SPDT (single-pole, double-throw) mechanical toggles–these serve as the primary control points. Opt for models rated at 10A or higher to handle standard residential loads without overheating. Brands like Leviton or Lutron offer durable options with screw terminals for reliable connections, reducing risks of loose wires over time.
Purchase 14-gauge or 12-gauge copper conductor cables, depending on the circuit’s amperage requirements. For 15A circuits, 14-gauge suffices, while 12-gauge is mandatory for 20A setups. Use three-core sheathed cable (live, neutral, earth) for the feed and traveler lines, ensuring compliance with electrical codes. Avoid aluminum wiring–it’s prone to oxidation and requires specialized connectors.
Include a junction box for each toggle location to house connections safely. Choose plastic or metal boxes with sufficient volume (minimum 21 cubic inches per box) to accommodate three conductors plus grounds. Metal boxes demand grounding; plastic boxes simplify installations by eliminating this step but require secure cable clamps.
Equip the setup with crimp connectors (red or blue) and wire nuts for secure splicing of traveler conductors. Avoid twisting wires by hand–use lineman’s pliers or a dedicated crimper for consistent results. For added security, wrap splices with high-quality electrical tape rated for 600V to prevent short circuits.
Install wall plates designed for SPDT toggles–single-gang plates suffice for standard U.S. configurations. Ensure plates are non-conductive (polycarbonate or nylon) and include proper cutouts for toggle levers and grounding screws. For damp locations, use weatherproof plates with gaskets to prevent moisture ingress.
Add 15A or 20A circuit breakers to the main panel, matching the conductor gauge. Dual-control setups share a single breaker; never split them across multiple circuits. Test the breaker’s compatibility with the toggle’s load–some smart toggles require neutral connections even on simple mechanical setups.
Keep voltage tester and non-contact probe on hand to verify power isolation before handling conductors. For multi-story installations, confirm the traveler conductor path avoids sharp bends or high-traffic areas where cables could degrade. Label all cables at both endpoints (e.g., “Feed,” “Traveler 1,” “Traveler 2”) to simplify troubleshooting.
Consider LED-compatible toggles if dimming is required, but ensure the model specifies low-load tolerance. Standard mechanical toggles may flicker or fail with LED bulbs below 15W. For retrofit projects, add pigtail wires to existing fixtures to avoid disturbing settled connections.
Installing a Dual-Control Electrical Setup: A Precise Procedure
First, ensure the circuit is de-energized by verifying the breaker panel. Strip 6-8mm of insulation from each conductor using wire strippers–avoid nicking the copper. Connect the common terminal (typically marked differently or darker) of the first control to the power source (live wire). Attach the traveler terminals of both devices to one another using 14- or 12-gauge cable, matching color coding for consistency (e.g., red-red, black-black). Secure connections with wire nuts, twisting clockwise until snug; tug gently to confirm they hold. Ground each unit to the circuit’s grounding bus or bare copper wire, ensuring a firm, corrosion-free bond.
Finalizing Connections and Testing
Attach the second control’s common terminal to the load (e.g., light fixture). Tuck all conductors carefully into electrical boxes, avoiding sharp edges. Re-energize the circuit and test operability: toggle each device to confirm the load responds regardless of position. If flickering or failure occurs, recheck traveler continuity with a multimeter (expected ~0 ohms between matched terminals). Label the breaker for future reference. Discard any damaged cables or loose components immediately.
Critical Errors in Dual-Control Circuit Setup
Mixing up the common terminal with traveler terminals causes immediate failure. The common terminal–often marked darker or labeled “COM”–must connect to the power source or fixture, never to another traveler wire. Reversing this links both travelers directly, bypassing the mechanism entirely. Check the device’s backplate for markings; if missing, use a multimeter in continuity mode to identify the common screw.
Skipping polarity checks on travelers leads to intermittent operation. While these conductors don’t require strict polarity, maintaining consistency (e.g., red always to the top traveler, black to the bottom) prevents confusion during future maintenance. Label both ends of each traveler wire before disconnecting anything–use masking tape and a permanent marker to note which terminal each connects to.
- Neglecting ground connections on metal boxes or switches creates shock hazards. Even if the box is grounded via conduit, attach a dedicated ground wire to the switch’s green screw. For plastic boxes, ground the switch directly to the circuit’s ground wire.
- Using incorrect wire gauge strains the circuit. A 15A circuit tolerates 14 AWG, but 20A requires 12 AWG–thicker wire has lower resistance, preventing overheating. Verify breaker ratings against wire size before proceeding.
- Securing terminals improperly causes loose connections. Wrap wire clockwise around screws, tighten firmly (15-20 in-lbs torque), and tug-test each wire. Loose travelers cause flickering lights or non-operation.
Overtightening leads to stripped screws or cracked plastic housings. Use a torque screwdriver if available; otherwise, tighten until snug, then add a quarter-turn. Avoid wire nuts on travelers–soldering or Wago lever connectors are more reliable for maintaining contact under load.
Ignoring local codes risks safety violations. Some jurisdictions require arc-fault circuit interrupters (AFCIs) for bedroom circuits with dual controls, while others mandate tamper-resistant switches in residential settings. Confirm requirements before finalizing connections to avoid costly rework.
