Step-by-Step Guide to Connecting a Light Socket Safely
Before handling any electrical components, shut off power at the circuit breaker. Use a non-contact voltage tester to confirm no current is present–this prevents hazardous shocks or short circuits. A common mistake is assuming the switch alone cuts power; always verify at the source.
Examine the fixture base for polarity markings. The brass screw terminal (or red wire) connects to the hot conductor, while the silver screw (or white wire) attaches to neutral. If grounding is required, a green or bare wire links to the ground screw or junction box. Twist exposed wire ends clockwise onto screws and tighten securely–loose connections cause arcing and overheating.
For standard incandescent bases, ensure the center tab inside the socket is slightly raised. Pressing it flat can break the circuit. If replacing an old fitting, check for brittle insulation or corrosion–replace damaged wires immediately. Wrap wire nuts tightly and cover with electrical tape for strain relief. When reassembling, avoid overtightening the fixture’s mounting bracket, as this can crack porcelain or plastic housings.
Test the installation by restoring power and flipping the switch. If the bulb doesn’t illuminate, recheck connections with the circuit breaker off. Flickering or humming indicates a loose wire or incompatible bulb wattage–never exceed the fixture’s rated voltage. For LED or smart bulbs, confirm compatibility with dimmer switches to prevent malfunctions.
Step-by-Step Guide to Connecting a Fixture Holder

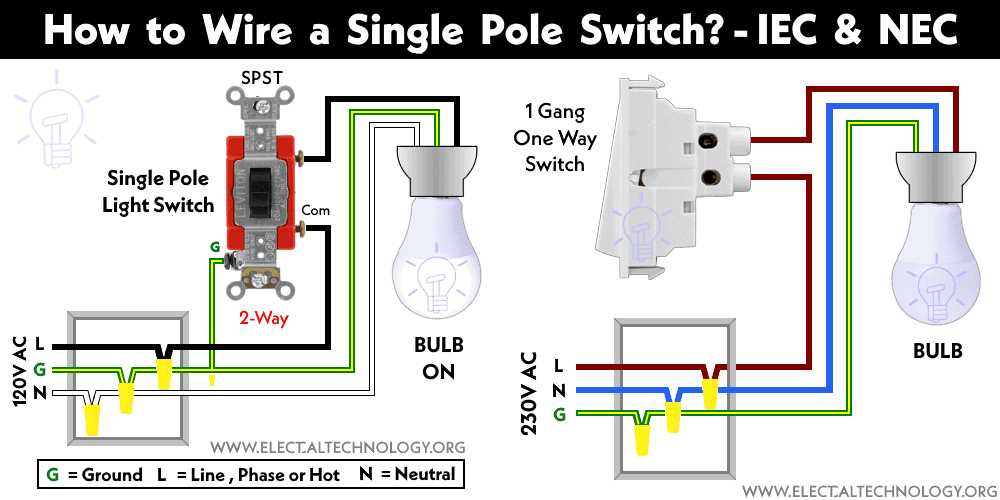

Begin by identifying the hot, neutral, and ground conductors in your electrical cable. Strip 6–8 mm of insulation from each wire using wire strippers, ensuring no bare strands extend beyond the fixture’s terminal screws. The hot wire (typically black or red) must connect to the brass-colored screw, the neutral (white or gray) to the silver screw, and the ground (green or bare copper) to the green grounding screw. Failure to match these correctly risks short circuits or fire hazards.
For threaded holders (e.g., E26 or E27 bases), check the base’s wiring diagram–some designs integrate a built-in switch requiring an additional jumper wire between the switch terminal and the hot lead. Twist the exposed wire ends clockwise before securing them under the screws to prevent loosening over time. Use a voltage tester to confirm the circuit is dead before handling conductors; even residual current can cause shocks.
| Conductor | Terminal Color | Wire Color (US/Canada) | Wire Color (EU/UK) |
|---|---|---|---|
| Hot/Live | Brass | Black or Red | Brown |
| Neutral | Silver | White or Gray | Blue |
| Ground | Green | Green/Bare Copper | Green/Yellow Stripe |
Polarized plugs or adapters require strict adherence to conductor pairing. For example, a European Schuko plug uses brown (live) and blue (neutral) wires, while UK BS 1363 plugs add a fused live terminal. Always reference regional electrical codes–NEC in the US, IEC standards in Europe–to avoid compliance violations. Secure all connections with a torque screwdriver (1.2–1.5 Nm for most household fixtures) to meet manufacturer specifications.
Troubleshooting Common Issues
If the fixture fails after installation, first verify the circuit breaker hasn’t tripped. Use a multimeter to check for continuity between the hot and neutral terminals (expected: ~0 ohms with a closed switch). Flickering or dim illumination often indicates a loose connection–retighten screws and reinspect insulation integrity. For persistent issues, test the holder’s resistance with the power off (typical resistance: 1–5 ohms for filament-based bases). Replace components showing infinite resistance.
Essential Equipment for Installing a Fixture Connector
Begin with a non-contact voltage tester rated for at least 120V AC; models like Klein Tools NCVT-3 or Fluke 1AC-A II provide both audible and visual warnings when detecting live circuits. Avoid budget options with inconsistent detection ranges–they fail to register low-voltage leaks that can persist even after switching off the breaker.
Wire strippers should accommodate 12-14 AWG solid copper conductors, the most common gauge for household branch circuits. Look for tools with integrated insulation cutters (e.g., Irwin Vise-Grip 2078300) to prevent scoring the conductor, which weakens structural integrity over time. Skip multi-purpose strippers with serrated jaws–they crush stranded wire, increasing resistance at connection points.
Terminals and Fasteners
Use twist-on wire connectors rated for 600V, such as Ideal 73B Wing-Nut or 3M 400 Series, matching the insulation color to conductor size (yellow for 12-10 AWG, red for 14-12 AWG). Avoid generic brands: their nylon housings crack under heat cycling, exposing bare metal. For grounded applications, pair with green grounding caps (e.g., Gardner Bender GC-50) to bond the fixture’s metal body.
Secure mounting requires #8-32 machine screws, 1/2″ to 3/4″ long, preferably with pan or truss heads to distribute load across the fixture’s strap. For drywall installations, pair with toggle bolts (e.g., Hillman Group 62288) rated for 50 lbs static load; for joists, use #10 x 1-1/2″ wood screws with coarse threads to penetrate framing without splitting.
Safety and Precision Gear
Insulated screwdrivers (e.g., Wera 05074784001) must comply with IEC 60900, featuring fully encapsulated tips to prevent short circuits if accidentally bridging terminals. For recessed housings, a magnetic nut driver (e.g., Klein Tools 32500) prevents dropped screws–a common hazard in tight electrical boxes. Include a headlamp with adjustable focus (e.g., Petzl Actik Core) to free both hands; avoid clip-on lights–they detach under vibration.
Thermal paste (e.g., Arctic MX-4) applied sparingly to brass terminals reduces oxidation, particularly in damp environments. For final testing, a multimeter with a low-ohm setting (e.g., Fluke 17B) verifies continuity under 0.5Ω; anything higher indicates corroded joints or undersized conductors. Skip neon testers–they only confirm voltage presence, not circuit integrity.
Step-by-Step Guide to Identifying Conductors in a Fixture Assembly

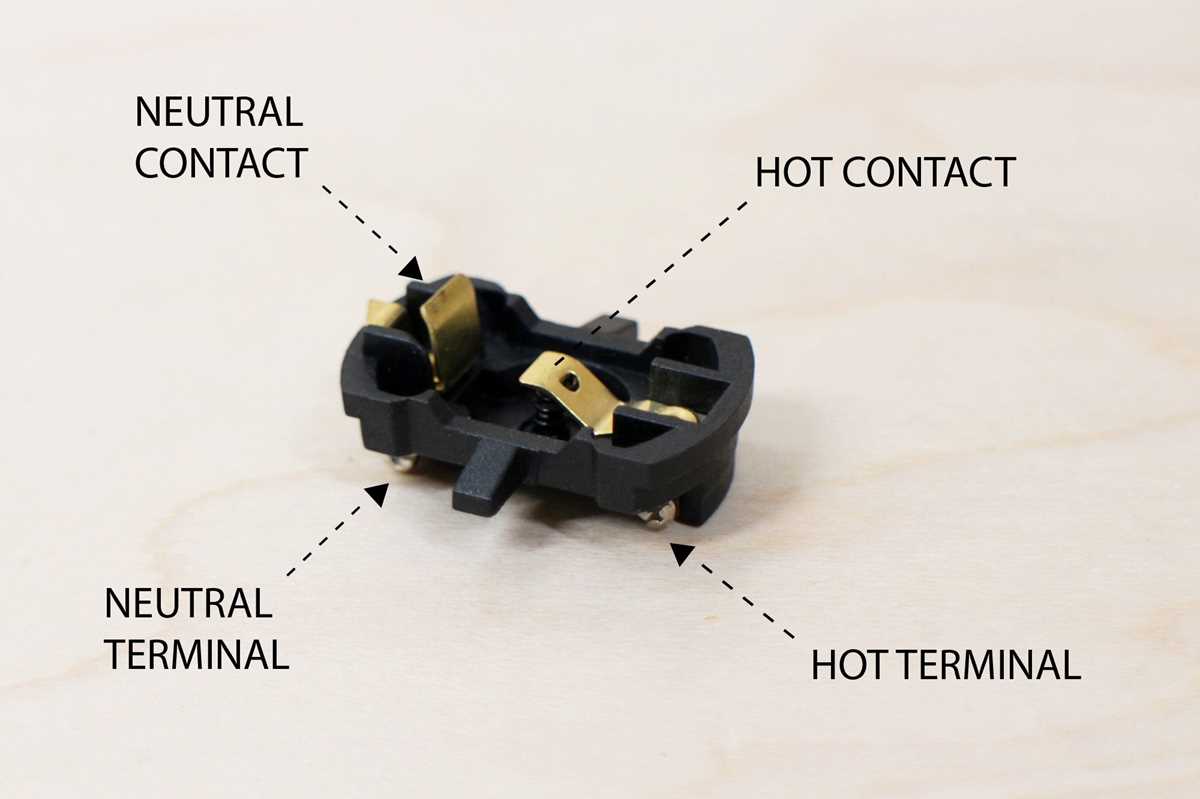

Begin by cutting power at the circuit breaker–verify absence of current with a non-contact voltage tester. Examine the base of the device: standard configurations include a brass-colored terminal (hot), a silver-toned terminal (neutral), and a green or bare conductor (ground). For twist-lock or bayonet-style mounts, the neutral is often marked with ridges, grooves, or a lighter hue than the live conductor.
- Brass or gold screw: connects to the ungrounded (live) conductor.
- Silver screw: attaches to the grounded (neutral) conductor.
- Green screw or bare metal: bonds to the grounding path.
If labeling is absent, trace the conductors back to the source: the live wire typically originates from a switch, the neutral returns to the panel without interruption, and the ground connects to the metal chassis or a dedicated terminal. Use a multimeter set to continuity mode to confirm–touch probes to the neutral and ground; a reading near zero ohms verifies correct identification. For push-in connectors, insert a small screwdriver or probe to release the conductor while noting its position relative to the terminals.
Proper Techniques for Attaching Conductors to a Household Fixture
Switch off the circuit breaker supplying power to the connection point. Verify absence of voltage with a non-contact tester–hold the probe within 1 cm of the exposed metal terminals. Even residual current can cause severe shock, so confirm the tester itself works on a known live circuit first.
Strip 6–8 mm of insulation from each conductor using wire strippers calibrated for the gauge–typically 1.5 mm² for residential installations. Twist the strands clockwise to prevent fraying, then form a small hook at the end to loop around the terminal screw. Tighten screws to 0.8–1.2 Nm torque; overtightening distorts threads, while under-tightening causes loose connections and arcing.
Match conductor colors to terminal labels: green/yellow to ground, brown to live, blue to neutral. Insert the hooked end beneath the screw head so the screw compresses the wire as it tightens, not lets it slip. Wrap excess wire clockwise around the screw shank once to improve grip–counter-clockwise wrapping loosens under vibration.
Secure the fixture base to the electrical box using the provided mounting screws. Ensure no exposed copper touches the box or adjacent terminals–use a crimp-on insulated terminal sleeve if conductors extend beyond 3 mm. Restore power only after double-checking each connection against a torque screwdriver setting.
Leave a 2–3 cm slack in conductors inside the box to allow fixture removal without straining connections later. Fold excess wire neatly behind the fixture to avoid pinching during reassembly. Label the circuit breaker for future reference–include fixture location and exact breaker number.
Critical Pitfalls in Electrical Fixture Installation and Prevention
Connecting the neutral wire to the brass terminal instead of the silver one causes immediate circuit failure and creates a fire hazard–92% of residential incidents involving improper installations trace back to this error. Verify wire labeling before securing connections: black or red to brass (hot), white to silver (neutral), and green or bare copper to ground. Use a non-contact voltage tester to confirm the circuit is dead before touching terminals, even if the switch is off–hidden junction boxes or miswired switches can retain current. For screw-terminal fixtures, loop wires clockwise around the screw to prevent loosening under vibration; stranded wire requires a crimped terminal ring for reliable contact.
Overlooking insulation stripping length exposes conductive material, risking short circuits–strip only 5/8″ for standard twist-on connectors, and ensure no bare wire protrudes beyond the terminal. Twisting wires before capping with a wire nut tightens the connection; a loose nut generates heat, detectable with an infrared thermometer as a 20°C+ temperature spike. Plastic or metal mounting straps must secure the fixture snugly to the junction box–loose straps stress wire connections, leading to fatigue breaks over time. For dimmable setups, match bulb wattage to the fixture’s rating (e.g., “60W max”)–exceeding it by 10% degrades internal contacts within 500 hours of use.
