Step-by-Step Wiring Guide for Air Compressor Pressure Switch Setup

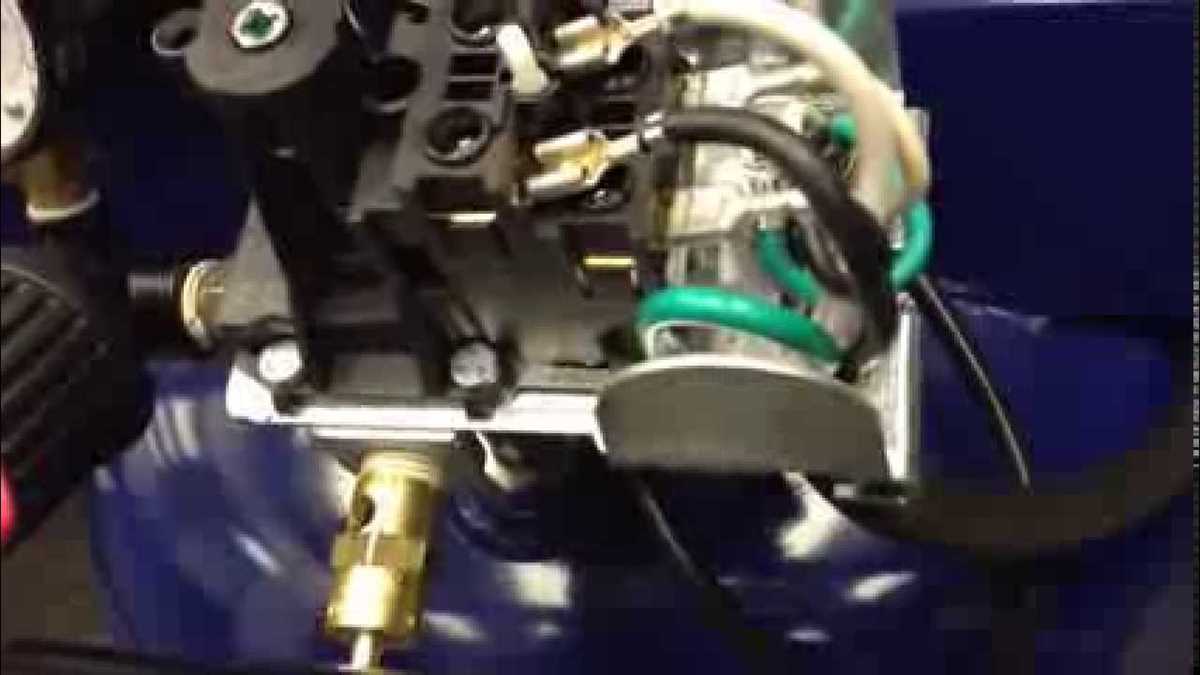

wiring air compressor pressure switch diagram

Start by identifying the power source–typically a 120V or 240V circuit depending on the motor’s requirements. Verify the voltage rating on the unit’s label before proceeding. Use at least 14-gauge wire for 120V setups or 12-gauge for 240V to handle the current load without overheating. Ensure the circuit breaker matches the wire capacity: 15A for 14-gauge and 20A for 12-gauge.

Locate the terminal block on the regulator assembly. Most models have four screw terminals labeled Line, Load, Ground, and Pilot. Connect the incoming power wires to the Line terminals, matching black to hot and white to neutral where applicable. Secure the ground wire to its designated terminal–never omit this step, as improper grounding creates a severe shock hazard.

Attach the motor’s power leads to the Load terminals, ensuring polarity matches the line side. If the system includes a pilot duty circuit (common in start/stop mechanisms), link the control wires to the Pilot terminals. Double-check all connections with a multimeter set to continuity mode to confirm no shorts or loose strands are present before energizing the system.

Set the activation threshold by adjusting the spring tension on the regulator. Clockwise rotation increases the cut-in pressure, counterclockwise lowers it. Test the adjustment by cycling the system: the motor should start at the set low-pressure point and stop at the high-pressure cutoff, typically 10–20 PSI above the start value. If the unit fails to disengage, inspect the spring mechanism and diaphragm for debris or wear.

For troubleshooting, note these failure patterns: continuous running often indicates a faulty cutoff switch, while failure to start suggests a tripped breaker, bad capacitor, or loose wiring. Always depressurize the tank and disconnect power before performing repairs. Keep a spare set of contacts on hand–corrosion or pitting on the switch surfaces is the most common issue, degrading performance over time.

Connecting a Pneumatic System Control Device

Locate the power source terminals on the device–usually marked L1/L2 for single-phase or L1/L2/L3 for three-phase configurations. Verify the voltage rating matches your power supply (common ratings include 120V, 230V, or 460V). Use appropriately rated cables: 14 AWG for 15A circuits, 12 AWG for 20A. Secure connections with ring terminals crimped to stripped ends to prevent loosening under vibration.

Attach the unloader valve lead (if present) to the designated terminal, typically labeled “UV” or “Unloader.” This ensures the motor releases trapped gas during shutdown, preventing hard starts. For systems with a thermal overload protector, connect its contacts in series with the motor circuit–refer to the schematic for precise placement (often adjacent to the main terminals).

Set the cut-in and cut-out levels before energizing the system. Turn the differential adjustment screw clockwise to increase span between activation points, counterclockwise to decrease. Start with factory settings (e.g., 90 PSI cut-in, 120 PSI cut-out) then fine-tune based on tool requirements–avoid exceeding the tank’s maximum rated pressure by more than 10%.

Test the circuit with a multimeter: verify continuity across closed contacts and infinite resistance when open. Energize the system while monitoring current draw–healthy motors typically pull 5-7x their running amps during startup. If the device cycles excessively, check for leaks or incorrect pressure settings. Label all wires with heat-shrink tubing for future maintenance.

Locating Connection Points on a Pneumatic System Regulator

Start by inspecting the controller’s side or base for engraved labels–most manufacturers mark terminals with L1/L2 for input power and T1/T2 for load connections. These engravings are often microscopic but critical; use a flashlight at a 45-degree angle to highlight them. If labels are absent, trace the conduit entry: the two larger posts typically handle incoming current, while the smaller pair manages the motor circuit.

Measure terminal resistance with a multimeter set to ohms before attaching any cables. A functional cutoff mechanism should show near-zero resistance between L1-T1 or L2-T2 when activated, and infinite resistance when tripped. This confirms internal relay operation and helps isolate faulty contact points that might falsely appear connected due to corrosion.

Identify the adjustable screw terminals–usually a single brass post with a spring-loaded clamp. These control startup and shutdown thresholds; clockwise turns increase engagement pressure while counterclockwise adjustments lower it. Avoid touching these during power-on testing as residual voltage can linger in the capacitor bank for minutes after disconnection.

Note the grounding stud, typically larger and blunt compared to live posts, often painted green or left bare metal. Secure this directly to the chassis with star washers to prevent arcing; improper grounding creates intermittent failures mimicking faulty regulation. For dual-phase units, verify phase alignment between L1 and T1 using a phase rotation meter–miswiring causes erratic cycling.

Check for auxiliary contacts if the system includes safety overrides or remote shutdown features. These appear as miniature relays adjacent to main terminals, marked AUX or NO/NC (normally open/closed). Wire these only after confirming primary connections; incorrect polarity here can bypass critical shutoff sequences.

Document each terminal’s role immediately after identification–sketching a quick reference diagram prevents costly errors during reassembly. Label wires with heat-shrink tubing rather than tape, which degrades under vibration; color-code matches work but can fade in high-heat environments. For units lacking engravings, use permanent marker on the housing near each post.

Test the differential between engagement and cut-out settings using a calibrated gauge attached to the receiver tank. Large gaps (over 30 PSI) indicate worn springs or pitted contacts requiring replacement. Small discrepancies (5–10 PSI) suggest normal wear but warrant closer inspection of the diaphragm for cracks or leaks.

Before finalizing connections, perform a manual trip test by rotating the adjustment screw to its lowest setting and briefly applying power. The mechanism should click immediately–if delayed, inspect for debris in the valve seat or burnt relay contacts. Re-calibrate using factory defaults listed on the data plate (usually 90 PSI cut-in, 120 PSI cut-out for standard industrial models) before restoring power.

Connecting Electrical Supply to the Control Mechanism: Detailed Procedure

Shut off the main breaker before handling any components. Strip the outer insulation from a 12-gauge NM-B cable to expose the black, white, and ground conductors. Route the cable through the knockout on the control box, securing it with a cable clamp to prevent strain. Connect the black conductor to the terminal labeled “LINE” or “HOT” on the upper side of the device–ensure the screw is tightened to 12 inch-pounds using a torque screwdriver. The white conductor attaches to the “NEUTRAL” terminal adjacent to the first connection, while the bare ground wire fastens to the green grounding screw or dedicated ground bus.

For dual-voltage models (120V/240V), verify the required configuration. If operating at 240V, link both incoming hot conductors (red and black) to the two “LINE” terminals, then bridge the “NEUTRAL” terminal to one of the hots with a jumper wire if manufacturer instructions specify. Omit the jumper for 120V setups. Test continuity with a multimeter–probes on the LINE and NEUTRAL terminals should read near-zero resistance when the mechanism is engaged. If reading exceeds 2 ohms, recheck connections for loose strands or improper crimps.

Re-energize the circuit only after confirming all fasteners are secure and no exposed copper is visible. Toggle the breaker and measure voltage across the LINE and NEUTRAL terminals–expected output should match the supply (115-125V or 230-250V). Attach the output cables to the “LOAD” terminals following the same torque specifications. Label all conductors with heat-shrink tubing or permanent markers to simplify future inspections.

Standard Color Schemes for Electrical Leads in Pump Control Devices

Always verify the color assignment against the manufacturer’s technical manual before making connections. Default schemes often follow these patterns:

  • Black: Typically carries the live (hot) current from the power source to the motor’s start relay or directly to the load terminal. In most NEMA-rated setups, this is the primary feed line.
  • Red: Usually serves as the secondary live lead, especially in dual-voltage equipment. Some European models may use it as a control signal for auxiliaries, such as a relay coil or pilot light.
  • White: Designated neutral in 120VAC circuits per NEC and IEC standards. Never connect this to a grounding terminal unless explicitly permitted by the equipment specifications.
  • Green (or bare copper): Mandatory earth ground. This must link to the system chassis and external grounding rod or water pipe, adhering to local electrical codes.
  • Blue: Common in industrial pumps as an additional live lead for three-phase systems or as an auxiliary switch signal in single-phase motors. Confirm with the wiring schematic.
  • Yellow: Frequently used for safety interlocks, such as a thermal overload signal or external shutdown circuit. Some manufacturers reserve it for remote pressure sensor feedback.

Regional and Manufacturer Variations

Check these deviations before assuming standard conventions:

  1. North American (NEC):
    • Black = L1
    • Red = L2 (if applicable)
    • Blue = L3 (rare in single-phase pumps)
  2. European (IEC):
    • Brown = L1
    • Black = L2
    • Grey = L3
    • Blue = Neutral (not ground)
  3. Japanese (JIS):
    • Black = L1
    • Red = L2
    • White = Neutral
    • Green/yellow stripe = Ground

Mismatched colors often indicate custom overrides for specific applications, such as:

  • Orange: High-voltage warning in some industrial pumps, or an alarm circuit output.
  • Purple: Auxiliary power for monitoring devices, like digital gauges.
  • Brown: In European single-phase setups, this replaces black as the primary live wire.
  • Grey: May denote a switched live output from a relay contact.

Critical Safety Checks Before Energizing

Perform these steps every time:

  • Use a multimeter to confirm zero voltage on all leads before touching terminals.
  • Match wire gauge to the motor’s current rating–undersized conductors create fire hazards.
  • Tighten terminal screws to manufacturer torque specs–typically 12-15 in-lbs for #14 AWG.
  • Secure all splices with UL-listed wire nuts or crimp connectors rated for the voltage and amperage.
  • Avoid daisy-chaining grounds–run a dedicated conductor from each component back to the main bus bar.

Common mistakes include:

  • Reversing red and black leads, which can damage motor windings or trip overload protectors.
  • Connecting white to ground, causing short circuits in start capacitors.
  • Ignoring yellow leads, which may disable safety cutoffs if left unconnected.

For dual-voltage pumps (120V/240V), follow this reconfiguration:

  • 120V: Connect red and black to separate live terminals; white stays neutral.
  • 240V: Join red and black into a single live input (jumper required); white becomes ungrounded but must remain isolated.

Annotate all deviations from the standard scheme immediately after installation. Label each conductor at both ends with heat-shrink tubing or permanent markers to prevent future errors during maintenance.
