Complete 7 Pin Trailer Wiring Diagram and Connection Guide for Safe Towing
Begin by matching the cable colors to their corresponding functions on both the tow vehicle and the attached unit. The standard configuration assigns yellow (left turn/brake), green (right turn/brake), brown (running lights), white (ground), blue (electric brakes or auxiliary), black (hot lead for battery or accessories), and red (reverse lights or auxiliary). Verify these pairings against your vehicle’s manual–some manufacturers swap black and blue for auxiliary power.
Strip only 6–8 mm of insulation from each wire to avoid short circuits, then crimp connectors using heat-shrink terminals for moisture resistance. Avoid soldering–vibration can weaken joints over time. Secure connections with dielectric grease to prevent corrosion, especially in wet climates. For older setups, test continuity with a multimeter; a reading above 0.5 ohms indicates a faulty ground or insufficient contact.
Route cables through a protective conduit, keeping them at least 30 cm away from exhaust manifolds and rotating components like driveshafts. Use zip ties every 20–25 cm to prevent sagging, but leave slight slack near the hitch to accommodate turning. If the attached unit has surge brakes, ensure the blue wire connects to a proportional brake controller; aftermarket controllers often require an inline fuse rated for 20–30 amps to handle sudden current spikes.

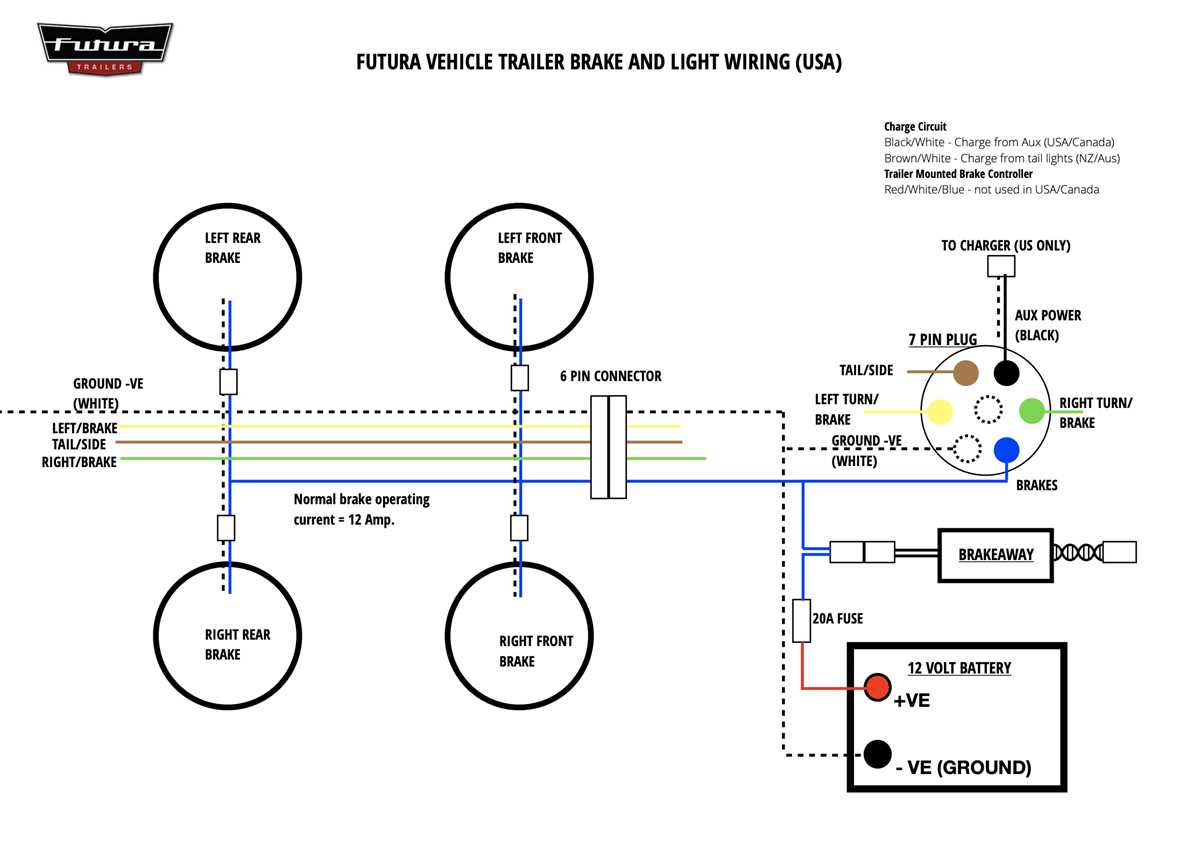

Before finalizing, activate each function separately–brake lights, turn signals, running lights–and check for flickering or dimming. If LEDs behave erratically, add a load resistor (6 ohm, 50 watt) in parallel to mimic incandescent bulbs’ resistance. For heavy loads (e.g., winches or refrigeration units), upgrade the black or blue circuits with a dedicated relay and 8-gauge wire to prevent voltage drop.
Ground the white wire directly to the vehicle’s chassis using a star washer to pierce paint and ensure low-resistance contact. Avoid grounding through the hitch ball–vibration can disrupt the connection. For off-road use, coat all connections with corrosion-blocking compound and wrap in self-fusing silicone tape for added protection against dust and moisture.
Electrical Connector Layout for Heavy-Duty Towing
Always verify the power supply sequence before connecting: white ground, brown tail lights (running), yellow left turn/brake, green right turn/brake, blue auxiliary (typically for brakes or 12V power), and red or black for battery feed. Mixing these can blow fuses or damage the tow vehicle’s circuit board.
Use a circuit tester to confirm voltage at each slot–most standard setups deliver 12V, but heavier rigs often require a relay for auxiliary circuits to prevent voltage drop over long cables. Avoid tapping into factory harnesses; instead, install a dedicated female socket with a weatherproof cover to shield connections from road debris.
For European or Australian models, note the reversed turn signal assignment (green left, yellow right) and an additional purple wire for reverse lights. Cross-compatibility adapters exist but confirm pin assignments with a multimeter–factory manuals often list incorrect configurations for aftermarket setups.
Twist each wire pair (brake/turn, ground/auxiliary) to reduce electrical interference, especially with LED lights. Secure connections with solder and heat shrink tubing rather than crimp connectors; vibrations from rough terrain loosen crimps over time, leading to intermittent failures.
Label both sides of every connection with heat-resistant tape–red for auxiliary, blue for brakes, etc.–and photograph the setup. This speeds up troubleshooting if a circuit fails mid-trip and simplifies swapping components when upgrading to a heavier towing package.

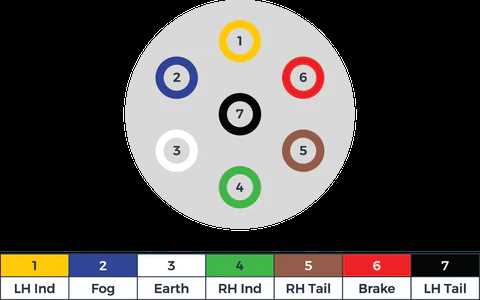

Standard Connector Terminal Layout and Cable Color Standards for 7-Way Vehicle Plugs
Always begin by matching the ground terminal–typically marked E or G–to a white or brown wire in the harness. This ensures a stable reference point for all other circuits. Verify continuity with a multimeter before proceeding.
For the running lights (tail/marker), assign the brown wire to terminal R (right side) or a similarly labeled contact. In North American configurations, this is often position 3 (SAE J560), but EU variants may differ–check local regulations. Avoid splicing this lead unless necessary; use crimped connectors rated for outdoor use.
The left turn/brake circuit (amber/yellow) and right turn/brake circuit (green) occupy dedicated slots–never combine them. Confirm that the brake controller’s output aligns with these colors, as mismatches cause hazardous flashing patterns. Test activation with the vehicle’s hazard switch to isolate faults.
Terminal marked C or 12V+ (often black or red) supplies auxiliary power for winches, interior lights, or charging. Use a 10-gauge minimum wire if drawing over 20A; include a fuse within 7 inches of the battery. For intermittent loads, add a relay to prevent voltage drop.
Reverse light activation (blue) must connect to the vehicle’s backup switch–aftermarket harnesses may require a relay if the factory circuit lacks sufficient current. Probe the wire with a test lamp before finalizing; some trucks use pulse-width modulation for this signal.
SAE J560 standardizes terminal numbering (1=ground, 2=aux, 3=tail, etc.), but aftermarket brands like Hopkins or Curt may swap positions. Always cross-reference with the manufacturer’s diagram–deviations risk damaging modules or triggering error codes on vehicles with CAN bus.
Waterproof connectors using dielectric grease, then secure the assembly with a heat-shrink sleeve. Avoid wrap-style tape; it traps moisture. Route cables away from sharp edges or exhaust heat, using loom when passing through chassis holes.
Document any custom deviations, such as adding a 7th circuit for hydraulic pumps, with a labeled schematic inside the junction box. Note wire gauge, fuse ratings, and any added relays–future troubleshooting depends on this clarity.
Assembling a 7-Conductor Towing Connector from the Ground Up
Begin by stripping the outer sheath of a 12-gauge multistrand cable to expose 15 mm of copper filaments for each circuit. Group filaments by color-coded sleeves–yellow for vehicle-side lighting, green for right turn/brake, brown for tail markers, white for ground, blue for auxiliary power–then crimp ring terminals tight enough to resist 12 Nm torque without wire shear. Secure each terminal inside a marine-grade junction box positioned 30 cm behind the tow hitch to prevent water ingress; use dielectric grease on the screws to inhibit corrosion.
| Circuit | Colour Code (ISO) | Wire Gauge (AWG) | Voltage Drop Max (mV/m) | Connector Sealing Rating |
|---|---|---|---|---|
| Left turn/brake | Yellow | 12 | 45 | IP67 |
| Right turn/brake | Green | 12 | 45 | IP67 |
| Tail lamps | Brown | 14 | 60 | IP65 |
| Ground return | White | 10 | 30 | IP69K |
| Reverse lights | Black | 14 | 60 | IP65 |
| 12 V auxiliary | Blue | 12 | 45 | IP67 |
Mount the plug shell onto a steel backing plate welded to the drawbar, aligning the indexing tab so the locking collar engages smoothly. Clip each pre-crimped lead into its corresponding slot–ensure yellow sits at the 9 o’clock position, green at 3, brown at 6, white at 12, black at 2, blue at 10, and a spare at 5–then torque each set screw to 1.2 Nm using a torque driver calibrated for nylon bushings. Apply a final glob of silicone compound around the cable gland, spin on the rear cap, and pressure-test by submerging for 30 minutes at 1 metre depth; any bubbles indicate seal failure.
Common Issues and Fixes for Vehicle-Hitch Electrical Connections
Corrosion on connectors is a frequent culprit for signal failure. Inspect the plug and socket contacts monthly, particularly after exposure to moisture or road salt. Use dielectric grease on the contacts after cleaning with a wire brush to prevent oxidation. Replace damaged or heavily corroded assemblies immediately–temporary fixes like scraping corrosion won’t hold long-term.
Intermittent or no power often stems from frayed cables near stress points. Check the harness where it bends behind the tow vehicle’s bumper or near the hitch attachment. Secure loose sections with heat-shrink tubing or replace the entire harness if insulation is cracked. Avoid wrapping exposed wires with electrical tape; it traps moisture and accelerates deterioration.
Diagnosing Signal Loss
- Test each circuit with a multimeter set to DC voltage (12V range). Probe the socket while an assistant activates turn signals, brake lights, and reverse lights–readings should match the vehicle’s battery voltage within 1V.
- If a function registers below 10V, trace the cable back to the fuse box or ground point. Poor grounding (common on unpainted metal surfaces) causes voltage drops; clean ground connections with sandpaper until bare metal is exposed.
- For LED-equipped setups, install a load resistor (50W/6Ω) in parallel with non-functional circuits–LEDs draw minimal current, and some factory systems require a dummy load to operate correctly.
Short circuits trigger blown fuses or erratic behavior. Disconnect the socket from the tow vehicle and test continuity between each contact and ground–any circuit showing continuity (other than ground) indicates a short. Isolate the faulty cable by separating it from the harness bundle, then repair or replace it. Never bypass a fuse with a higher-rated one; this risks damaging the vehicle’s electrical system or starting a fire.
Preventive Measures
- Route cables away from rotating parts (e.g., wheels, suspension) and heat sources (exhaust, engine). Use plastic conduit or spiral wrap for protection.
- Apply silicone spray to seals on weatherproof connectors. Re-check seals every 5,000 miles; environmental exposure degrades them faster than manufacturer estimates.
- For heavy-duty use (e.g., frequent towing, off-road), upgrade to 14-gauge wires and gold-plated contacts–standard 16-gauge wires overheat under prolonged loads.
